Instrumentation, Message Center, and Warning Chimes

Symptom Chart(s)

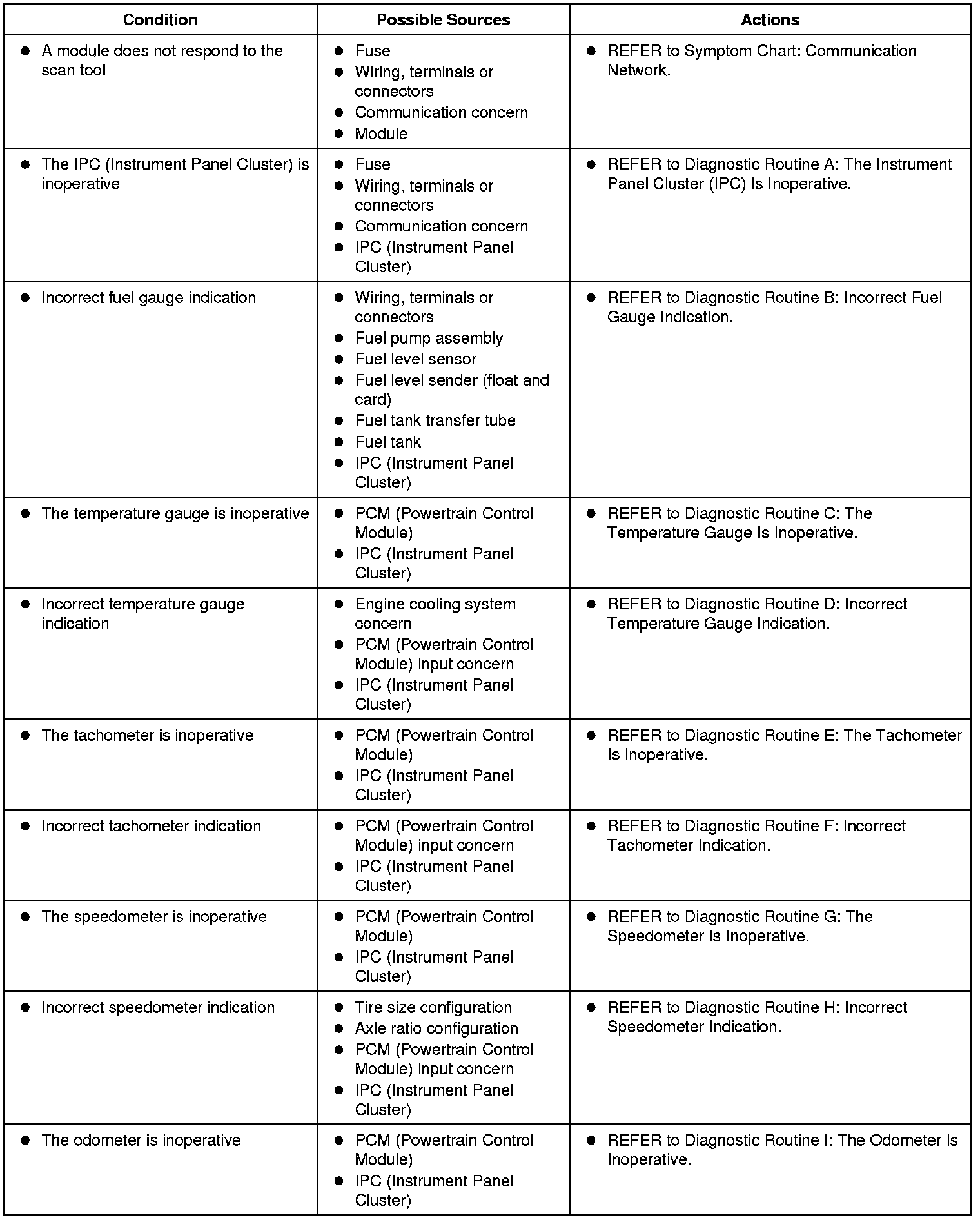

Symptom Chart: Instrument Panel Cluster (IPC)

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Fundamentals and Basics for information regarding Ford-specific diagnostic practices.

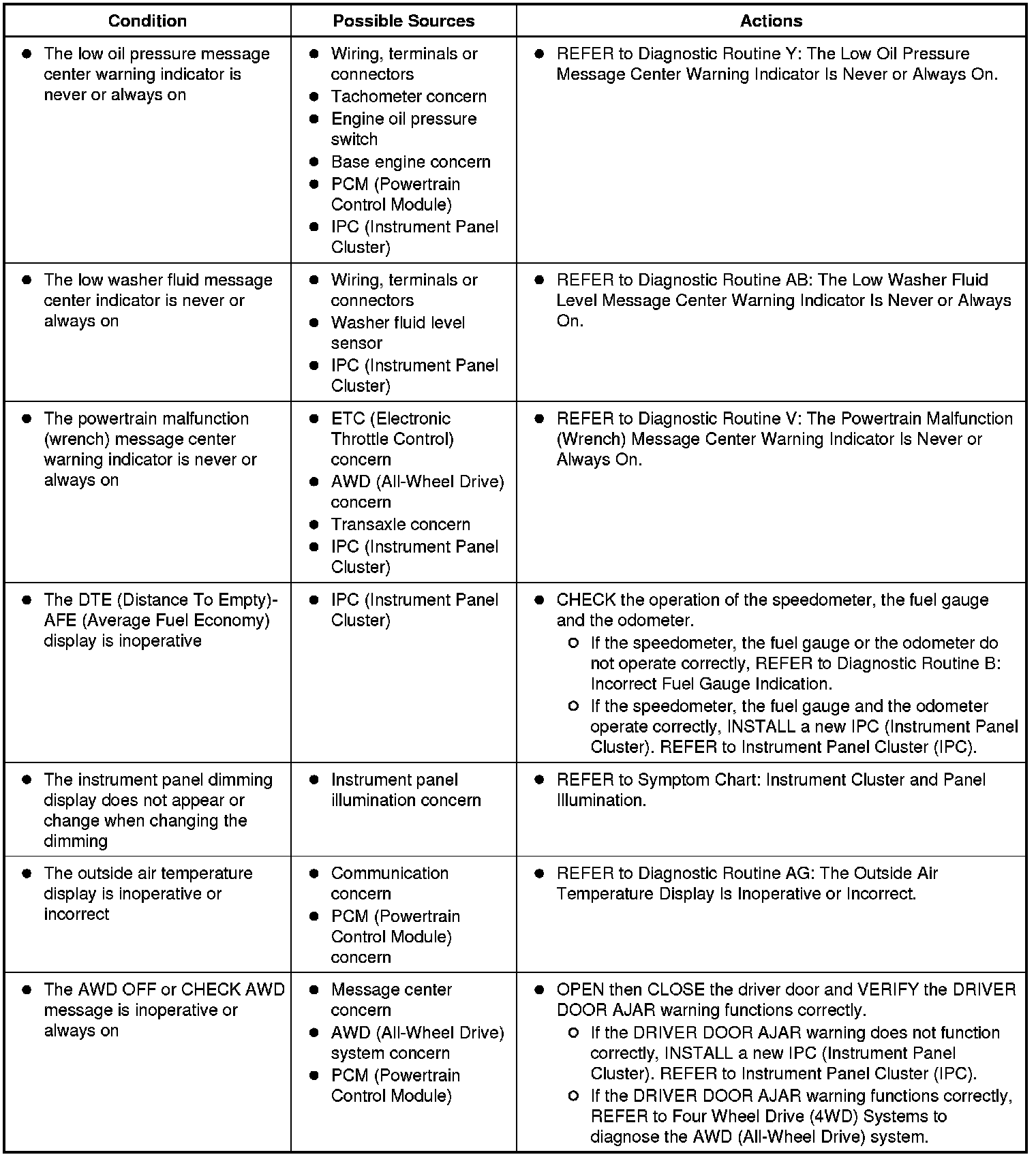

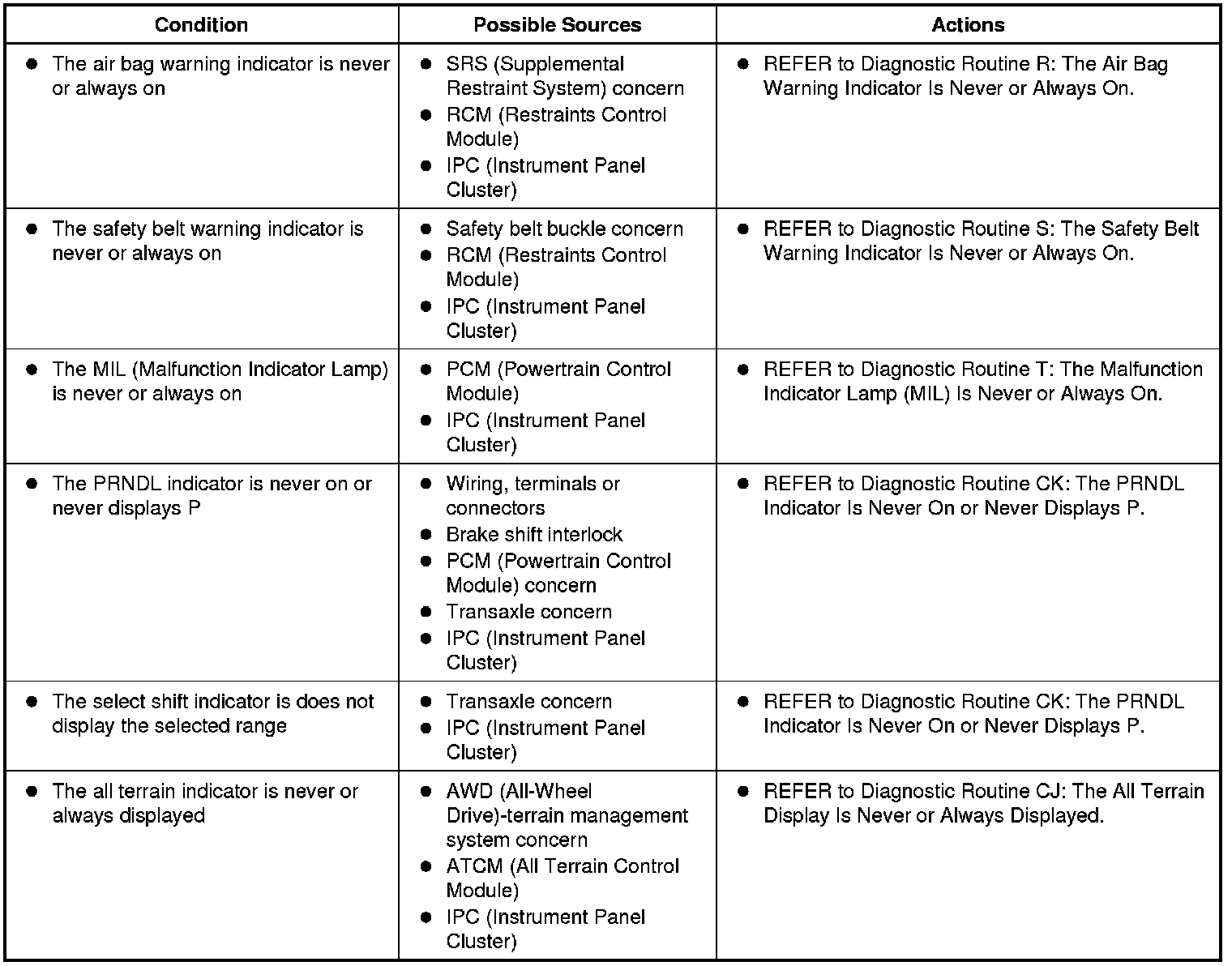

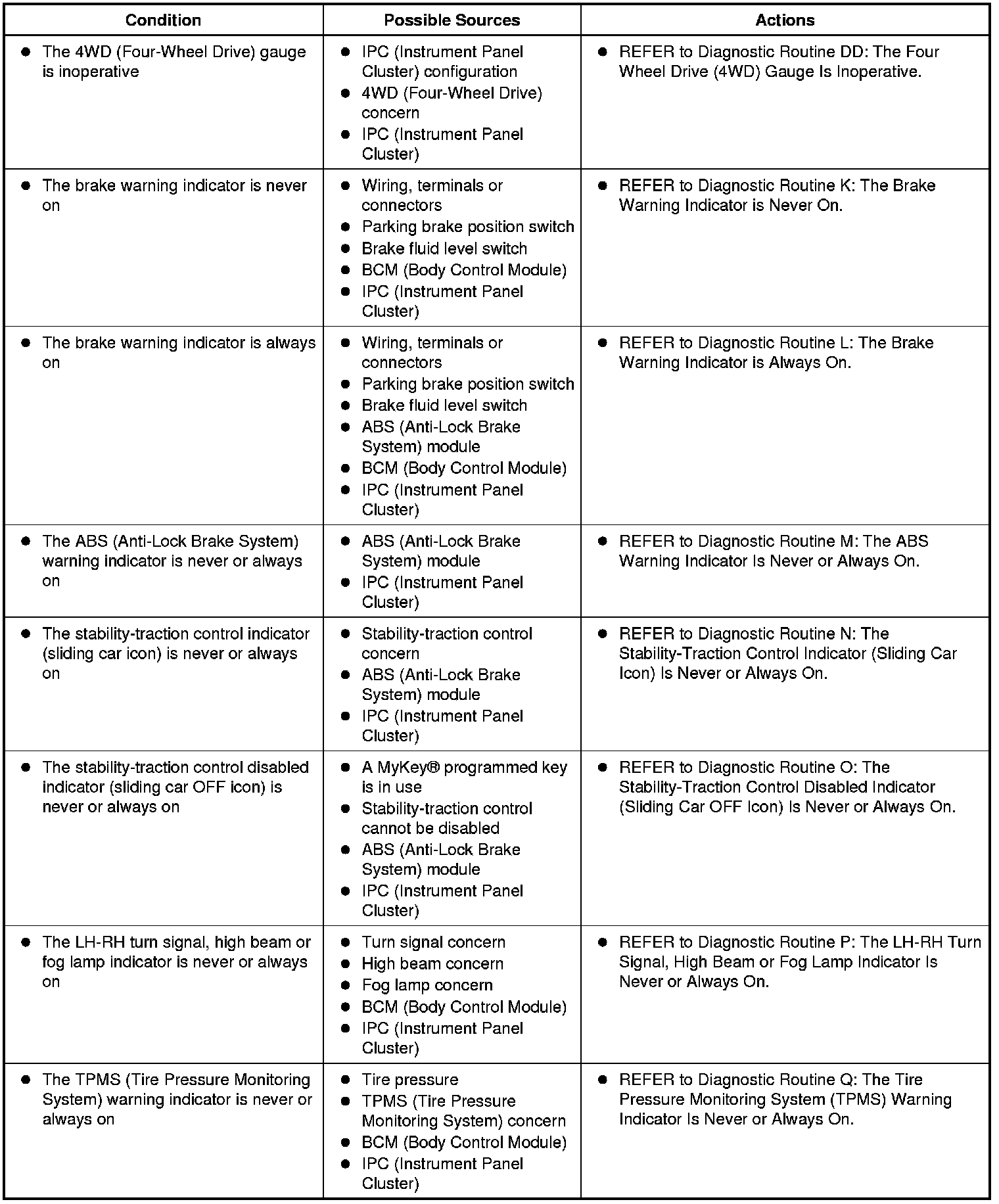

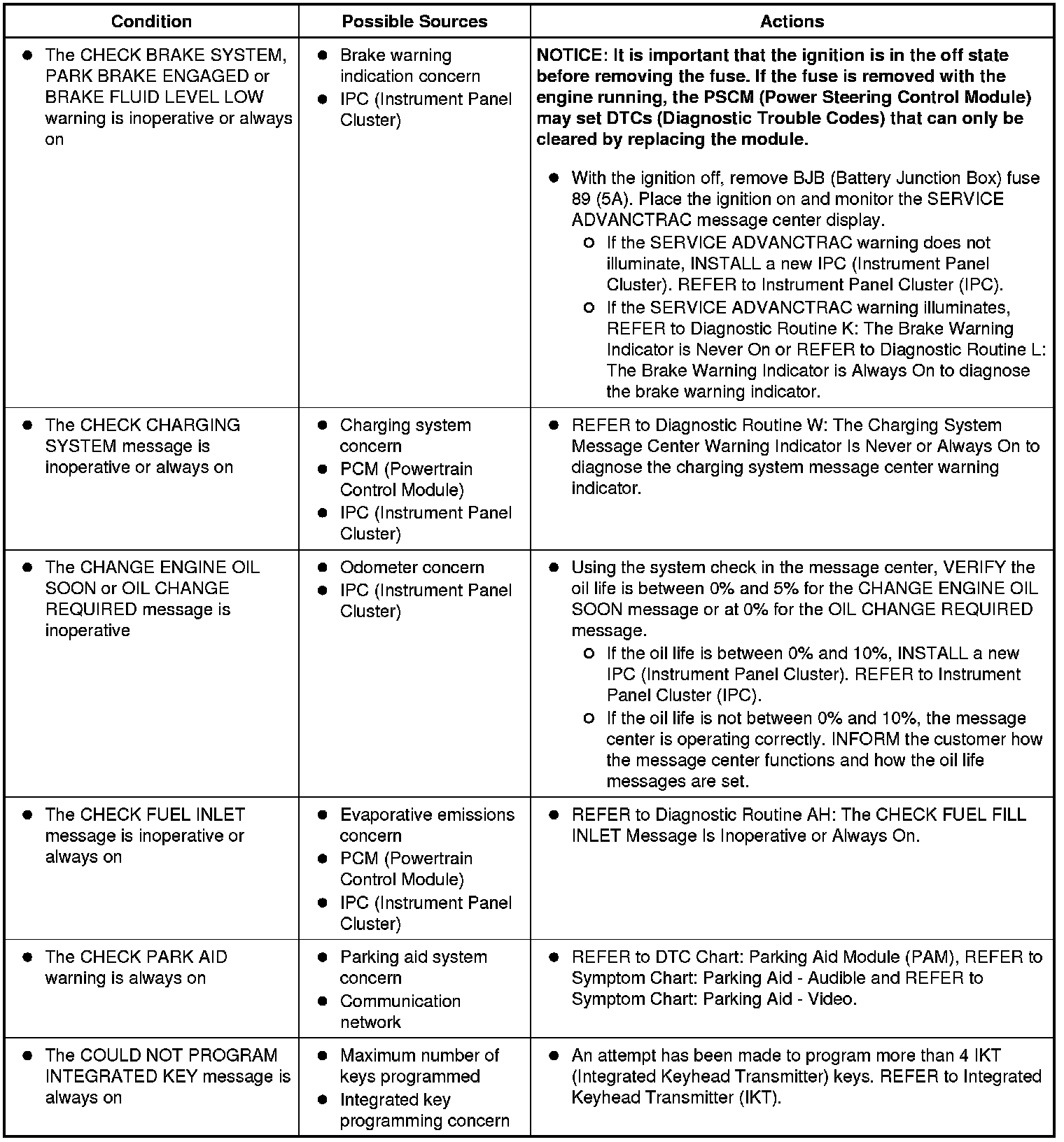

Symptom Chart














Symptom Chart: Message Center

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Fundamentals and Basics for information regarding Ford-specific diagnostic practices.

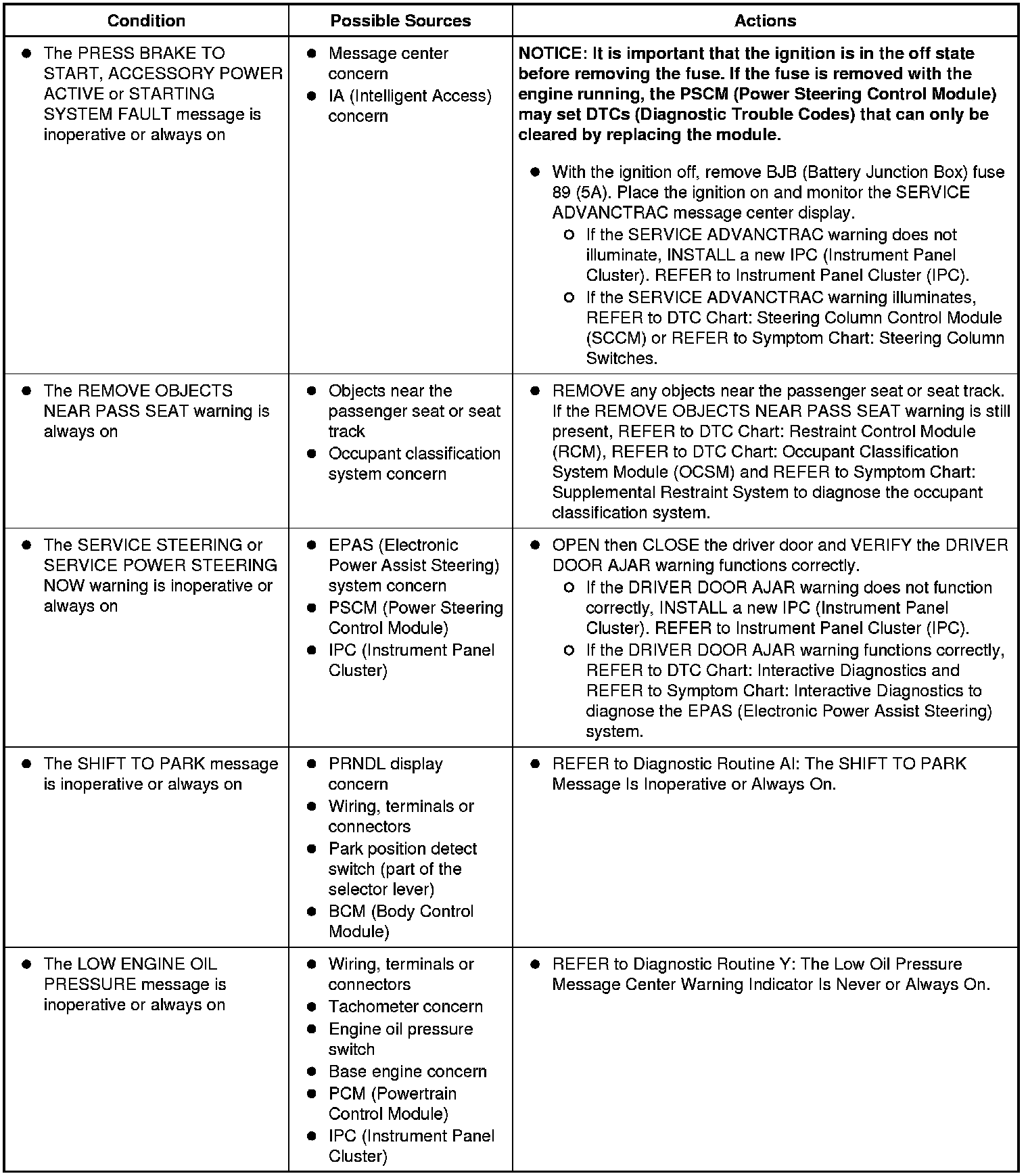

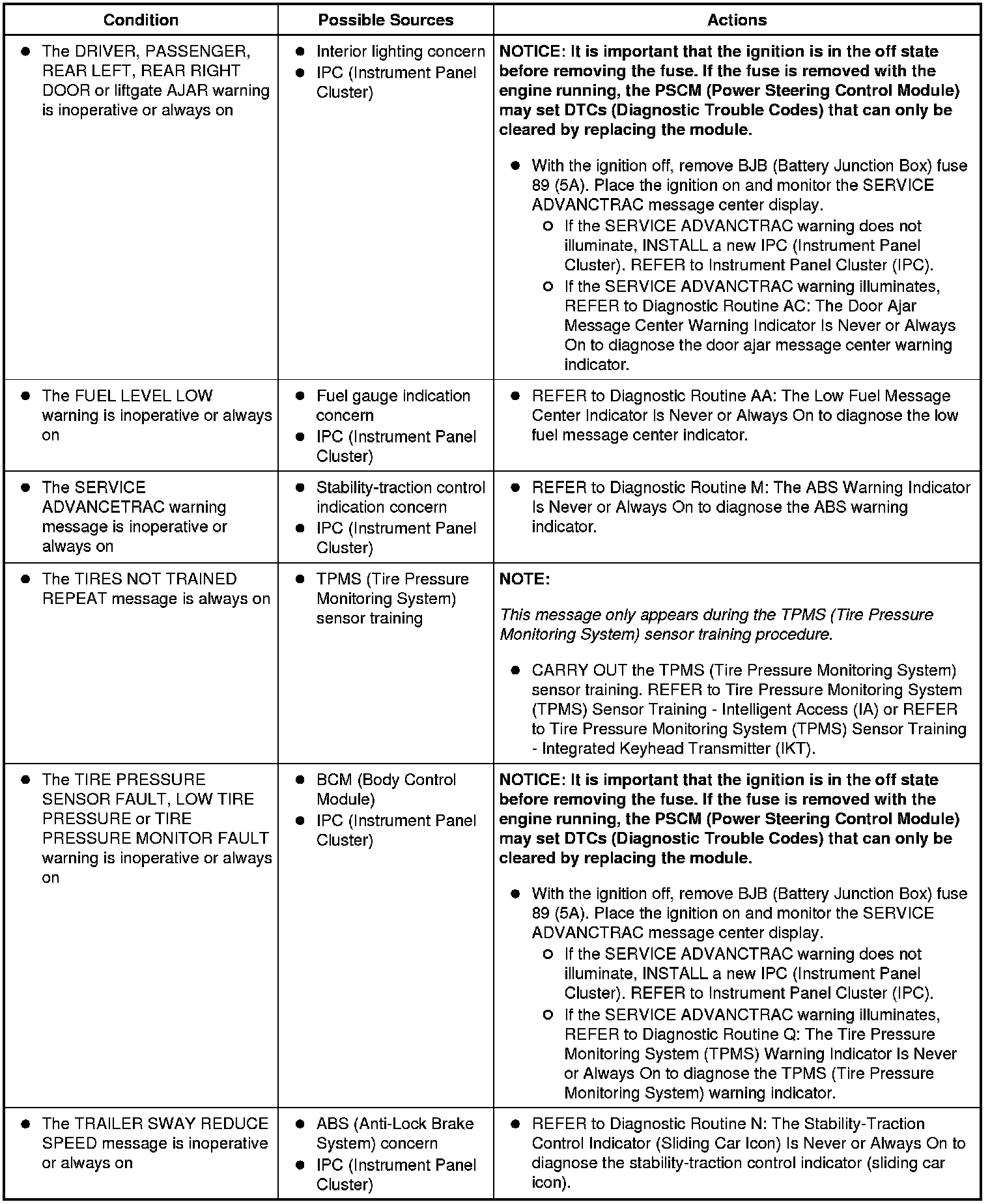

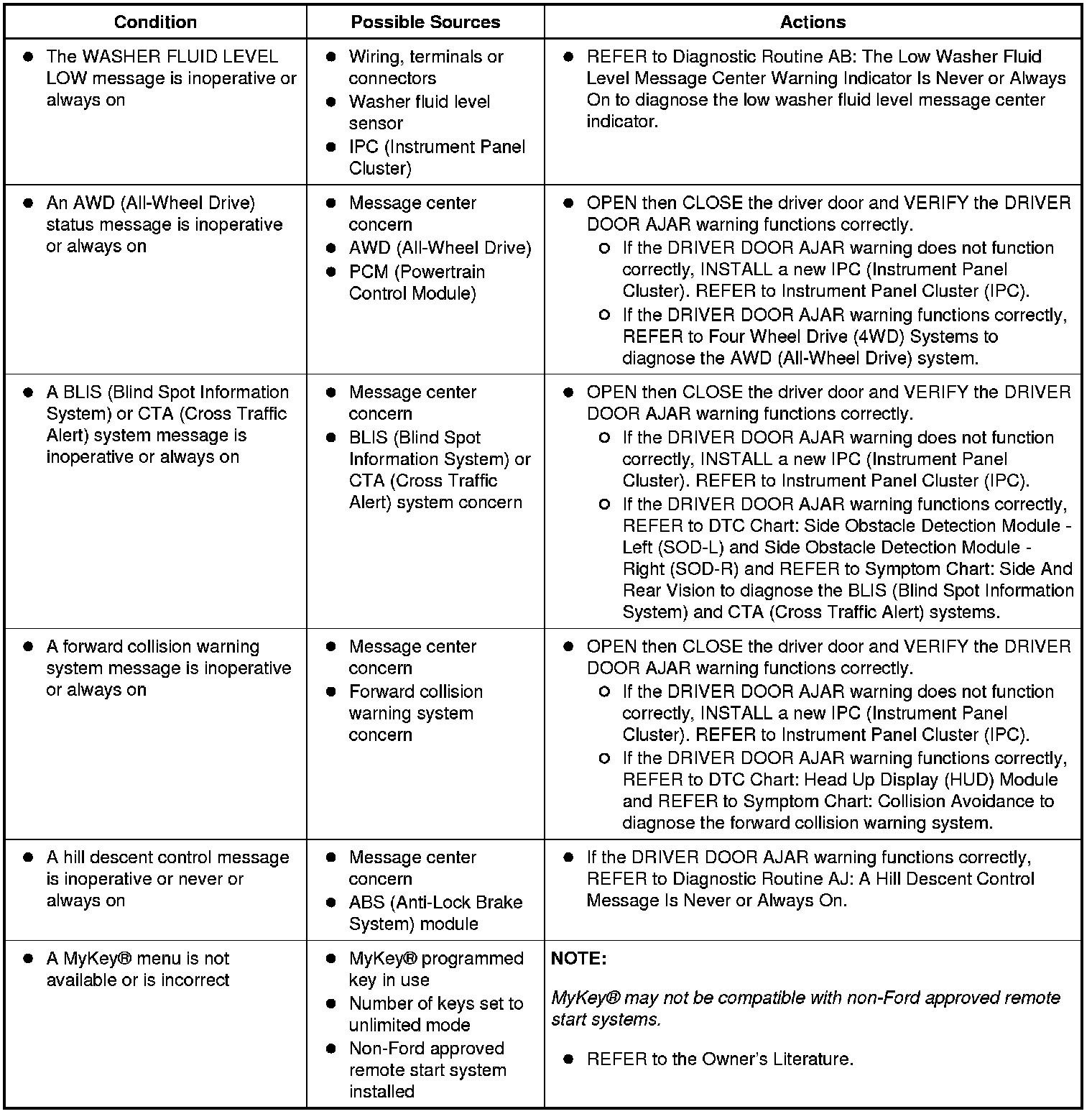

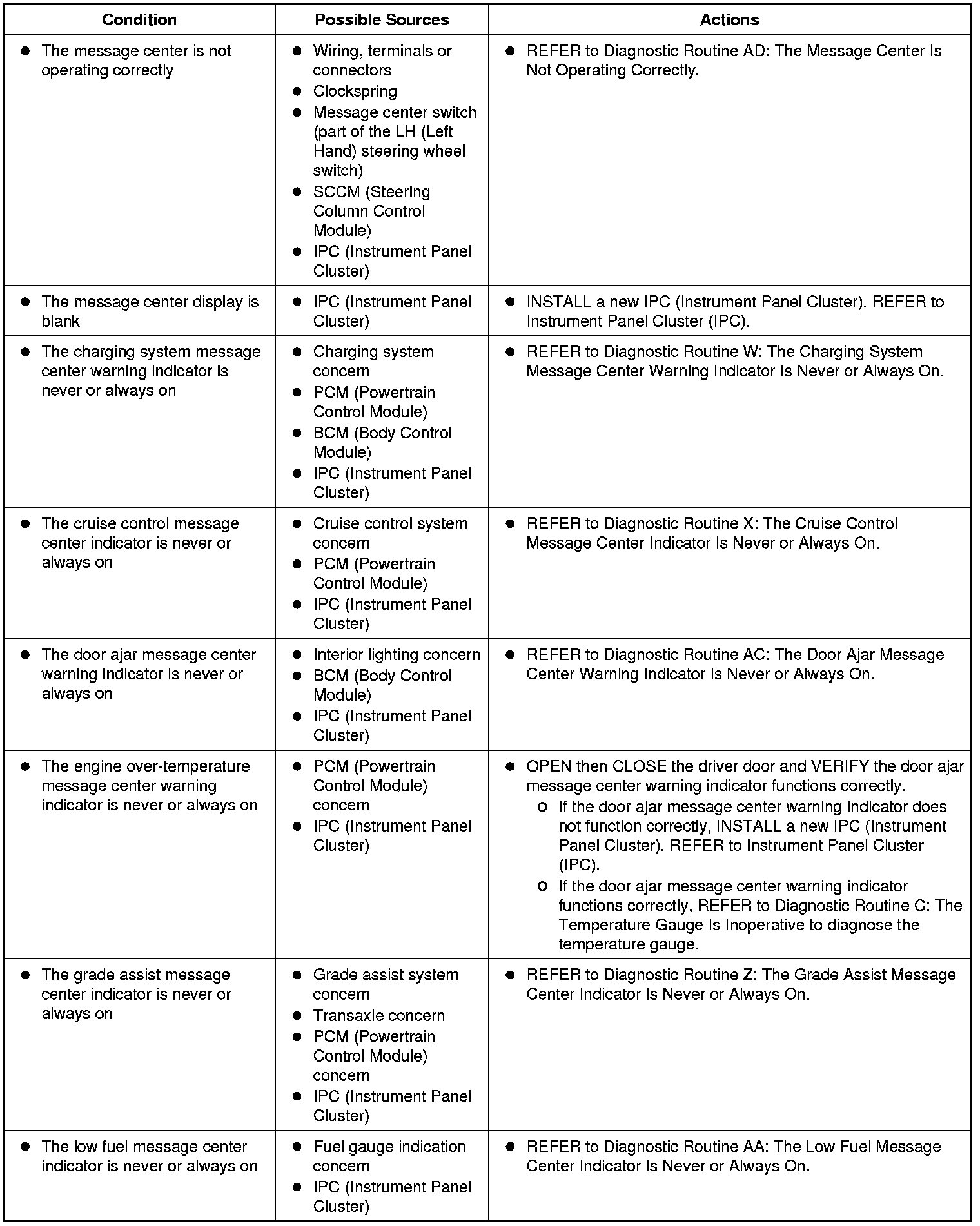

Symptom Chart






























Symptom Chart: Warning Chimes

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Fundamentals and Basics for information regarding Ford-specific diagnostic practices.

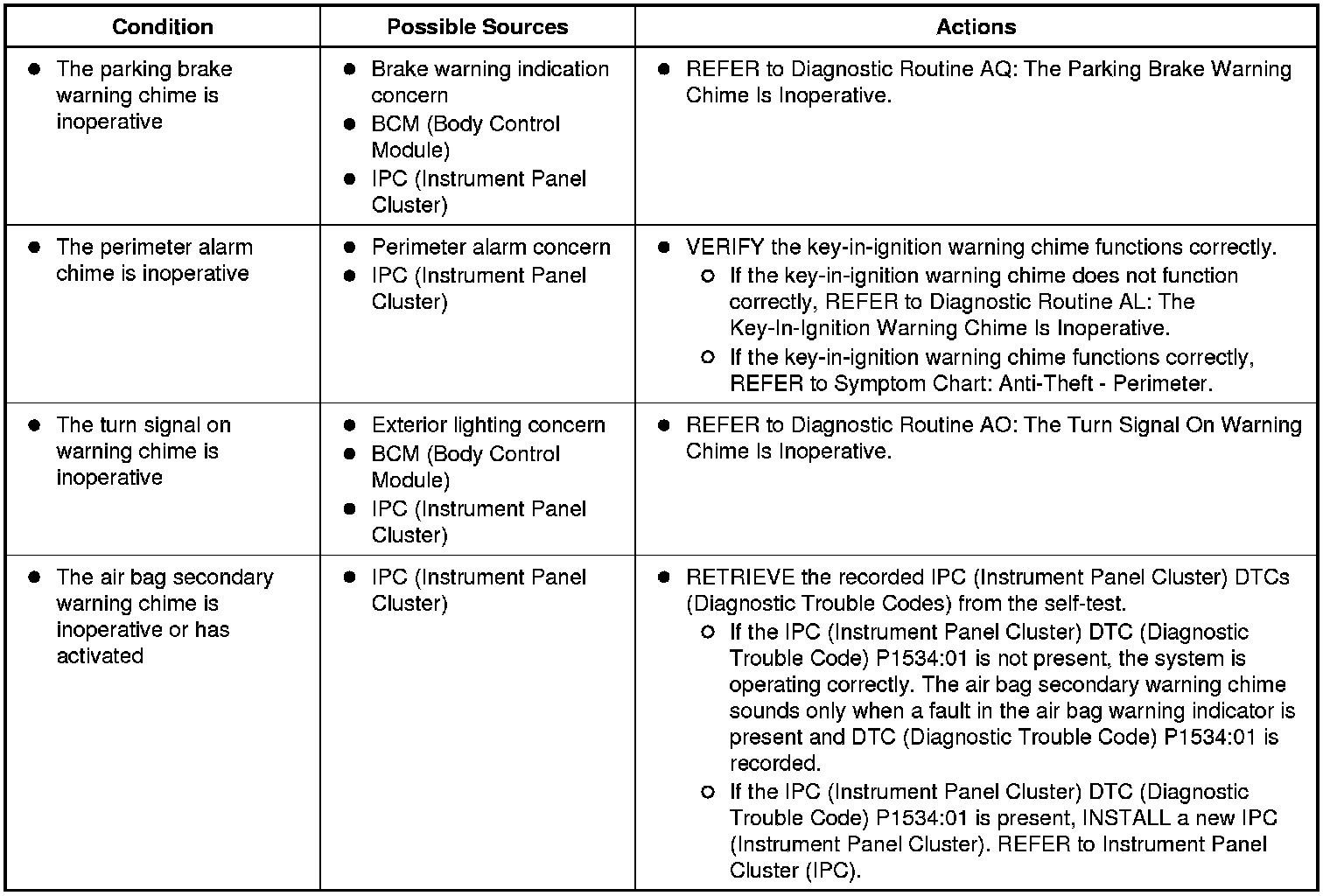

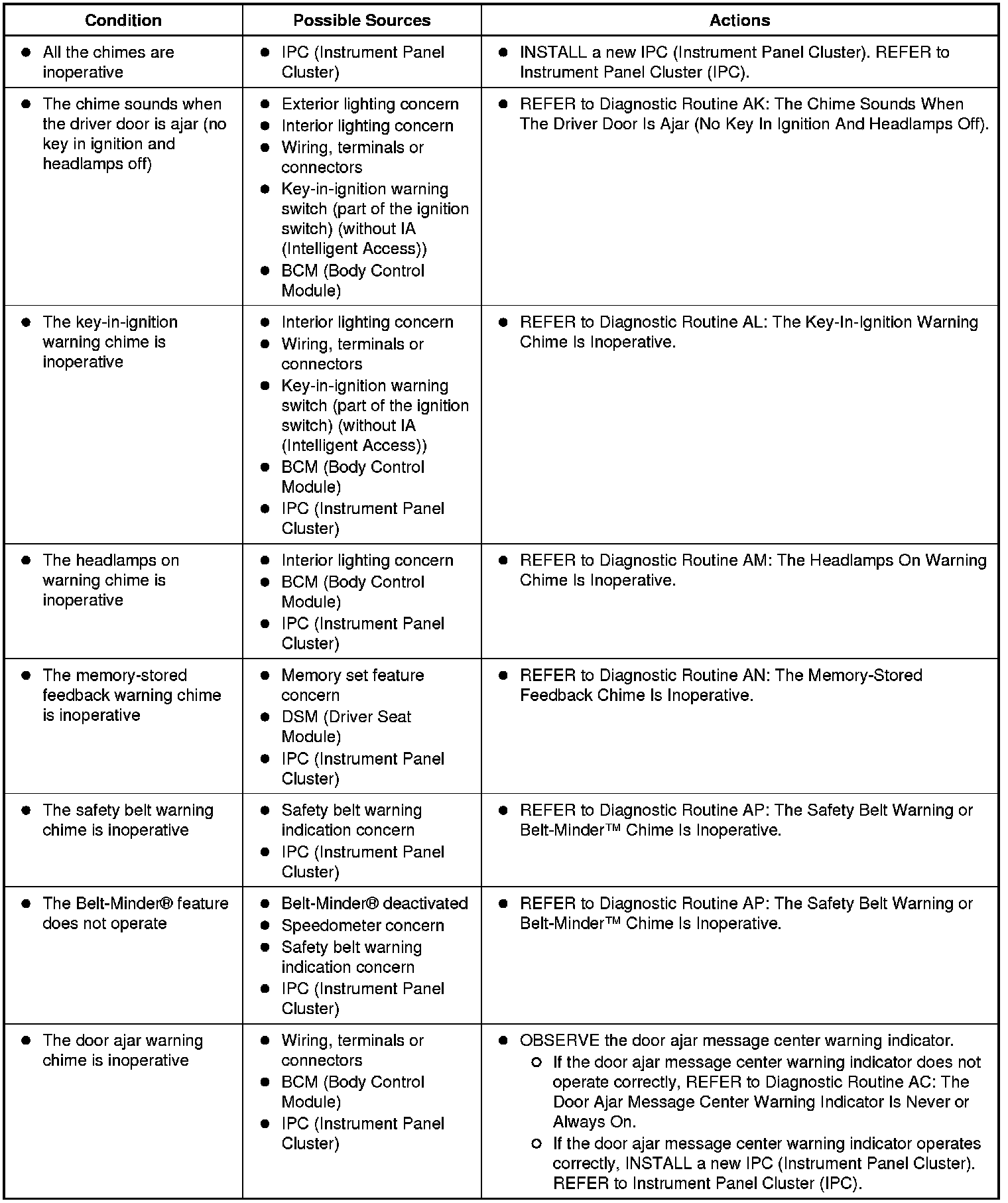

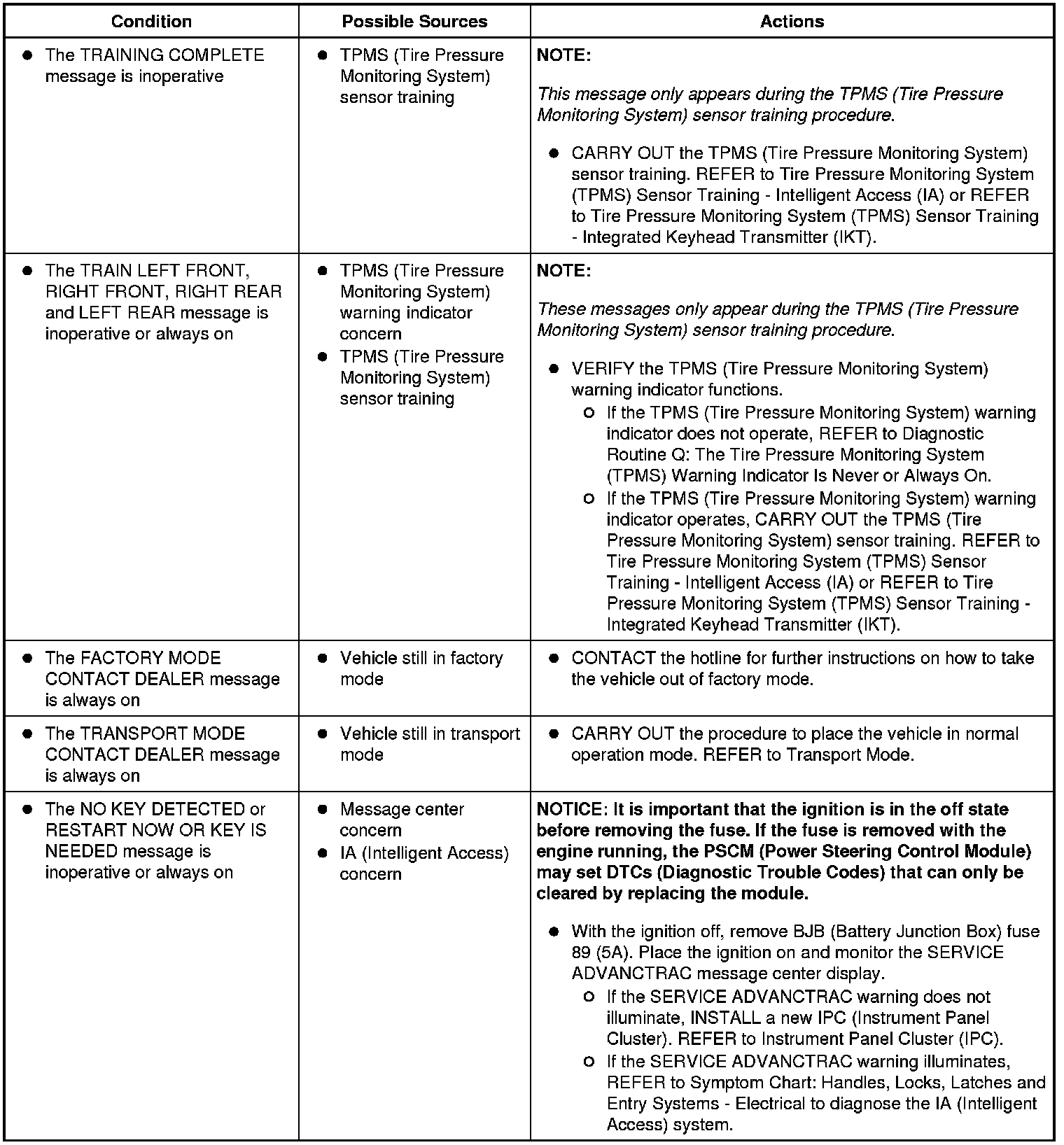

Symptom Chart
