Engine Control System

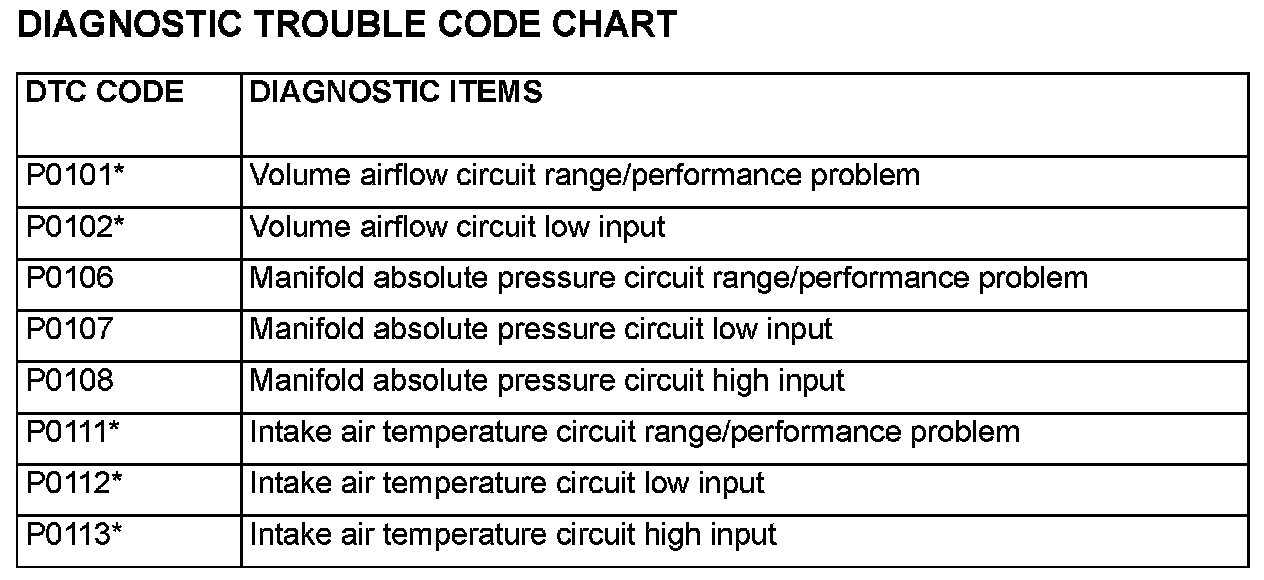

P0101 - P0113:

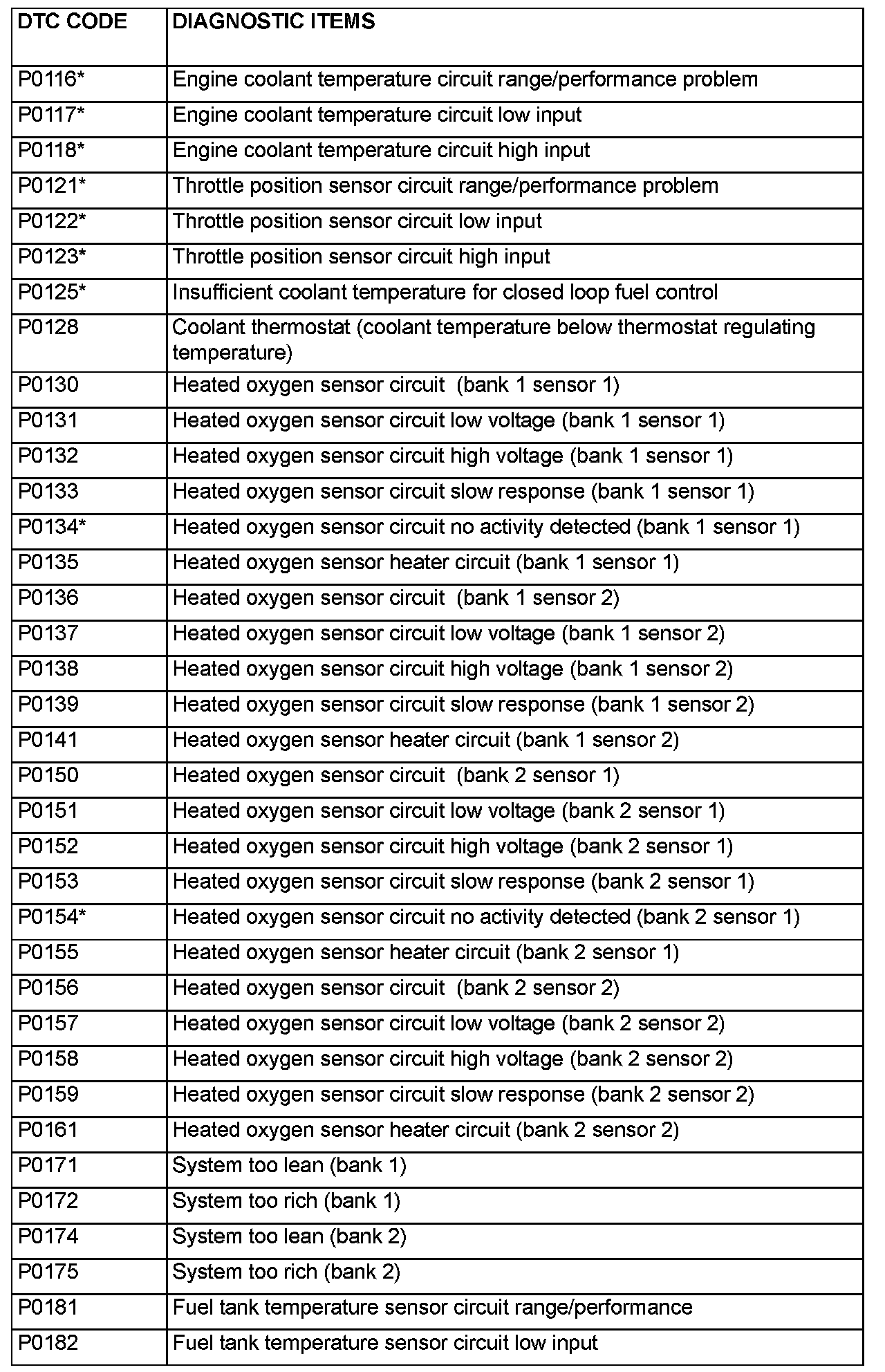

P0116 - P0182:

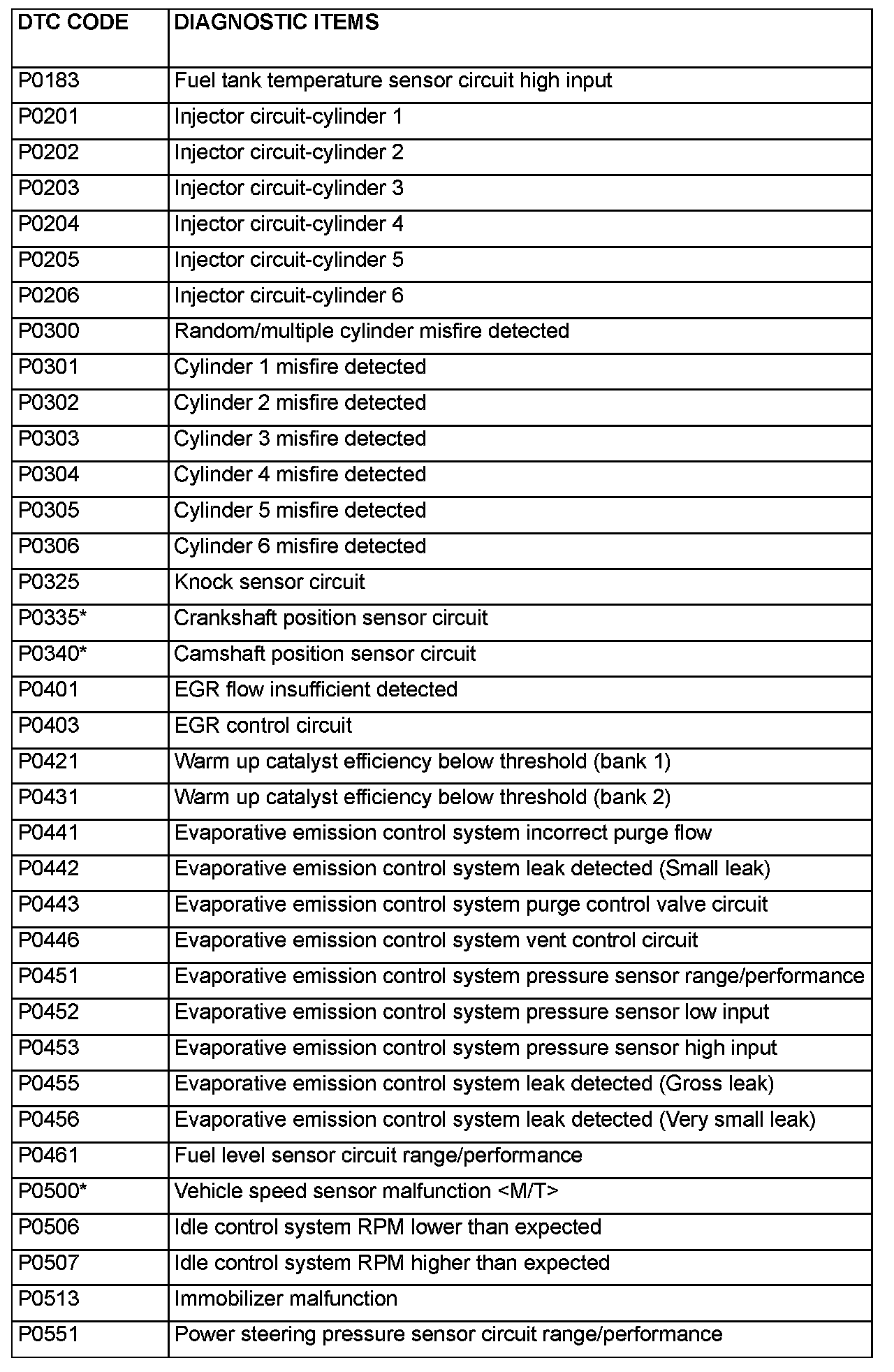

P0183 - P0551:

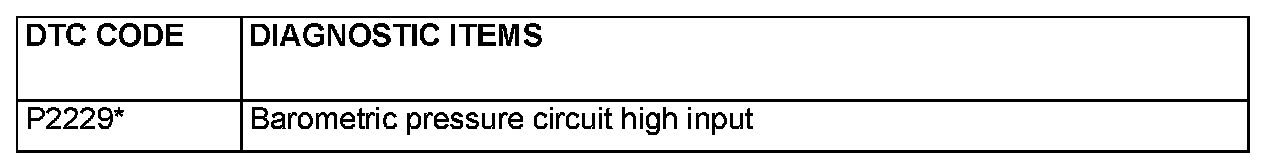

P0554 - P2228:

DIAGNOSTIC TROUBLE CODE CHART

NOTE: Do not replace the engine control module (ECM) [M/T] or powertrain control module (PCM) [A/T] until a through terminal check reveals there are no short/open circuits.

NOTE: Check that the ECM [M/T] or PCM [A/T] ground circuit is normal before checking for the cause of the problem.

NOTE: After the ECM [M/T] or PCM [A/T] detects a malfunction, a diagnostic trouble code is recorded the next time the engine is started and the same malfunction is re-detected. However, for items marked with a "*", the diagnostic trouble code is recorded on the first detection of the malfunction.

NOTE: Sensor 1 indicates the sensor mounted at a position closest to the engine, and sensor 2 indicates the sensor mounted at the position second closest to the engine.

NOTE: Bank 1 indicates the right bank side cylinder, and Bank 2 indicates the left bank side cylinder.
