Engine Control System




ENGINE CONTROL SYSTEM

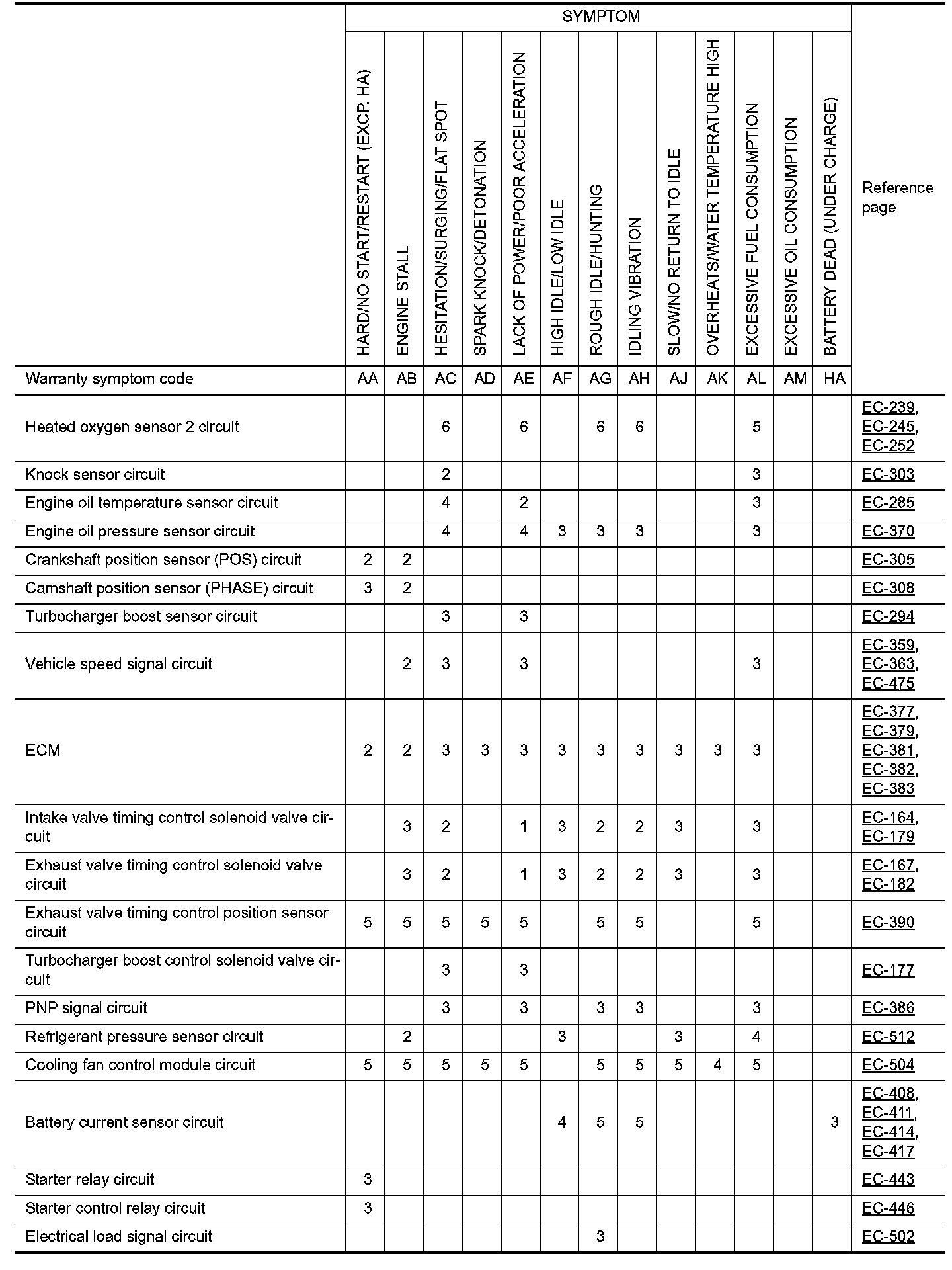

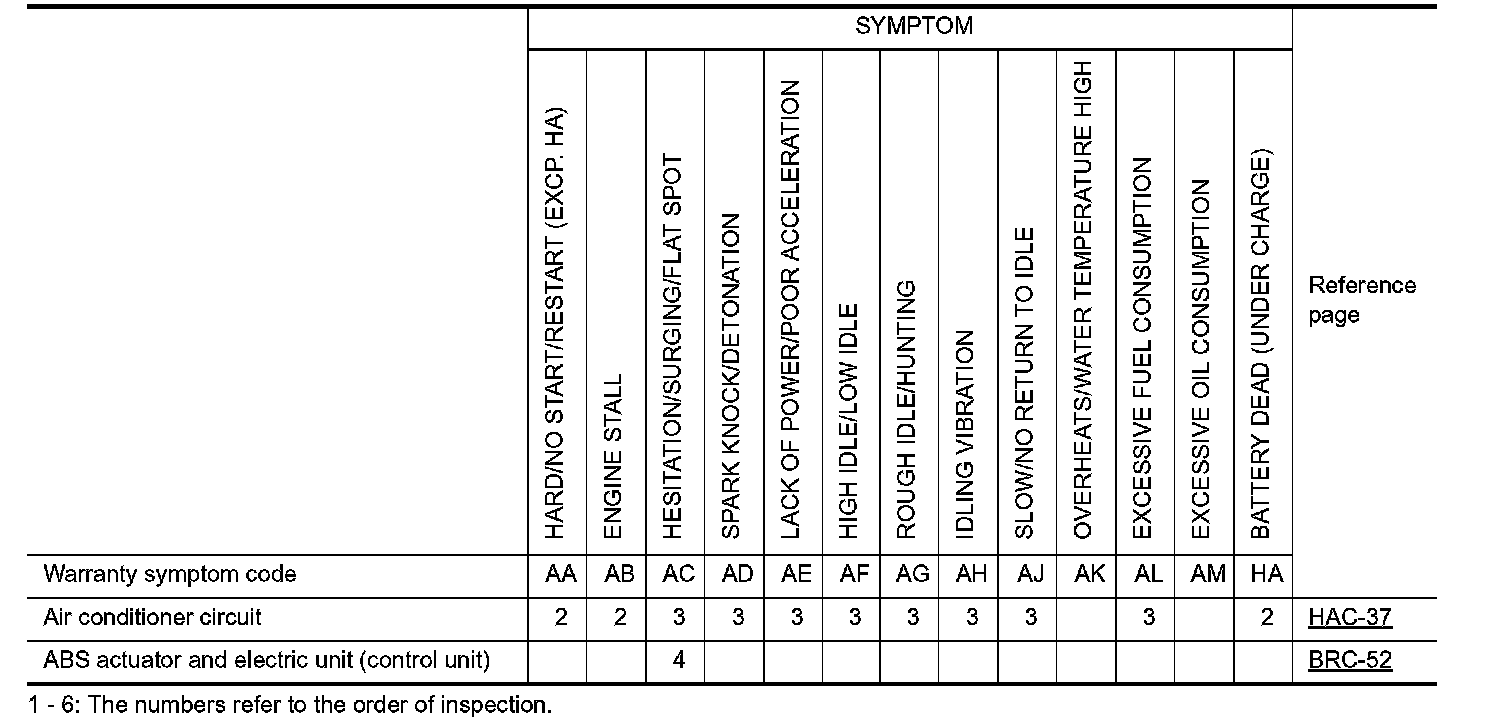

Symptom Table

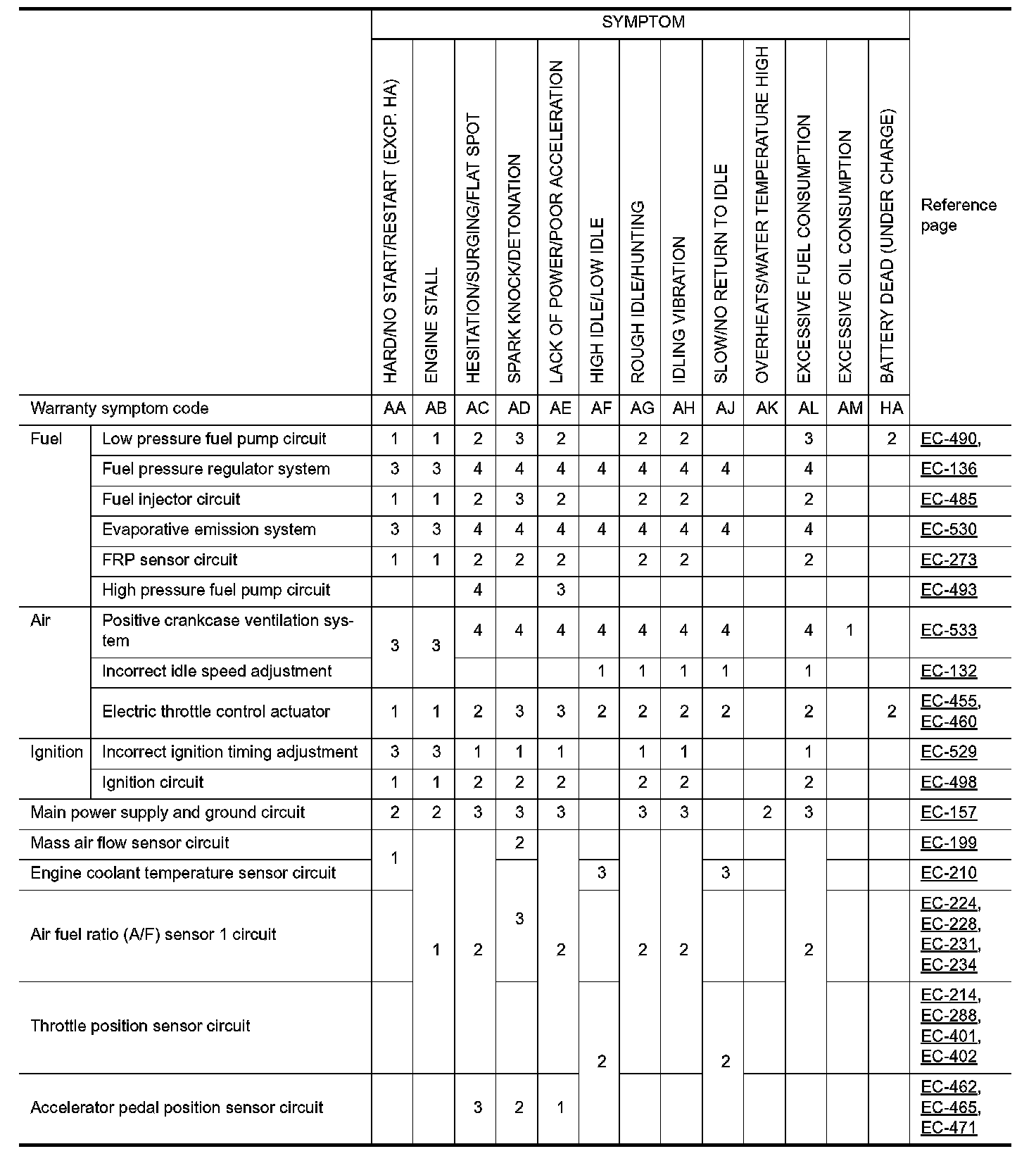

SYSTEM - BASIC ENGINE CONTROL SYSTEM

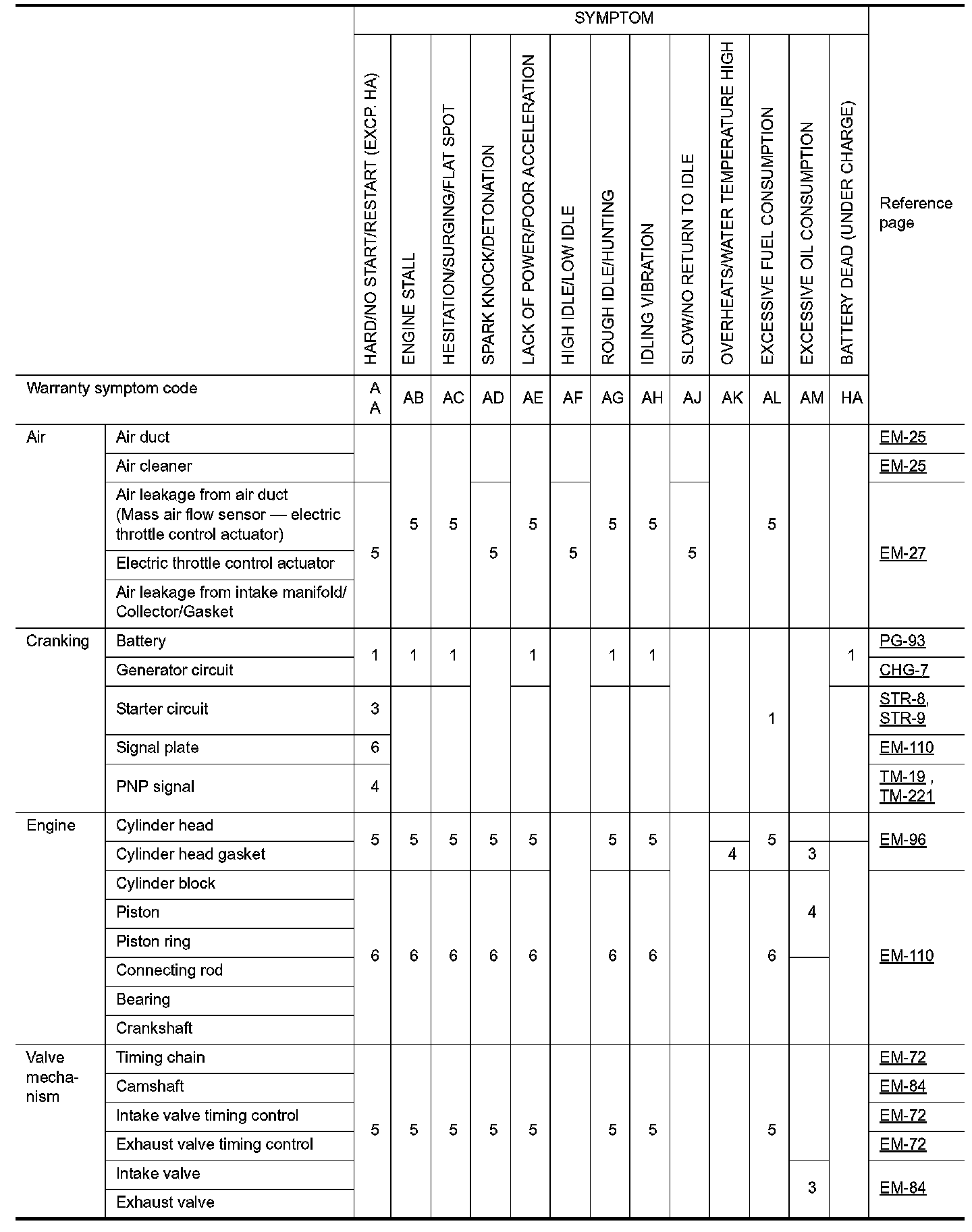

SYSTEM - ENGINE MECHANICAL & OTHER
