Instrument Panel Decorative Trim, Jetta from MY 2010 and Golf Wagon from MY 2010

Instrument Panel Decorative Trim, Jetta from MY 2010 and Golf Wagon from MY 2010

Removing

Driver side

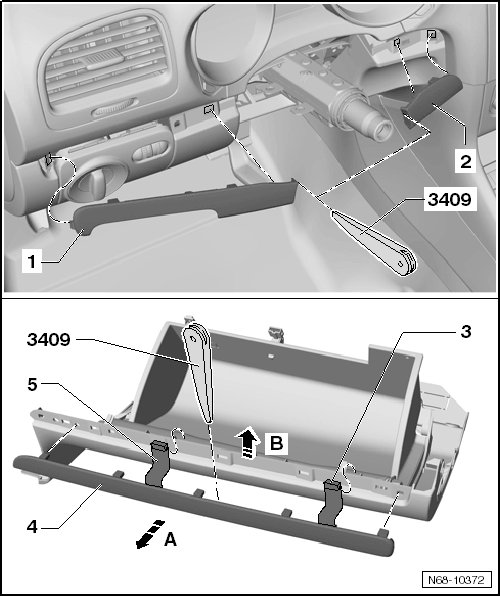

- Pry trim panels - 1 - and - 2 -out of instrument panel on driver side using trim removal wedge (3409).

Passenger side

- Switch off the ignition.

- Remove the side instrument panel cover on the front passenger side. Refer to => [ Instrument Panel Side Covers ] Instrument Panel Side Covers.

- Remove the A-pillar center trim on the passenger side. Refer to => [ Center A-Pillar Trim ] Center A-pillar Trim.

- Disengage sill panel trim from body in lower A-pillar trim transition area. Refer to => [ Sill Panel Trim ] Sill Panel Trim.

- Remove the trim at the bottom of the A-pillar on the front passenger side. Refer to => [ Passenger Side Lower A-Pillar Trim ] Passenger Side Lower A-pillar Trim

- Remove the trim in the center of the instrument panel (Jetta from MY 10, Golf Wagon from MY 10). Refer to => [ Instrument Panel Center Trim, Jetta from MY 2010 and Golf Wagon from MY 2010 ] Instrument Panel Center Trim, Jetta from MY 2010 and Golf Wagon from MY 2010.

- Remove the trim around the heating and A/C controls (Jetta from MY 10, Golf Wagon from MY 10). Refer to => [ Heating and A/C Control Trim, Jetta from MY 2010 and Golf Wagon from MY 2010 ] Heating and A/C Control Trim, Jetta from MY 2010 and Golf Wagon from MY 2010.

- Remove the center cover (Jetta from MY 10, Golf Wagon from MY 10). Refer to => [ Center Cover, Jetta from MY 2010 and Golf Wagon from MY 2010 ] Center Cover, Jetta from MY 2010 and Golf Wagon from MY 2010.

Vehicles with automatic transmission

- Loosen boot from the cover.

Vehicles with manual transmission and Direct Shift Gearbox (DSG)

- Loosen boot from the cover.

- Remove the storage compartment or ashtray (Jetta from MY 2010 and Golf Wagon from MY 2010). Refer to => [ Storage Compartment and Ashtray, Jetta from MY 10 and Golf Wagon from MY 10 ] Storage Compartment and Ashtray, Jetta from MY 10 and Golf Wagon from MY 10

- Remove the cover in the center console. It is not necessary to remove the entire center console.

• Basic => [ Center Console, Basis, Jetta from MY 10 and Golf Wagon from MY 10 ] Center Console, Basis, Jetta from MY 10 and Golf Wagon from MY 10

• Highline => [ Center Console, Highline, Jetta from MY 10 and Golf Wagon from MY 10 ] Center Console, Highline, Jetta from MY 10 and Golf Wagon from MY 10

- Remove the glove compartment => [ Glove Compartment ] Glove Compartment

- Pry the passenger trim - 4 - out of mounts using trim removal wedge (3409) - arrow A -.

- Remove the tension strap clips - 3 - and - 5 - from the glove compartment - arrow B -.






Installing

- Install in reverse order of removal.
