Data List Reference Table & Normal Scan Data Values

DATA LIST REFERENCE TABLE

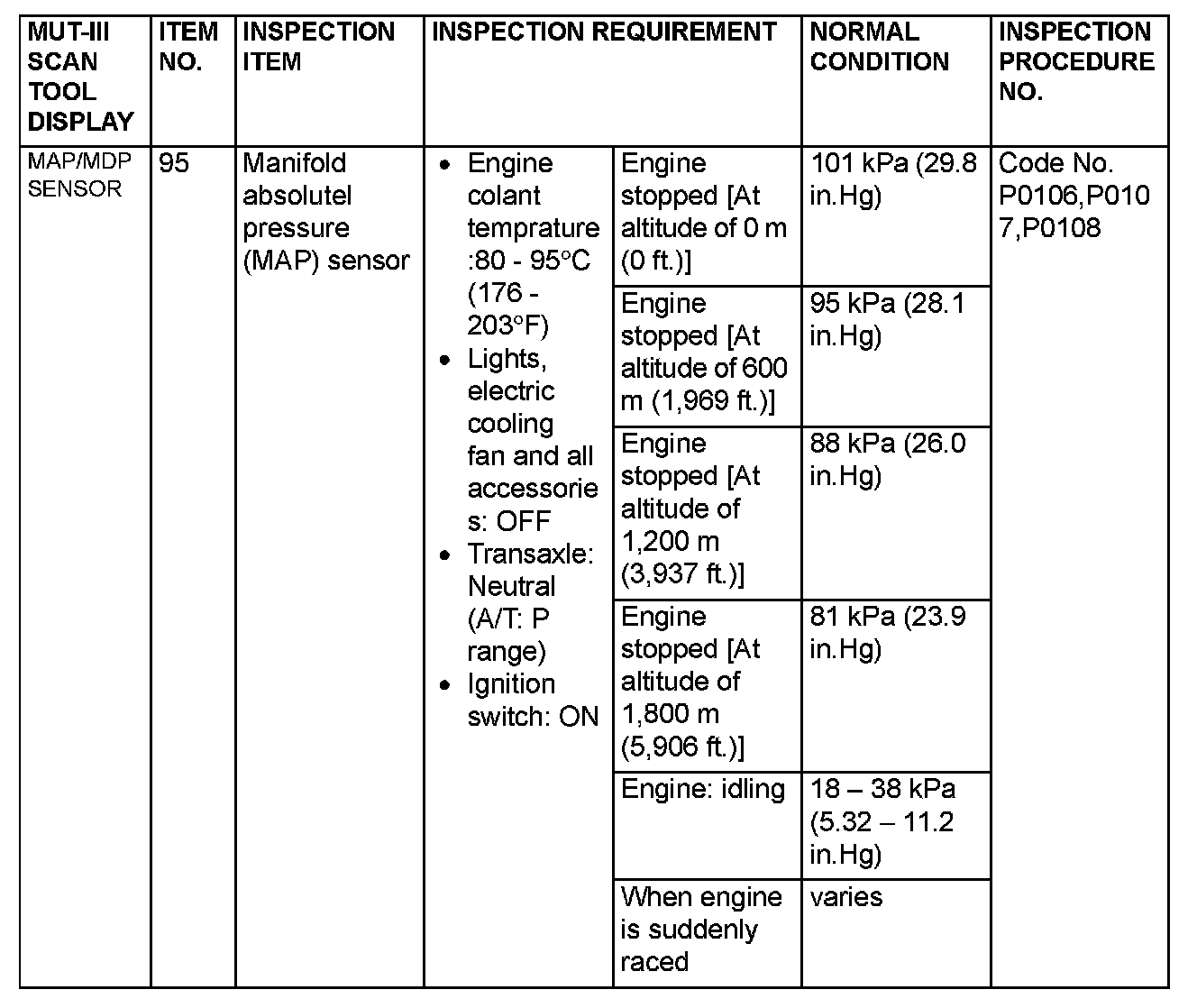

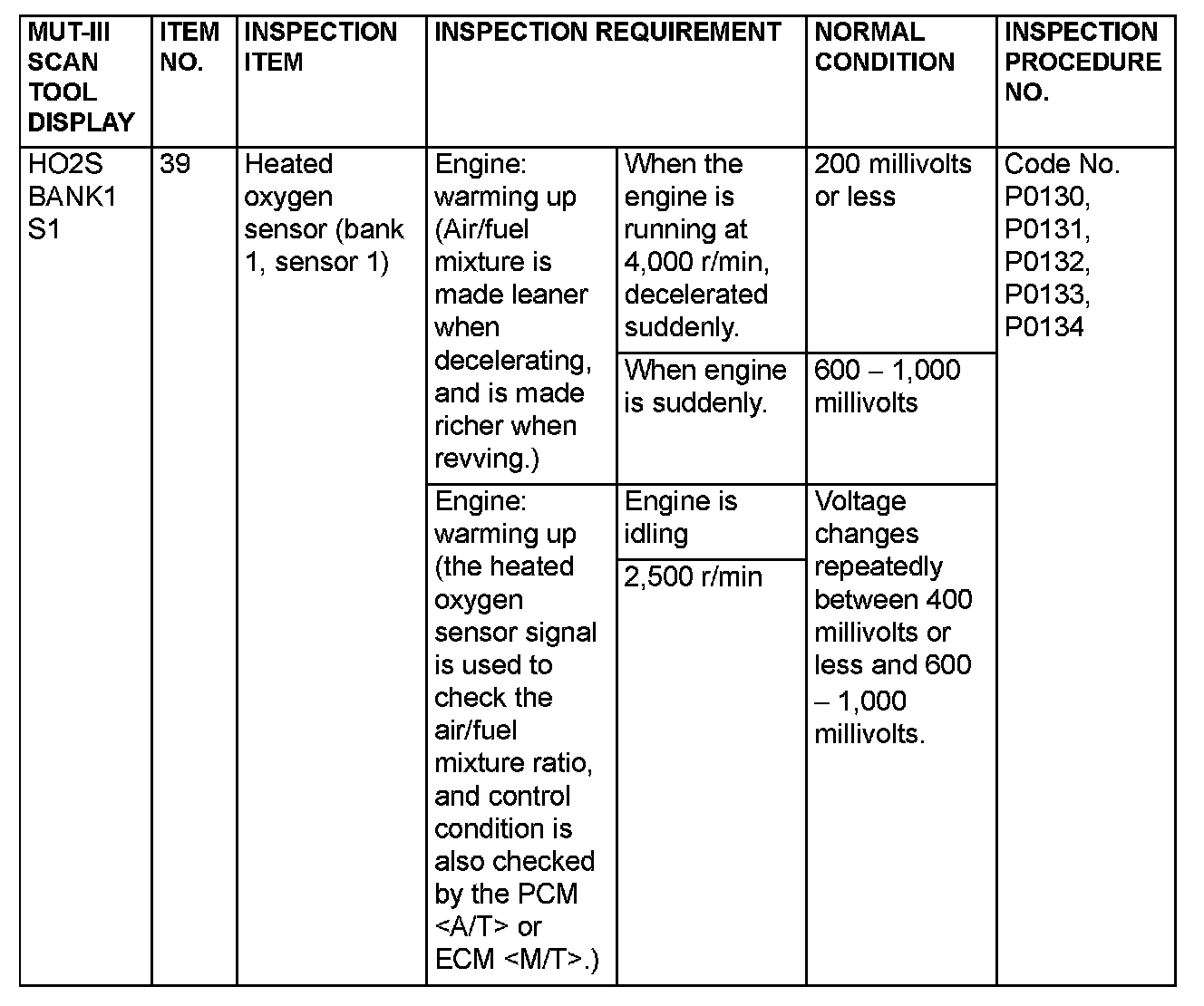

Data List Reference Table Part 1:

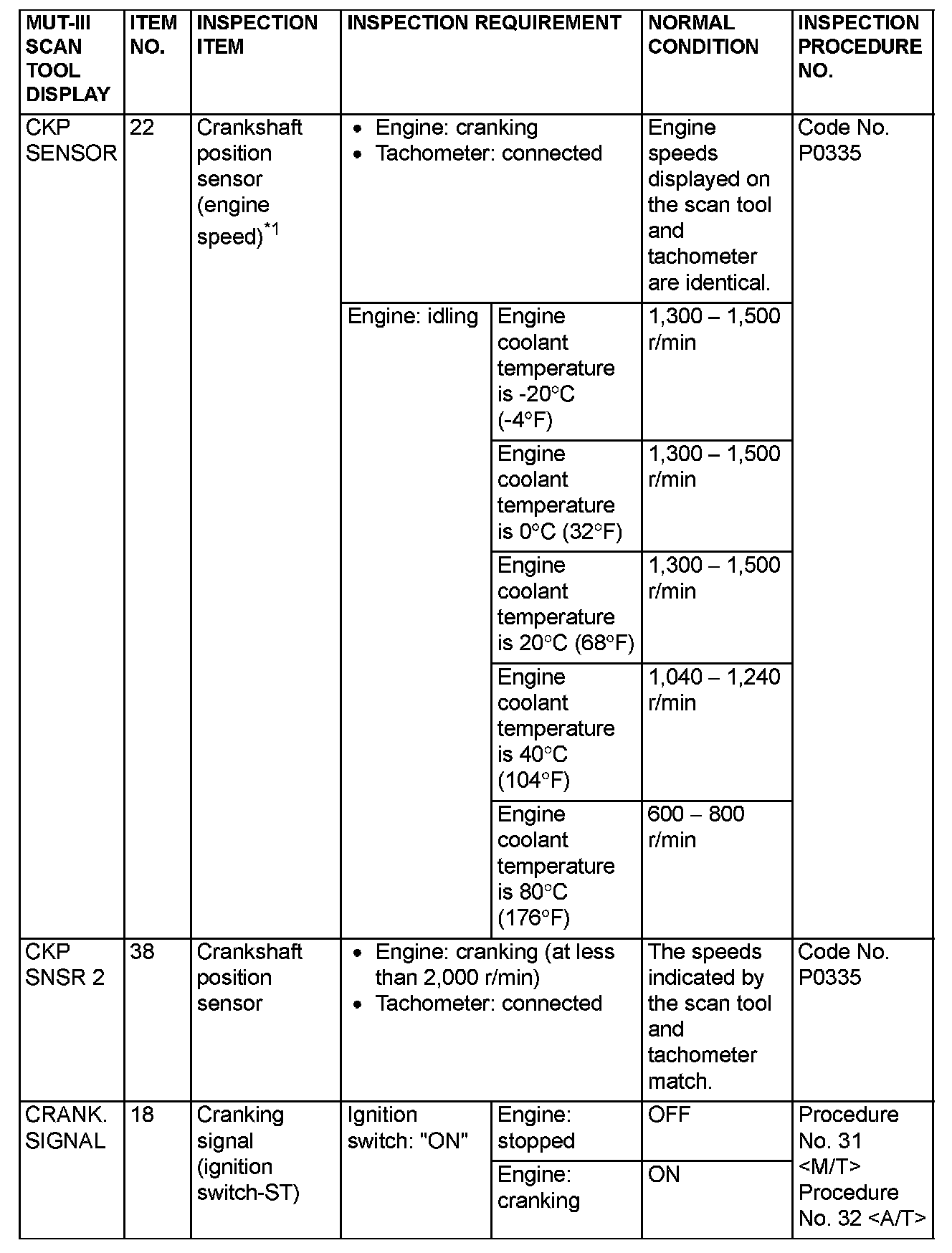

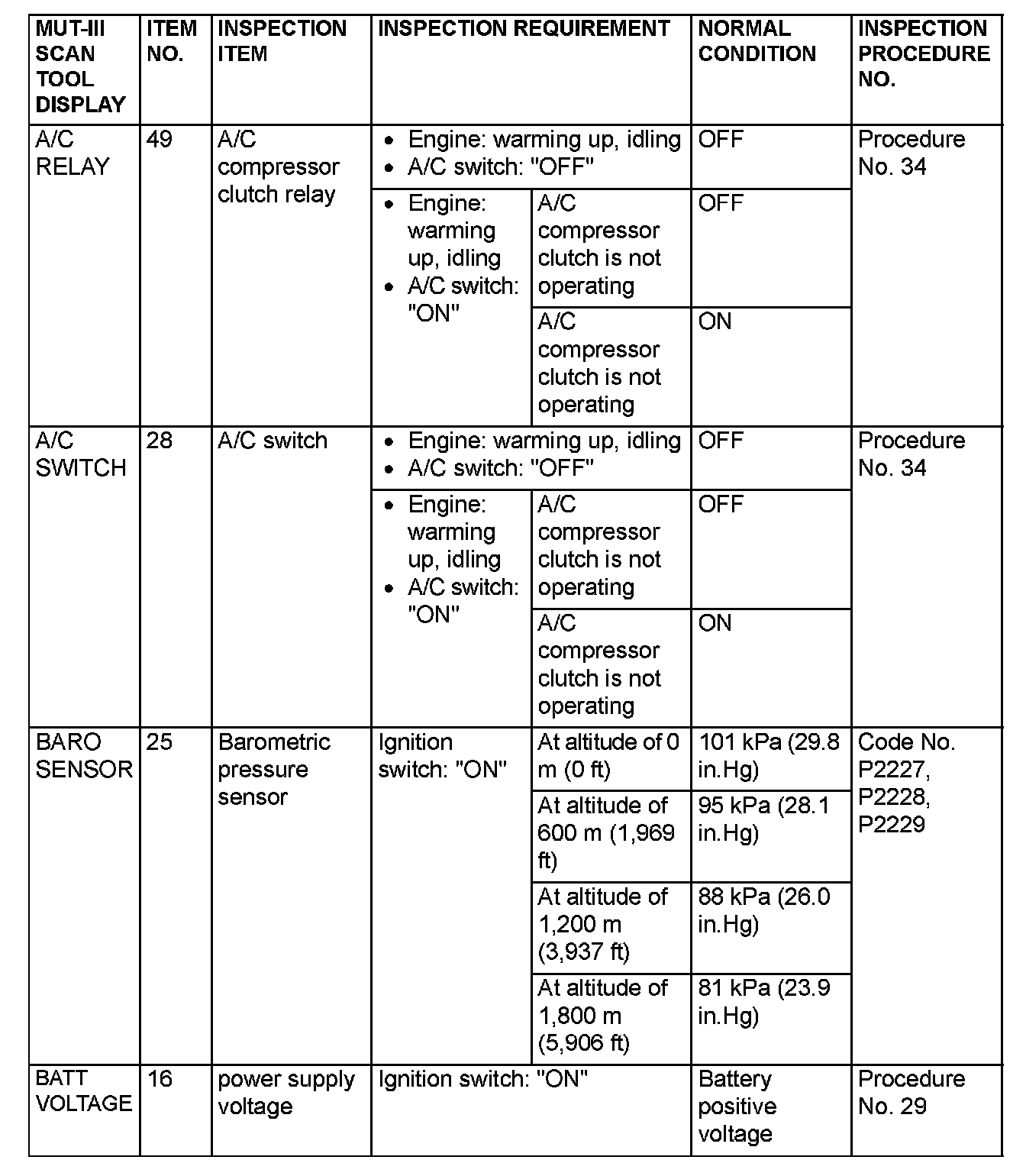

Data List Reference Table Part 2:

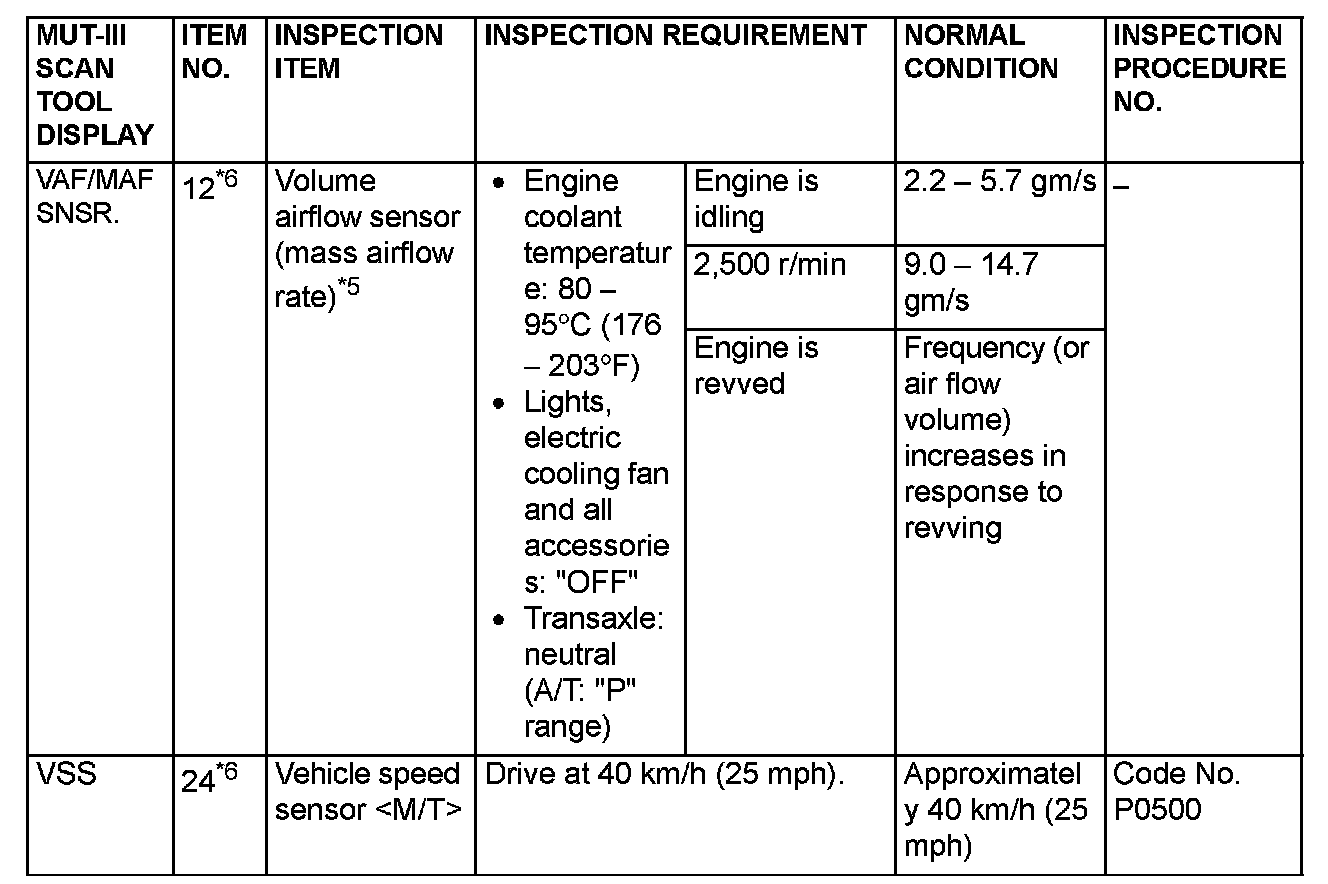

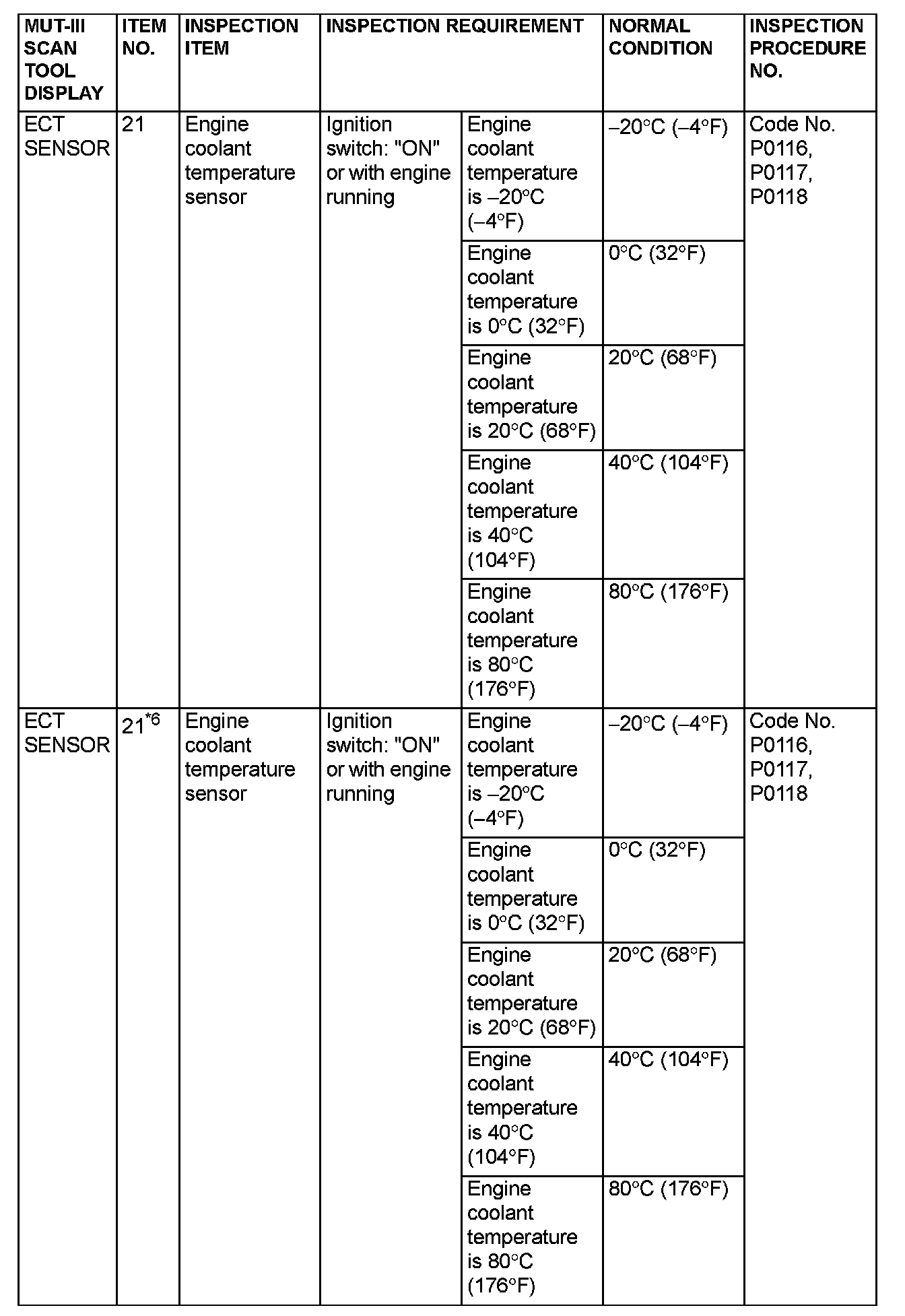

Data List Reference Table Part 3:

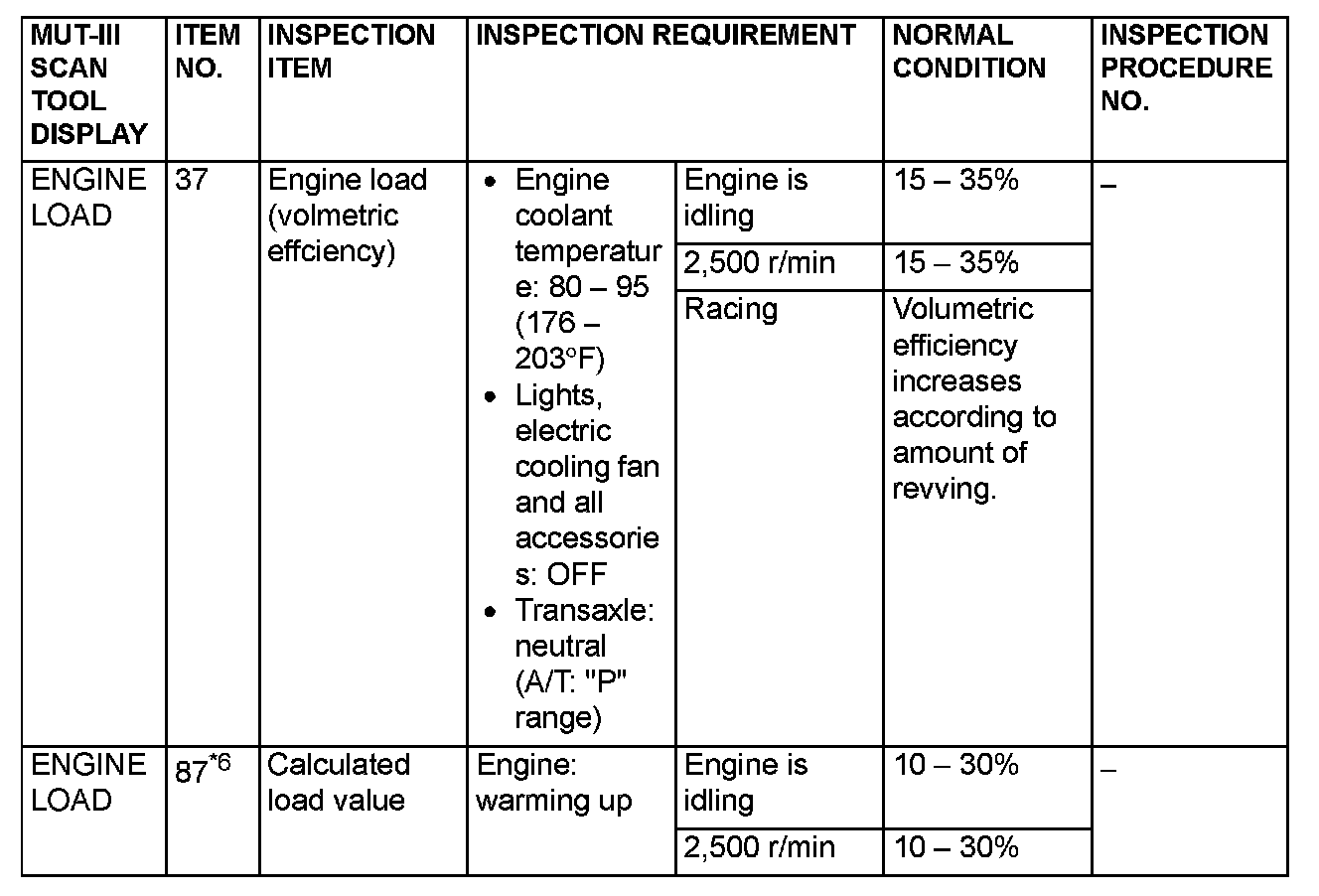

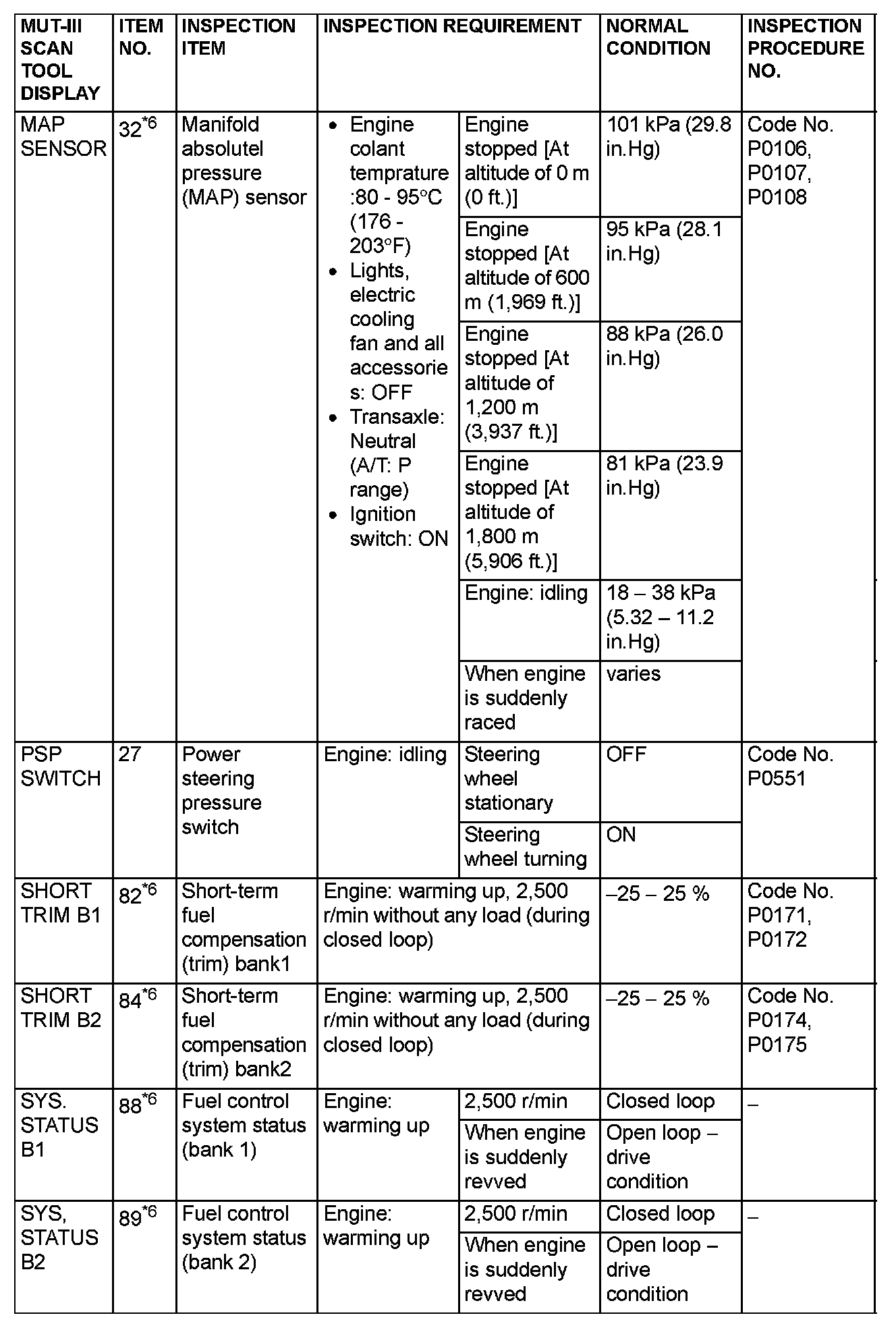

Data List Reference Table Part 4:

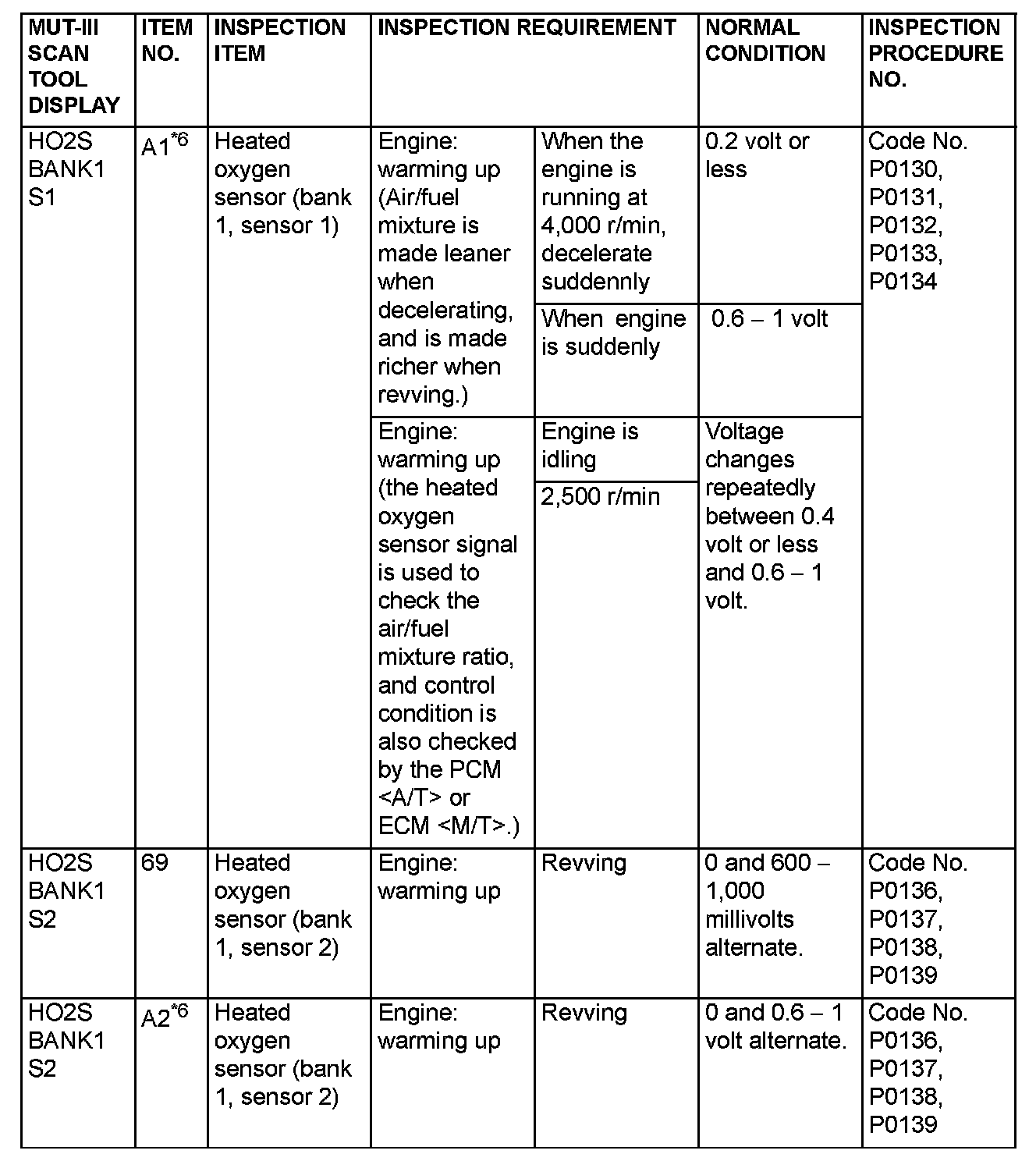

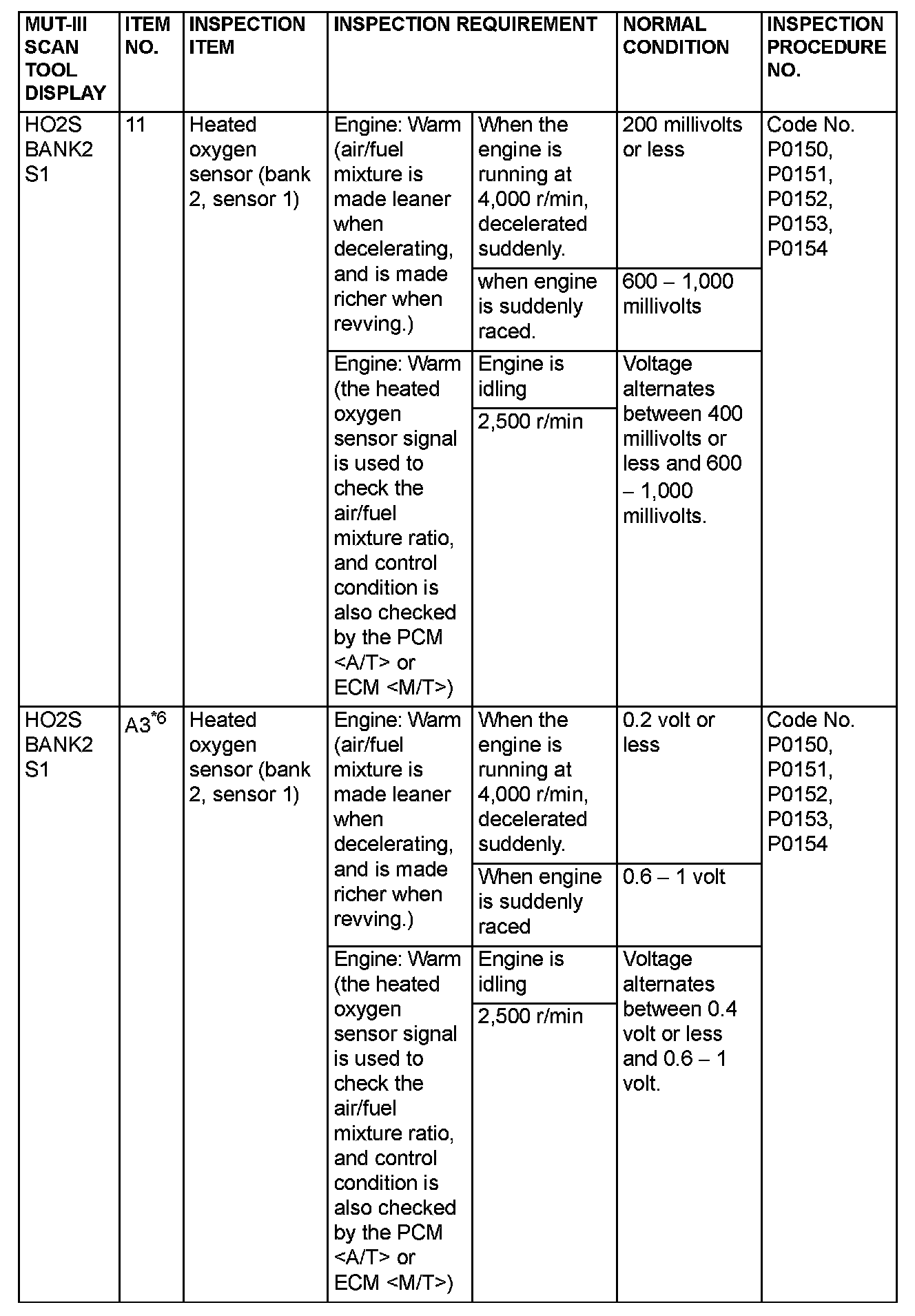

Data List Reference Table Part 5:

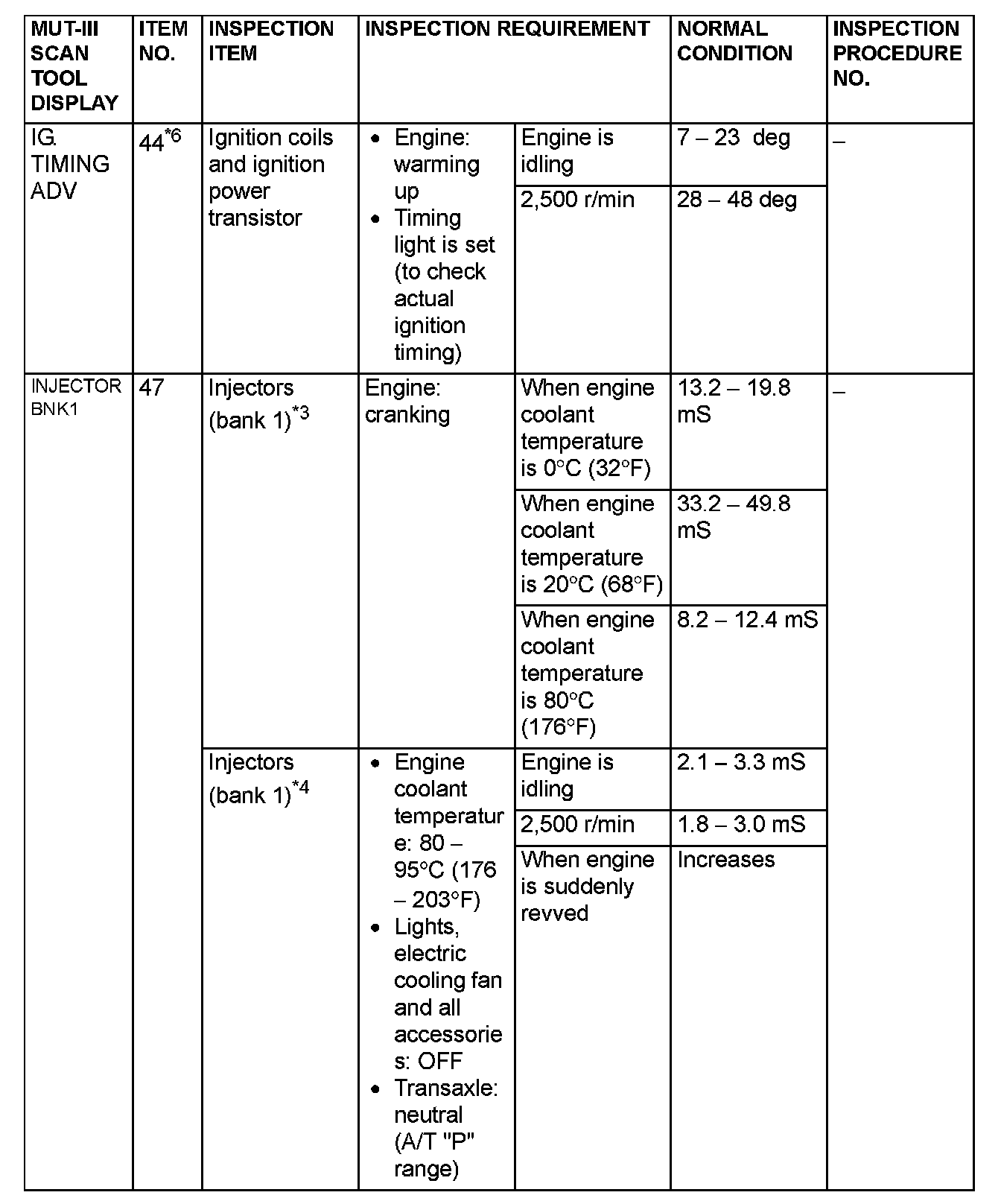

Data List Reference Table Part 6:

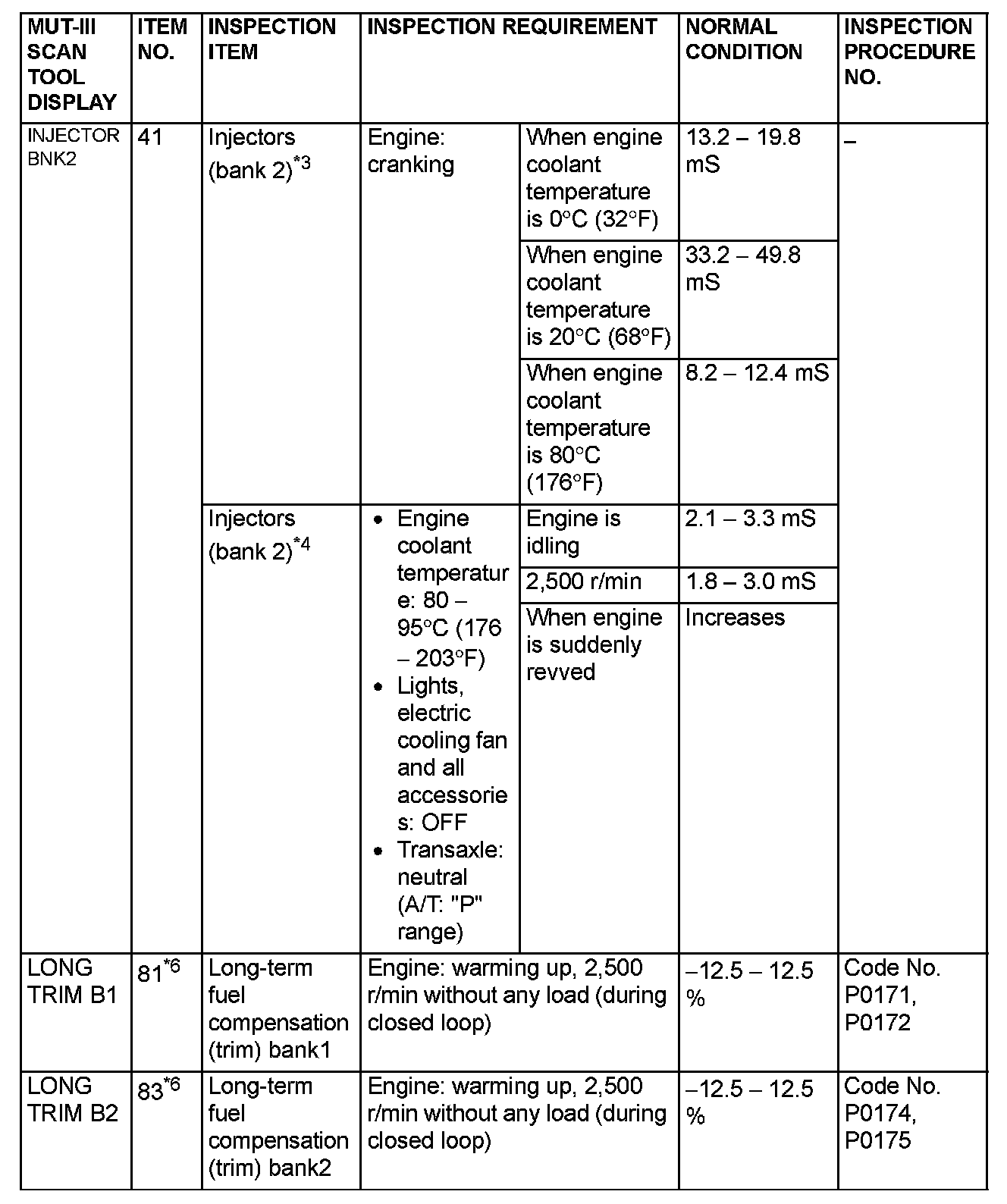

Data List Reference Table Part 7:

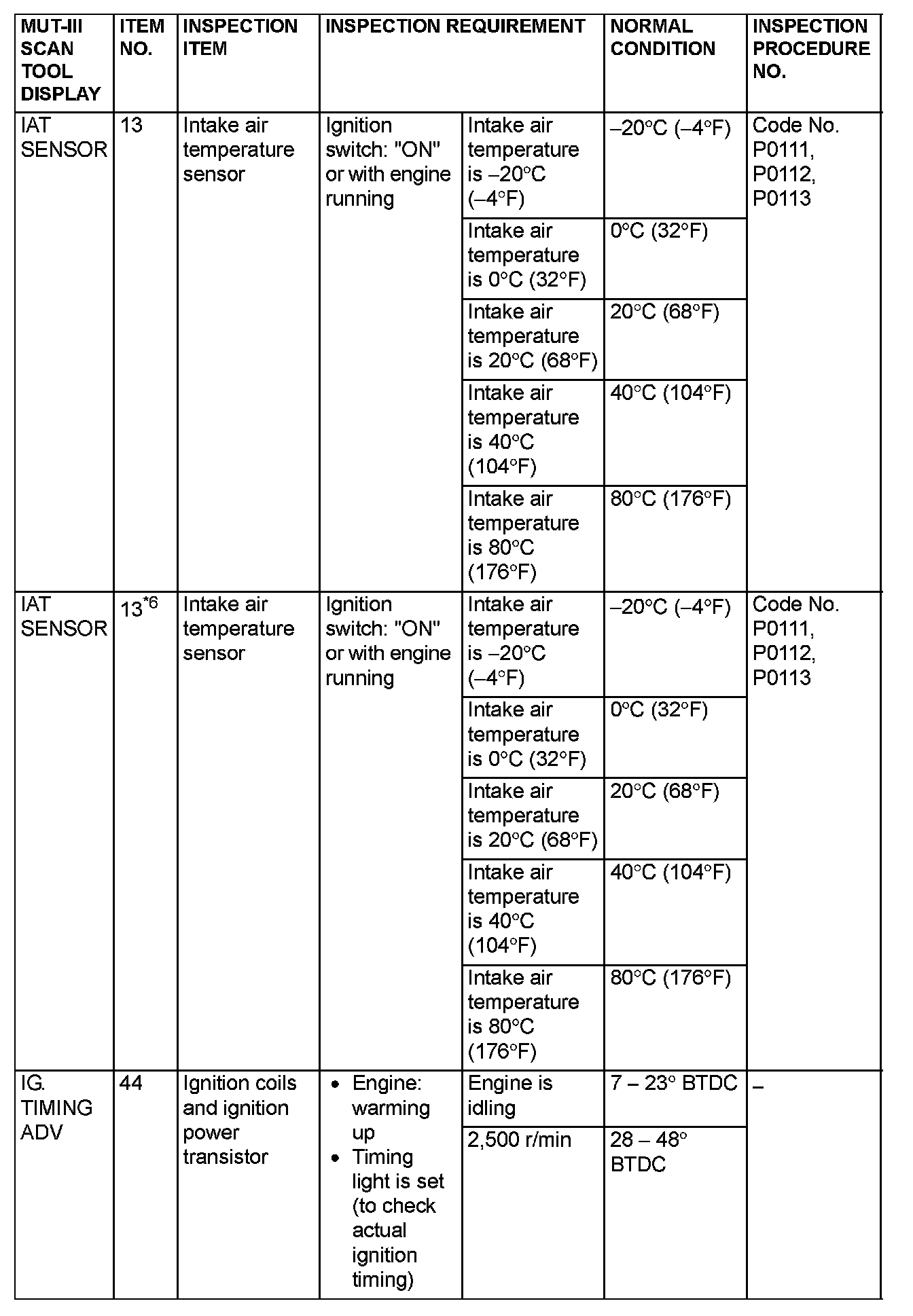

Data List Reference Table Part 8:

Data List Reference Table Part 9:

Data List Reference Table Part 10:

Data List Reference Table Part 11:

Data List Reference Table Part 12:

Data List Reference Table Part 13:

Data List Reference Table Part 14:

Data List Reference Table Part 15:

Data List Reference Table Part 16:

CAUTION:
- When shifting the select lever to D range, the brakes should be applied so that the vehicle does not move forward.
- Driving tests always need two persons: one driver and one observer.

NOTE: Sensor 1 indicates the sensor mounted at a position closest to the engine, and sensor 2 indicates the sensor mounted at the position second close to the engine.

NOTE: Bank 1 indicates the right bank cylinder, and bank 2 indicates the left bank cylinder.

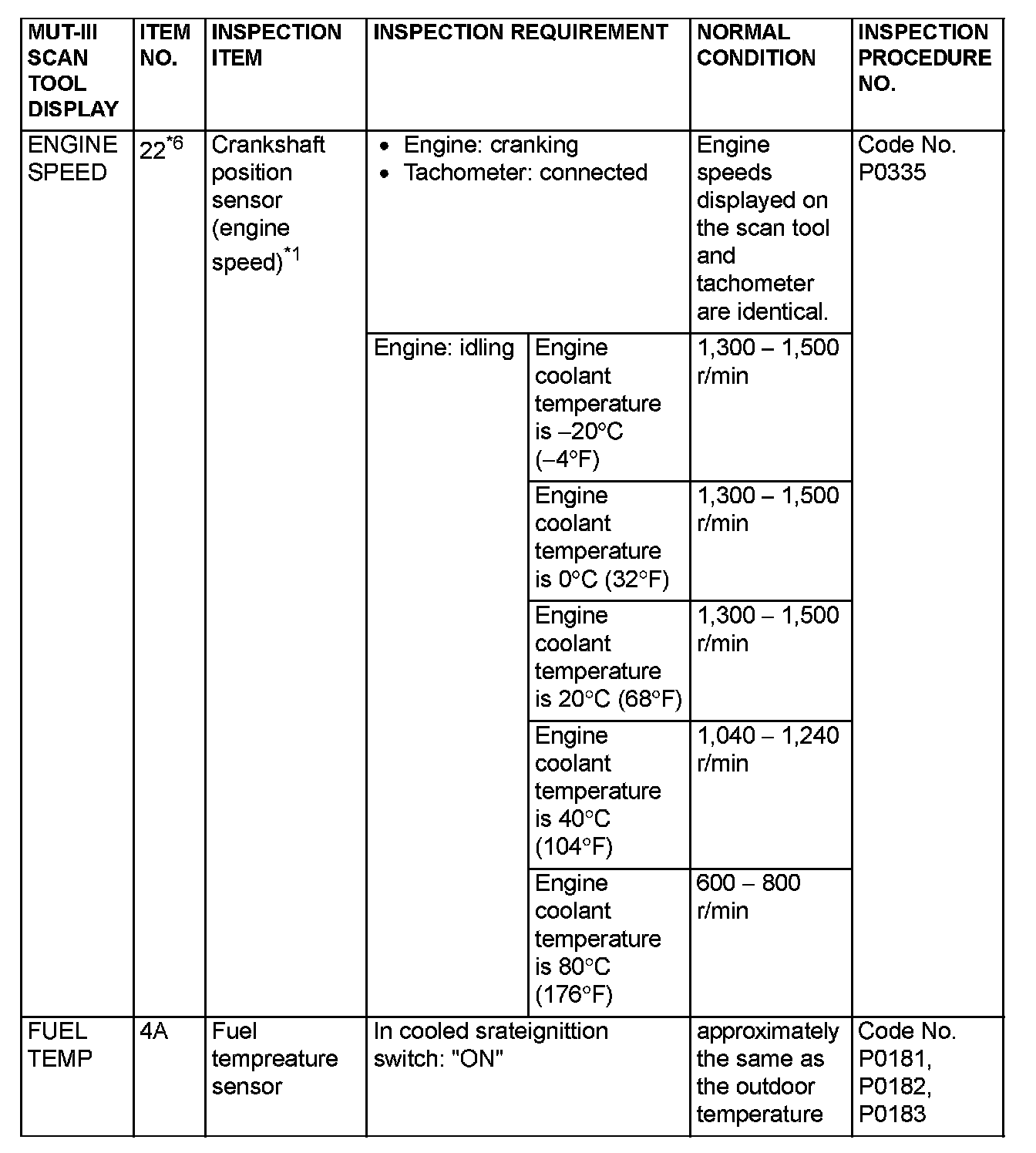

NOTE:*1: If the idle speed is lower than the standard value on a very cold engine [approximately -20 °C (-4 °F)] even when the IAC motor is fully opened, the air volume limiter built in the throttle body could be defective.

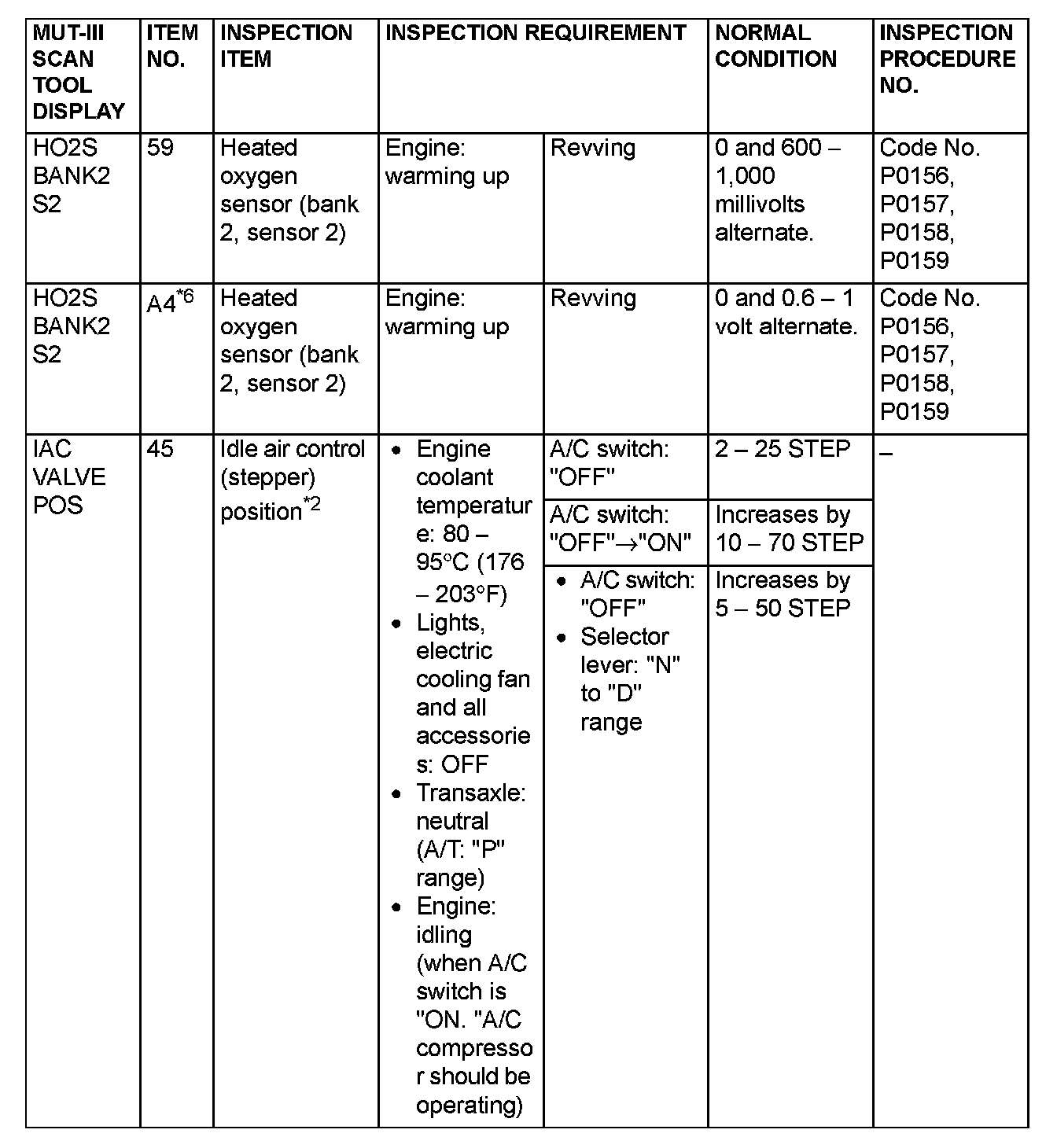

NOTE:*2: In a new vehicle [driven approximately 500 km (311 mile) or less], the step of the stepper motor is sometimes 30 steps greater than the standard value.

NOTE:*3: The injector drive time represents the time when the cranking speed is at 250 r/min or below when the power supply voltage is 11 volts.

NOTE:*4: In a new vehicle [driven approximately 500 km (311 mile) or less], the injector drive time is sometimes 10 percent longer than the standard time.

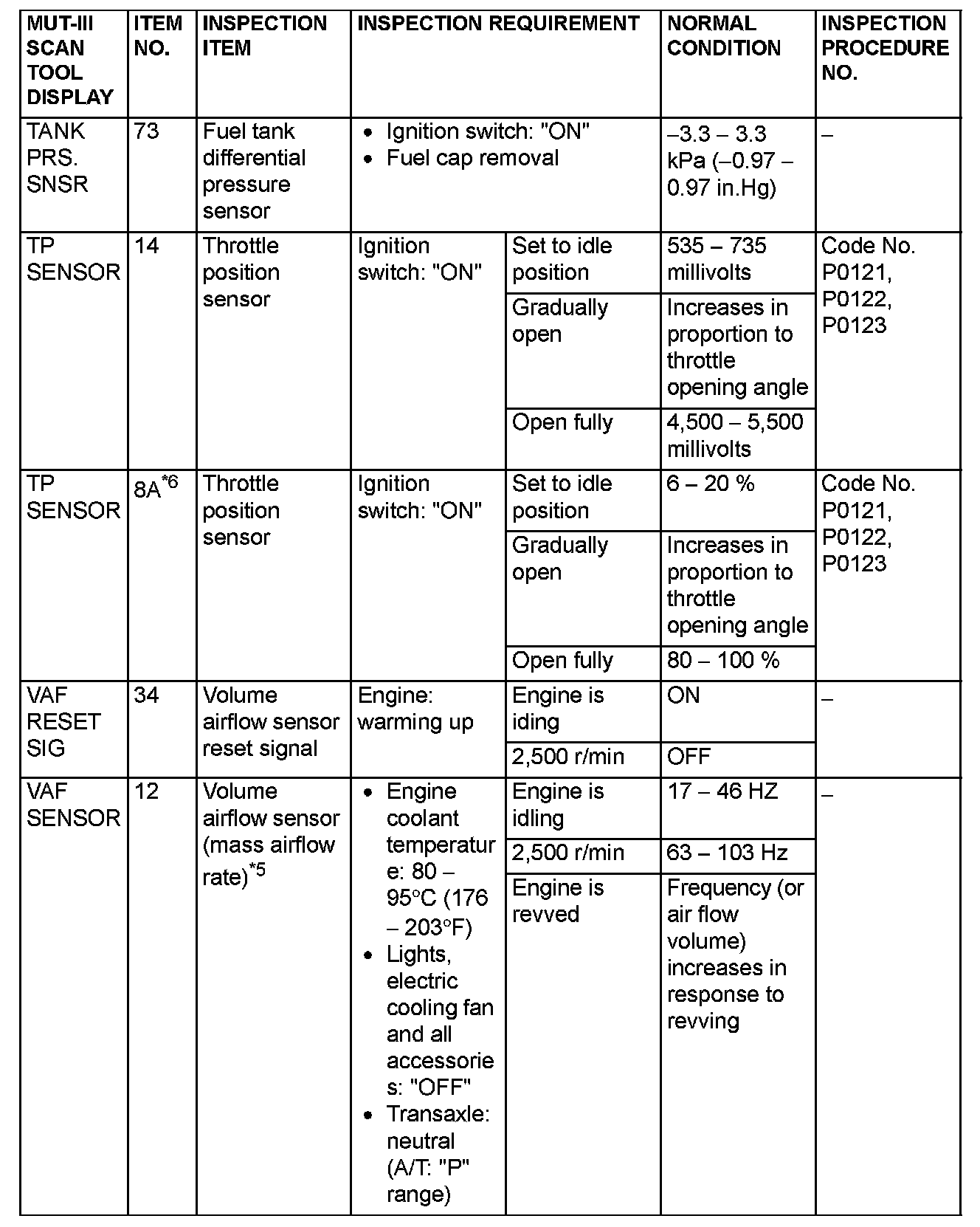

NOTE:*5: In a new vehicle [driven approximately 500 km (311 mile) or less], the volume airflow sensor output frequency is sometimes 10% higher than the standard frequency.

NOTE:*6: Applicable to GST
