Multiplex Communication System

MULTIPLEX COMMUNICATION: MULTIPLEX COMMUNICATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART

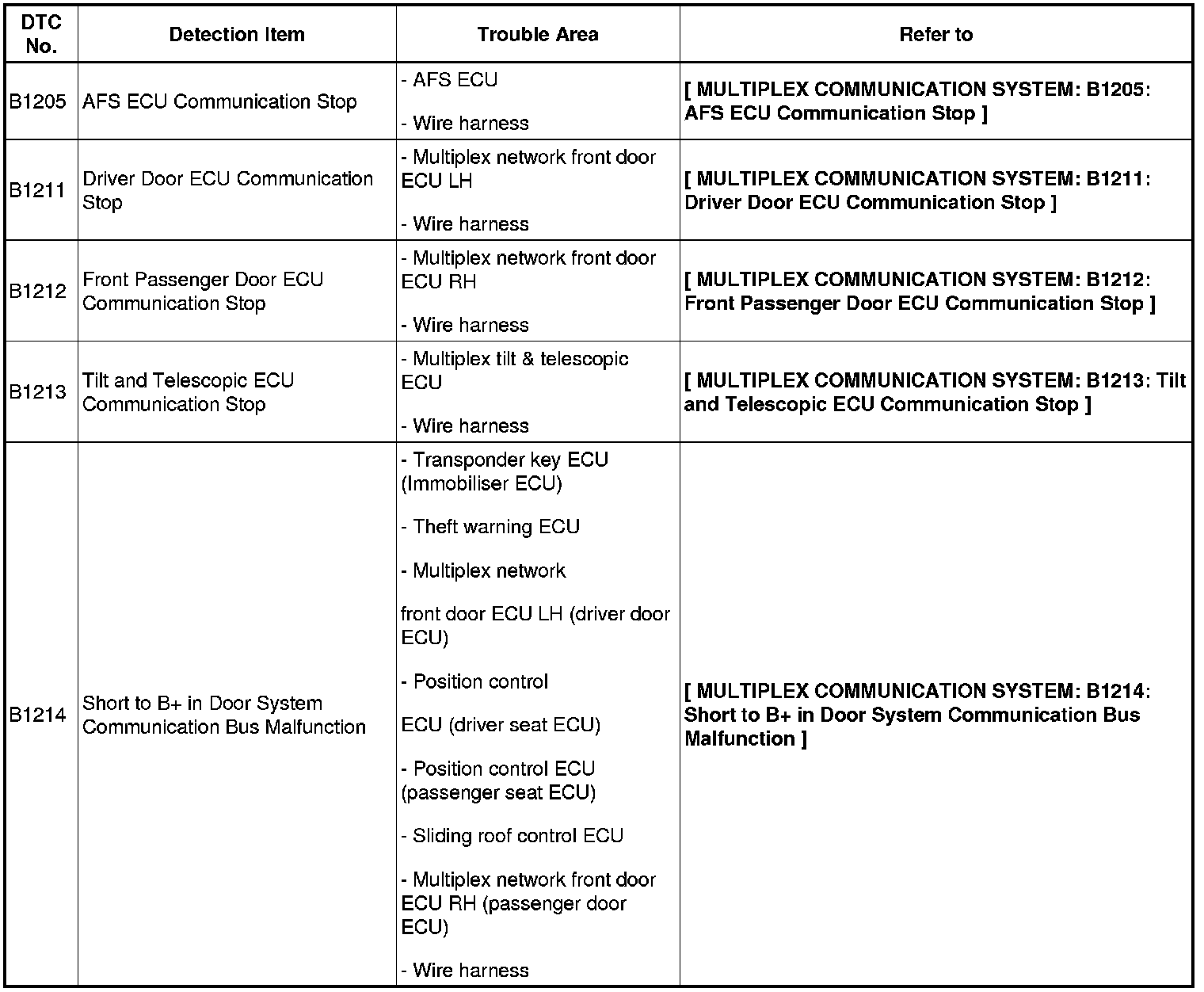

B1205-B1214:

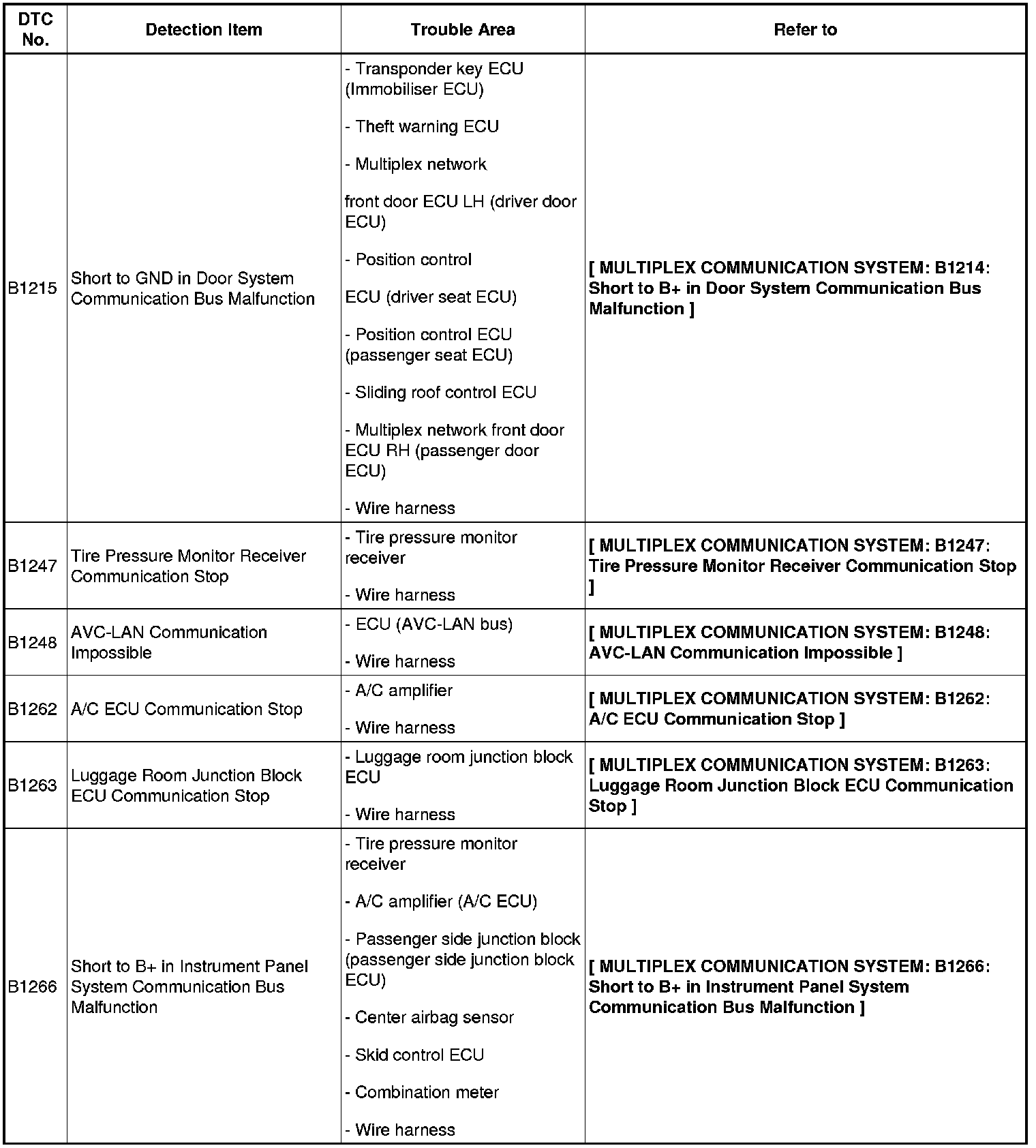

B1215-B1266:

B1267-B1289:

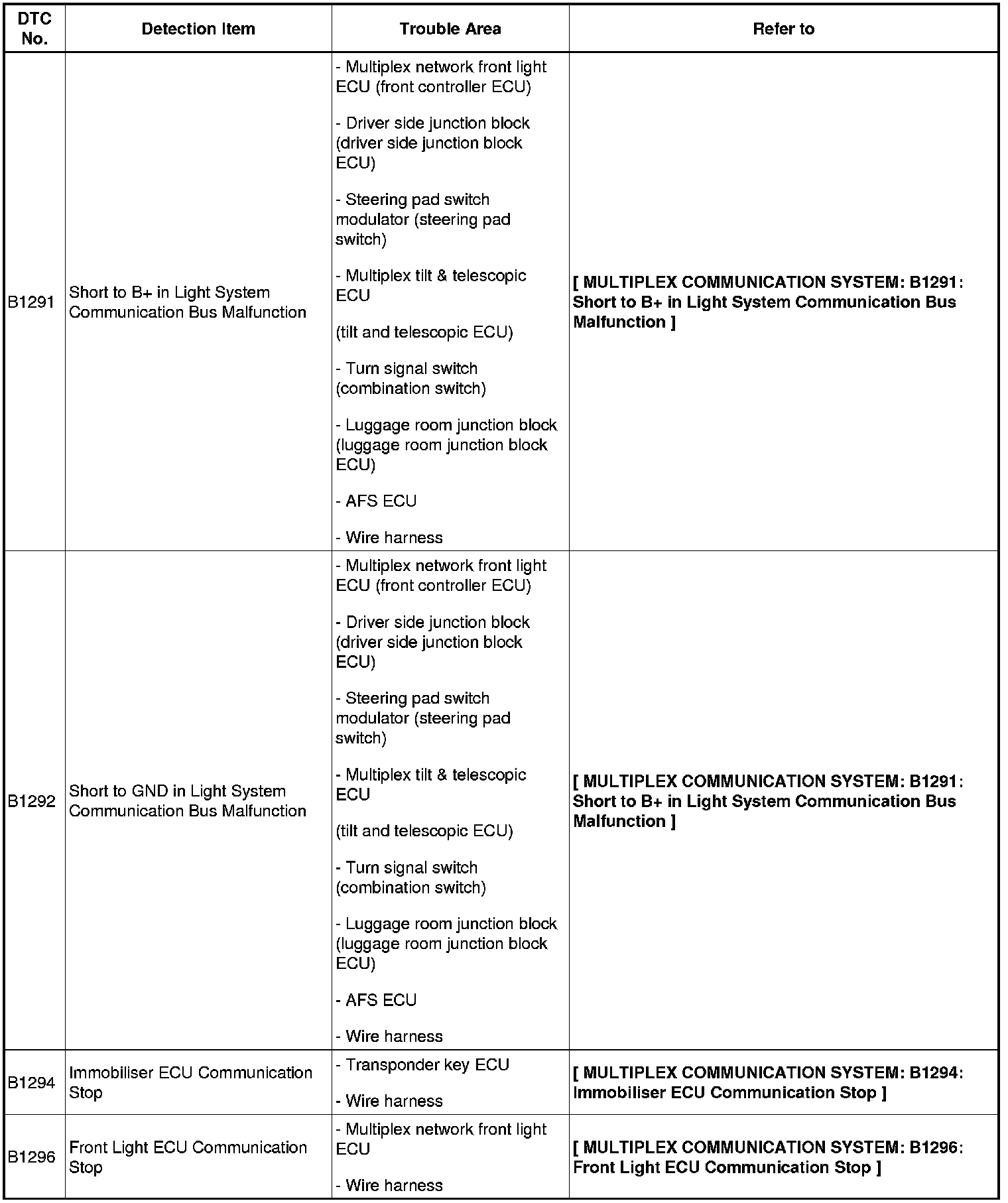

B1291-B1296:

HINT:
- *1: Driver side *2: Passenger side
- When "+B or GND short malfunction of communication bus" DTCs (B1214, B1215, etc.) are detected at the same time as "communication stop" DTCs (B1211, B1212, etc.), repair the "+B or GND short malfunction of communication bus" DTCs first.
