Diagnostic Trouble Code Tests and Associated Procedures

Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)

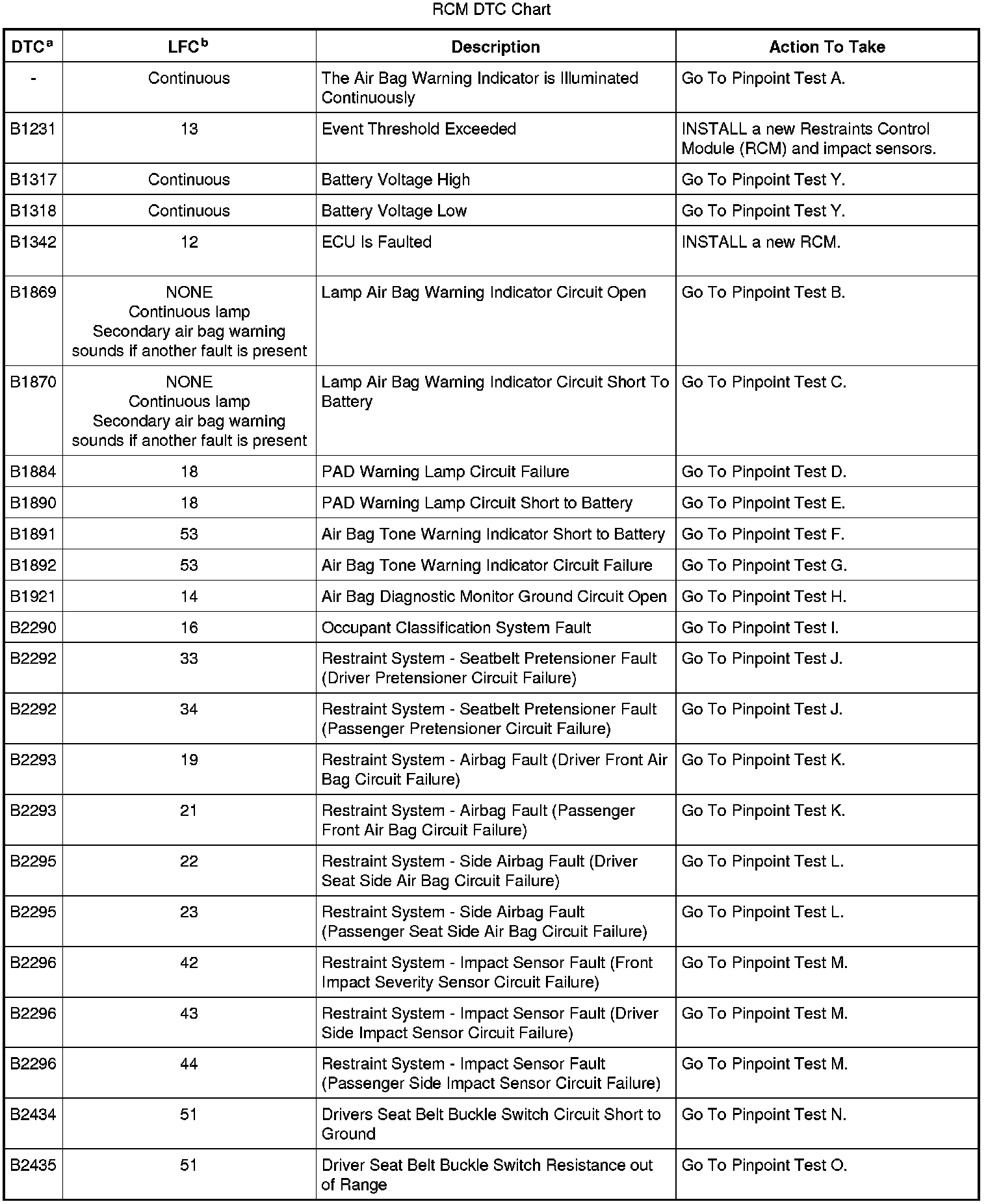

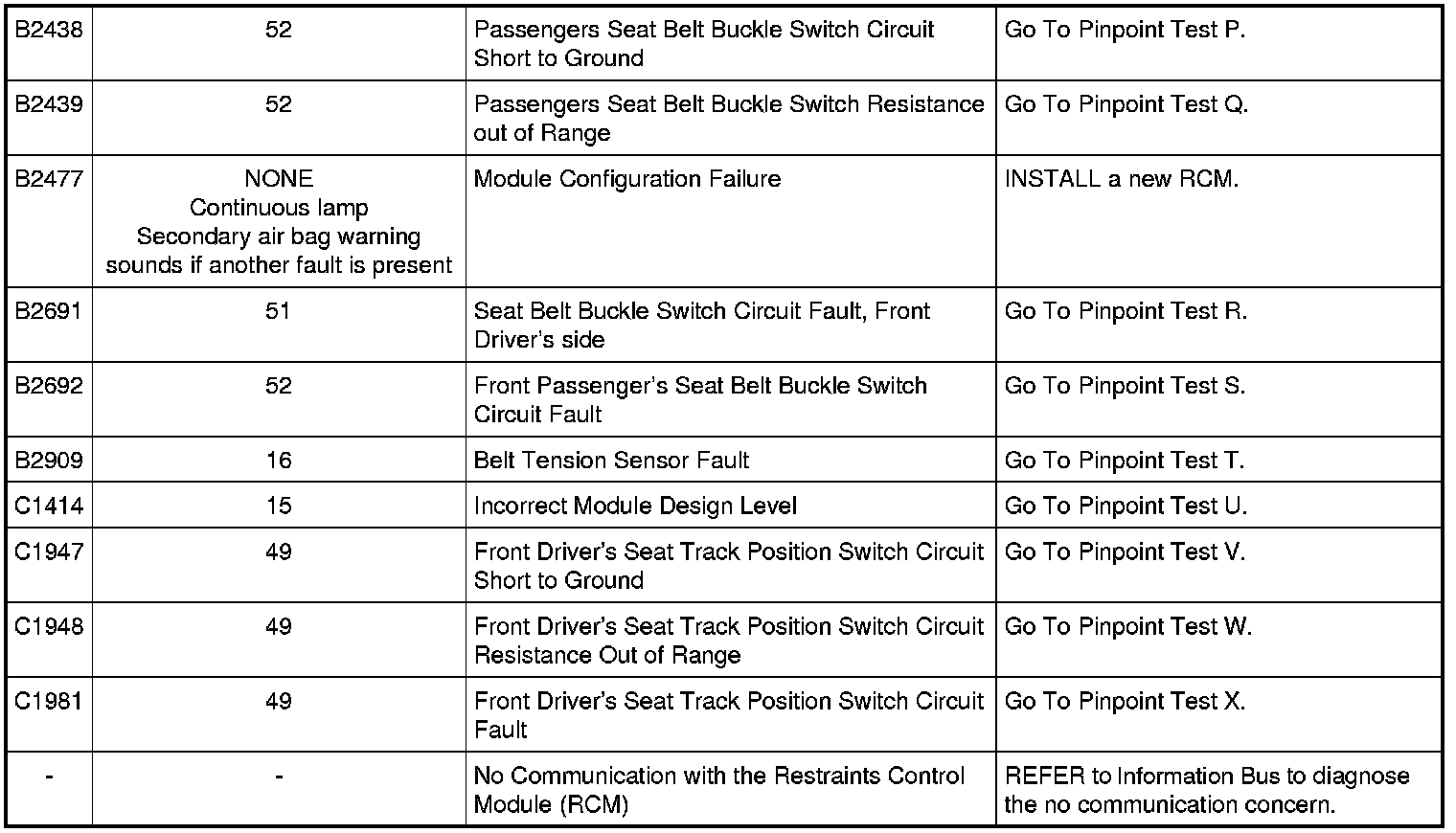

DTC Chart

While the Lamp Fault Codes (LFCs) are an indication of a general concern in the passive restraints system, the DTCs are more specific. The DTCs can be retrieved from the Restrains Control Module (RCM) with a scan tool via the Data Link Connector (DLC).
