Sealing Flange Overview

Sealing Flange Overview

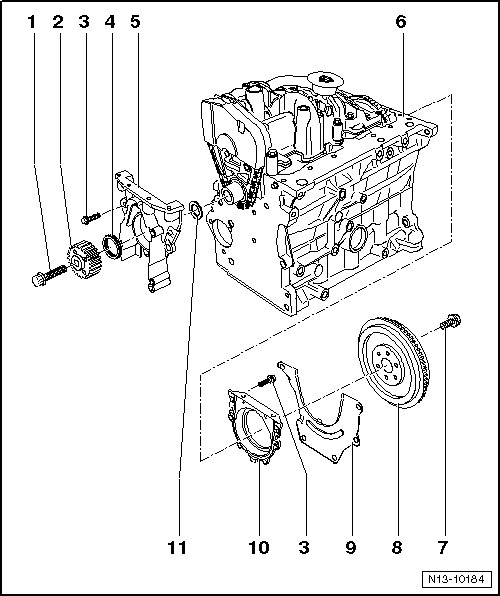

1 Bolt

• 90 Nm + an additional 90° (1/4) turn.

• Always replace.

• Do not lubricate.

• Use the counter support (3415) to loosen and tighten.

2 Crankshaft Toothed Belt Gear

• There must be no oil on the contact surfaces between the toothed belt gear and crankshaft.

• Only possible to install in one position.

3 Bolt

• 15 Nm

4 Seal

• Do not lubricate or grease the sealing lip on the seal.

• Removing and installing, refer to => [ Crankshaft Seal, Belt Pulley Side ] Service and Repair.

5 Sealing Flange, Belt Pulley Side

• Must be seated on the alignment pins.

• Removing and installing, refer to => [ Sealing Flange, Belt Pulley Side ] Sealing Flange, Belt Pulley Side.

• To remove and install, remove the oil pan.

6 Cylinder Block

• Crankshaft overview. Refer to => [ Crankshaft Overview ] Service and Repair.

• Piston and connecting rod overview. Refer to => [ Piston and Connecting Rod Overview ] Service and Repair.

7 Bolt

• 60 Nm + an additional 90° (1/4) turn.

• Always replace.

8 Flywheel

• Removing and installing, refer to => [ Flywheel ] Service and Repair.

9 Intermediate Plate

• Must be located on the alignment sleeves.

• Be careful not to damage or bend the plate when installing it.

10 Sealing Flange with Seal

• Always replace as a complete unit.

• Removing and installing, refer to => [ Sealing Flange and Seal, Transmission Side ] Service and Repair.

11 Disc (Diamond Coated)

• Always replace.
