Selector Mechanism

Selector Mechanism

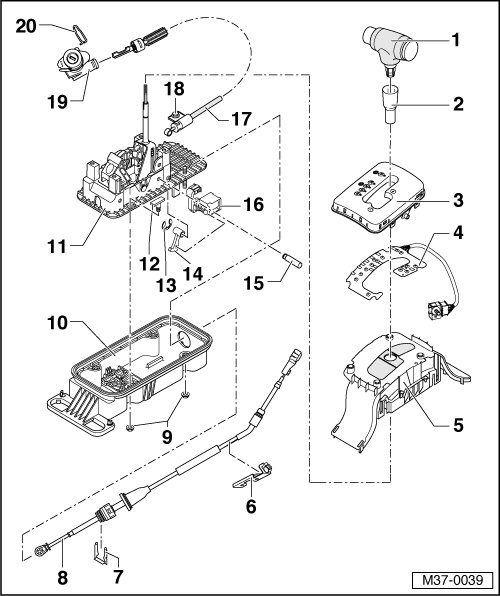

• Lubricate bearing areas and slide surfaces with polycarbamide grease (G 052 142 A2).





1 Selector lever handle

• Removing and installing => [ Selector Lever Handle ] Selector Lever Handle

2 Sleeve

• Engages in selector lever handle

• Locks removal of selector lever handle

3 Cover

• With circuit board and frame

• Assembly overview => [ Selector Mechanism Cover Assembly Overview ] Selector Mechanism Cover Assembly Overview

• Removing and installing => [ Selector Mechanism Cover and Circuit Board ] Selector Mechanism Cover and Circuit Board

4 Printed circuit board

• With integrated Tiptronic Switch ( F189)

• Can be tested in "Guided Fault Finding" using Vehicle Diagnosis, Testing and Information system (VAS 5051)

• Removing and installing => [ Selector Mechanism Cover and Circuit Board ] Selector Mechanism Cover and Circuit Board

5 Frame

• With cover strips

• Assembly overview => [ Selector Mechanism Frame Assembly Overview ] Selector Mechanism Frame Assembly Overview

• Disassembling and assembling => [ Selector Mechanism Frame ] Selector Mechanism Frame

6 Bracket

• With clip for selector lever cable

7 Locking plate

• For selector lever cable to selector mechanism housing

• Always replace

8 Selector lever cable

• Do not bend or kink

• If protective sleeve is damaged, the selector lever cable must be replaced

• Checking and adjusting => [ Selector Lever Cable, Checking and Adjusting ] Testing and Inspection

• Removing and installing => [ Selector Lever Cable ] Service and Repair

• Do not grease cable eyelet and ball socket

9 Self-locking nut, 10 Nm

• For cover at selector mechanism housing

• 4x

• Always replace

10 Cover

• For selector mechanism housing

• With bonded seal

11 Selector mechanism housing

• Removing and installing => [ Selector Mechanism ] Selector Mechanism

12 Bolt

13 Locking washer

• For pivot pins => [ (Item 15) Pivot pin ] of pawl => [ (Item 14) Pawl ]

14 Pawl

• For shift lock solenoid

• Engages in cable lever of selector mechanism housing

15 Pivot pin

• For pawl => [ (Item 14) Pawl ]

16 Shift Lock Solenoid (N110)

• Can be replaced with selector mechanism installed

• Removing and installing => [ Shift Lock Solenoid ] Service and Repair

• Can be tested in "Guided Fault Finding" using Vehicle Diagnosis, Testing and Information system (VAS 5051)

17 Locking cable

• For ignition key removal lock

• Must not be kinked

• Removing and installing => [ Locking Cable ] Service and Repair

• Adjusting => [ Locking Cable, Adjusting ] Adjustments

• Ignition key removal lock, checking function => [ Ignition Key Removal Lock, Checking Function ] Testing and Inspection.

18 Bolt

• For locking cable on selector mechanism

• Tightening torque 10 Nm

19 Steering lock

20 Clip

• Installation position: Install clip from above. Angled ends of clip point toward steering lock.
