SUSPENSION: REAR NO. 1 SUSPENSION ARM: INSTALLATION

1. INSTALL REAR NO. 1 SUSPENSION ARM LH

(a) Install the rear No. 1 suspension arm (inner side) with the bolt, and temporarily tighten the bolt.





(1) Install the rear No. 1 suspension arm so that the bracket leans toward the front side of the vehicle as shown in the illustration.

(2) Ensure that the paint mark faces the rear side of the vehicle.

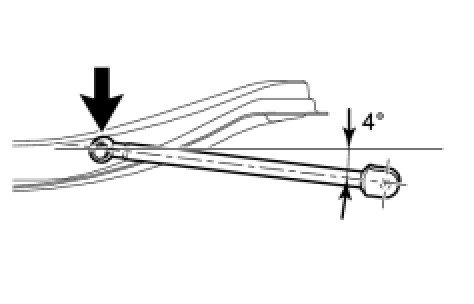

(b) Set the rear No.1 suspension arm in the position shown in the illustration, and fully tighten the bolt.





Torque : 100 Nm (1,020 kgf-cm, 74 ft-lbf)

2. INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY

(a) Raise the rear suspension member with a jack.





(b) Install the rear suspension member with the 2 bolts.

Torque : 56 Nm (571 kgf-cm, 41 ft-lbf)

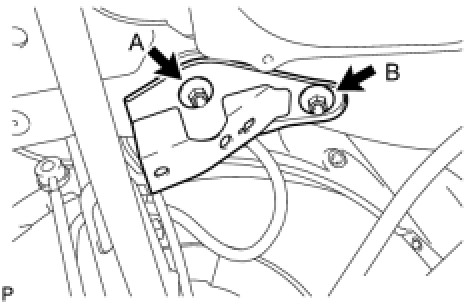

3. INSTALL REAR SUSPENSION MEMBER LOWER STOPPER LH

(a) Install the rear suspension member lower stopper LH with the 2 nuts.





Nut A - Torque : 55 Nm (561 kgf-cm, 41 ft-lbf)

Nut B - Torque : 38 Nm (388 kgf-cm, 28 ft-lbf)

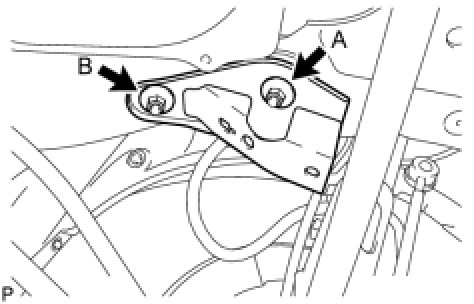

4. INSTALL REAR SUSPENSION MEMBER LOWER STOPPER RH

(a) Install the rear suspension member lower stopper RH with the 2 nuts.





Nut A - Torque : 55 Nm (561 kgf-cm, 41 ft-lbf)

Nut B - Torque : 38 Nm (388 kgf-cm, 28 ft-lbf)

5. TEMPORARILY TIGHTEN REAR NO. 1 SUSPENSION ARM LH

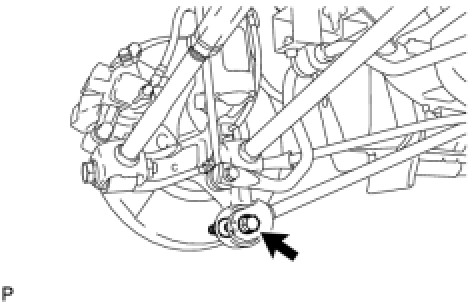

(a) Connect the rear No.1 suspension arm (outer side) to the rear axle carrier with the bolt and nut and temporarily tighten the bolt and nut.





NOTICE:
When temporarily tightening the bolt, keep the nut from rotating.

HINT
Insert the bolt from the front of the vehicle and temporarily install the bolt.

6. TEMPORARILY TIGHTEN REAR NO. 1 SUSPENSION ARM RH

HINT
Temporarily tighten the RH side using the same procedures as for the LH side.

7. TEMPORARILY TIGHTEN REAR NO. 2 SUSPENSION ARM LH

(a) Connect the rear No. 2 suspension arm (outer side) to the rear axle carrier with the bolt and nut and temporarily tighten the bolt.





NOTICE:
When temporarily tightening the bolt, keep the nut from rotating.

HINT
Insert the bolt from the rear of the vehicle and temporarily install the bolt.

8. TEMPORARILY TIGHTEN REAR NO. 2 SUSPENSION ARM RH

HINT
Temporarily tighten the RH side using the same procedures as for the LH side.

9. TEMPORARILY TIGHTEN REAR STRUT ROD

(a) Connect the rear strut rod to the axle carrier with the bolt and nut and temporarily tighten the bolt.





NOTICE:
When temporarily tightening the bolt, keep the nut from rotating.

HINT
Insert the bolt from the inside of the vehicle and temporarily install the bolt.

10. STABILIZE SUSPENSION

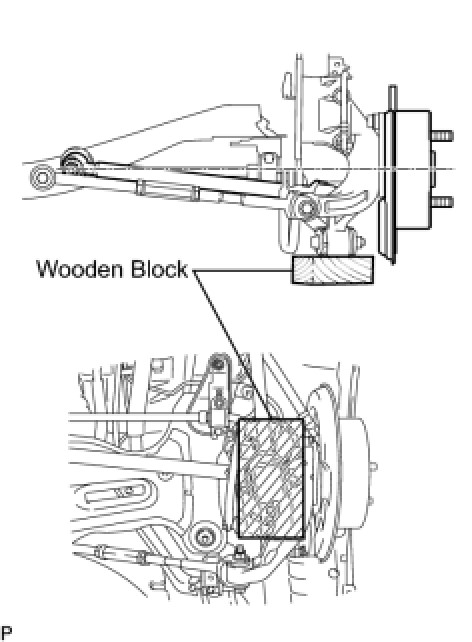

(a) Jack up the rear axle carrier, placing a wooden block to avoid damage. Apply load to the suspension so that the installed bolt of the rear No. 1 suspension arm (inner side) is horizontally aligned with the center of the rear axle hub.





11. FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM LH

(a) Fully tighten the bolt.





Torque : 100 Nm (1,020 kgf-cm, 74 ft-lbf)

12. FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM RH

HINT
Fully tighten the RH side using the same procedures as for the LH side.

13. FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM LH

(a) Fully tighten the bolt.





Torque : 100 Nm (1,020 kgf-cm, 74 ft-lbf)

14. FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM RH

HINT
Fully tighten the RH side using the same procedures as for the LH side.

15. FULLY TIGHTEN REAR STRUT ROD Installation

16. INSTALL REAR STABILIZER BUSHING Installation

17. INSTALL REAR STABILIZER BAR NO. 2 BRACKET Installation

18. INSTALL REAR STABILIZER BAR NO. 1 BRACKET Installation

19. INSTALL REAR STABILIZER BAR

20. INSTALL REAR STABILIZER LINK ASSEMBLY LH Installation

21. INSTALL REAR STABILIZER LINK ASSEMBLY RH Installation

22. INSTALL CENTER FLOOR REAR END PLATE (w/ Cover)

(a) Install the center floor rear end plate to the rear suspension member with the 2 bolts.





23. INSTALL NO. 2 FLOOR UNDER COVER (w/ Cover)

(a) Engage the 6 clips (B) to the body to temporarily Install the No. 2 floor under cover.





(b) Install the No. 2 floor under cover to the body with the 2 clips (A).

24. INSTALL NO. 1 FLOOR UNDER COVER (w/ Cover)

(a) Install the floor No. 1 under cover to the body with the 6 Clips.





25. INSTALL CENTER EXHAUST PIPE ASSEMBLY (for Single Type) Installation

26. INSTALL CENTER EXHAUST PIPE ASSEMBLY (for Dual Type)

for 2AR-FE: Installation

for 2GR-FE: Installation

27. INSTALL TAIL EXHAUST PIPE ASSEMBLY (for Dual Type)

for 2AR-FE: Installation

for 2GR-FE: Installation

28. INSTALL REAR WHEEL

Torque : 103 Nm (1,050 kgf-cm, 76 ft-lbf)

29. INSPECT FOR EXHAUST GAS LEAKAGE

30. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

Rear Wheel Alignment
