Removal (from 12/2010)

2GR-FE LUBRICATION: OIL PUMP: REMOVAL

1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE Removal (from 12/2010)

2. REMOVE ENGINE WIRE

3. REMOVE FRONT FRAME ASSEMBLY Removal (from 12/2010)

4. REMOVE STARTER ASSEMBLY Removal (from 12/2010)

5. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY

6. REMOVE OIL LEVEL GAUGE GUIDE SUB-ASSEMBLY Removal (from 12/2010)

7. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH Removal (from 12/2010)

8. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH Removal (from 12/2010)

9. REMOVE DRIVE PLATE & RING GEAR SUB-ASSEMBLY Removal (from 12/2010)

10. FIX ENGINE ASSEMBLY

11. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY Removal (from 12/2010)

12. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY Removal (from 12/2010)

13. REMOVE WATER PUMP PULLEY Removal

14. REMOVE WATER INLET HOUSING Removal

15. REMOVE CRANKSHAFT PULLEY Disassembly

16. REMOVE OIL PAN SUB-ASSEMBLY NO. 2 Disassembly

17. REMOVE OIL STRAINER SUB-ASSEMBLY Disassembly

18. REMOVE OIL PAN SUB-ASSEMBLY Disassembly

19. REMOVE INTAKE AIR SURGE TANK ASSEMBLY Removal (from 12/2010)

20. REMOVE IGNITION COIL ASSEMBLY Removal (from 12/2010)

21. REMOVE NO. 1 OIL PIPE Disassembly

22. REMOVE OIL PIPE Disassembly

23. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY RH Disassembly

24. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY LH Disassembly

25. REMOVE TIMING CHAIN OR BELT COVER SUB-ASSEMBLY

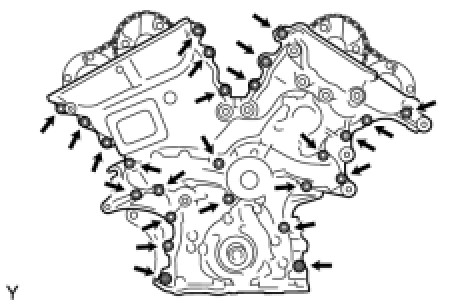

(a) Remove the 23 bolts and 2 nuts as shown in the illustration.

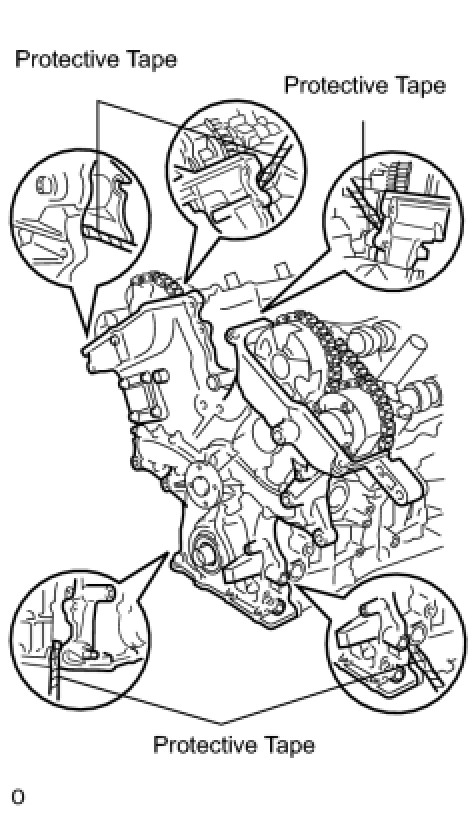

(b) Remove the timing chain cover by prying between the timing chain cover and cylinder head or cylinder block with a screwdriver.





NOTICE:
Be careful not to damage the contact surfaces of the cylinder head, cylinder block and chain cover.

HINT
Tape the screwdriver tip before use.

(c) Remove the gasket.





26. REMOVE TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL

(a) Using a screwdriver, pry out the oil seal.





HINT
Tape the screwdriver tip before use.
