Symptom Matrix Chart (For California)





TROUBLE DIAGNOSIS


Symptom Matrix Chart

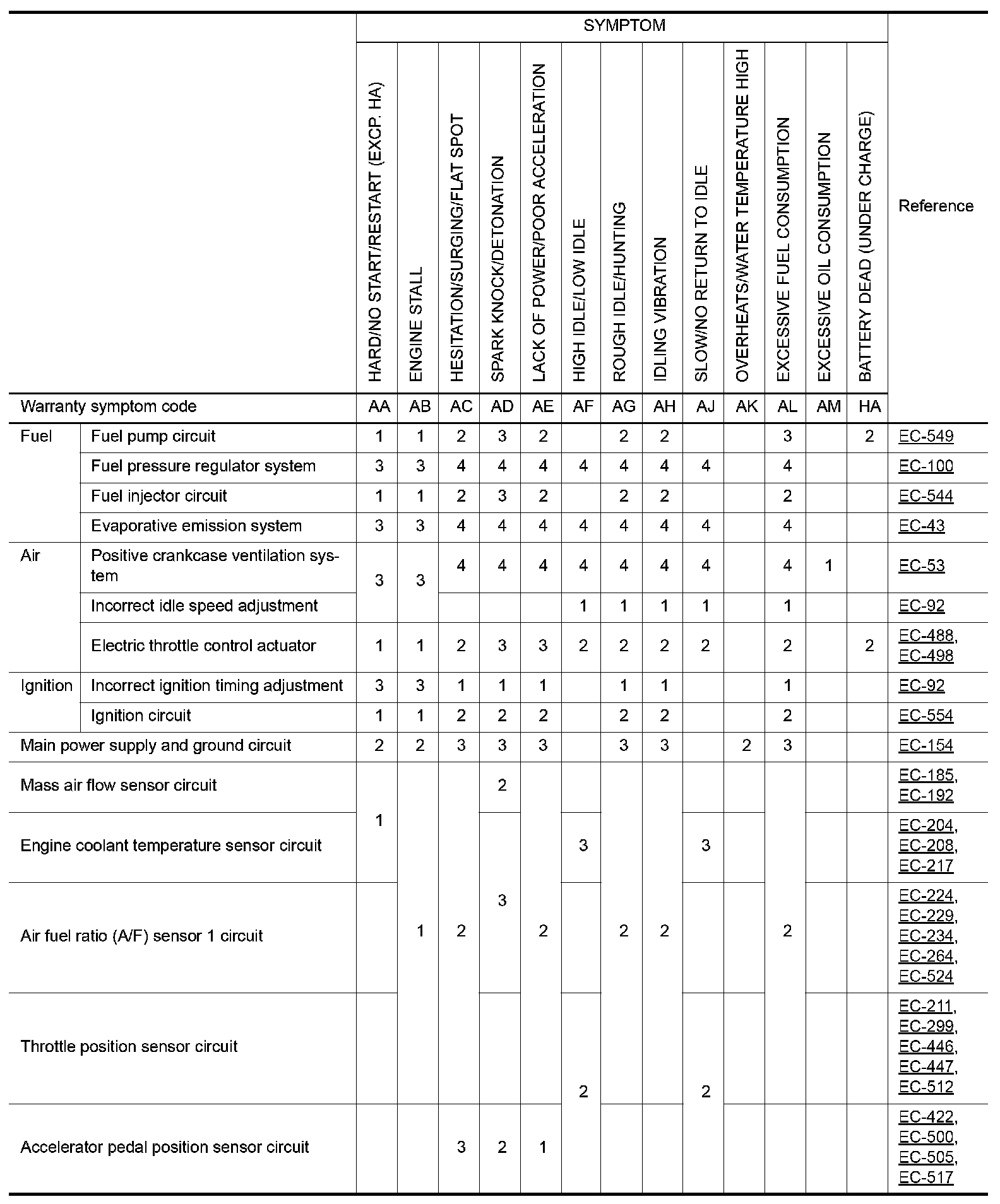

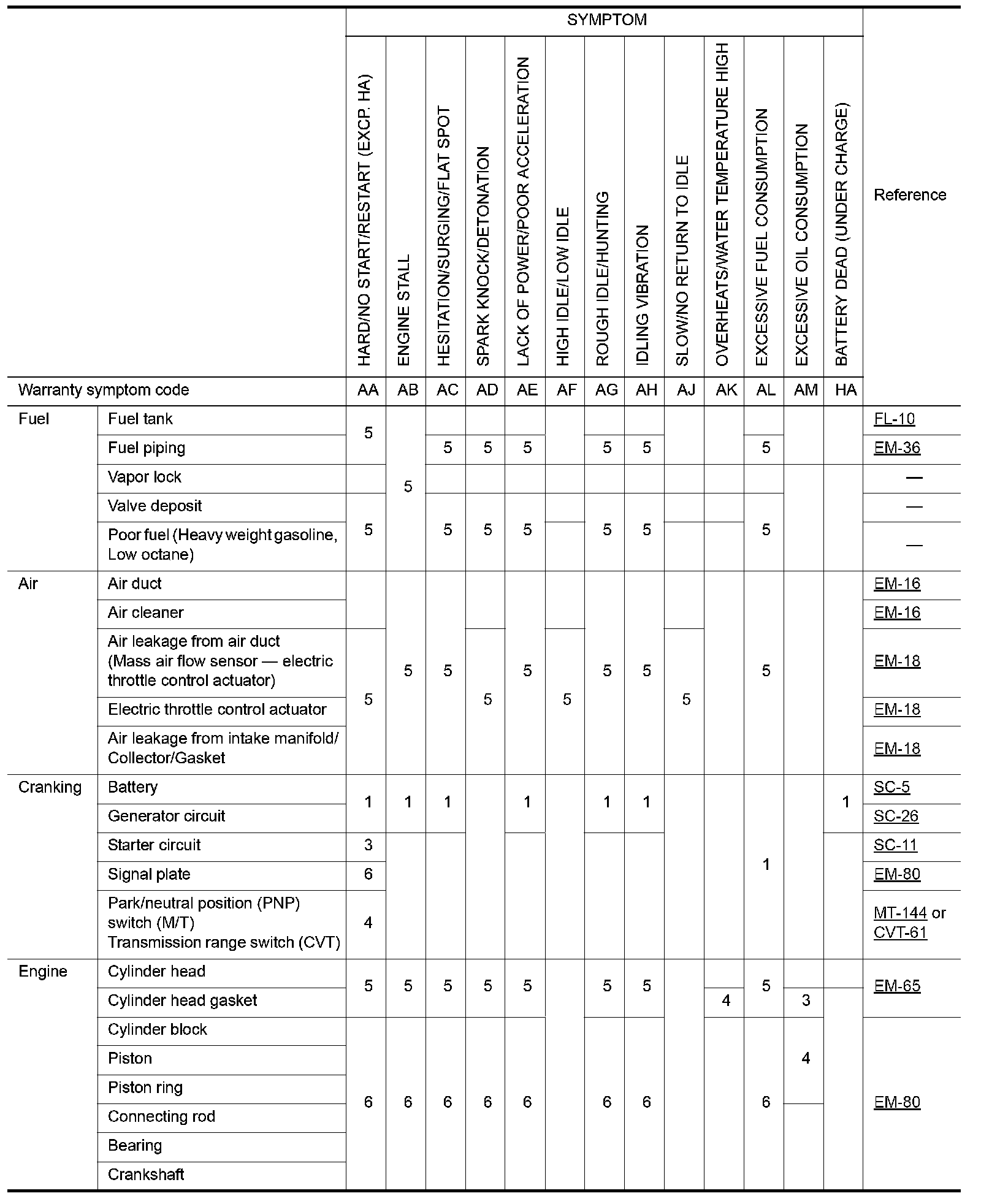

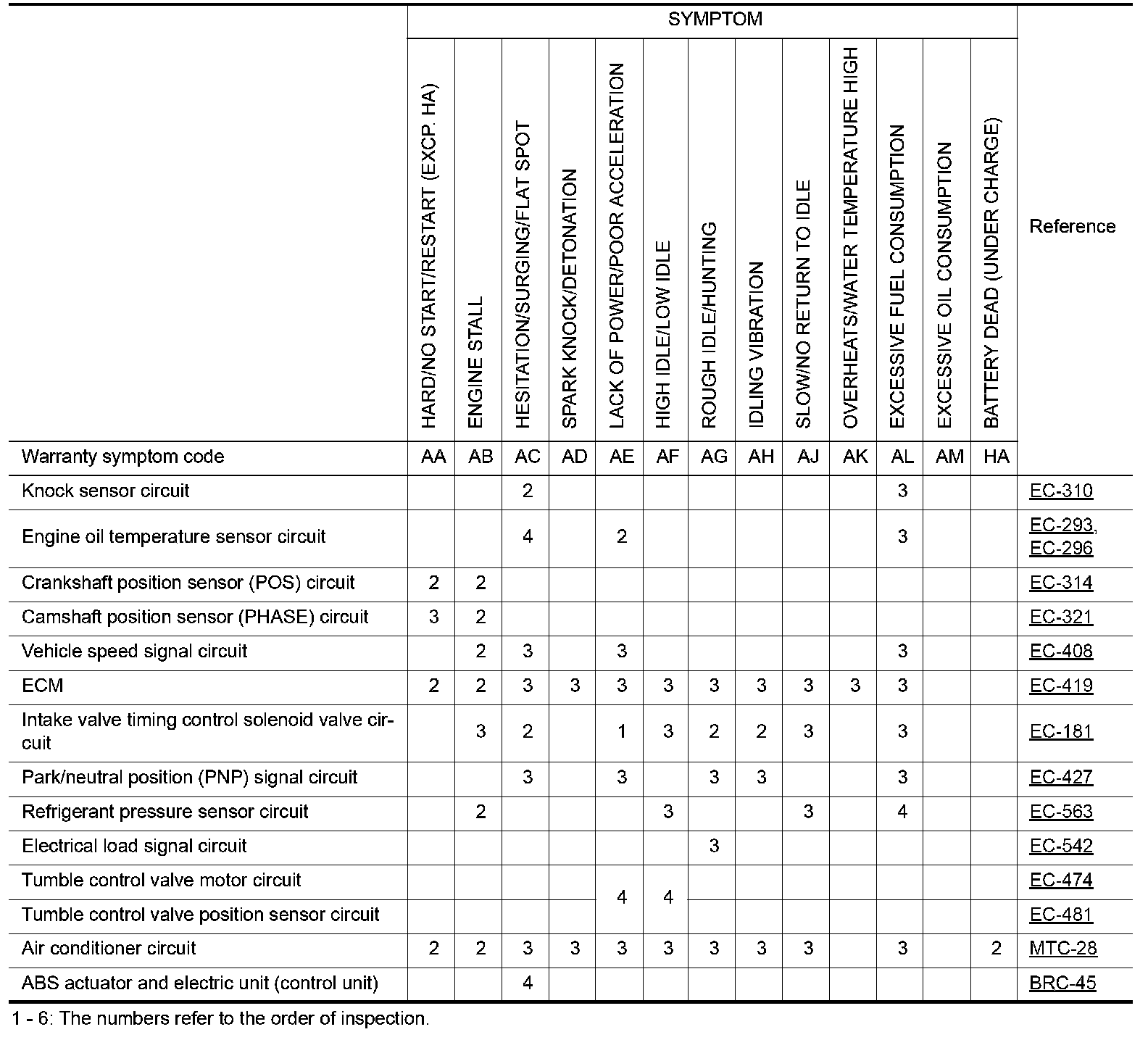

SYSTEM -- BASIC ENGINE CONTROL SYSTEM

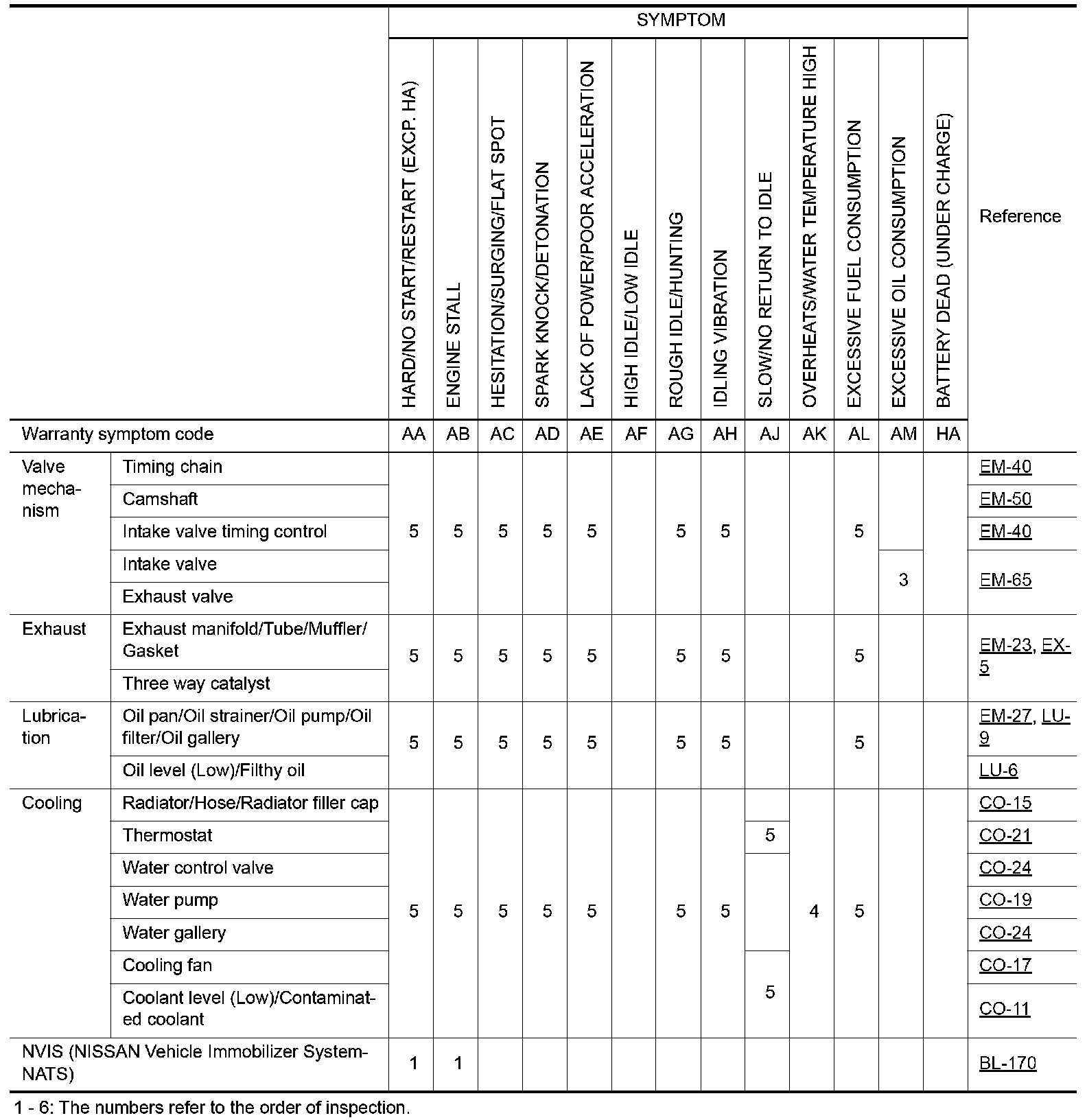

SYSTEM -- ENGINE MECHANICAL & OTHER
