Lancer Evolution L4-2.0L Turbo (4B11T/C)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Fail-Safe Function Reference Table
Fail-Safe Function Reference Table
P0096-P0234:
P0300-P1234:

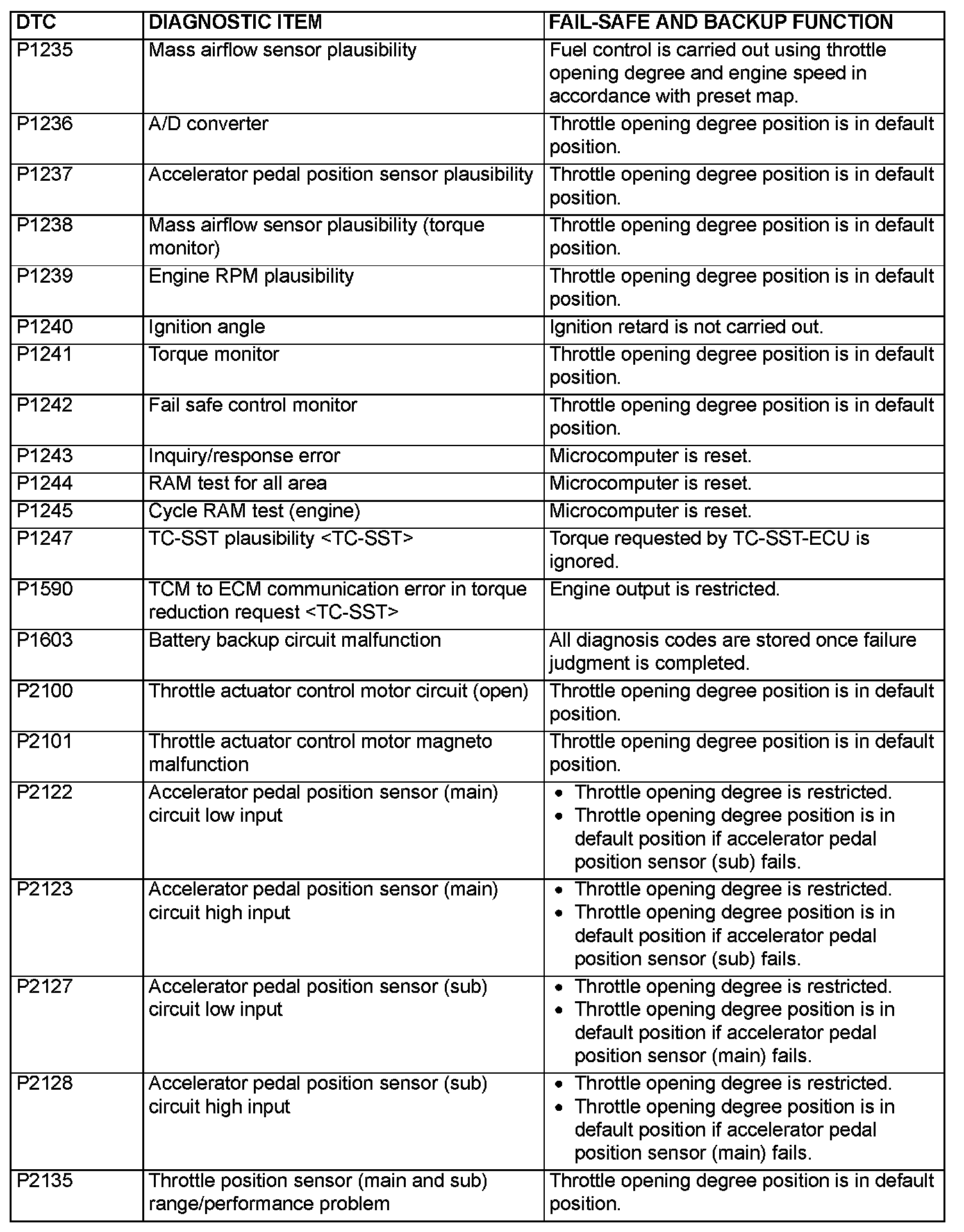

P1235-P2135:

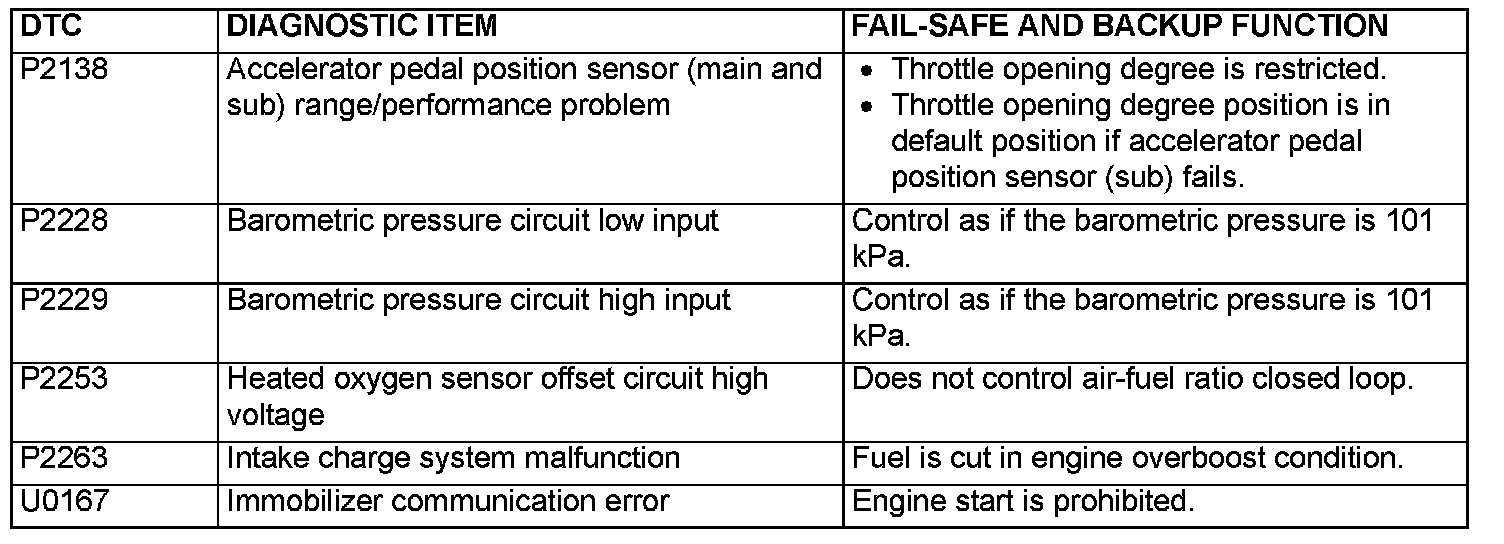

P2138-P2263 / U0167:
