Twin Clutch-Sportronic Shift Transmission (TC-SST)

This article has been updated by Technical Service Bulletin 09-22-005 dated March of 2009.

DIAGNOSTIC TROUBLE CODE CHART

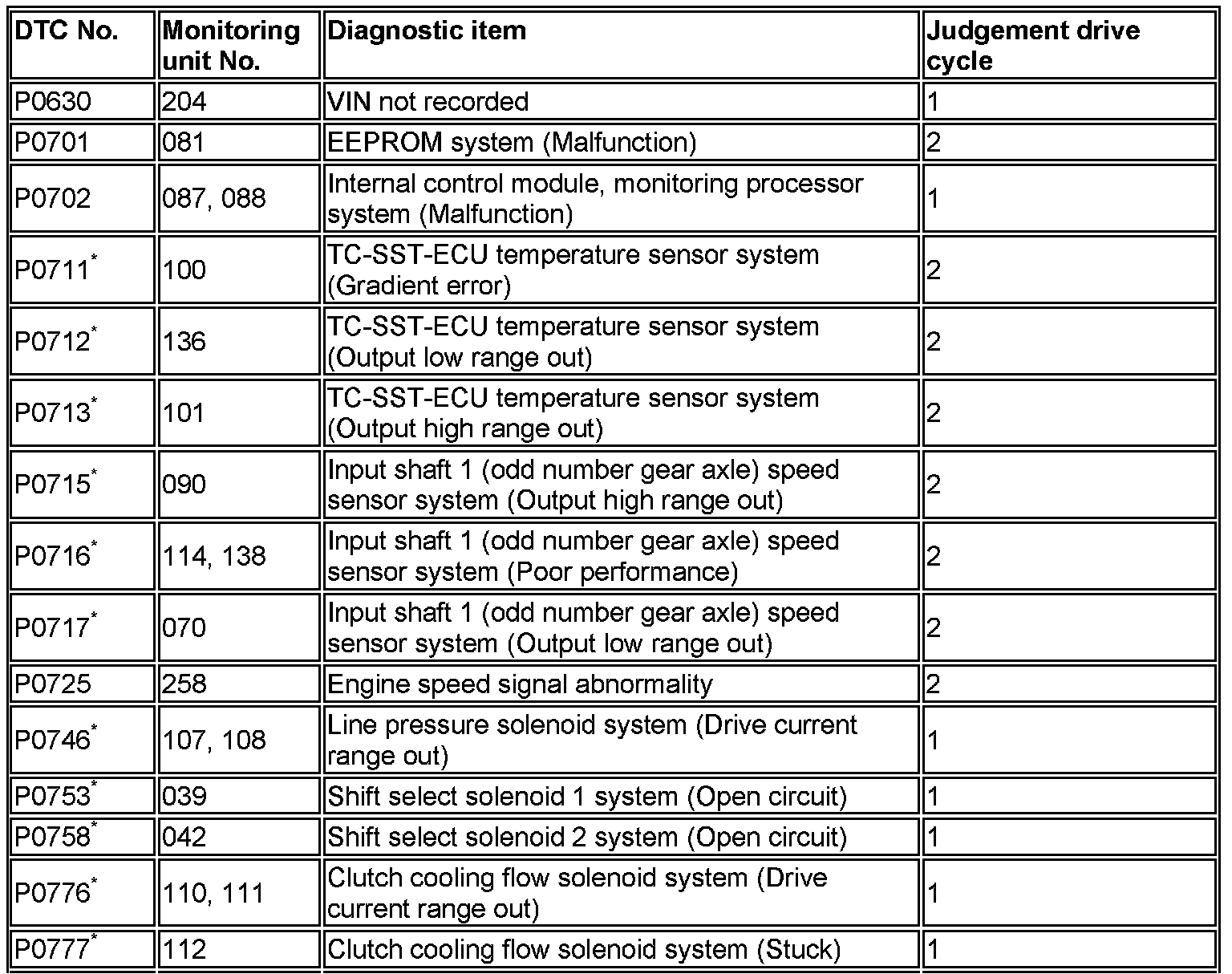

P0630 - P0777:

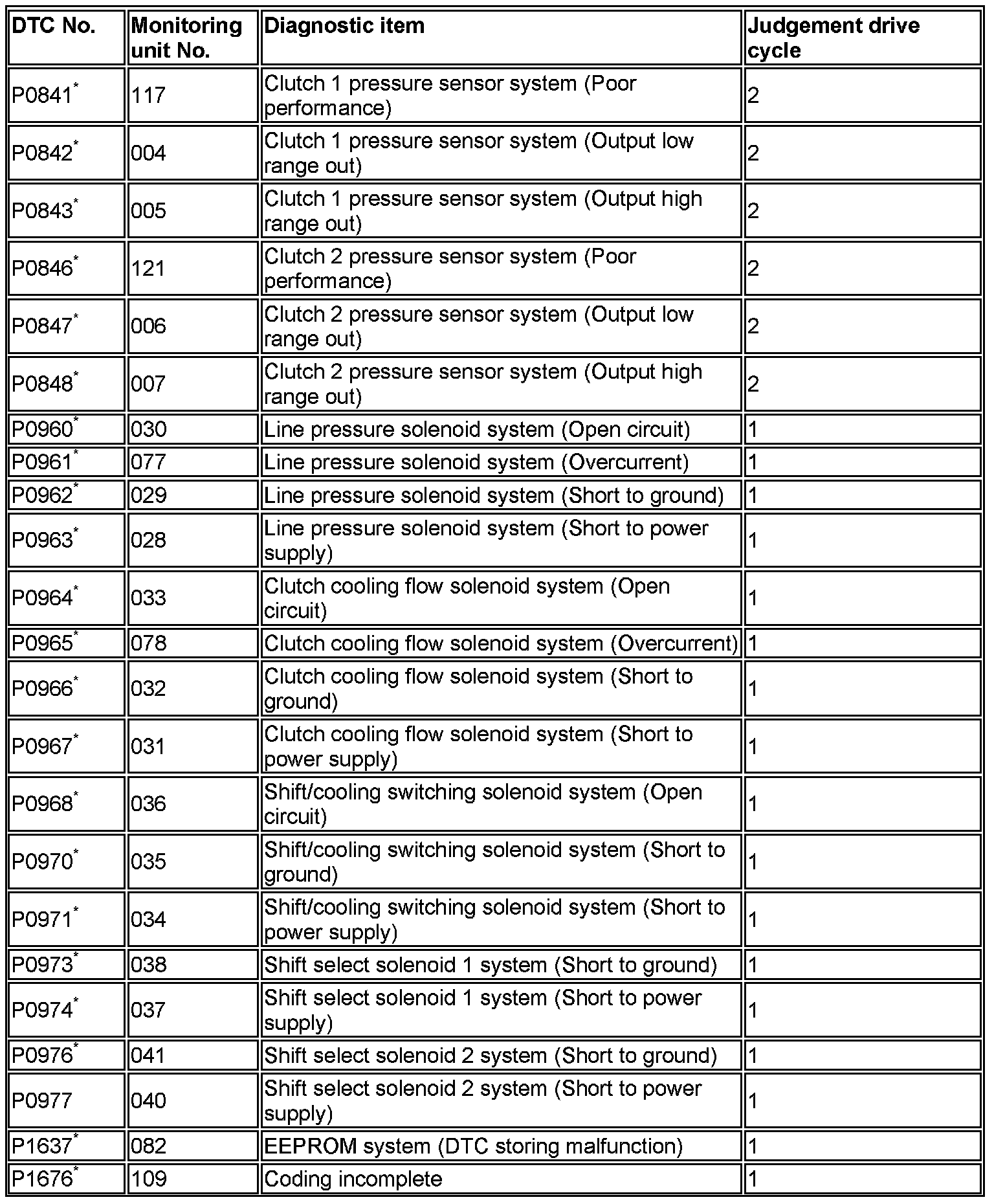

P0841 - P1676:

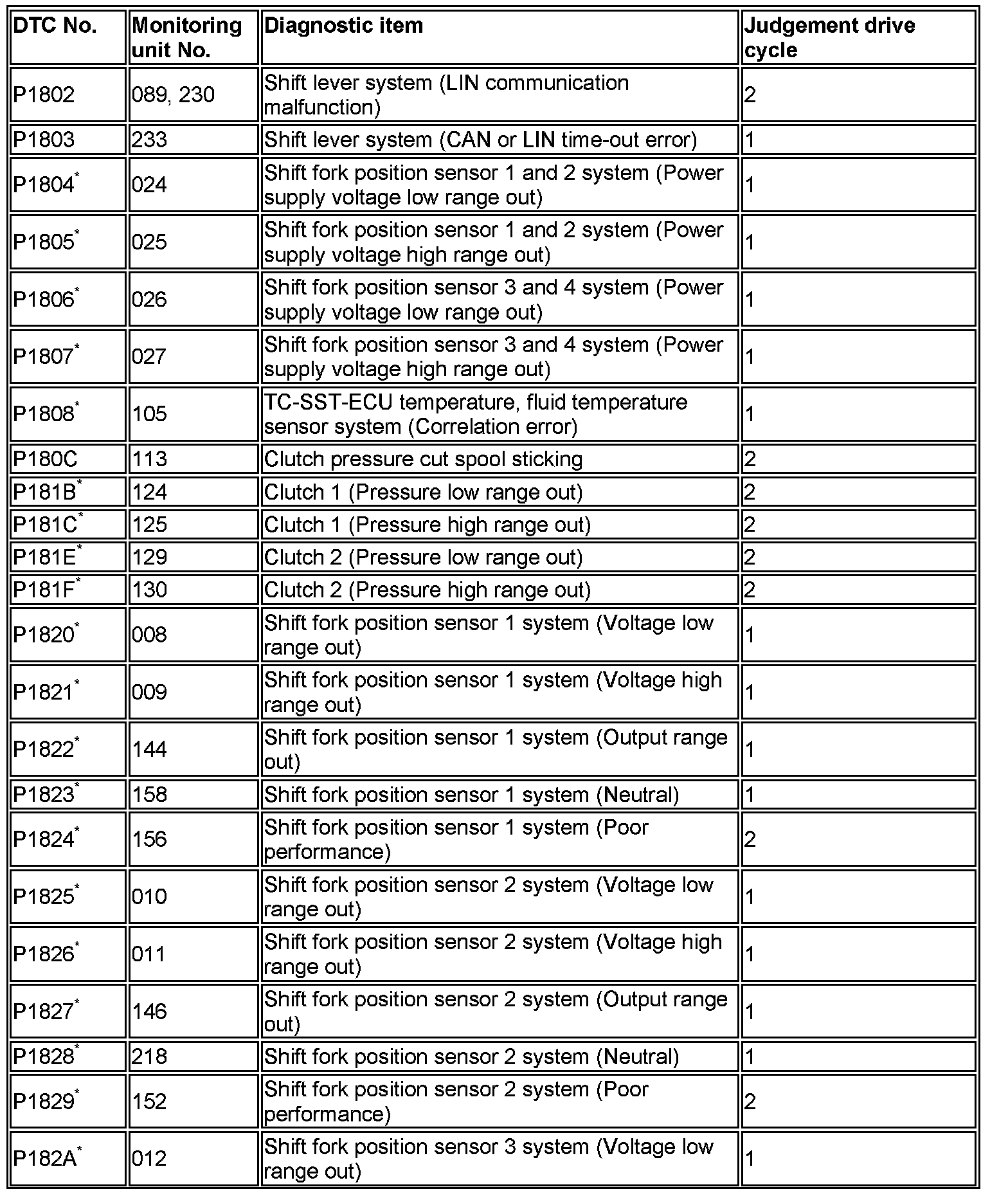

P1802 - P182A:

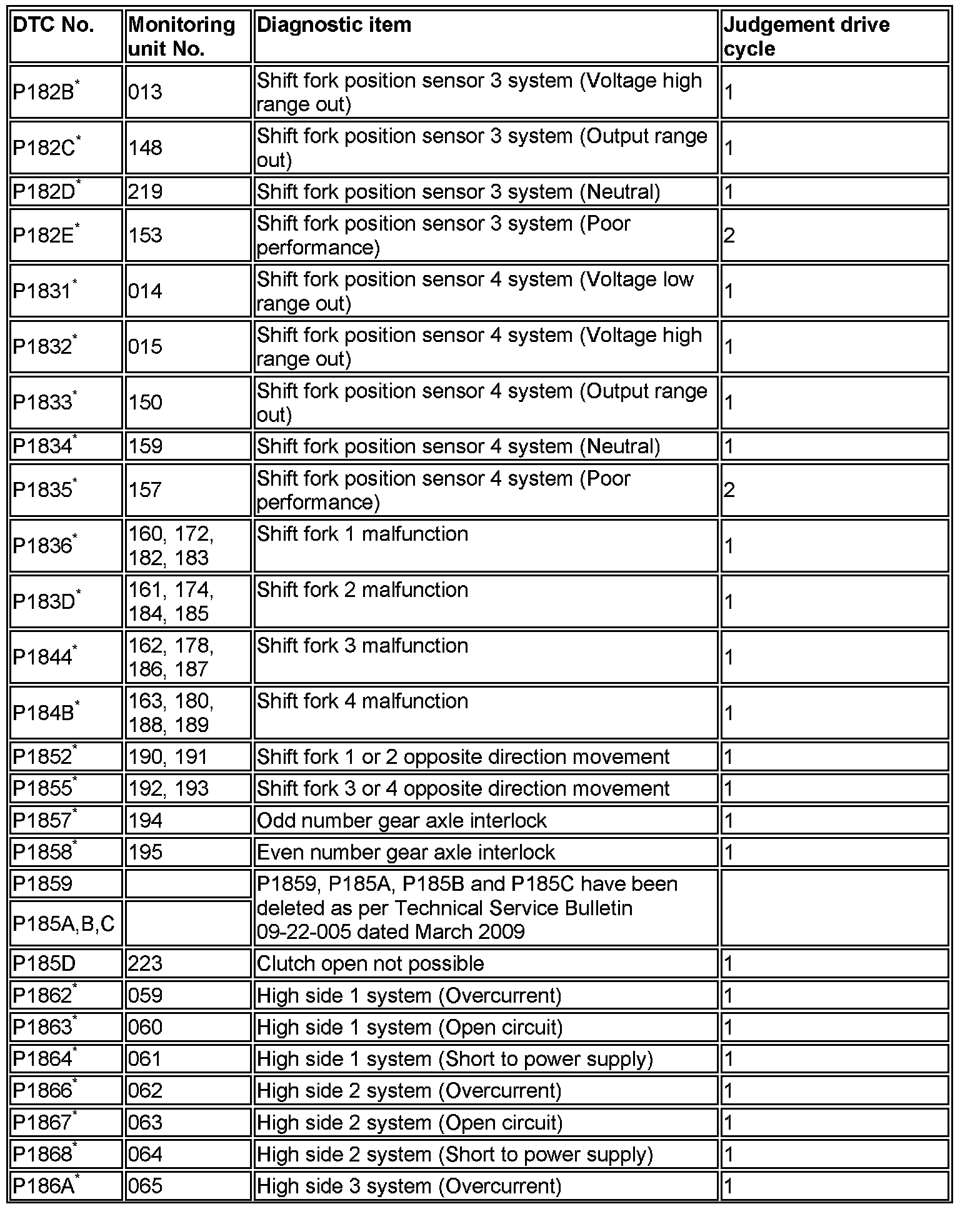

P182B - P186A:

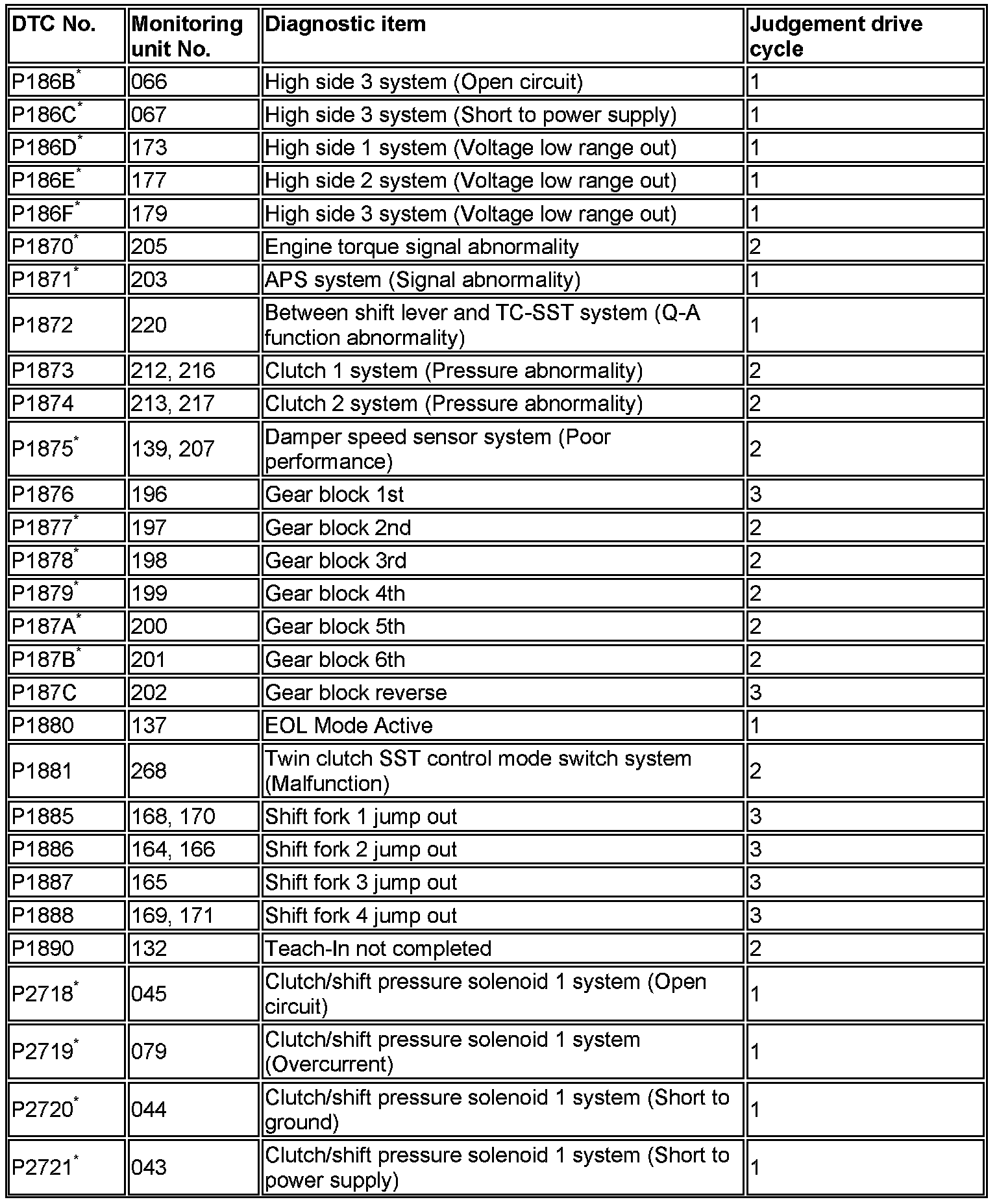

P186B - P2721:

P2727 - P2815 / U0001 - U0141:

CAUTION: During diagnosis, a DTC associated with other system may be set when the ignition switch is turned ON with connector(s) disconnected. On completion, confirm all systems for diagnostic trouble code(s). If diagnostic trouble code(s) are set, erase them all.

NOTE
- The monitoring unit No. indicates the malfunction code applicable to each DTC No., and it can be confirmed by the freeze frame data (item No. 30 to No. 37).
- For the DTC No. with *, the malfunction indicator lamp lights up when the applicable DTC No. is set.
- The definition of drive cycle indicates from (Ignition switch: "ON" after starting the engine), (Ignition switch: "LOCK" (OFF)) to (Ignition switch: "ON" again).
