Installation

SUSPENSION CONTROL: CONTROL VALVE ASSEMBLY (for Front Side): INSTALLATION

1. INSTALL NO. 1 HEIGHT CONTROL VALVE SUB-ASSEMBLY

(a) Install the height control valve with the 2 nuts.

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

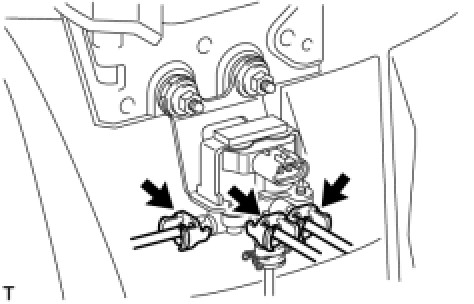

(b) Connect the 3 side air tubes Suspension Control System.

(d) Connect the connector.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

3. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

4. PERFORM INITIALIZATION

(a) Perform initialization Repair Instruction - Initialization.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

5. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.

6. INSPECT FOR AIR LEAK

(a) Inspect for air leak Operation Check.

7. INSTALL FRONT BUMPER COVER Installation

8. INSTALL FRONT FENDER LINER LH Installation

9. INSTALL FRONT FENDER LINER RH Installation

10. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH Installation

11. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH Installation

12. INSTALL FRONT FENDER WHEEL OPENING MOULDING LH

13. INSTALL FRONT FENDER WHEEL OPENING MOULDING RH Installation

14. INSTALL RADIATOR GRILLE ASSEMBLY Installation

15. INSTALL COOL AIR INTAKE DUCT SEAL Installation

16. INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY Installation

17. INSTALL ENGINE ROOM SIDE COVER LH Installation

18. INSTALL ENGINE ROOM SIDE COVER RH Installation
