Installation

BRAKE CONTROL: BRAKE PEDAL STROKE SENSOR: INSTALLATION

NOTICE:
While the battery is connected, even if the engine switch is off, the brake control system activates when the brake pedal is depressed or the door courtesy switch turns on. Therefore during servicing of the brake system components, do not operate the brake pedal and open/close the doors while the battery is connected.

1. INSTALL BRAKE PEDAL STROKE SENSOR ASSEMBLY

(a) When installing a new brake pedal stroke sensor assembly:

NOTICE:
Do not break the sensor lever set pin before installing the brake pedal stroke sensor with the bolts.

(1) Connect the sensor connector.





(2) Install a new sensor with the 2 bolts.

Torque : 8.5 Nm (87 kgf-cm, 75 in-lbf)

NOTICE:

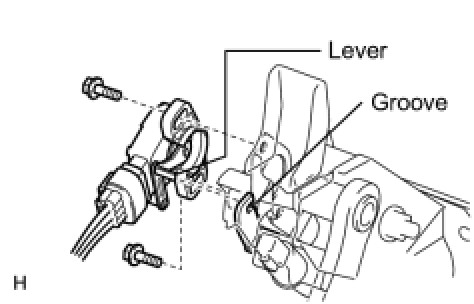

* Engage the sensor lever with the brake pedal groove.
* Check that there is no foreign matter attached to the contact surface of the sensor.
* Check that the tip of the sensor lever is protruding from the brake pedal groove.
* During installation, do not operate the brake pedal.

(3) Firmly depress the brake pedal and break the sensor lever set pin.

(4) Remove the broken lever set pin.

(b) When reusing the brake pedal stroke sensor assembly:

(1) Connect the sensor connector.

(2) Temporarily install the sensor with the 2 bolts.





NOTICE:
* Engage the sensor lever with the brake pedal groove.
* Check that there is no foreign matter attached to the contact surface of the sensor.

(3) Connect the cable to the negative battery terminal.

(4) Connect the Techstream to the DLC3.

(5) Turn the engine switch on (IG). Reading the value of the stroke sensor 1 shown on the data monitor, turn the sensor slowly to the right and left to adjust the output voltage to the standard voltage.





Standard voltage:

0.8 to 1.2 V

(6) Tighten the 2 bolts.

Torque : 8.5 Nm (87 kgf-cm, 75 in-lbf)

NOTICE:
Do not depress the brake pedal after turning the engine switch on (IG).

2. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY Installation

3. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

4. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Installation

5. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Installation

6. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY Installation

7. INSTALL STEERING COLUMN COVER Installation

8. INSTALL NO. 1 INSTRUMENT CLUSTER MOULDING Installation

9. INSTALL INSTRUMENT SIDE PANEL LH Installation

10. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation

11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

12. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

13. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.

14. CHECK AND CLEAR DTC

(a) Check and clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

15. PERFORM LINEAR VALVE OFFSET LEARNING

(a) Perform the linear valve offset learning Initialization.
