Removal

SEAT BELT: CHILD RESTRAINT SEAT TETHER ANCHOR: REMOVAL

1. REMOVE REAR SEAT ASSEMBLY

(a) for Power Seat:

Remove the rear seat assembly Removal.

(b) for Ottoman:

Remove the rear seat assembly Removal.

(c) for Fixed Seat Type:

Remove the rear seat assembly Removal.

2. REMOVE REAR DOOR SCUFF PLATE LH

(a) for Standard Body:

Remove the rear door scuff plate Removal.

(b) for Long Body:

Remove the rear door scuff plate Removal.

3. REMOVE REAR DOOR SCUFF PLATE RH

(a) for Standard Body:

Remove the rear door scuff plate Removal.

(b) for Long Body:

Remove the rear door scuff plate Removal.

4. REMOVE REAR SEAT SIDE GARNISH LH Removal

5. REMOVE REAR SEAT SIDE GARNISH RH Removal

6. REMOVE ROOF SIDE GARNISH INNER LH Removal

7. REMOVE ROOF SIDE GARNISH INNER RH Removal

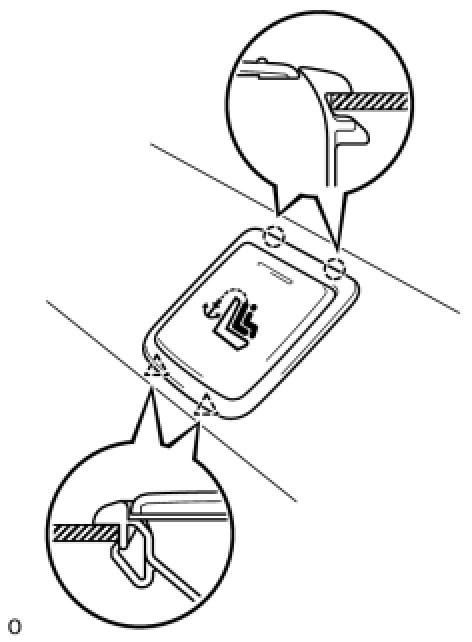

8. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR COVER





(a) Detach the 2 clips and 2 claws, and remove the anchor cover.

9. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade) Removal

10. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade) Removal

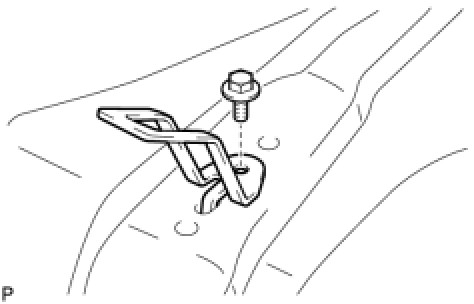

11. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET





(a) Except 4-Passenger with Ottoman:

Remove the 3 bolts and 3 child restraint seat tether anchor brackets.

(b) For 4-Passenger with Ottoman:

Remove the 2 bolts and 2 child restraint seat tether anchor brackets.
