Installation
AIR CONDITIONING: AIR CONDITIONING UNIT: INSTALLATION

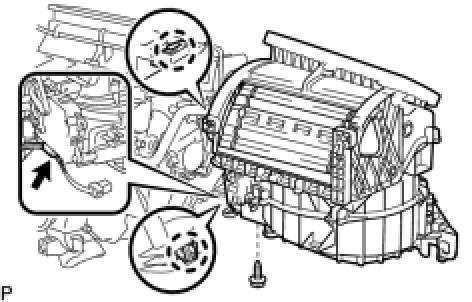

1. INSTALL BLOWER ASSEMBLY
(a) Install the blower assembly with the claw and screw.
(b) Connect the connector.
2. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY Installation

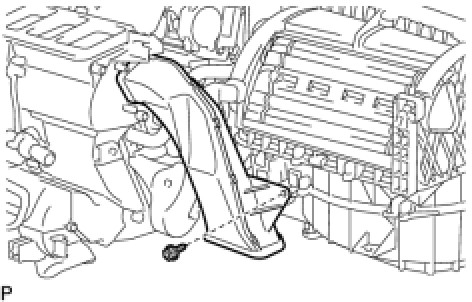

3. INSTALL NO. 2 AIR DUCT
(a) Install the No. 2 air duct with the screw.
4. INSTALL AIR CONDITIONER UNIT ASSEMBLY
(a) Using pliers, grip the claws of the clip and slide the clip to connect the heater water inlet hose.
(b) Using pliers, grip the claws of the clip and slide the clip to connect the heater water outlet hose.

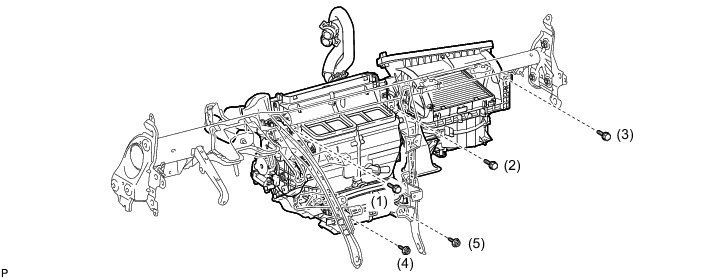

(c) Install the air conditioner unit assembly with the 3 bolts and 2 screws.
HINT
Tighten the bolts and screw to the instrument panel reinforcement in the order shown in the illustration.
Bolt - Torque : 9.8 Nm (100 kgf-cm, 87 in-lbf)

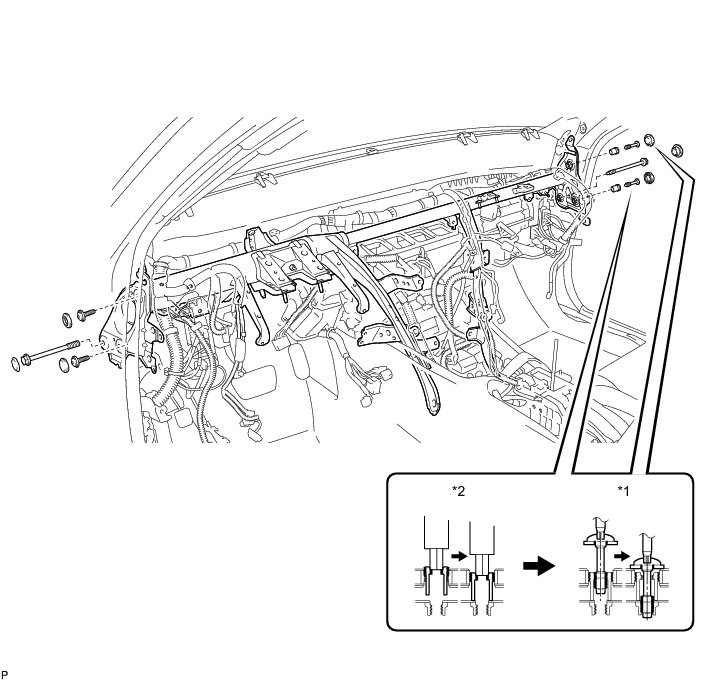

5. INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY
(a) Driver seat side:
(1) Using a T40 "TORX" socket, install the instrument panel reinforcement with the 2 "TORX" bolts.
Text in Illustration
(2) Install the bolt.
(b) Passenger seat side:
(1) Using a 12 mm hexagon wrench, install the instrument panel reinforcement with the 2 collars.
Torque : 6.0 Nm (61 kgf-cm, 53 in-lbf)
(2) Using a T40 "TORX" socket, install the instrument panel reinforcement with the 2 "TORX" bolts.
Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)
(c) Install the bolt.
(d) Install the 6 caps.

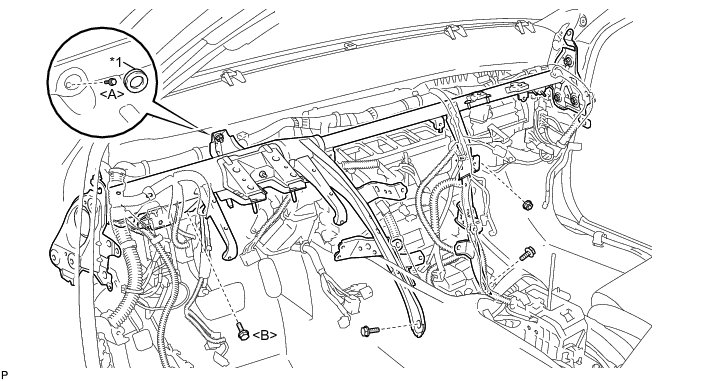

(e) Install the instrument panel reinforcement with the 3 bolts and nut.
Text in Illustration
Bolt B - Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)
Nut - Torque : 9.8 Nm (100 kgf-cm, 87 in-lbf)
(f) Install the bolt [A] and cap.

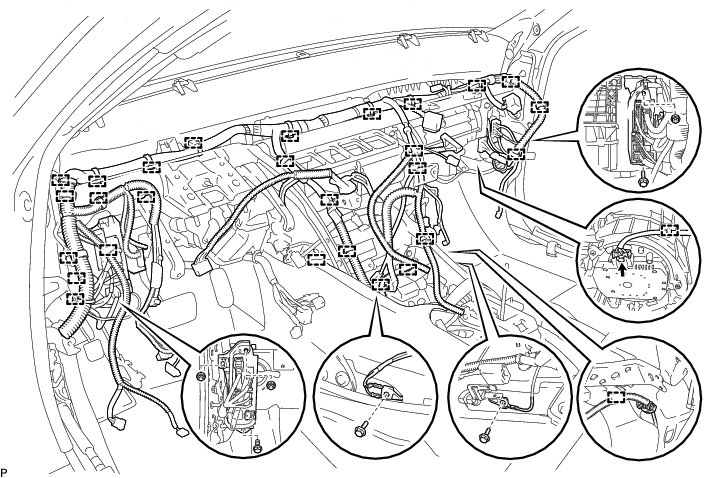

(g) Connect each connector and engage each clamp.
(h) Install the 2 earth wires with the 2 bolts.
Torque : 8.5 Nm (87 kgf-cm, 75 in-lbf)
(i) Install the 2 junction blocks with the 2 bolts and 3 nuts.
Bolt - Torque : 13 Nm (127 kgf-cm, 9 ft-lbf)
Nut - Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)
6. INSTALL IMMOBILIZER CODE ECU
7. INSTALL MULTI-MEDIA INTERFACE ECU WITH BRACKET Installation
8. INSTALL CLEARANCE WARNING BUZZER (w/ Intuitive Parking Assist System) Installation
9. INSTALL SKID CONTROL BUZZER ASSEMBLY Installation
10. INSTALL DCM (TELEMATICS TRANSCEIVER) WITH BRACKET (w/ Manual (SOS) Switch) Installation

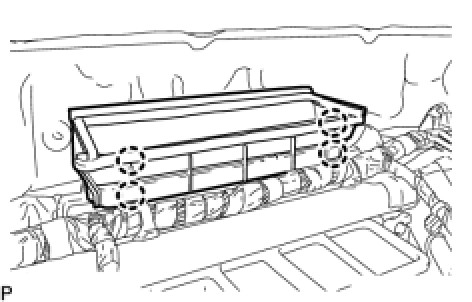

11. INSTALL LOWER DEFROSTER NOZZLE ASSEMBLY
(a) Attach the 4 claws to install the lower defroster nozzle.
12. INSTALL STEERING COLUMN ASSEMBLY (for Manual Tilt) Installation
13. INSTALL STEERING COLUMN ASSEMBLY (for Power Tilt and Power Telescopic Steering Column) Installation
14. INSTALL STEERING SLIDING YOKE SUB-ASSEMBLY (for 2WD) Installation
15. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (for 4WD) Installation
16. INSTALL NO. 1 AIR DUCT Installation
17. INSTALL INSTRUMENT PANEL STAY Installation
18. INSTALL INSTRUMENT PANEL CLIP Installation
19. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY Installation
20. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY Installation
21. INSTALL NO. 1 CONSOLE BOX DUCT Installation
22. INSTALL NO. 2 CONSOLE BOX DUCT (for Manual Transmission) Installation
23. INSTALL NO. 2 CONSOLE BOX DUCT (for Automatic Transmission) Installation
24. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker) Installation
25. INSTALL NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY Installation
26. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY Installation
27. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY Installation
28. INSTALL FRONT PILLAR GARNISH LH Installation
29. INSTALL FRONT PILLAR GARNISH RH Installation
30. INSTALL POWER SOURCE CONTROL ECU Installation
31. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation
32. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY Installation
33. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
34. INSTALL SIDE INSTRUMENT PANEL RH Installation
35. INSTALL FRONT DOOR OPENING TRIM COVER RH Installation
36. INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination) Installation
37. INSTALL FRONT DOOR SCUFF PLATE RH (w/ Illumination) Installation
38. INSTALL COMBINATION METER ASSEMBLY Installation
39. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Installation
40. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY Installation
41. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Installation
42. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
43. INSTALL SIDE INSTRUMENT PANEL LH Installation
44. INSTALL FRONT DOOR OPENING TRIM COVER LH Installation
45. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination) Installation
46. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination) Installation
47. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY Installation
48. INSTALL STEERING COLUMN COVER (for Manual Tilt) Installation
49. INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic Steering Column) Installation
50. ADJUST SPIRAL CABLE WITH STEERING SENSOR Installation
51. INSTALL STEERING WHEEL ASSEMBLY Installation
52. INSTALL STEERING PAD Installation
53. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation
54. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation
55. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Multi-display) Installation
56. INSTALL DISPLAY AND NAVIGATION MODULE DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Multi-display) Installation
57. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL Installation
58. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY Installation
59. INSTALL CONSOLE BOX Installation
60. INSTALL CONSOLE BOX REGISTER ASSEMBLY (w/o Ashtray) Installation
61. INSTALL CONSOLE BOX REGISTER ASSEMBLY (w/ Ashtray) Installation
62. INSTALL INSTRUMENT PANEL BOX ASSEMBLY (w/o Ashtray) Installation
63. INSTALL FRONT ASH RECEPTACLE BOX SUB-ASSEMBLY (w/ Ashtray) Installation
64. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation
65. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation
66. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) Installation
67. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation
68. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation
69. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
70. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
71. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY Installation
72. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Installation
73. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH Installation
74. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH Installation
75. INSTALL FRONT WIPER ARM HEAD CAP Installation
76. INSTALL ROOF DRIP SIDE FINISH MOULDING LH
77. INSTALL ROOF DRIP SIDE FINISH MOULDING RH
78. INSTALL FRONT UPPER FENDER PROTECTOR LH Installation
79. INSTALL FRONT UPPER FENDER PROTECTOR RH Installation
80. INSTALL HEATER WATER INLET HOSE
(a) Install the water hose and attach the clip.
81. INSTALL HEATER WATER OUTLET HOSE
(a) Use the same procedures described for the water hose inlet.
82. INSTALL LIQUID TUBE SUB-ASSEMBLY
(a) Remove the vinyl tape attached to the tube.
(b) Sufficiently apply compressor oil to a new O-ring and the fitting surface of the liquid tube.
Compressor oil:
ND-OIL 8 or equivalent
(c) Install the O-ring on the liquid tube.
(d) Install the liquid tube to the fitting hole.

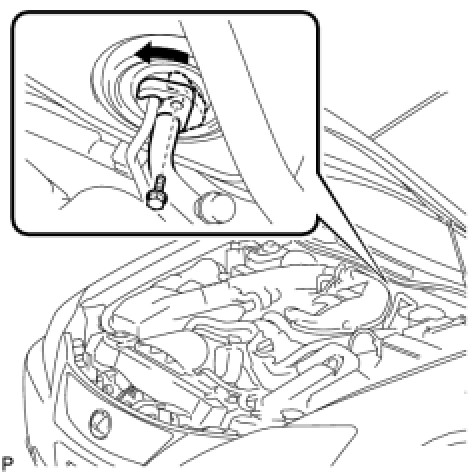

83. INSTALL SUCTION PIPE SUB-ASSEMBLY
(a) Remove the vinyl tape attached to the pipe.
(b) Sufficiently apply compressor oil to a new O-ring and the fitting surface of the suction pipe.
Compressor oil:
ND-OIL 8 or equivalent
(c) Install the O-ring on the suction pipe.
(d) Move the hook connector in the direction indicated by the arrow in the illustration.
(e) Insert the pipe joints into the fitting holes securely and tighten the bolt.
Torque : 9.8 Nm (100 kgf-cm, 7 ft-lbf)
84. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
85. CHARGE REFRIGERANT Service and Repair
86. WARM UP ENGINE Service and Repair
87. CHECK FOR LEAKAGE OF REFRIGERANT Service and Repair
88. INSTALL ENGINE ROOM SIDE COVER LH Installation
89. INSTALL ENGINE ROOM SIDE COVER RH Installation
90. INSTALL COOL AIR INTAKE DUCT SEAL Installation
