Installation
PARKING BRAKE: PARKING BRAKE PEDAL: INSTALLATION

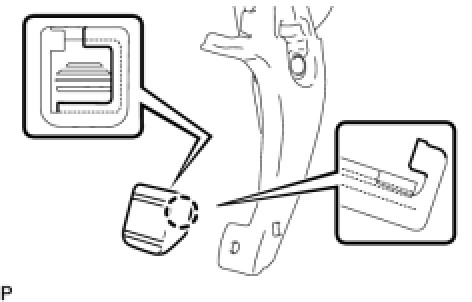

1. INSTALL PARKING PEDAL PAD
(a) Engage the claw and install the parking pedal pad on the parking brake pedal.
2. INSTALL PARKING BRAKE PEDAL ASSEMBLY (for 2WD)
(a) Pass the No. 1 parking brake cable assembly through the parking brake pedal and hold the cable with the clip.
HINT
Fully tighten the No. 1 wire adjusting nut and lock nut when adjusting the parking brake pedal free play.
(b) Fully bend the parking brake pedal claw.
(c) Temporarily install the parking brake pedal by loosely tightening the 3 nuts.
(d) Fully tighten the 3 nuts in the order shown in the illustration.
Torque : 13 Nm (133 kgf-cm, 10 ft-lbf)
(e) Connect the parking brake switch connector.
(f) Install the instrument panel junction block assembly with the 2 nuts.
(g) Install the No. 1 parking brake cable assembly to the body with the 3 nuts and 2 bolts.
Nut - Torque : 6.0 Nm (61 kgf-cm, 53 in-lbf)
Bolt - Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)
(h) Install the parking brake equalizer to the No. 1 parking brake cable assembly.

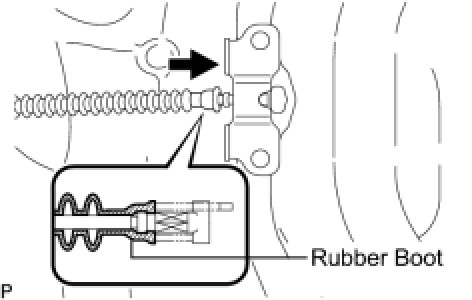

(i) Slide the rubber boot back as shown in the illustration.
(j) Connect the 2 No. 2 parking brake cable assemblies to the parking brake equalizer.
(k) Install the 2 No. 2 parking brake cable assemblies with the 2 bolts.
Torque : 6.0 Nm (61 kgf-cm, 53 in-lbf)
(l) Install the parking brake return with damper spring.
3. INSTALL PARKING BRAKE PEDAL ASSEMBLY (for 4WD)
(a) Pass the No. 1 parking brake cable assembly through the parking brake pedal and hold the cable with the clip.
HINT
Fully tighten the No. 1 wire adjusting nut and lock nut when adjusting the parking brake pedal free play.
(b) Fully bend the parking brake pedal claw.
(c) Temporarily install the parking brake pedal by loosely tightening the 3 nuts.
(d) Fully tighten the 3 nuts in the order shown in the illustration.
Torque : 13 Nm (133 kgf-cm, 10 ft-lbf)
(e) Connect the parking brake switch connector.
(f) Install the instrument panel junction block assembly with the 2 nuts.
(g) Install the No. 1 parking brake cable assembly to the body with the 3 nuts and 2 bolts.
Nut - Torque : 6.0 Nm (61 kgf-cm, 53 in-lbf)
Bolt - Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)
(h) Install the parking brake equalizer to the No. 1 parking brake cable assembly.
(i) Slide the rubber boot back as shown in the illustration.
(j) Connect the 2 No. 2 parking brake cable assemblies to the parking brake equalizer.
(k) Install the 2 No. 2 parking brake cable assemblies with the 2 bolts.
Torque : 6.0 Nm (61 kgf-cm, 53 in-lbf)
(l) Install the parking brake return with damper spring.
4. INSTALL FRONT UPPER FLOOR REAR SUB PANEL
(a) Install the front floor rear upper sub panel with the 4 bolts.
Torque : 18 Nm (184 kgf-cm, 13 ft-lbf)
(b) Engage the 6 clamps.
5. INSTALL CENTER AIRBAG SENSOR ASSEMBLY Installation
6. INSTALL NO. 3 DASH PANEL INSULATOR PAD
(a) Install the No. 3 dash panel insulator pad.
7. INSTALL PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY (for 4GR-FSE)
Installation
8. INSTALL PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY (for 2GR-FSE 2WD)
Installation
9. INSTALL PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY (for 2GR-FSE 4WD)
Installation
10. INSTALL FRONT PROPELLER SHAFT ASSEMBLY (for 4WD)
Installation
11. INSTALL NO. 2 REAR AIR DUCT
12. INSTALL FRONT FLOOR SILENCER PAD (for 2WD)
(a) Install the front floor silencer pad.
13. INSTALL ACCELERATOR PEDAL (for 2WD)
Installation
14. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY Installation
15. INSTALL LOWER INSTRUMENT FINISH PANEL SUB-ASSEMBLY Installation
16. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
17. INSTALL SIDE INSTRUMENT PANEL LH Installation
18. INSTALL NO. 2 CONSOLE BOX DUCT Installation
19. INSTALL CONSOLE BOX Installation
20. INSTALL CONSOLE BOX REGISTER ASSEMBLY (w/ Ashtray) Installation
21. INSTALL CONSOLE BOX REGISTER ASSEMBLY (w/o Ashtray) Installation
22. INSTALL FRONT ASH RECEPTACLE BOX SUB-ASSEMBLY (w/ Ashtray) Installation
23. INSTALL INSTRUMENT PANEL BOX ASSEMBLY (w/o Ashtray) Installation
24. INSTALL CONSOLE PANEL SUB-ASSEMBLY Installation
25. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH Installation
26. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH Installation

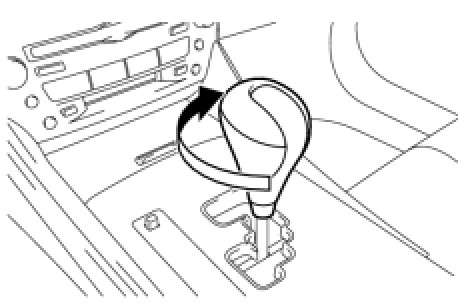

27. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
(a) Turn the shift knob clockwise and install the shift lever knob sub-assembly.
28. INSTALL CENTER LOWER PILLAR GARNISH LH Installation
29. INSTALL REAR DOOR SCUFF PLATE LH Installation
30. INSTALL FRONT DOOR SCUFF PLATE LH Installation
31. INSTALL FRONT DOOR OPENING TRIM COVER LH Installation
32. INSTALL FRONT SEAT OUTER BELT ASSEMBLY
Installation
33. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
34. INSTALL FRONT SEAT ASSEMBLY (for Standard Type Power Seat)
Installation
35. INSTALL FRONT SEAT ASSEMBLY (for Sports Type Power Seat)
Installation
36. INSTALL FRONT SEAT ASSEMBLY (for Manual Seat)
Installation
37. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
38. INSPECT PARKING BRAKE PEDAL TRAVEL Adjustments
39. ADJUST PARKING BRAKE PEDAL TRAVEL Adjustments
40. INSPECT SRS WARNING LIGHT
Diagnosis System
41. INSPECT FRONT SEAT ASSEMBLY (for Power Seat) Installation
42. INSPECT FOR EXHAUST GAS LEAK
