Removal

1UR-FSE STARTING: STARTER: REMOVAL

1. PLACE FRONT WHEELS FACING STRAIGHT AHEAD

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent the airbag working Service Precautions.

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE V-BANK COVER SUB-ASSEMBLY Removal

4. REMOVE COOL AIR INTAKE DUCT SEAL Removal

5. REMOVE ENGINE ROOM SIDE COVER LH Removal

6. REMOVE ENGINE ROOM SIDE COVER RH Removal

7. REMOVE FRONT WHEELS

8. REMOVE ENGINE UNDER COVER

9. REMOVE NO. 2 ENGINE UNDER COVER

10. REMOVE REAR ENGINE UNDER COVER LH

11. REMOVE REAR ENGINE UNDER COVER RH

12. REMOVE NO. 1 AIR CLEANER INLET Removal

13. REMOVE AIR CLEANER CAP SUB-ASSEMBLY Removal

14. REMOVE AIR CLEANER CASE SUB-ASSEMBLY Removal

15. REMOVE V-RIBBED BELT Removal

16. DISCONNECT WIRE HARNESS Removal

17. REMOVE FRONT STABILIZER BAR (w/o Active Stabilizer System)

(a) Remove the front stabilizer bar Removal.

18. REMOVE FRONT ACTIVE STABILIZER CONTROL ACTUATOR ASSEMBLY (w/ Active Stabilizer System)

(a) Remove the front active stabilizer control actuator assembly Removal.

19. REMOVE FRONT FLOOR COVER CENTER LH Removal

20. REMOVE FRONT FLOOR COVER CENTER RH Removal

21. REMOVE REAR NO. 1 FLOOR PANEL BRACE Removal

22. REMOVE FRONT CENTER FLOOR BRACE Removal

23. DISCONNECT HEATED OXYGEN SENSOR (for Bank 1 Sensor 2) Removal

24. DISCONNECT HEATED OXYGEN SENSOR (for Bank 2 Sensor 2) Removal

25. REMOVE FRONT EXHAUST PIPE ASSEMBLY Removal

26. REMOVE STEERING SLIDING YOKE SUB-ASSEMBLY Removal

27. REMOVE GENERATOR ASSEMBLY Removal

28. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE Removal

29. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR Removal

30. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH Removal

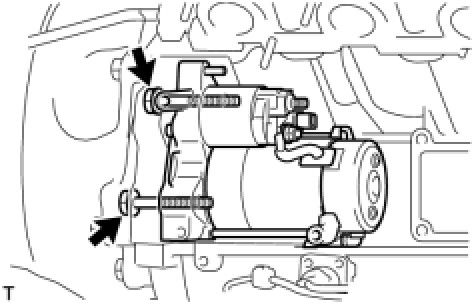

31. REMOVE STARTER ASSEMBLY

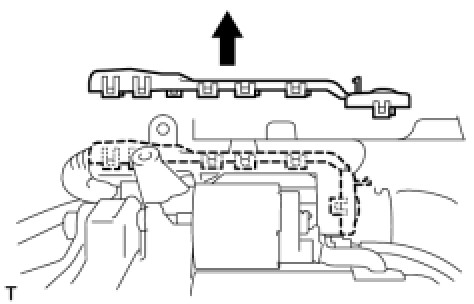

(a) Detach the 11 claws and remove the terminal upper cover.

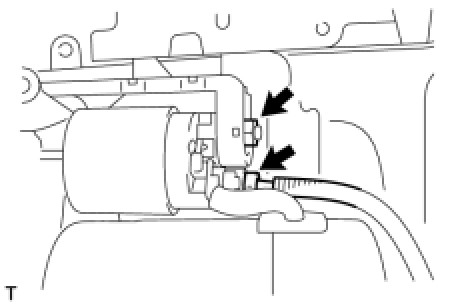

(b) Disconnect the starter connector.

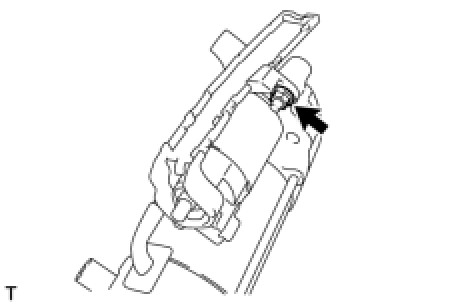

(e) Remove the nut and starter terminal lower cover.

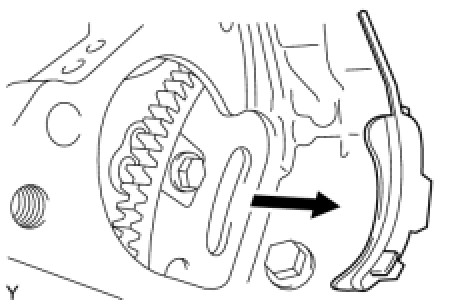

(f) Remove the flywheel housing side cover.
