Installation
PARKING BRAKE: PARKING BRAKE CABLE: INSTALLATION
INSTALLATION
HINT:
- Use the same procedures for the No. 2 and No. 3 parking brake cables.
- The procedures listed below are for the No. 3 and No. 1 parking brake cables.

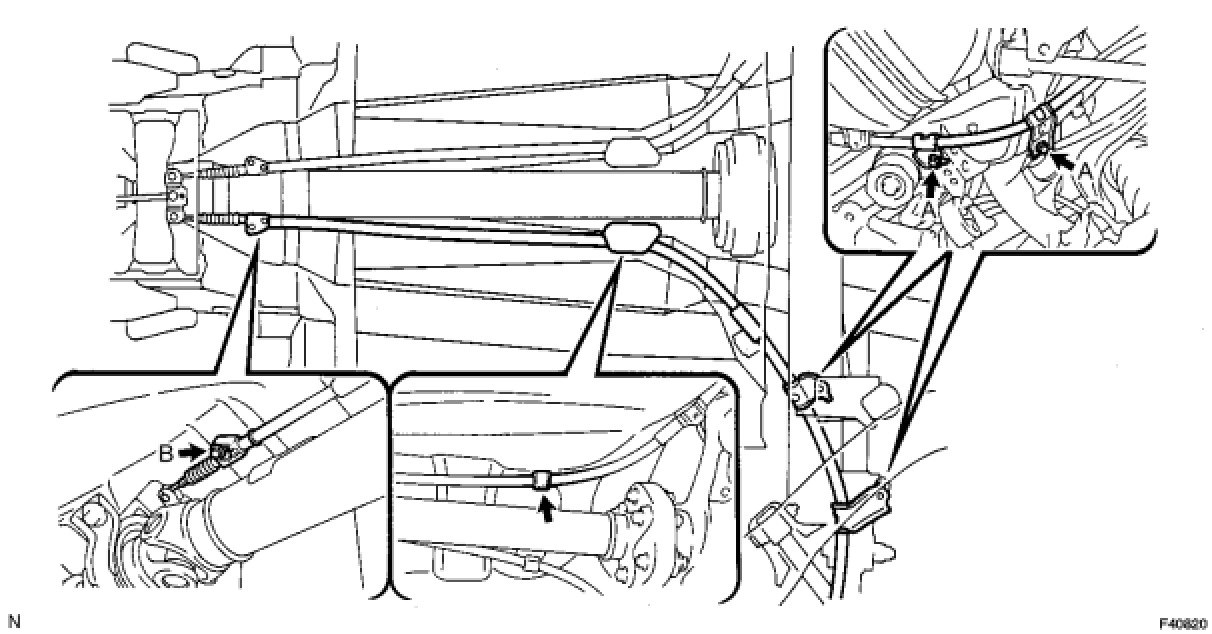

1. INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY
(a) Install the 2 brackets to the cable.
(b) Connect the cable to the intermediate lever.
(c) Connect the cable to the clamp.
(d) Install the cable to the vehicle body with the 3 bolts.
Torque: 18.6 Nm (190 kgf-cm, 19 in-lbf)for bolt A
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)for bolt B
2. CONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY
(a) Install the cable to the backing plate with the 2 bolts.
Torque: 7.8 Nm (80 kgf-cm, 69 in-lbf)
3. APPLY HIGH TEMPERATURE GREASE Reassembly
4. INSTALL PARKING BRAKE SHOE LEVER LH Reassembly
5. INSTALL NO. 2 PARKING BRAKE SHOE ASSEMBLY LH Reassembly
6. INSTALL NO. 1 PARKING BRAKE SHOE ASSEMBLY LH Reassembly
7. INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET Reassembly
8. INSTALL PARKING BRAKE SHOE STRUT LH Reassembly
9. CHECK PARKING BRAKE INSTALLATION Reassembly
10. INSTALL REAR DISC Reassembly

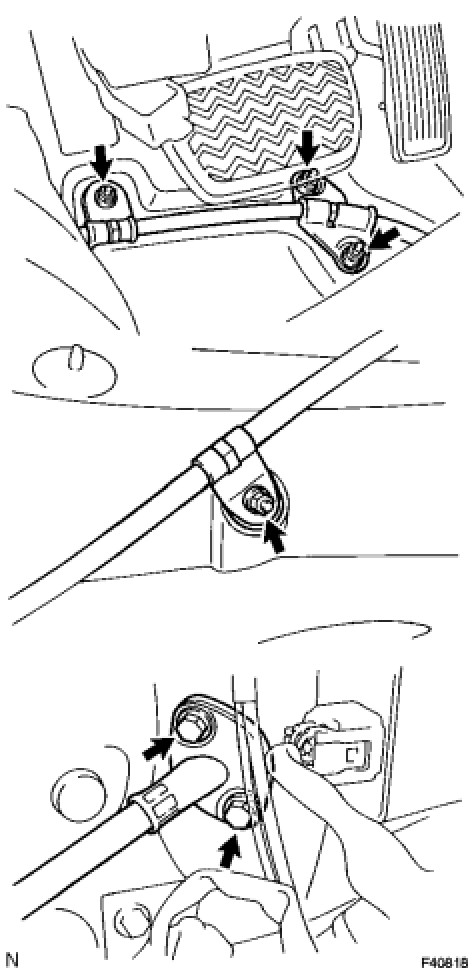

11. INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY
(a) Install the cable with the 2 bolts and 4 nuts.
Torque: 7.8 Nm (80 kgf-cm, 69 in-lbf)
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
12. INSTALL PARKING BRAKE CONTROL PEDAL ASSEMBLY Installation
13. INSTALL FLOOR SHIFT ASSEMBLY Installation
14. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY Installation
15. ADJUST SHIFT LEVER POSITION Installation

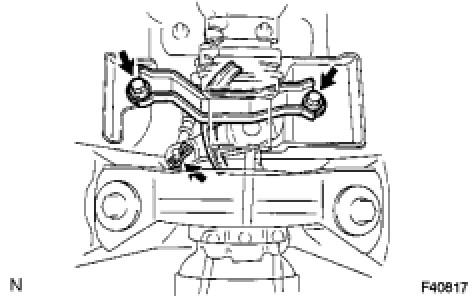

16. CONNECT NO. 1 PARKING BRAKE CABLE ASSEMBLY
(a) Apply MP grease to the sliding part of the cable against the intermediate lever.
(b) Install the cable to the intermediate lever with the clip and pin.
(c) Install the intermediate lever support bracket to the floor panel with the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
17. INSTALL CONSOLE BOX ASSEMBLY Installation
18. INSTALL NO. 3 BOX PANEL Installation
19. INSTALL CONSOLE BOX CARPET
20. INSTALL LOWER NO. 2 INSTRUMENT PANEL AIR BAG ASSEMBLY Installation
21. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation
22. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
23. INSTALL FRONT DOOR OPENING TRIM COVER RH Installation
24. INSTALL DOOR SCUFF PLATE ASSEMBLY RH Installation
25. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY LOWER CENTER
26. INSTALL AIR CONDITIONER CONTROL ASSEMBLY Installation
27. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation
28. INSTALL REAR CONSOLE UPPER PANEL GARNISH Installation
29. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIR BAG ASSEMBLY Installation
30. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Installation
31. INSTALL FRONT DOOR OPENING TRIM COVER LH Installation
32. INSTALL DOOR SCUFF PLATE ASSEMBLY LH Installation
33. INSTALL PARKING BRAKE CABLE HEAT INSULATOR Installation
34. INSTALL FRONT FLOOR NO. 1 HEAT INSULATOR Installation
35. INSTALL EXHAUST PIPE ASSEMBLY Installation
36. INSTALL HEATED OXYGEN SENSOR Installation
37. INSTALL REAR SUSPENSION MEMBER BRACE REAR LOWER RH
38. INSTALL REAR SUSPENSION MEMBER BRACE REAR LOWER LH
39. INSTALL FRONT FLOOR BRACE CENTER Installation
40. ADJUST PARKING BRAKE SHOE CLEARANCE Reassembly
41. CONNECT REAR DISC BRAKE CYLINDER ASSEMBLY LH Installation
42. INSTALL REAR WHEEL
(a) Install the wheel with the 5 nuts.
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
(b) Install the ornament with the 10 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
43. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
44. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
45. CHECK PARKING BRAKE PEDAL TRAVEL Adjustments
46. ADJUST PARKING BRAKE PEDAL TRAVEL Adjustments
47. INSPECT SHIFT LEVER POSITION Installation
48. CHECK FOR EXHAUST GAS LEAK Installation
49. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
