Problem Symptoms Table

NAVIGATION: NAVIGATION SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

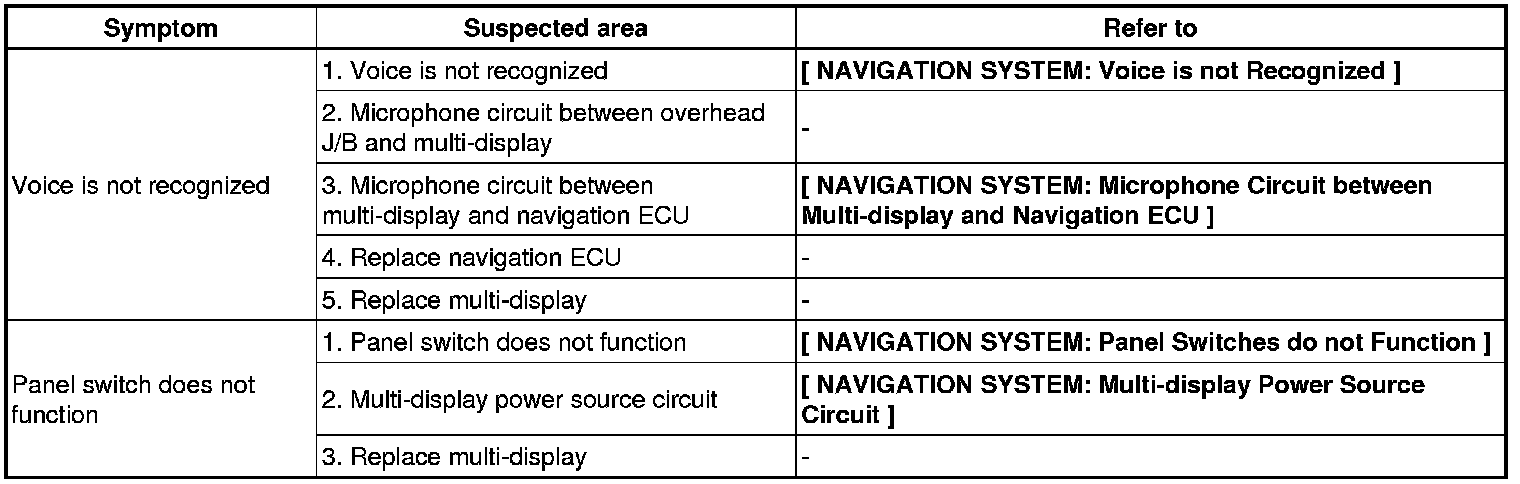

HINT: Use the table to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.

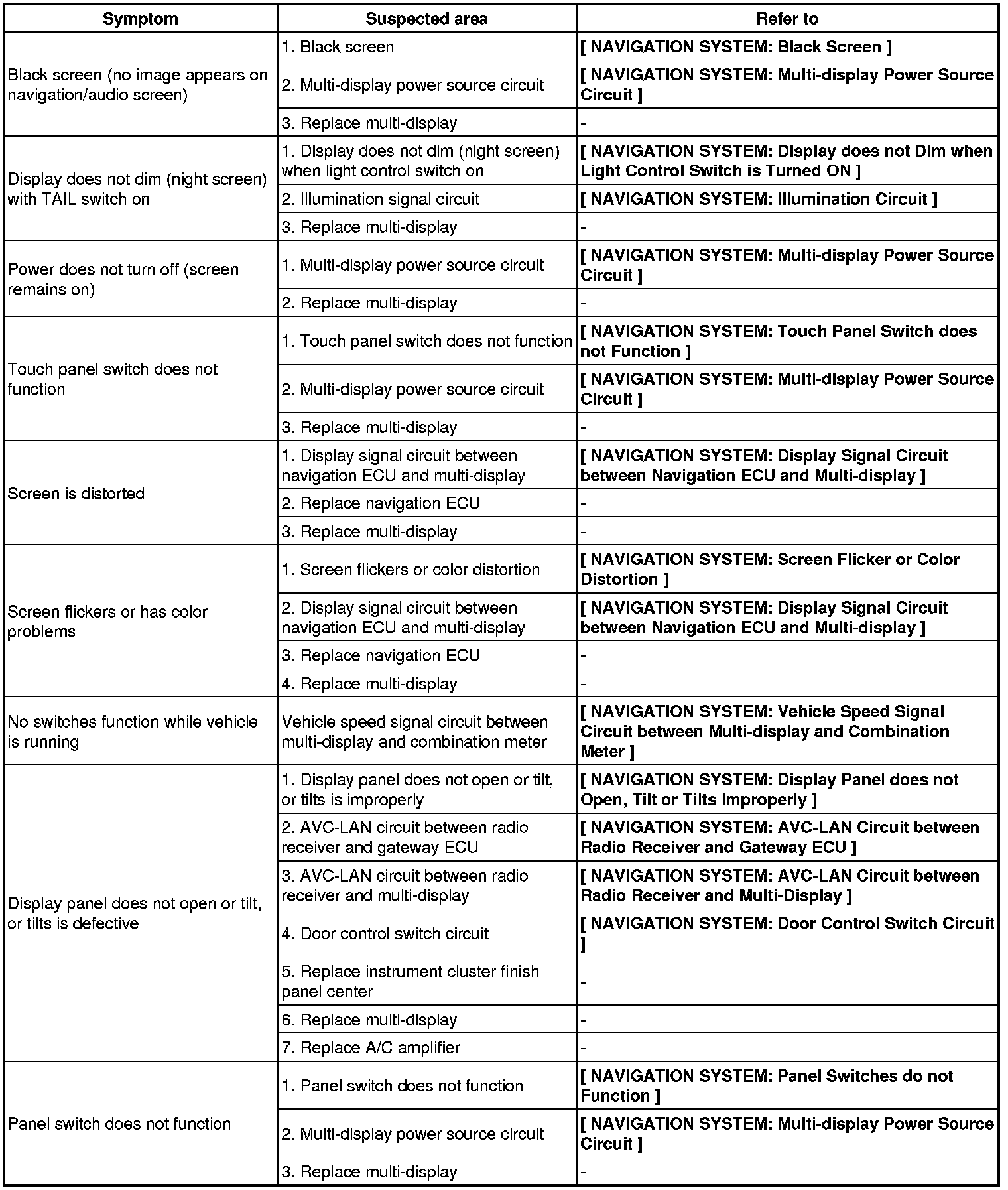

Display function

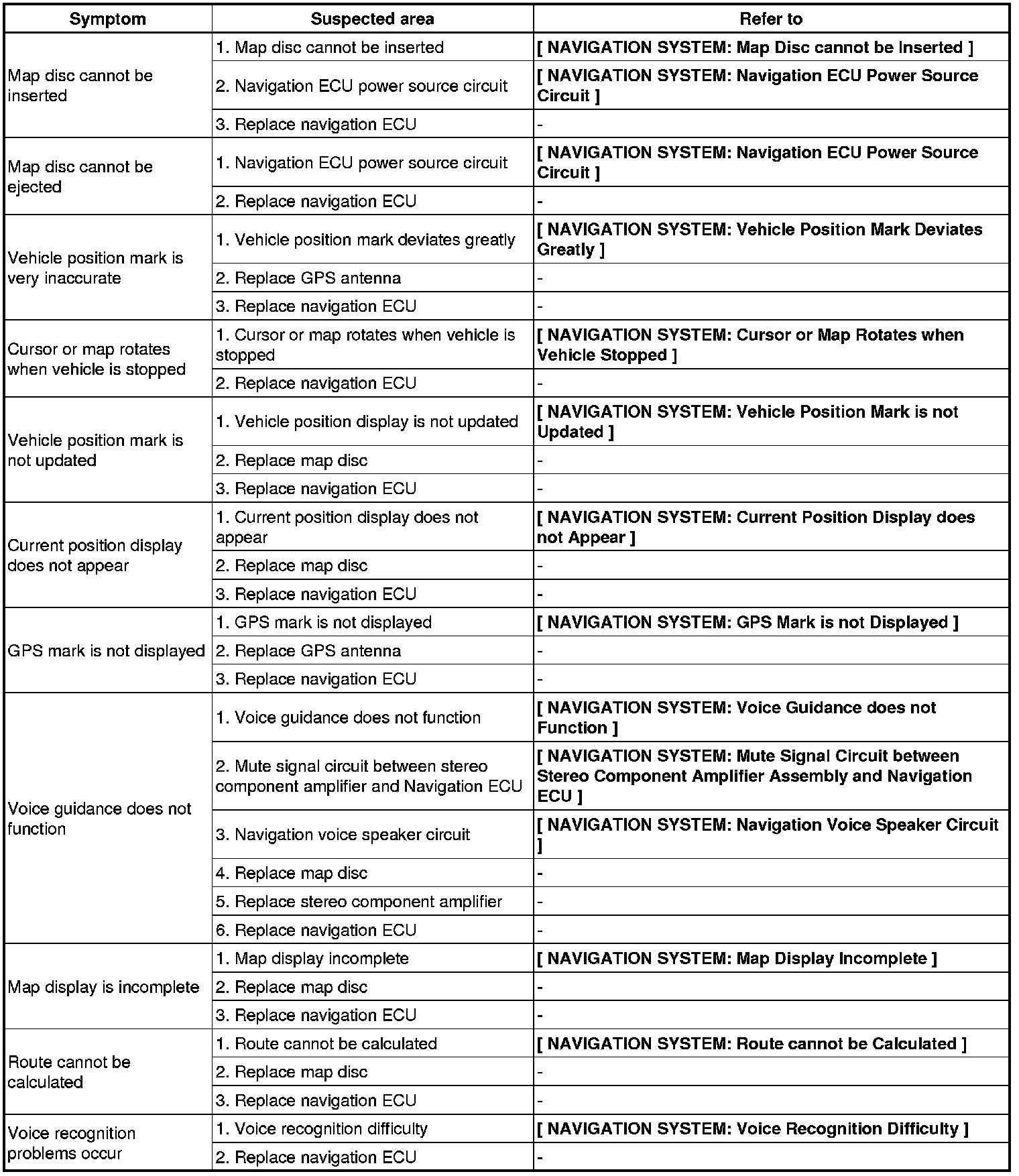

Navigation function

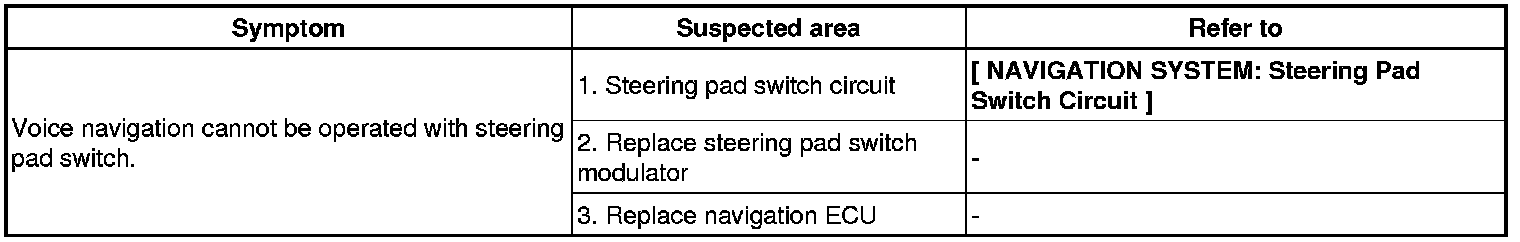

Steering pad switch function

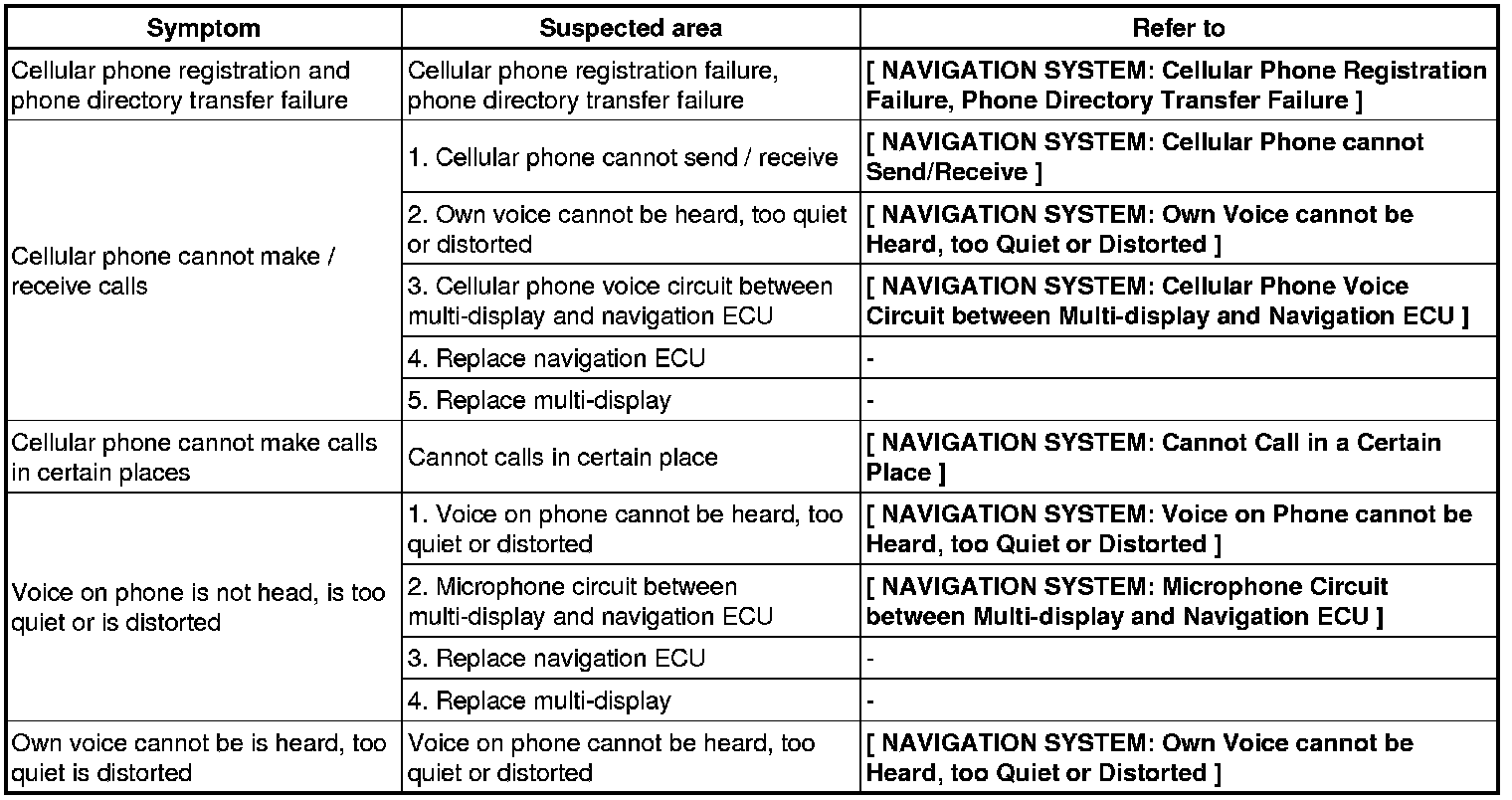

Bluetooth function
