Removal

INTERIOR: ROOF HEADLINING (for Standard Body): REMOVAL

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTICE:
- After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE FRONT SEAT ASSEMBLY
(a) Remove the front seat Removal.
4. REMOVE REAR SEAT ASSEMBLY (for Fixed Type)
(a) Remove the rear seat Removal.
5. REMOVE REAR SEAT ASSEMBLY (for Power Seat)
(a) Remove the rear seat Removal.

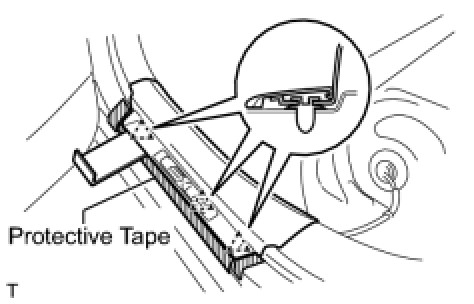

6. REMOVE FRONT DOOR SCUFF PLATE LH

(a) Put protective tape around the front door scuff plate.
(b) Using a moulding remover, detach the 4 clips.

(c) Detach the 7 claws and remove the front door scuff plate LH.
7. REMOVE FRONT DOOR SCUFF PLATE RH
HINT: Use the same procedure described for the LH side.

8. REMOVE COWL SIDE TRIM BOARD LH
(a) Detach the 3 claws and remove the cowl side trim board.
9. REMOVE COWL SIDE TRIM BOARD RH
HINT: Use the same procedure described for the LH side.

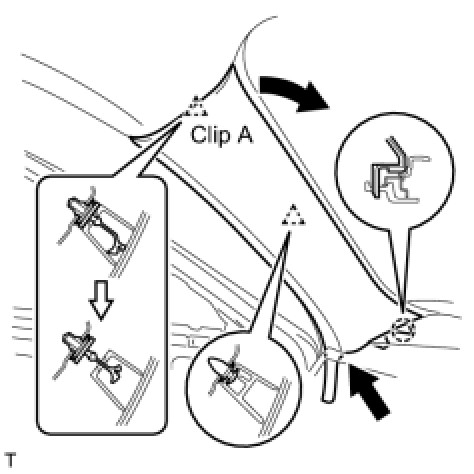

10. REMOVE FRONT PILLAR GARNISH LH

(a) Detach the 2 clips from the vehicle body.
(b) Cut off clip A.
(c) Detach the claw and remove the front pillar garnish.
(d) Remove clip A from the vehicle body.

(e) Protect the curtain shield airbag assembly.
(1) Completely cover the airbag with a cloth or nylon sheet and secure the ends of the cover with adhesive tape, as shown in the illustration.
NOTE:
Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.

11. REMOVE FRONT PILLAR GARNISH RH
HINT: Use the same procedure described for the LH side.

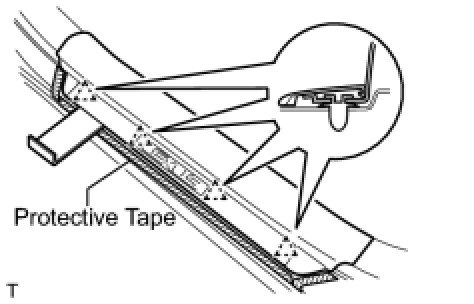

12. REMOVE REAR DOOR SCUFF PLATE LH

(a) Put protective tape around the rear door scuff plate.
(b) Using a moulding remover, detach the 3 clips.

(c) Detach the 7 claws and remove the rear door scuff plate.
13. REMOVE REAR DOOR SCUFF PLATE RH
HINT: Use the same procedure described for the LH side.

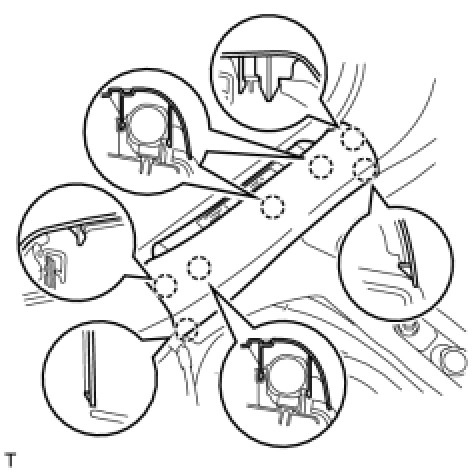

14. REMOVE CENTER LOWER PILLAR GARNISH LH
(a) Detach the 2 claws and 6 clips, and remove the center lower pillar garnish.
15. REMOVE CENTER LOWER PILLAR GARNISH RH
HINT: Use the same procedure described for the LH side.

16. REMOVE CENTER UPPER PILLAR GARNISH LH
(a) Remove the 2 screws.
(b) Detach the claw.
(c) Pass the front seat outer belt floor anchor through the center upper pillar garnish, and remove the center upper pillar garnish.
17. REMOVE CENTER PILLAR GARNISH UPPER RH
HINT: Use the same procedure described for the LH side.

18. REMOVE SHOULDER BELT ANCHOR COVER LH
(a) Detach the 6 claws of the cover, and slide the cover in the direction of the arrow to remove it.
19. REMOVE SHOULDER BELT ANCHOR COVER RH
HINT: Use the same procedure described for the LH side.

20. REMOVE REAR SEAT SIDE GARNISH LH
(a) Detach the 6 claws and remove the rear seat side garnish.
21. REMOVE REAR SEAT SIDE GARNISH RH
HINT: Use the same procedure described for the LH side.

22. REMOVE INNER ROOF SIDE GARNISH LH
(a) Pull the garnish away from the body and detach the 4 clips (do not detach clip A).
(b) Detach the 2 claws of the guide, and pull the inner roof side garnish in the direction of the arrow to remove it.
HINT: Clip A remains attached to the body.

(c) Remove clip A from the vehicle body.
23. REMOVE INNER ROOF SIDE GARNISH RH
HINT: Use the same procedure described for the LH side.

24. REMOVE MAP LIGHT ASSEMBLY
(a) Using a screwdriver, detach the 2 claws and open the 2 covers.
HINT: Tape the screwdriver tip before use.

(b) Remove the 2 screws.
(c) Using a moulding remover, detach the 2 clips.
(d) Disconnect the 2 connectors and then remove the map light.

25. REMOVE SPOT LIGHT ASSEMBLY
(a) Using a moulding remover, detach the 4 claws.
(b) Disconnect the connector and then remove the spot light.
26. REMOVE REAR VANITY LIGHT ASSEMBLY
HINT: Use the same procedure to remove the vanity light on the other side.

(a) Using a screwdriver, detach the 4 claws and remove the lens.
HINT: Tape the screwdriver tip before use.

(b) Remove the 2 screws.
(c) Using a moulding remover, detach the claw.
(d) Disconnect the connector and then remove the vanity light.

27. REMOVE COAT HOOK (W/O Rear Cooler)
HINT: Use the same procedure to remove the hook on the other side.

(a) Remove the screw and coat hook.

28. REMOVE ROOF SIDE REGISTER BEZEL LH (W/ Rear Cooler)
(a) Remove the screw.
(b) Detach the claw and remove the roof side register.
29. REMOVE ROOF SIDE REGISTER BEZEL RH (W/ Rear Cooler)
HINT: Use the same procedure described for the LH side.

30. REMOVE ASSIST GRIP SUB-ASSEMBLY
HINT: Use the same procedure for all the assist grips.

(a) Using a screwdriver, detach the 4 claws and remove the 2 assist grip covers.
HINT: Tape the screwdriver tip before use.

(b) Detach the 2 clips and remove the assist grip.

31. REMOVE VISOR BRACKET COVER
HINT: Use the same procedure to remove the cover on the other side.

(a) Using a moulding remover, detach the 4 claws and remove the visor bracket cover.

32. REMOVE VISOR ASSEMBLY LH
(a) Remove the 2 screws and visor.
33. REMOVE VISOR ASSEMBLY RH
HINT: Use the same procedure described for the LH side.

34. REMOVE VISOR HOLDER
HINT: Use the same procedure to remove the holder on the other side.

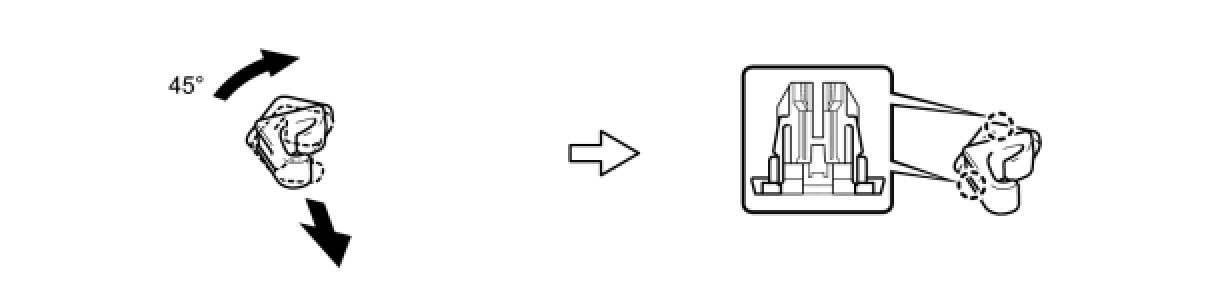

(a) Turn the visor holder approximately 45° and pull it out as shown in the illustration.
(b) Detach the 2 claws and remove the visor holder.

35. REMOVE FRONT WIPER ARM LH Removal
36. REMOVE FRONT WIPER ARM RH Removal
37. REMOVE FRONT FENDER TO COWL SIDE SEAL LH Removal
38. REMOVE FRONT FENDER TO COWL SIDE SEAL RH Removal
39. REMOVE HOOD TO COWL TOP SEAL Removal
40. REMOVE COWL TOP VENTILATOR LOUVER PROTECTOR LH Removal
41. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Removal
42. REMOVE CENTER ROOF DRIP SIDE FINISH MOULDING LH
(a) Remove the center roof drip side finish moulding .
43. REMOVE CENTER ROOF DRIP SIDE FINISH MOULDING RH
HINT: Use the same procedure described for the LH side.

44. REMOVE RAIN SENSOR COVER Removal
45. DISCONNECT RAIN SENSOR CONNECTOR
46. REMOVE INNER REAR VIEW MIRROR ASSEMBLY Removal
47. REMOVE UPPER WINDSHIELD OUTSIDE MOULDING Removal
48. REMOVE WINDSHIELD GLASS Removal
49. REMOVE NO. 2 WINDSHIELD GLASS STOPPER Removal
50. REMOVE WINDSHIELD GLASS RETAINER Removal
51. REMOVE WINDSHIELD GLASS ADHESIVE DAM Removal
52. REMOVE WINDSHIELD GLASS SEAL Removal
53. CLEAN WINDSHIELD GLASS Removal
54. REMOVE NO. 1 WINDSHIELD GLASS STOPPER Removal
55. CLEAN VEHICLE BODY Removal

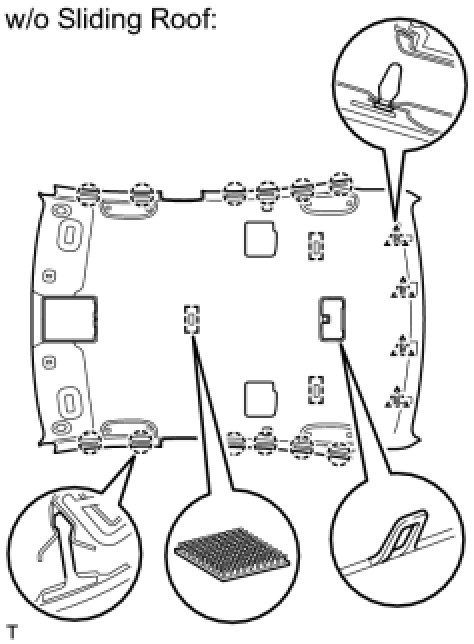

56. REMOVE ROOF HEADLINING ASSEMBLY

(a) Disconnect the roof wire connectors and detach each clamp from the front pillar.

(b) W/ Sliding Roof:
Disconnect the drive gear connector.

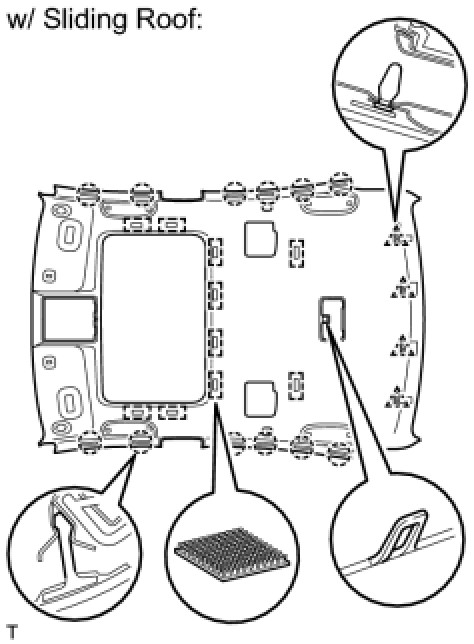

(d) W/ Sliding Roof:
Detach the hook, 12 claws, 10 fasteners and 4 clips.

(e) Remove the roof headlining through the front of the vehicle.
57. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
58. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
59. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
60. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
