SFI System

1UR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT:
- Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors. If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.
- *: MIL flashes when a catalyst damaged misfire is detected.

SFI System

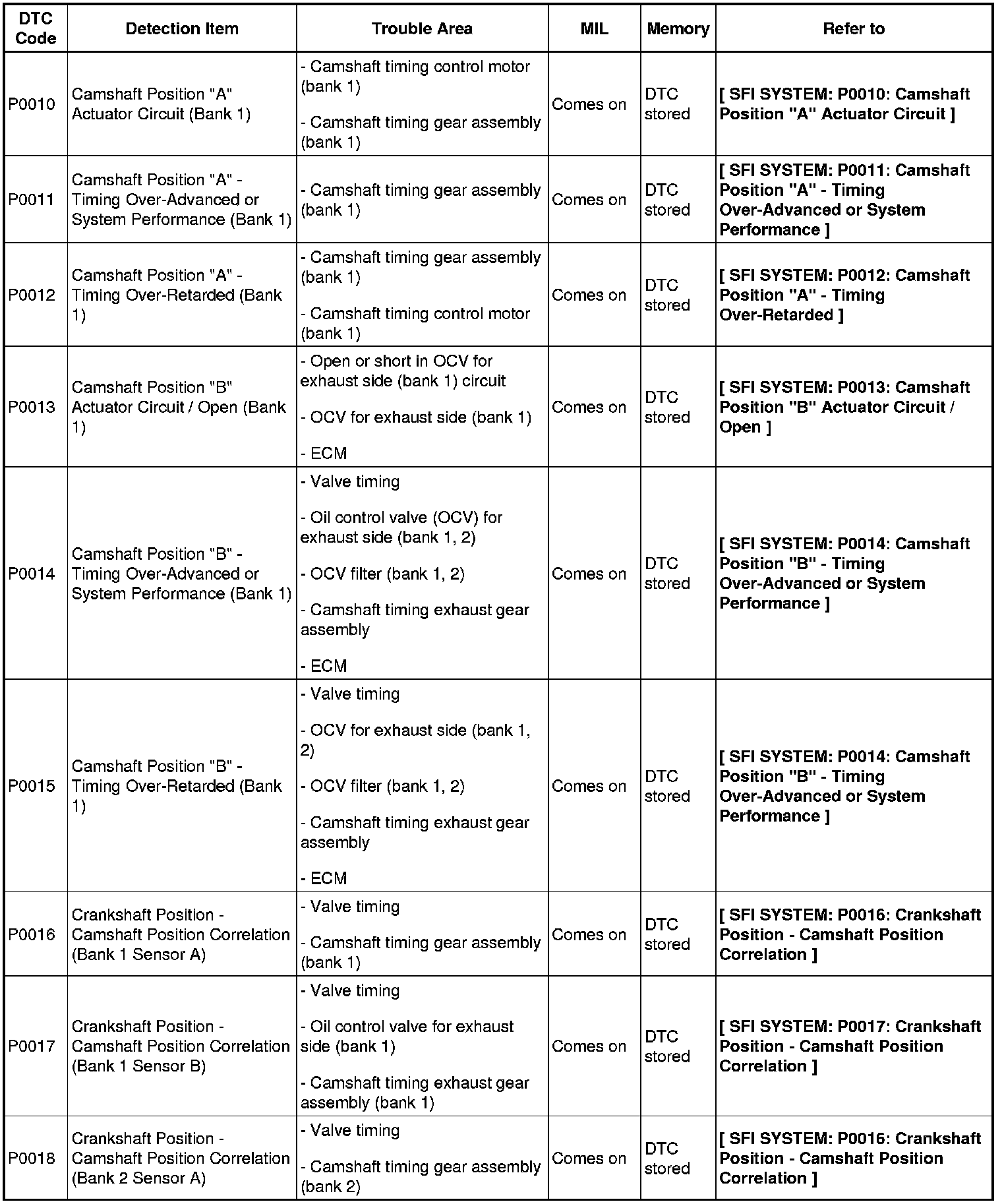

P0010-P0018:

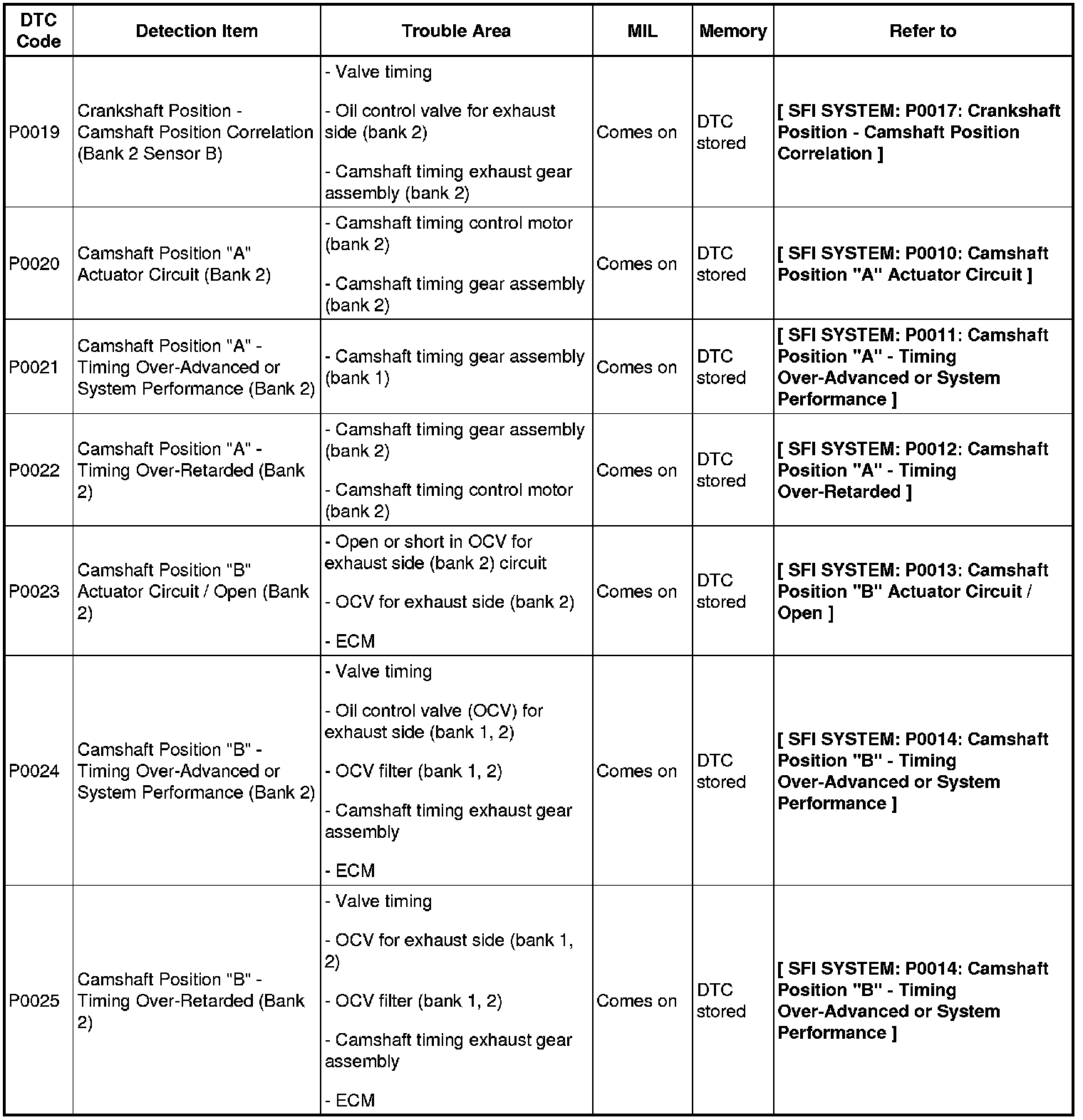

P0019-P0025:

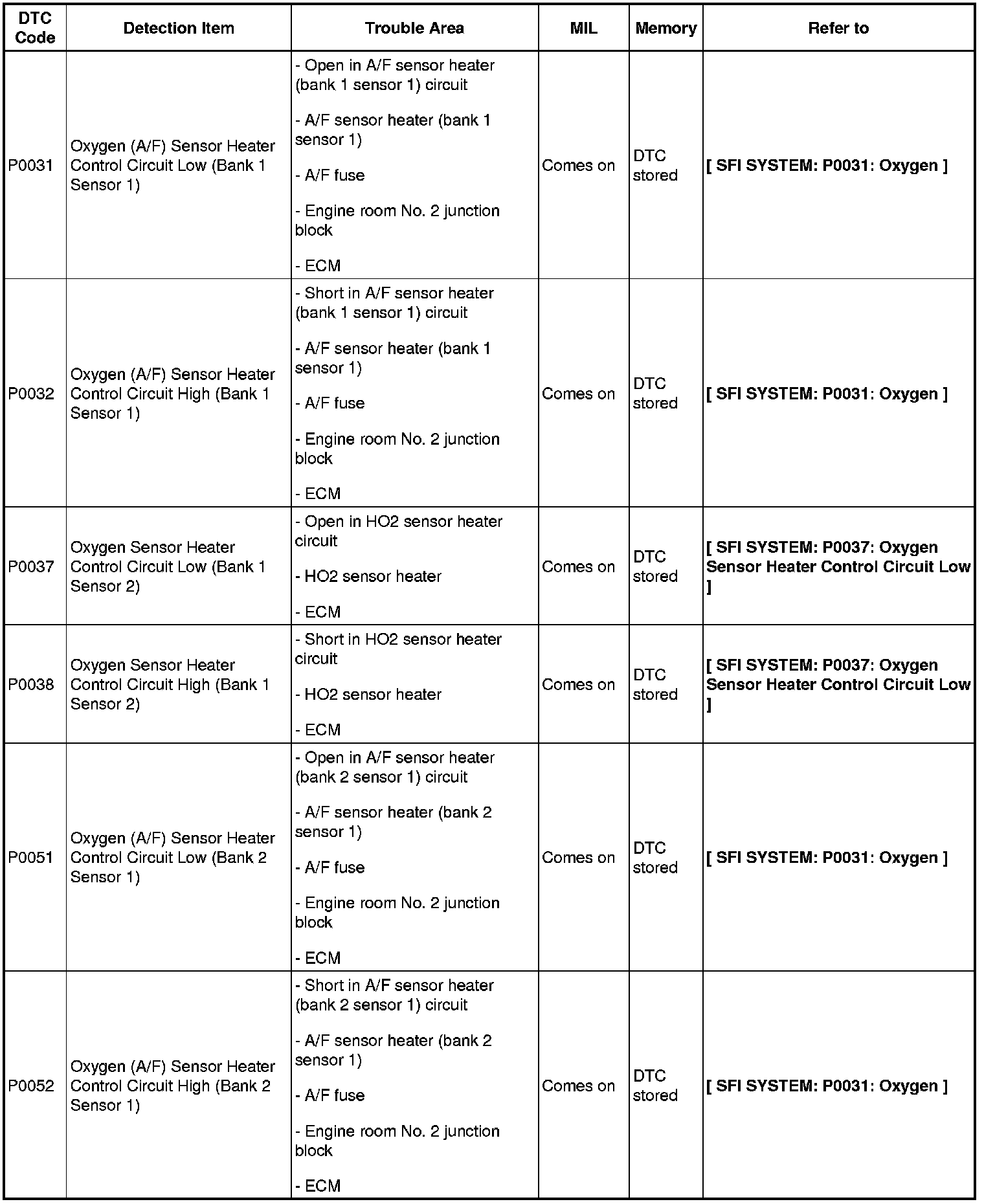

P0031-P0052:

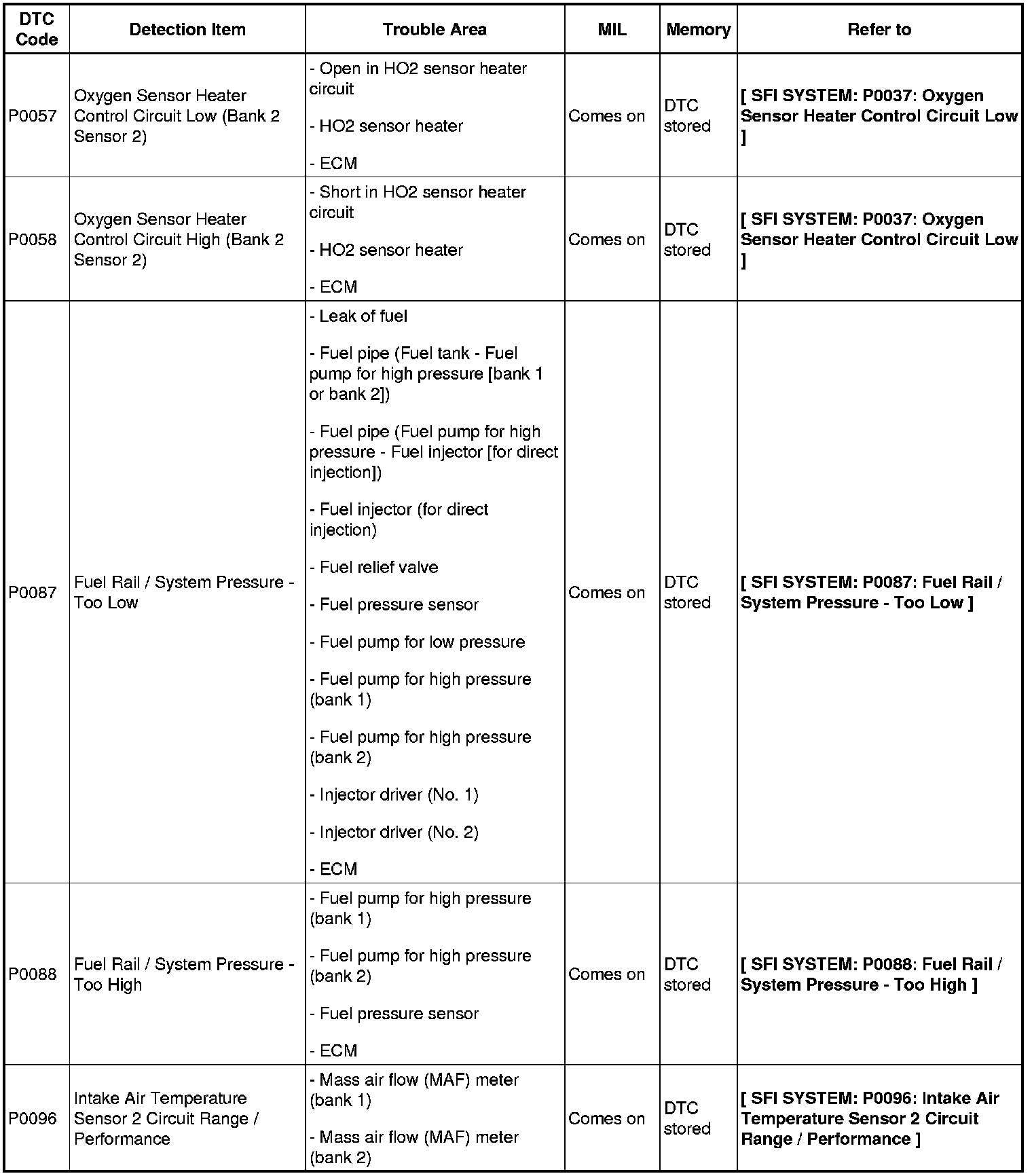

P0057-P0096:

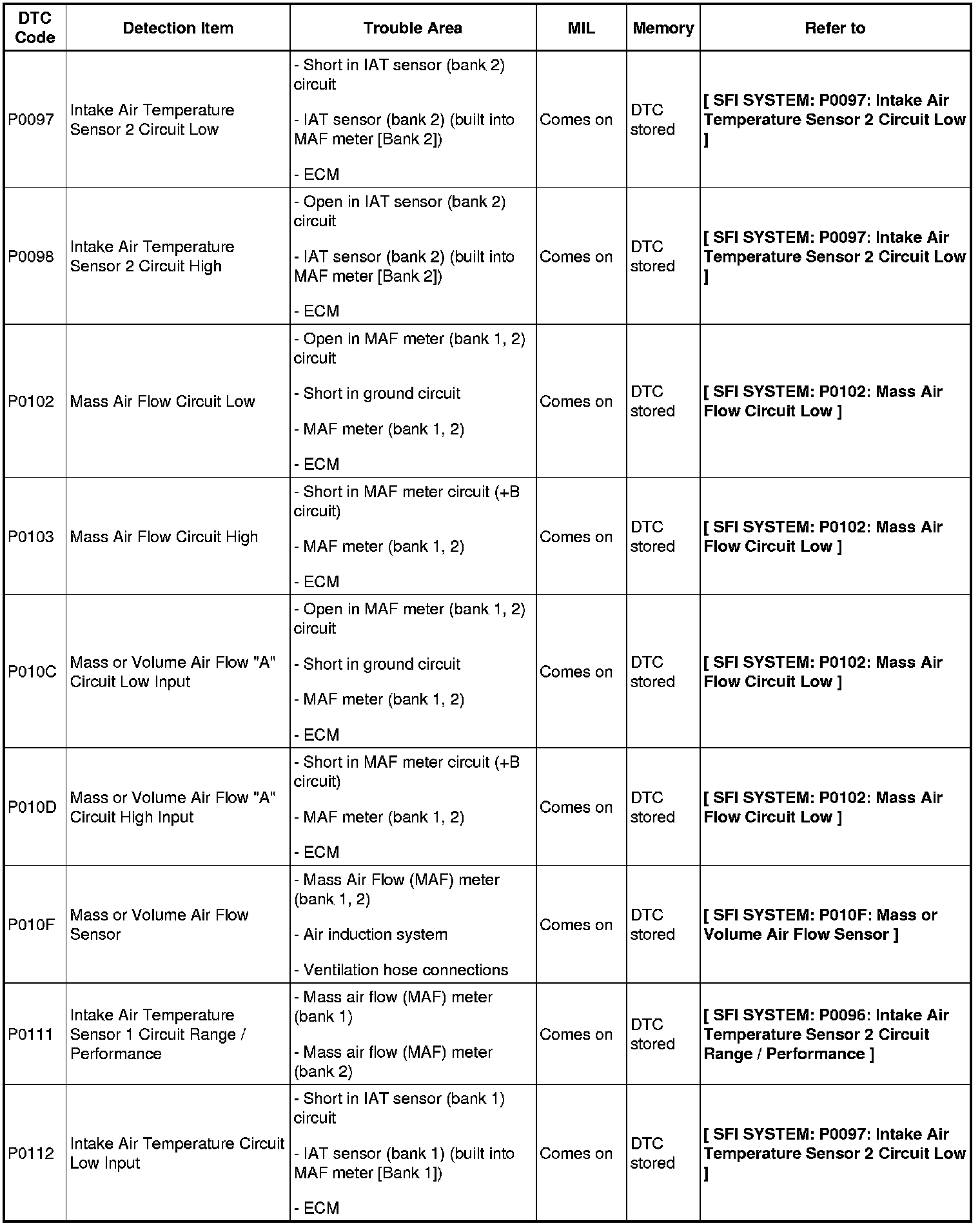

P0097-P0112:

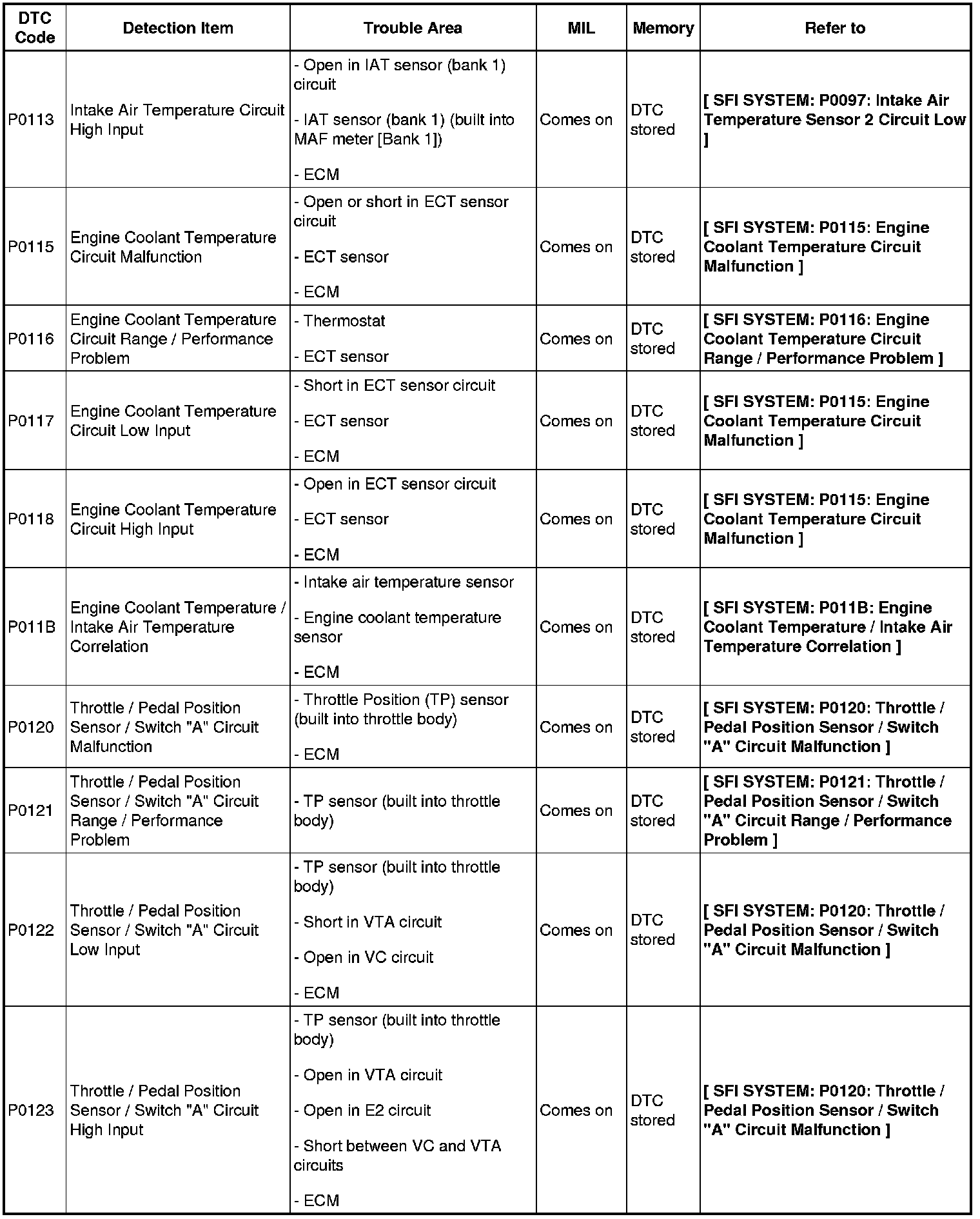

P0113-P0123:

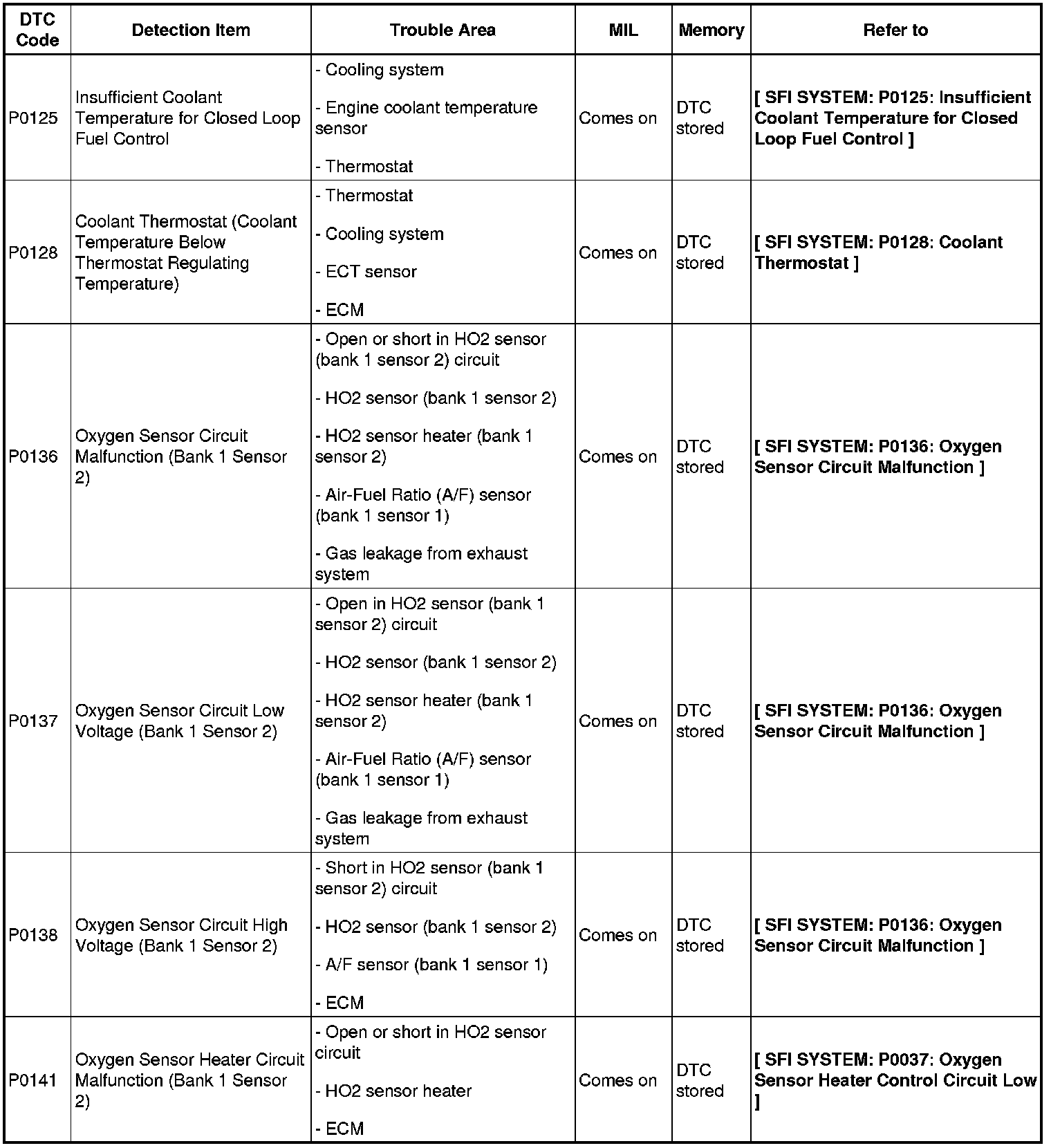

P0125-P0141:

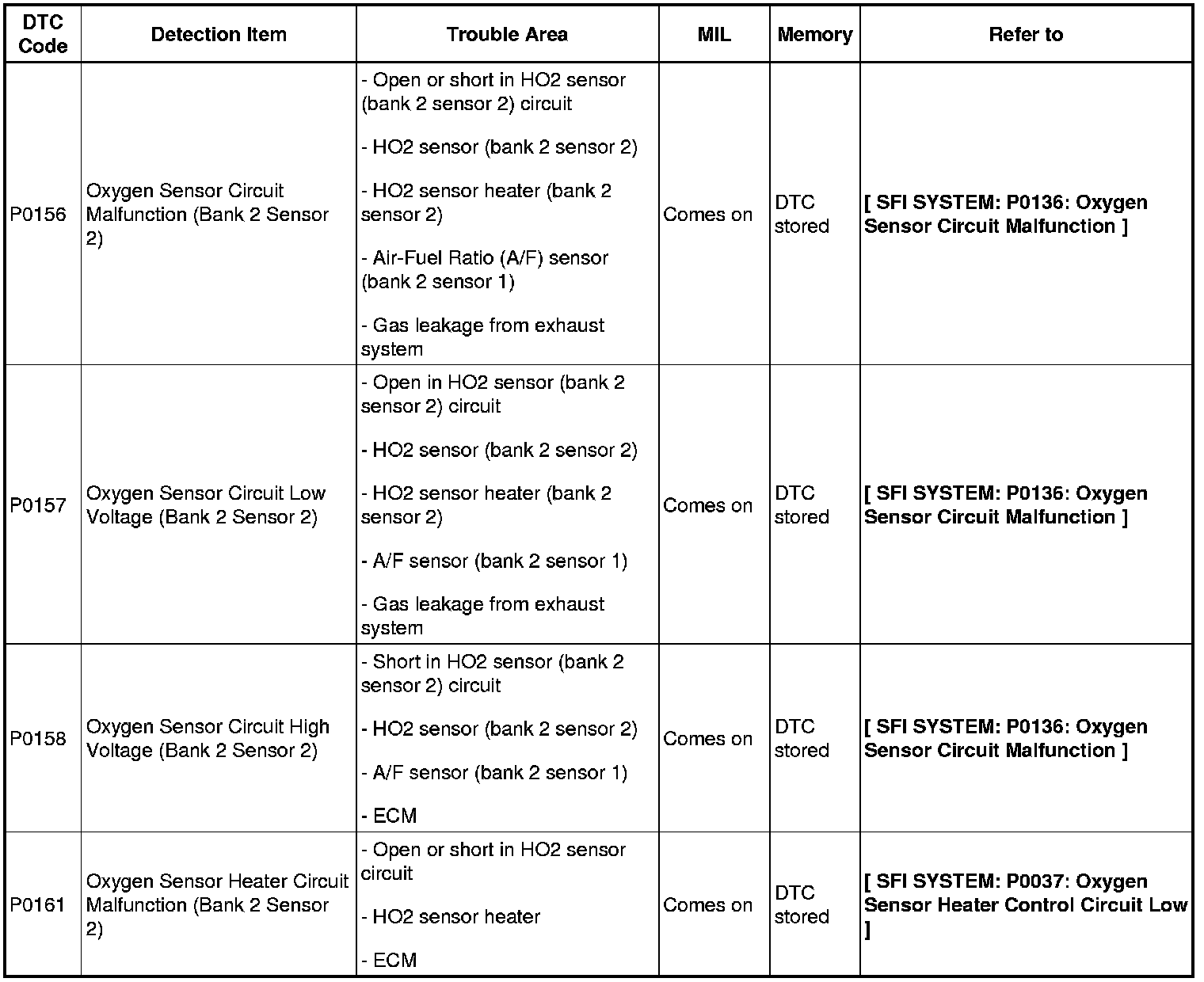

P0156-P0161:

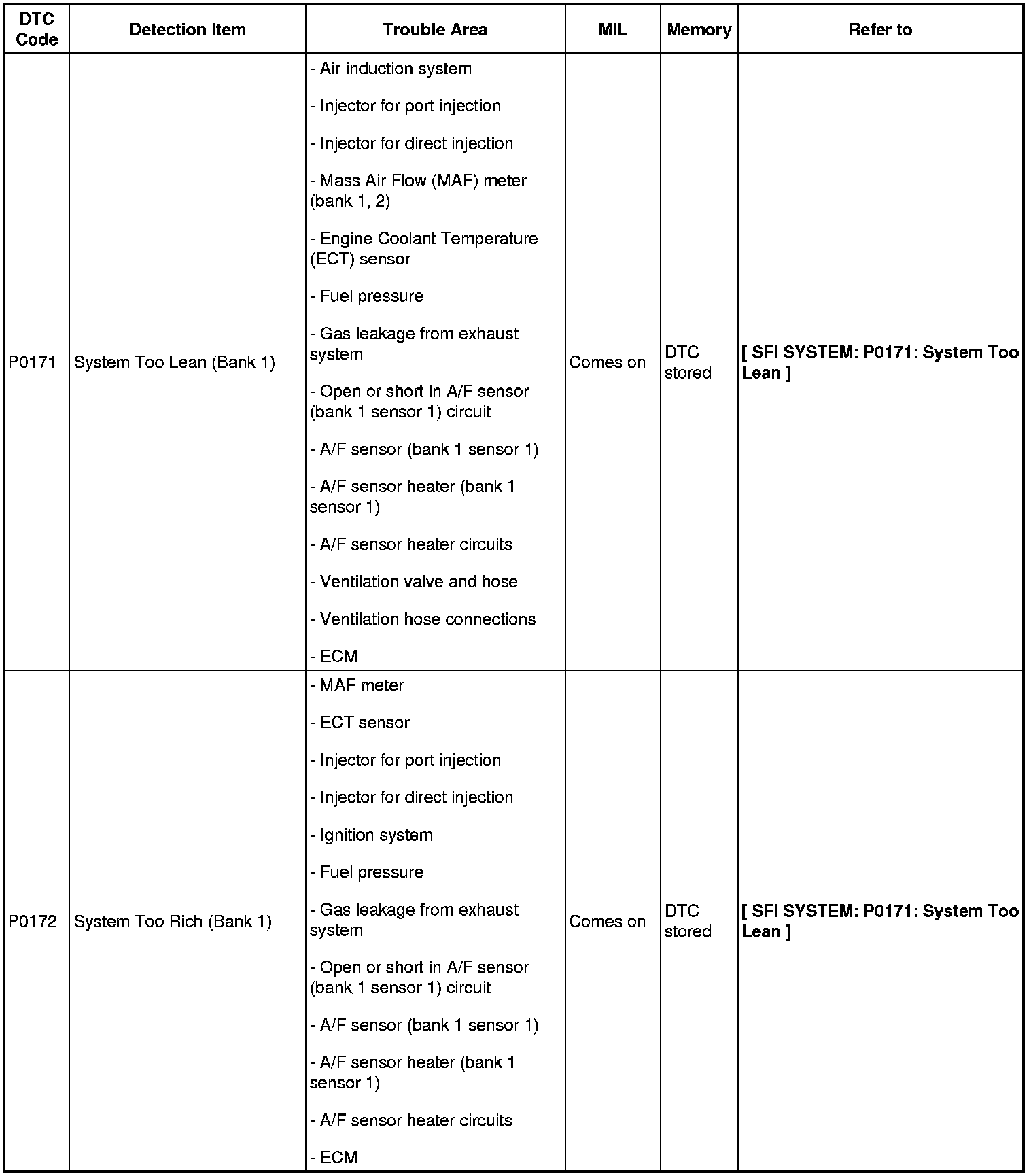

P0171-P0172:

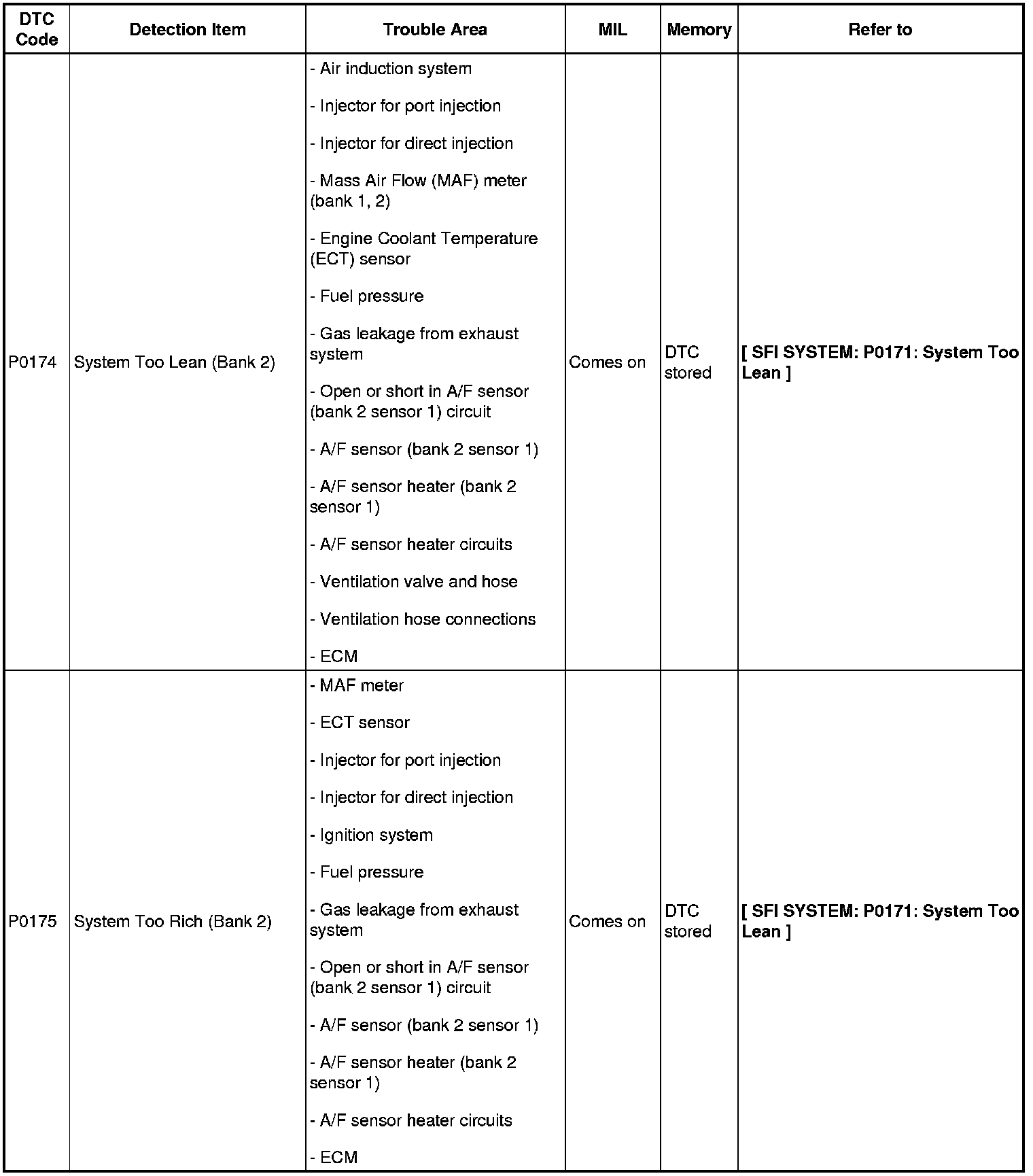

P0174-P0175:

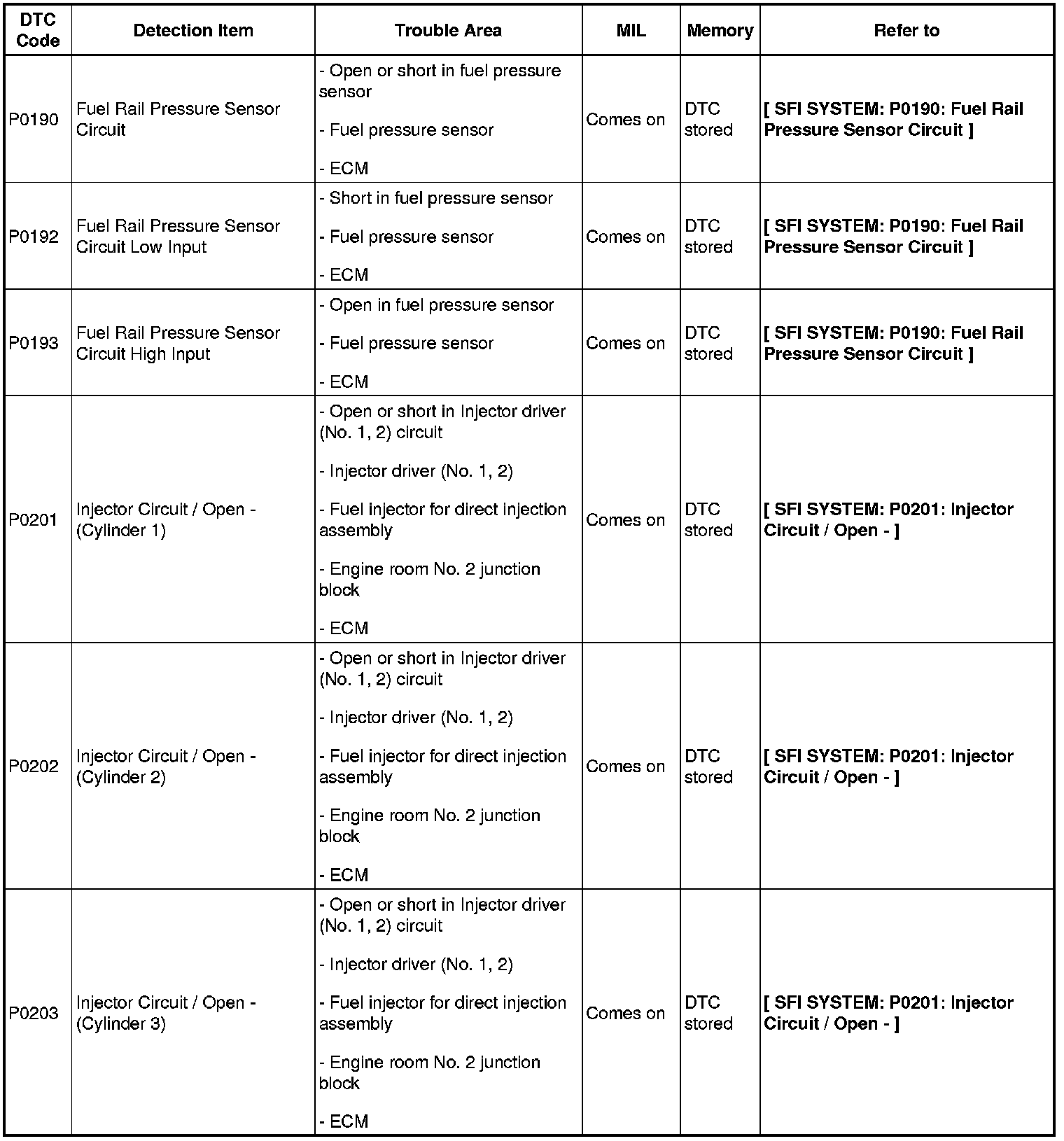

P0190-P0203:

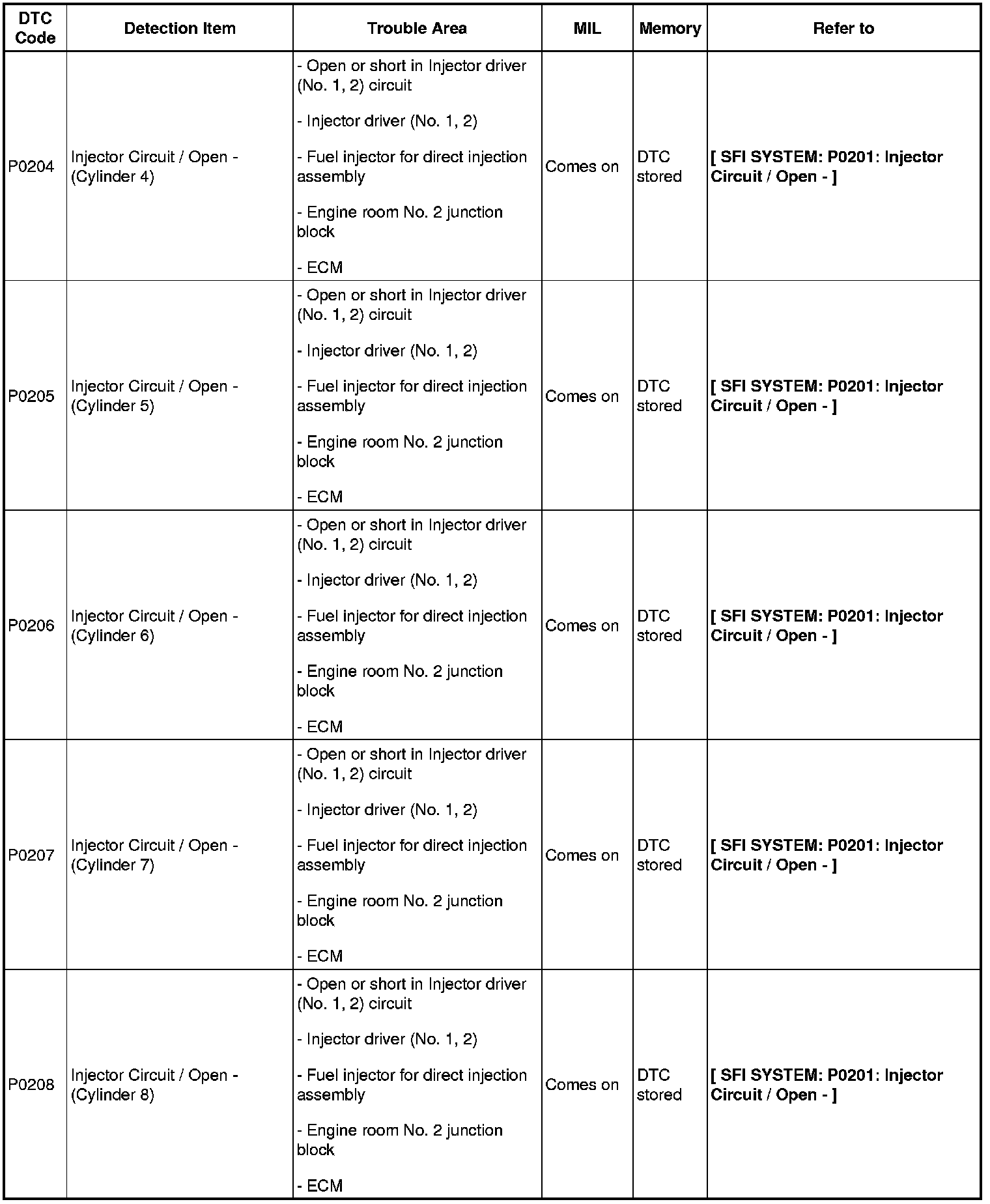

P0204-P0208:

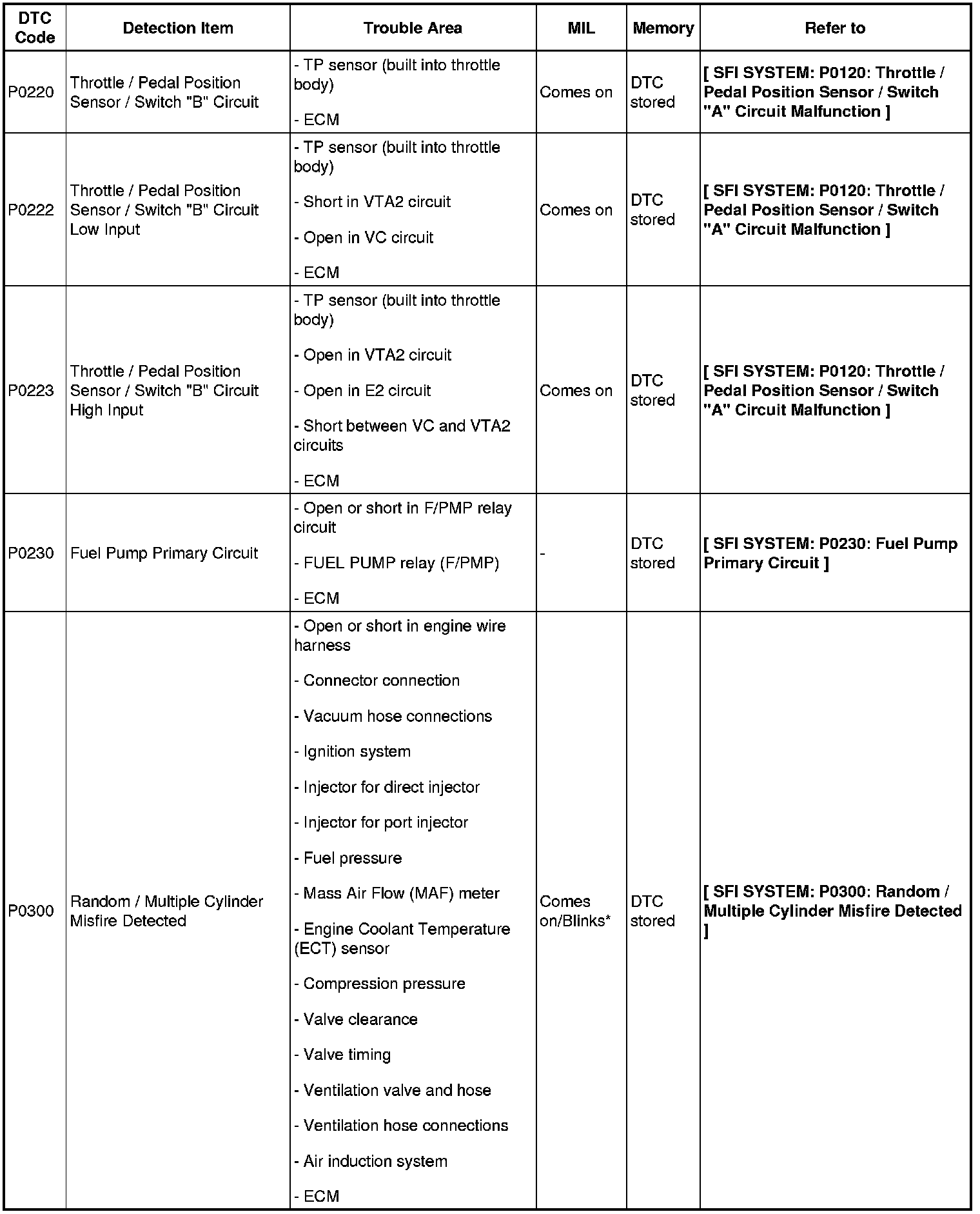

P0220-P0300:

P0301:

P0302:

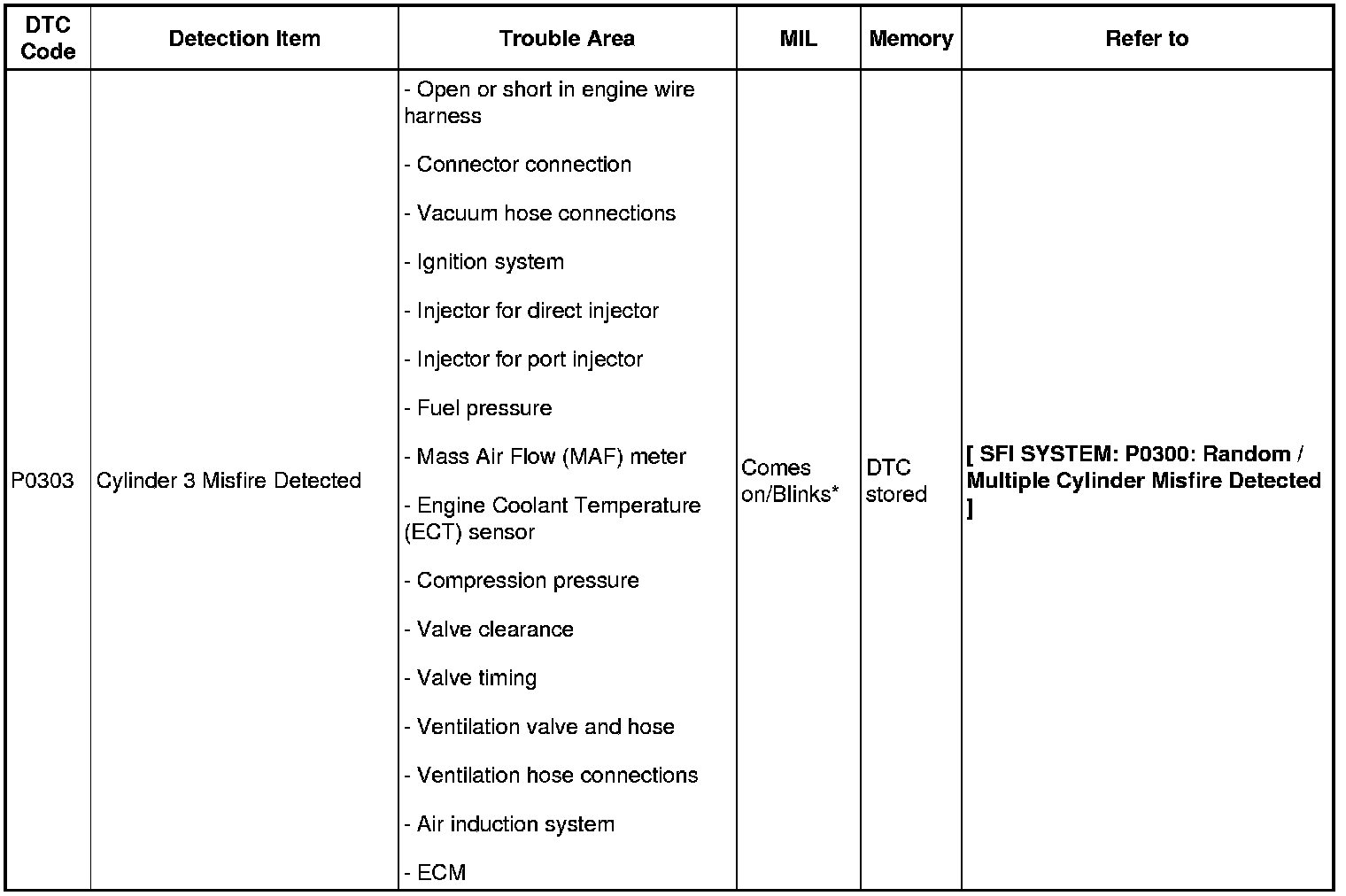

P0303:

P0304:

P0305:

P0306:

P0307:

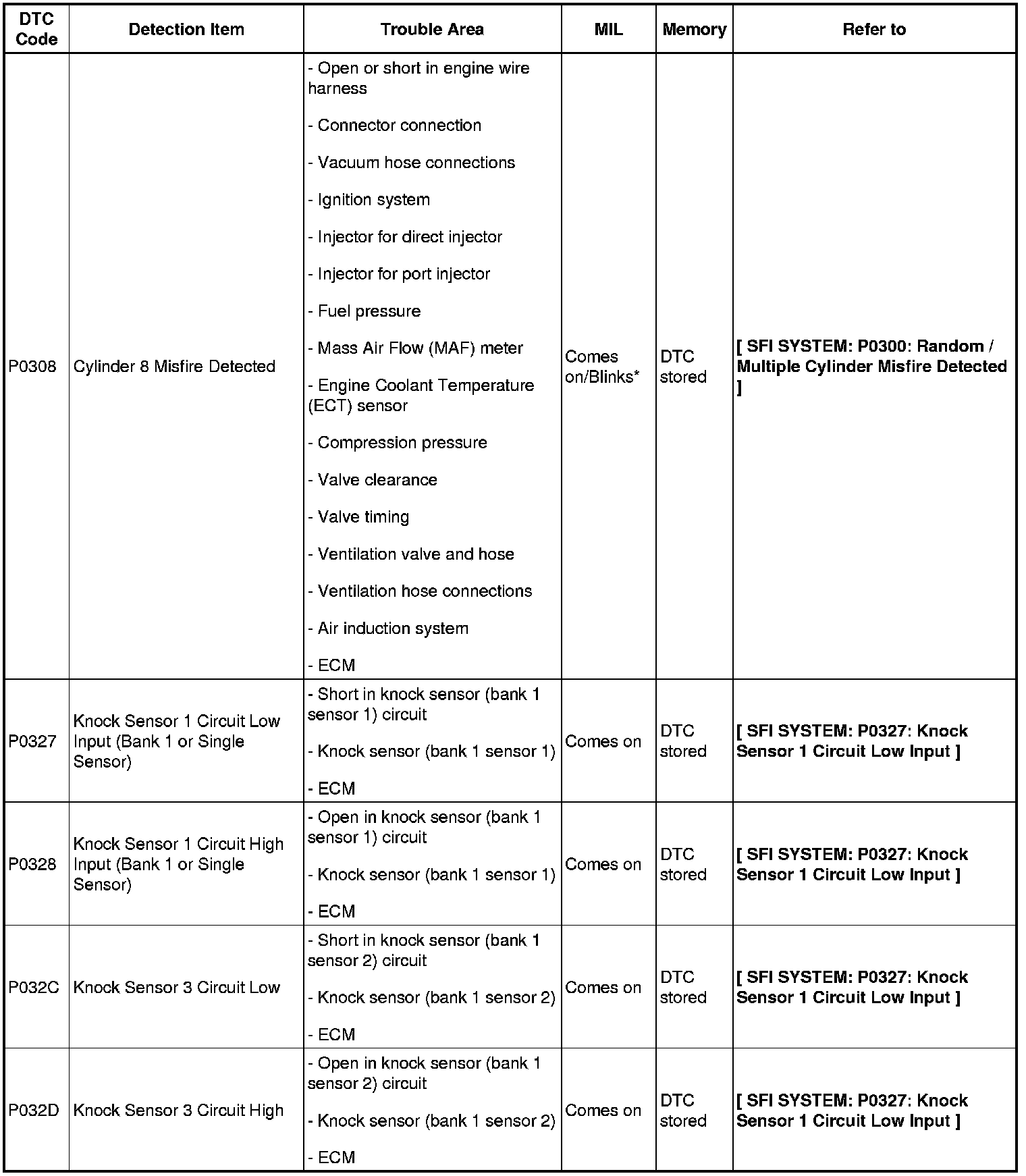

P0308-P032D:

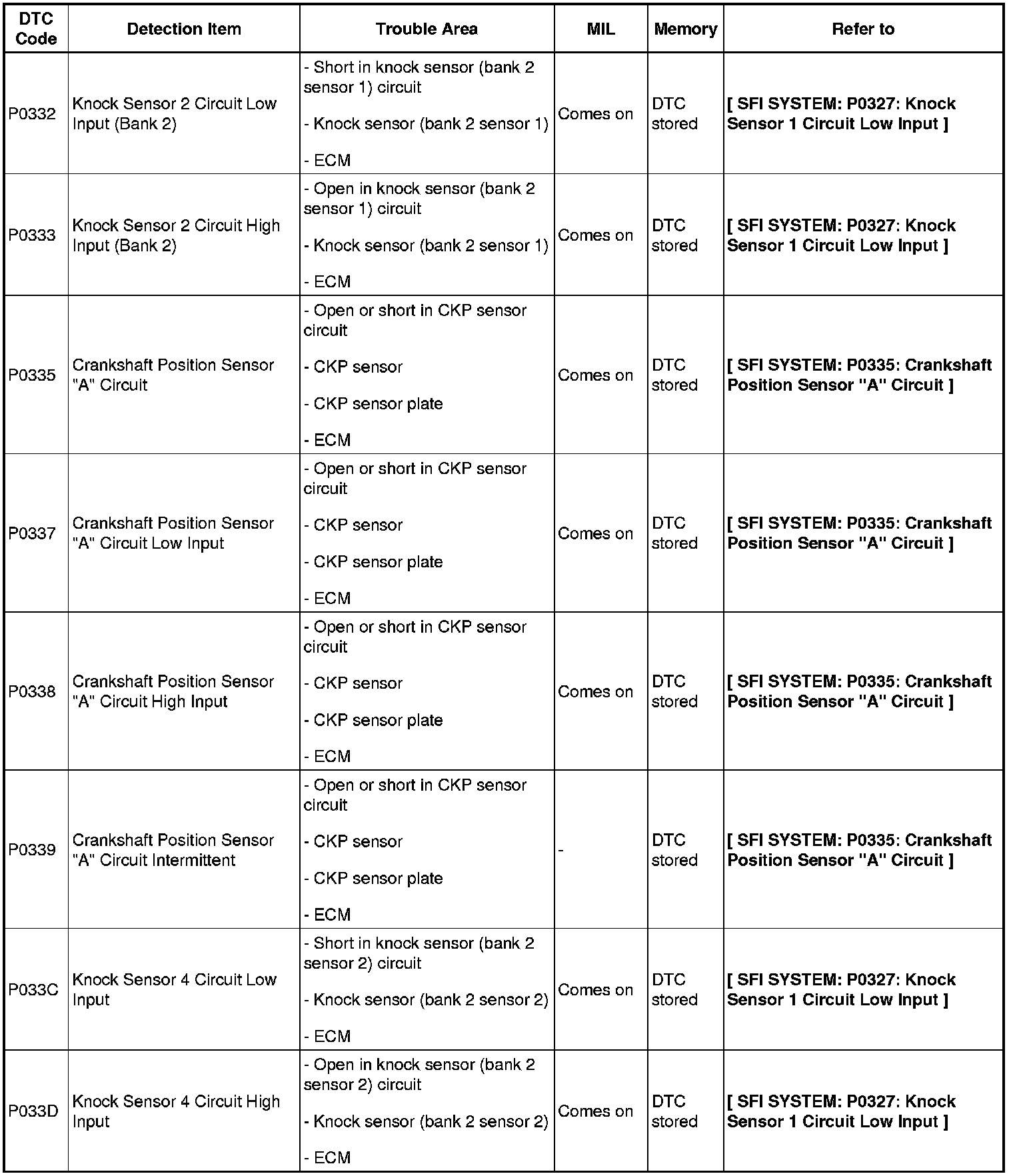

P0332-P033D:

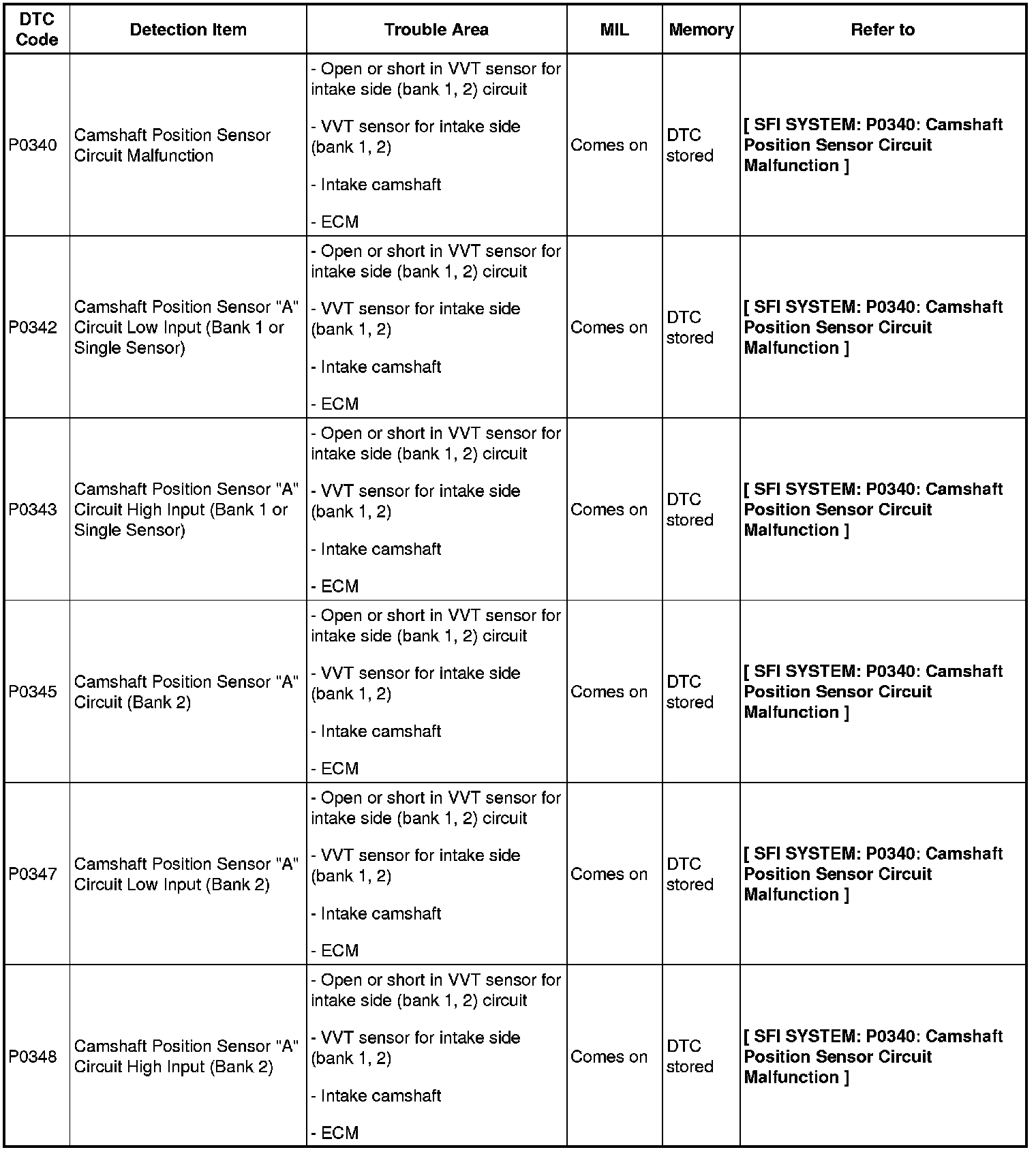

P0340-P0348:

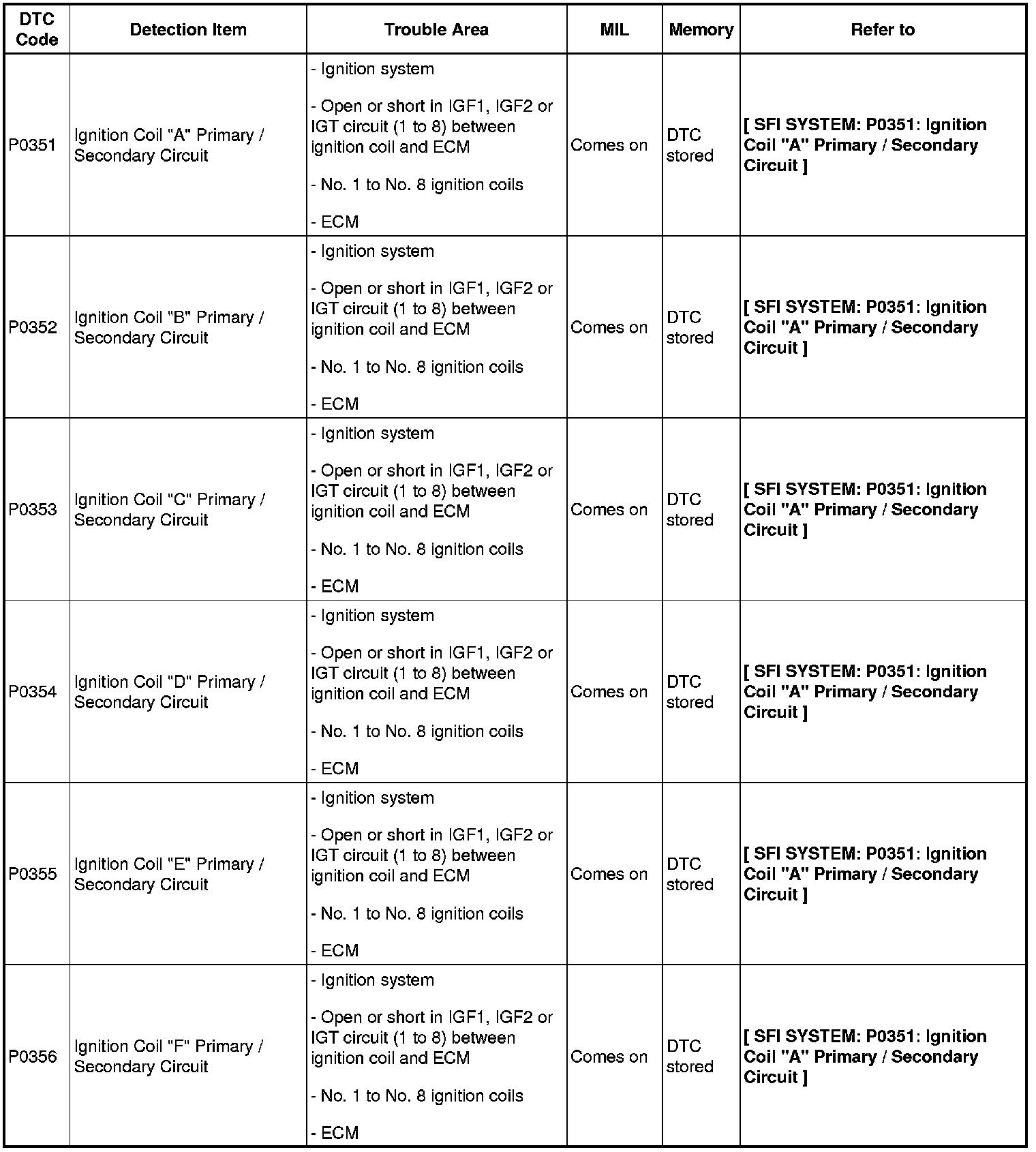

P0351-P0356:

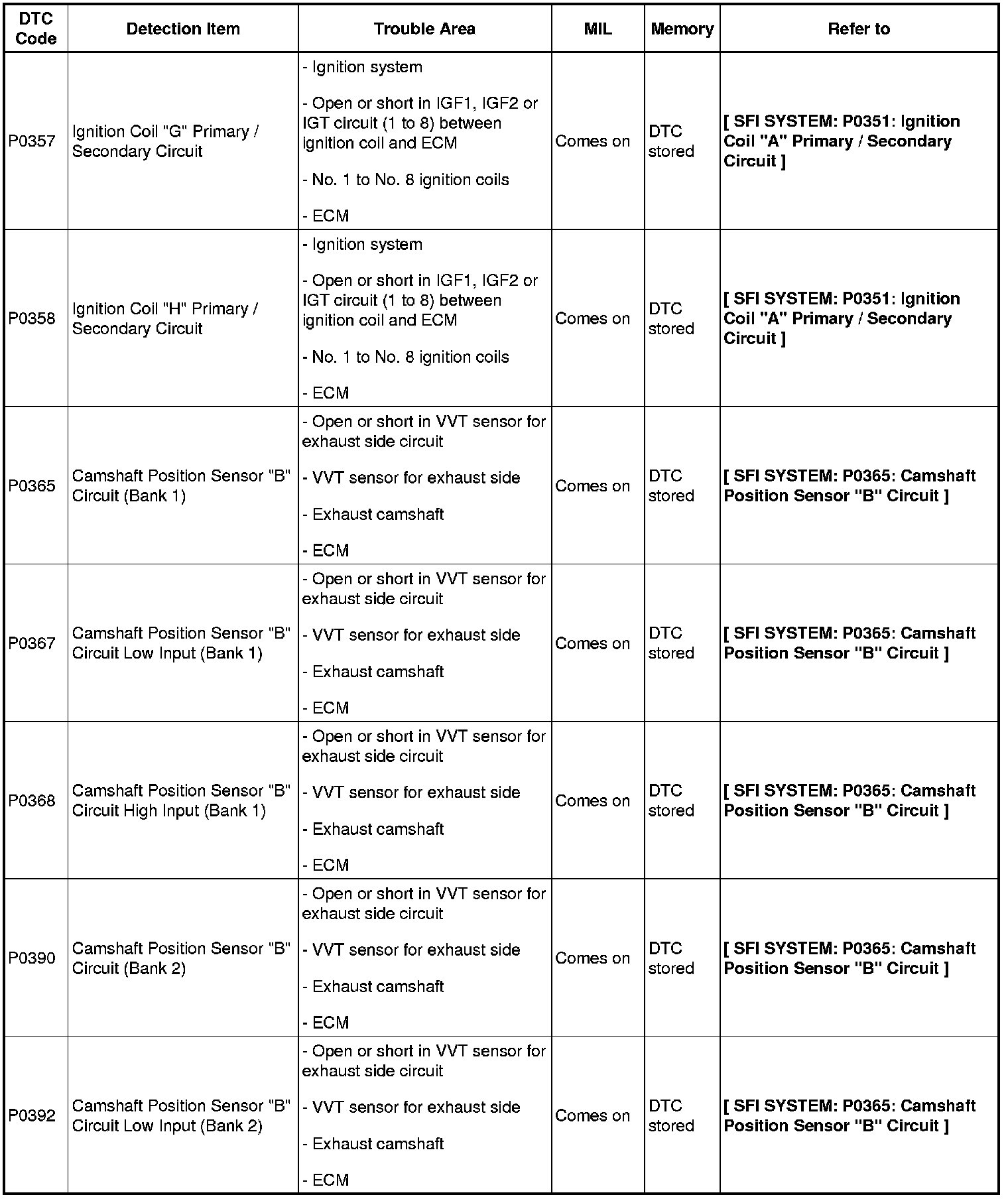

P0357-P0392:

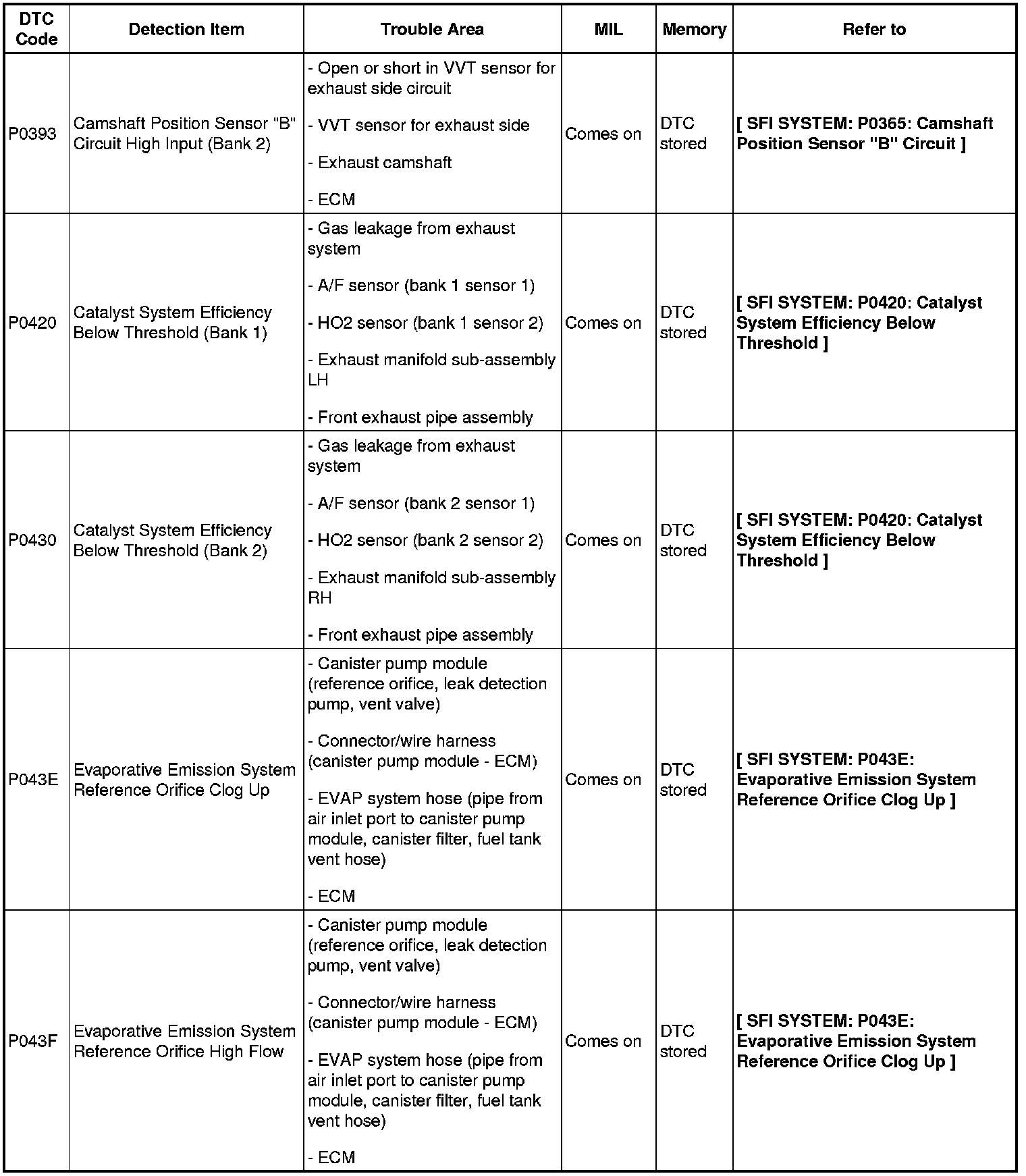

P0393-P043F:

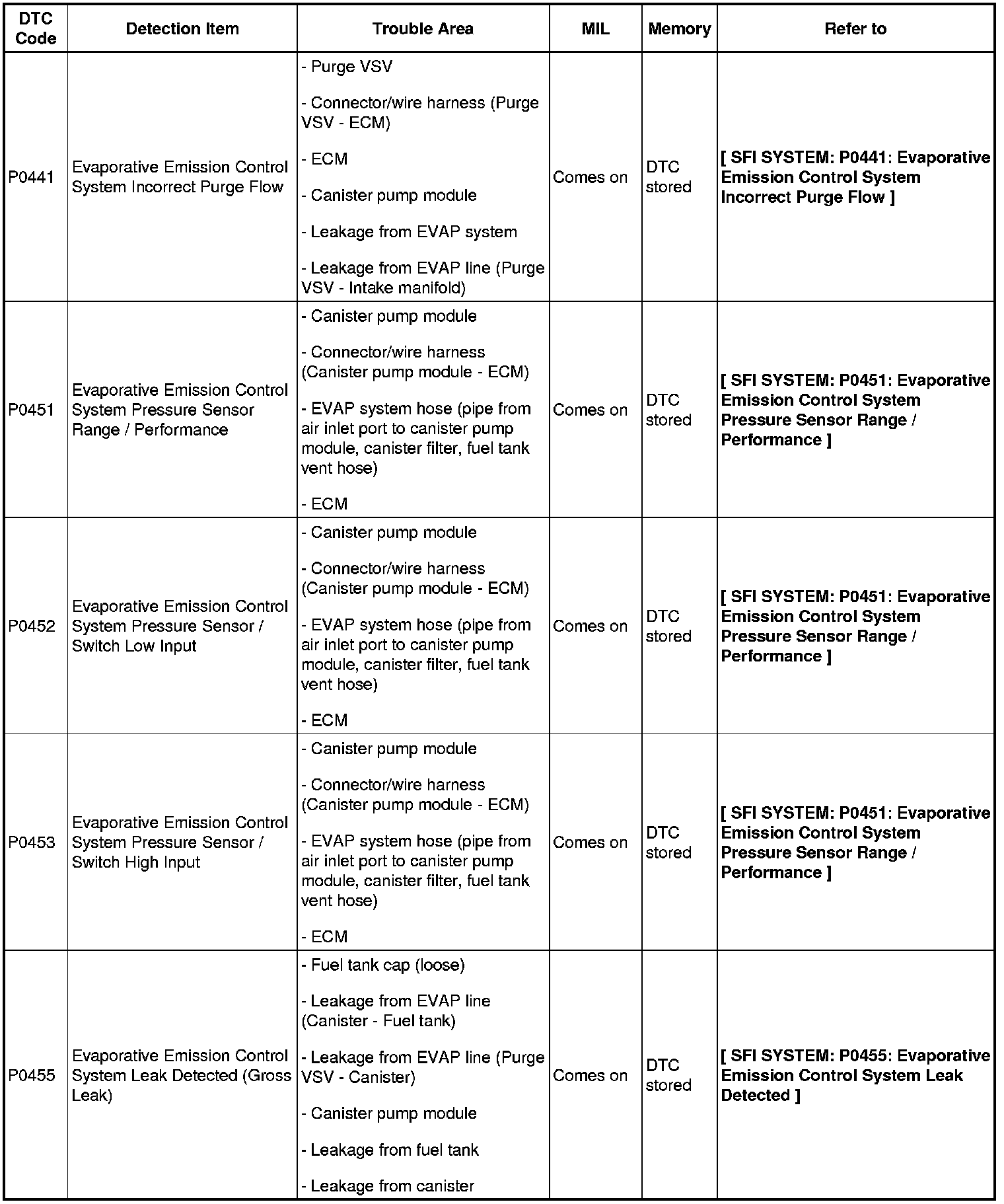

P0441-P0455:

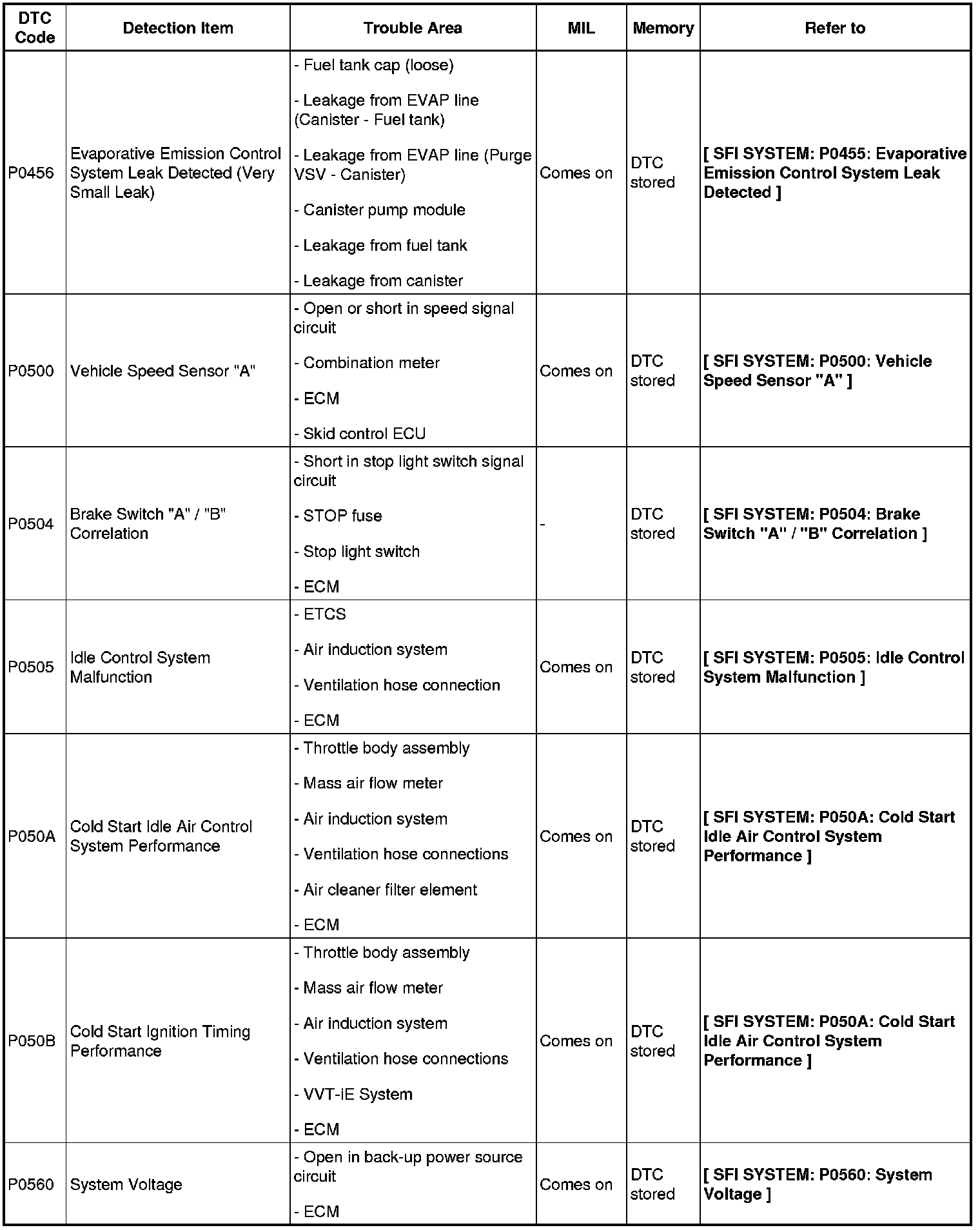

P0456-P0560:

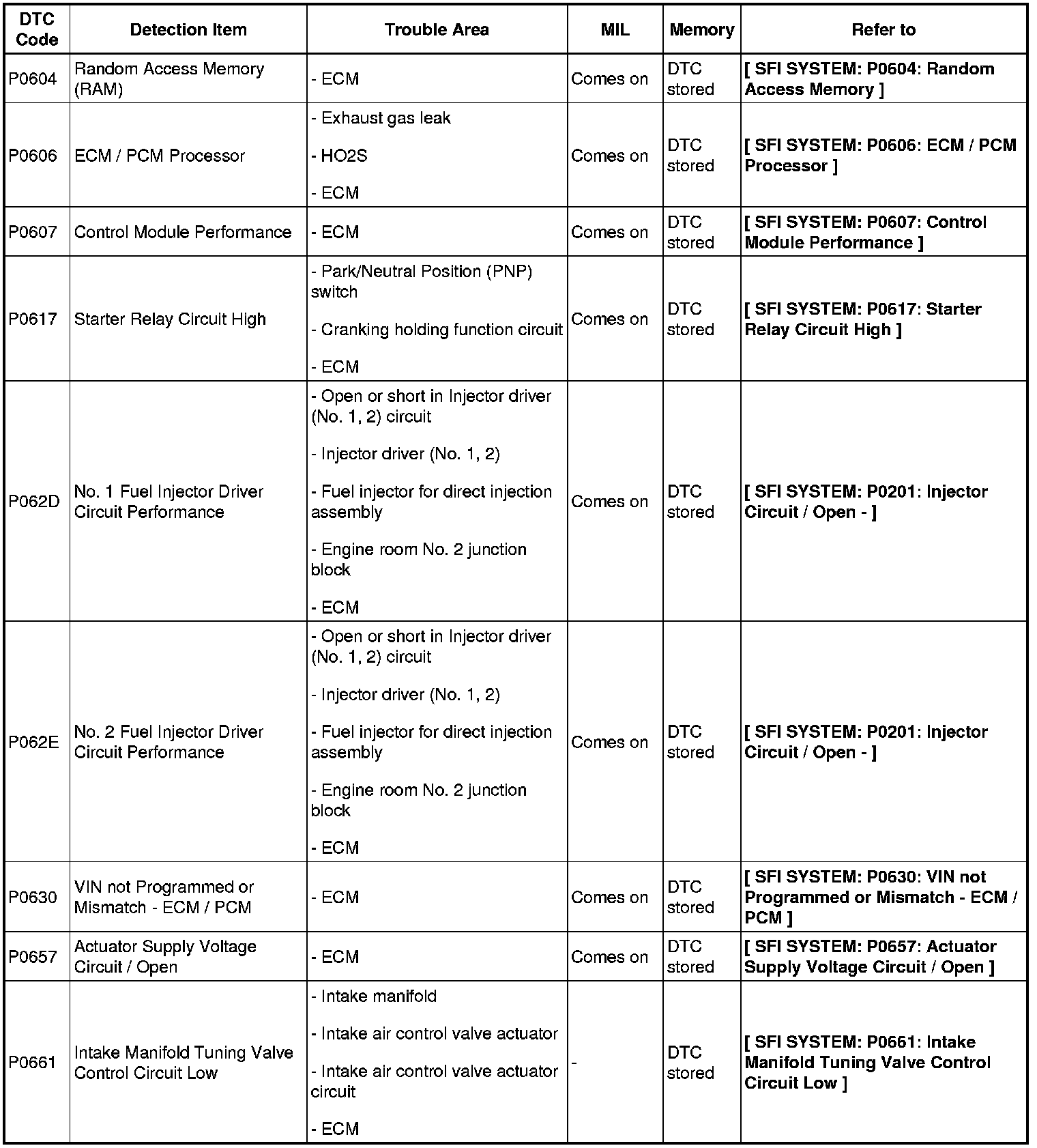

P0604-P0661:

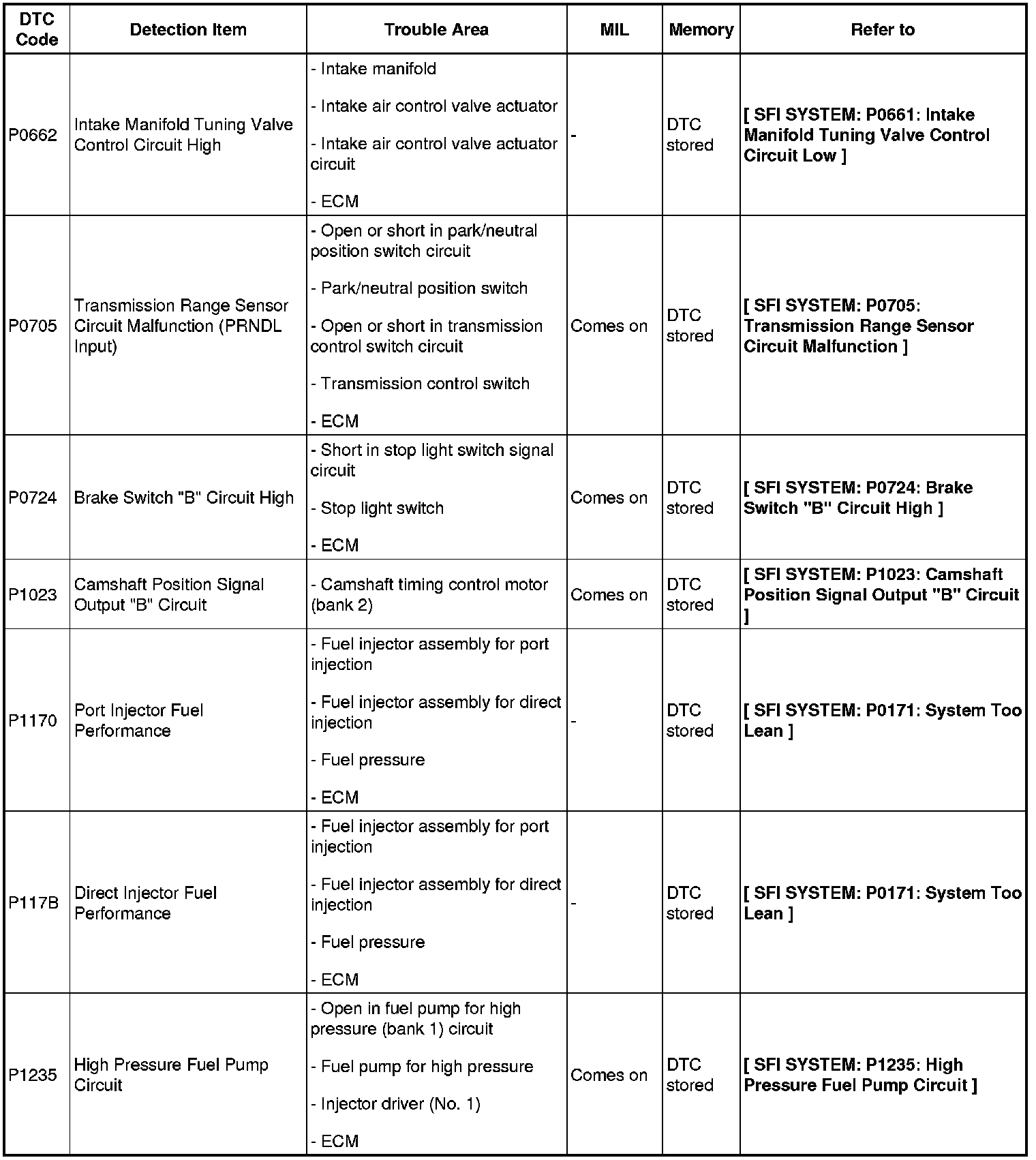

P0662-P1235:

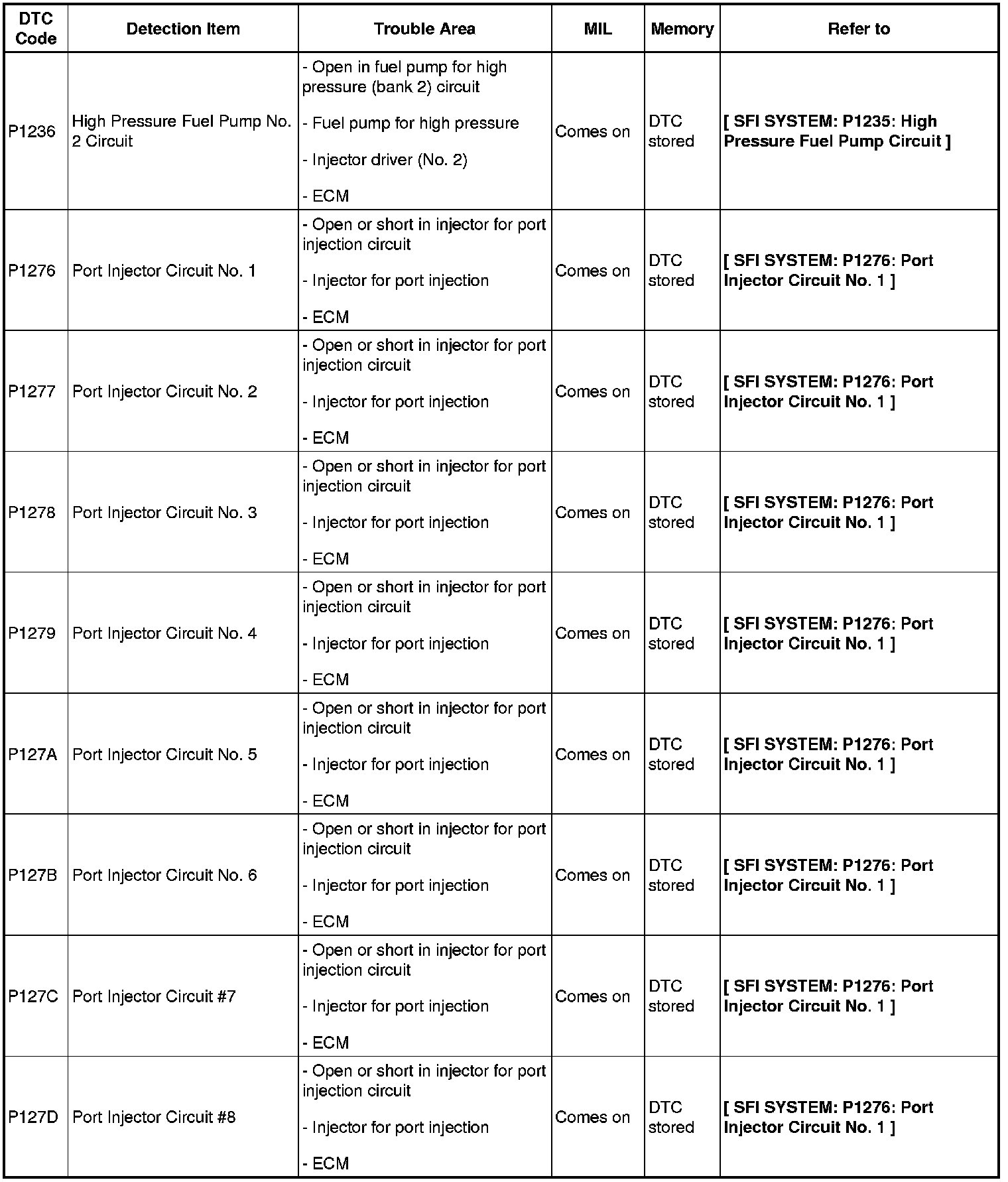

P1236-P127D:

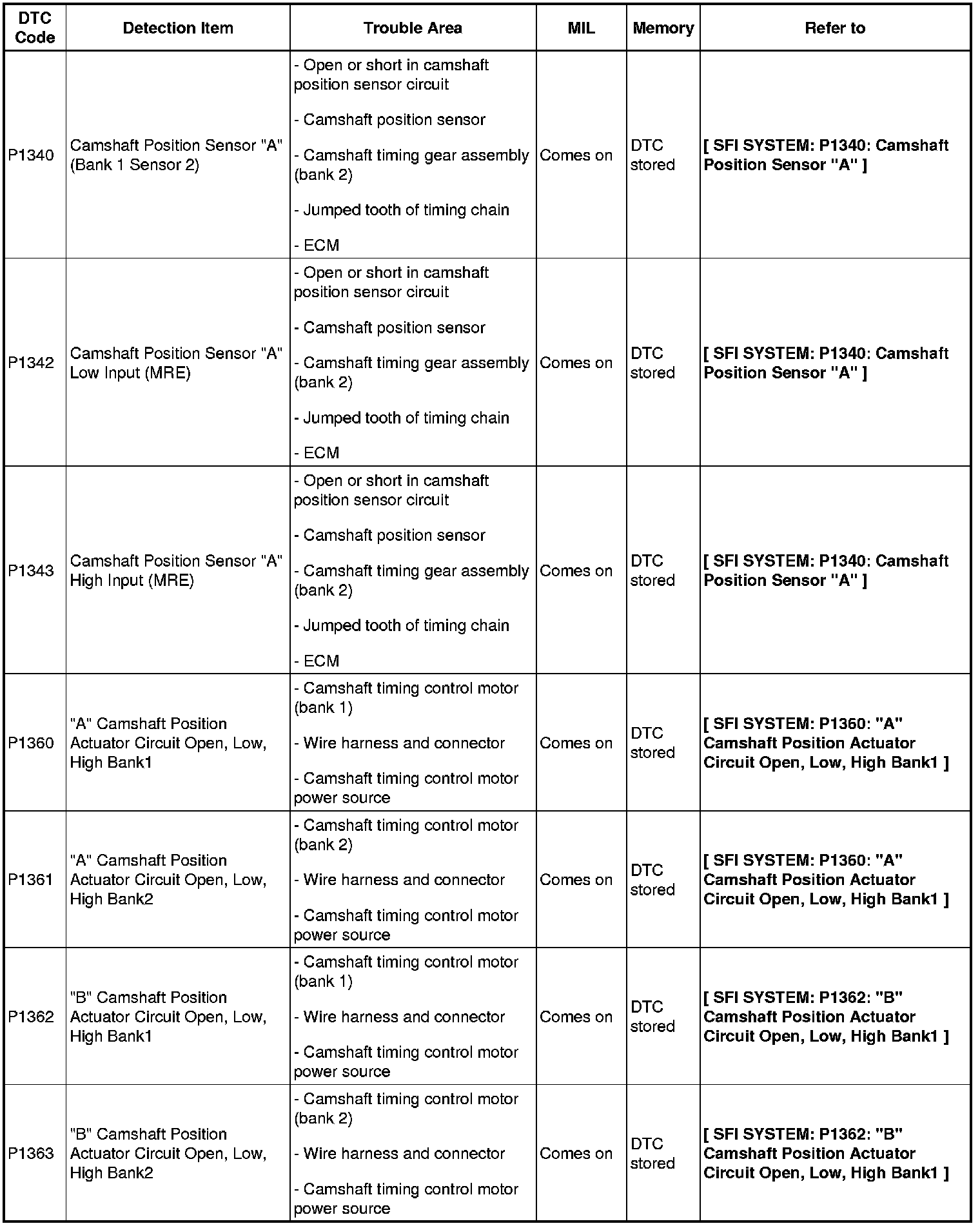

P1340-P1363:

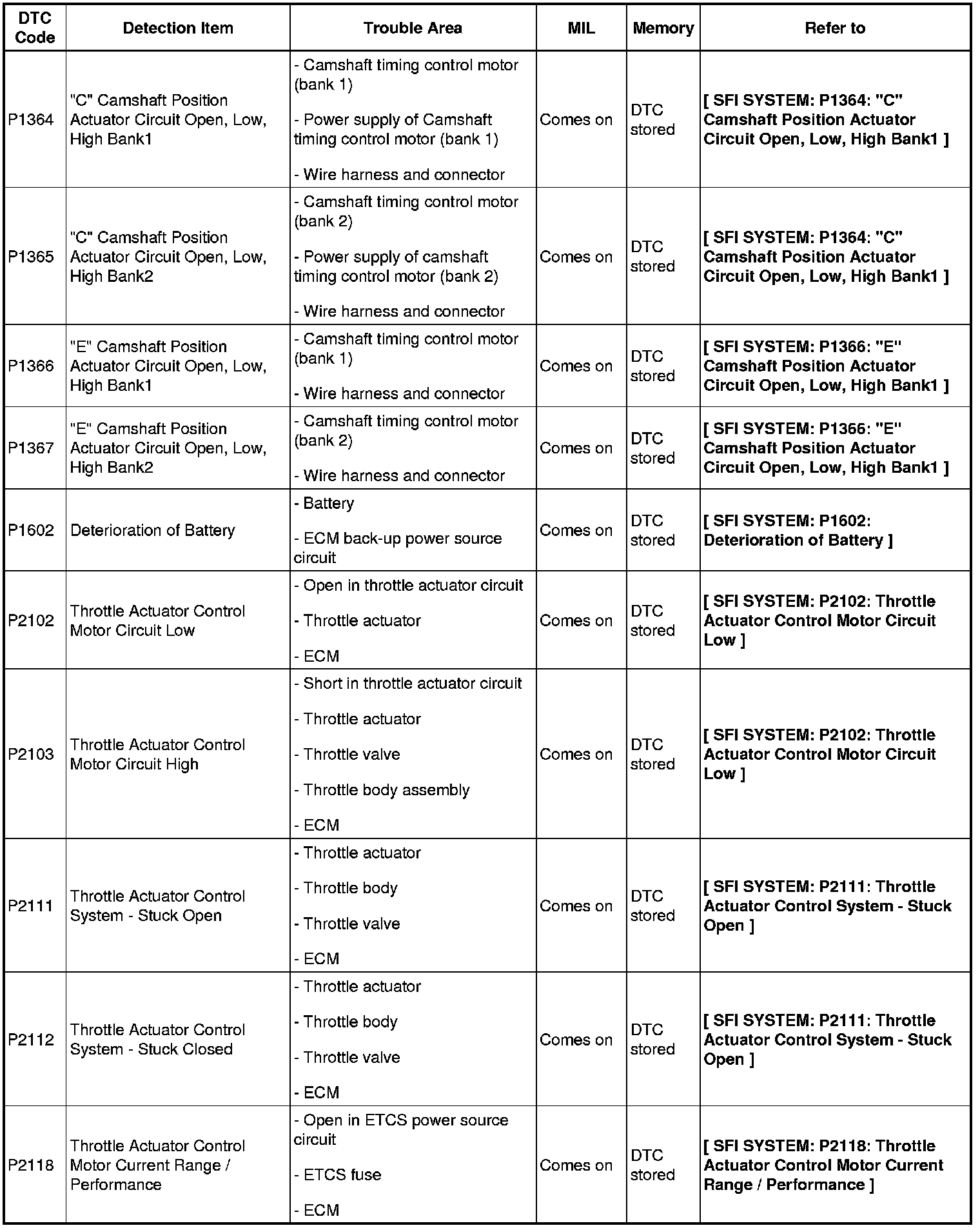

P1364-P2118:

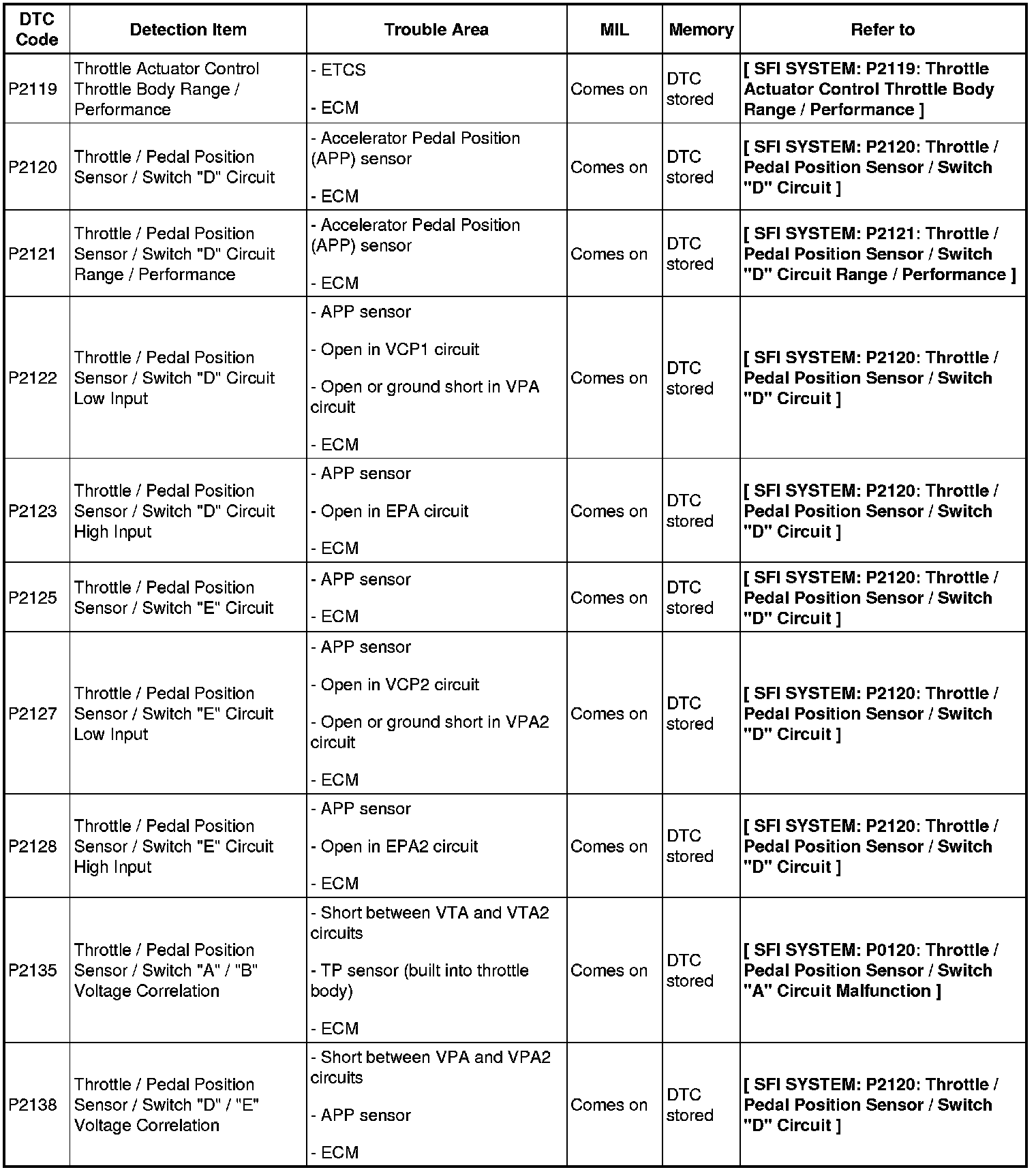

P2119-P2138:

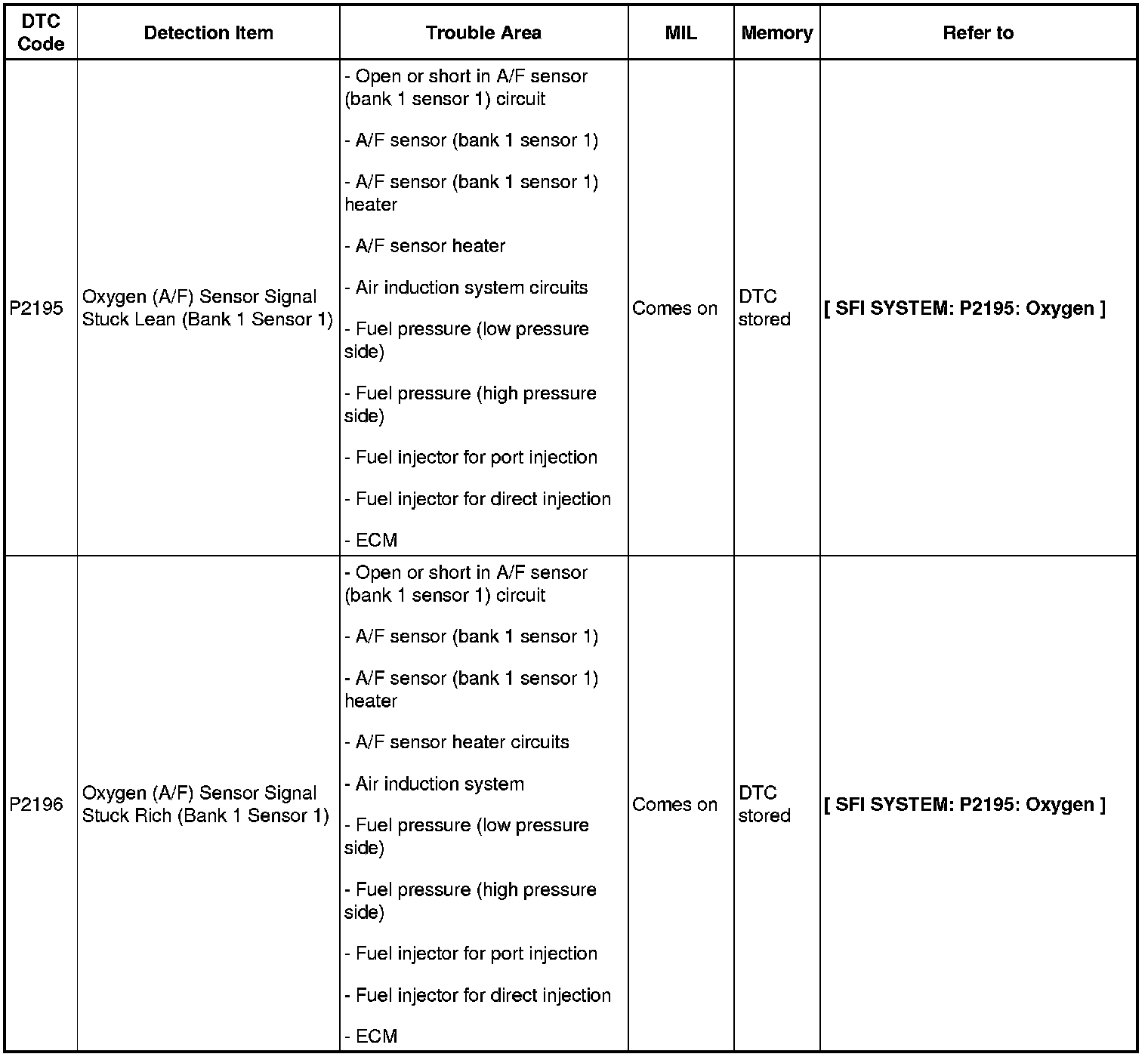

P2195-P2196:

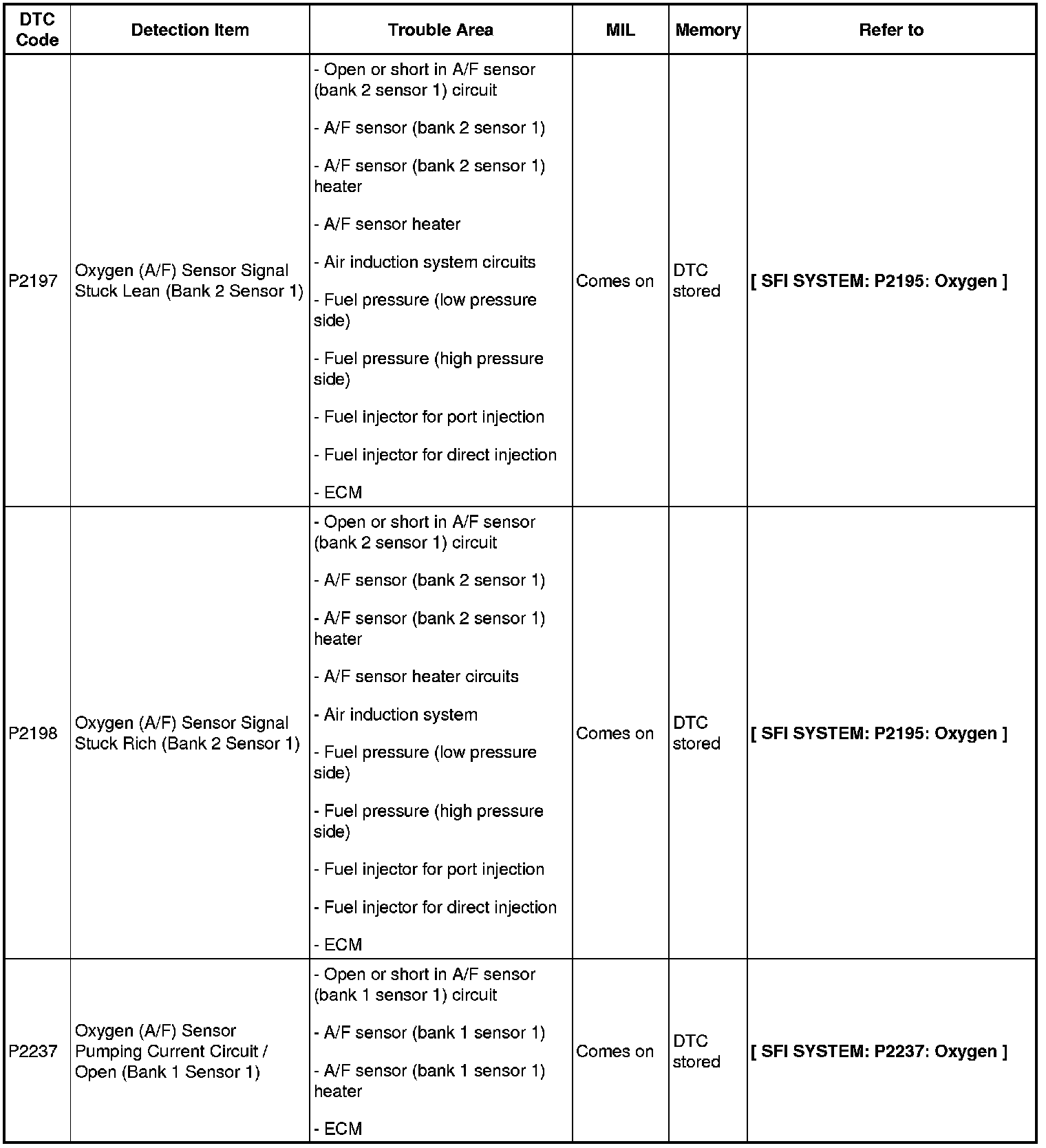

P2197-P2237:

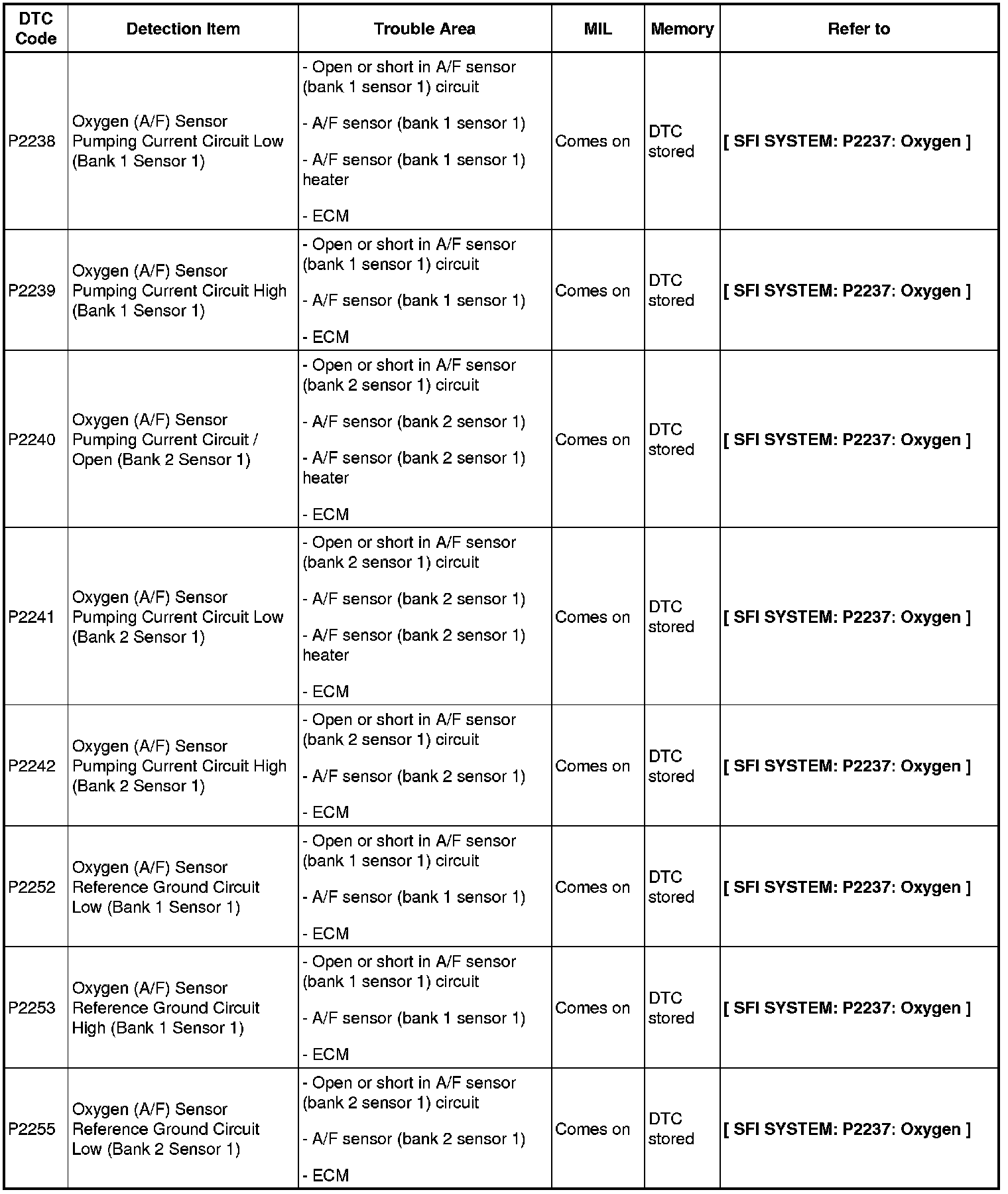

P2238-P2255:

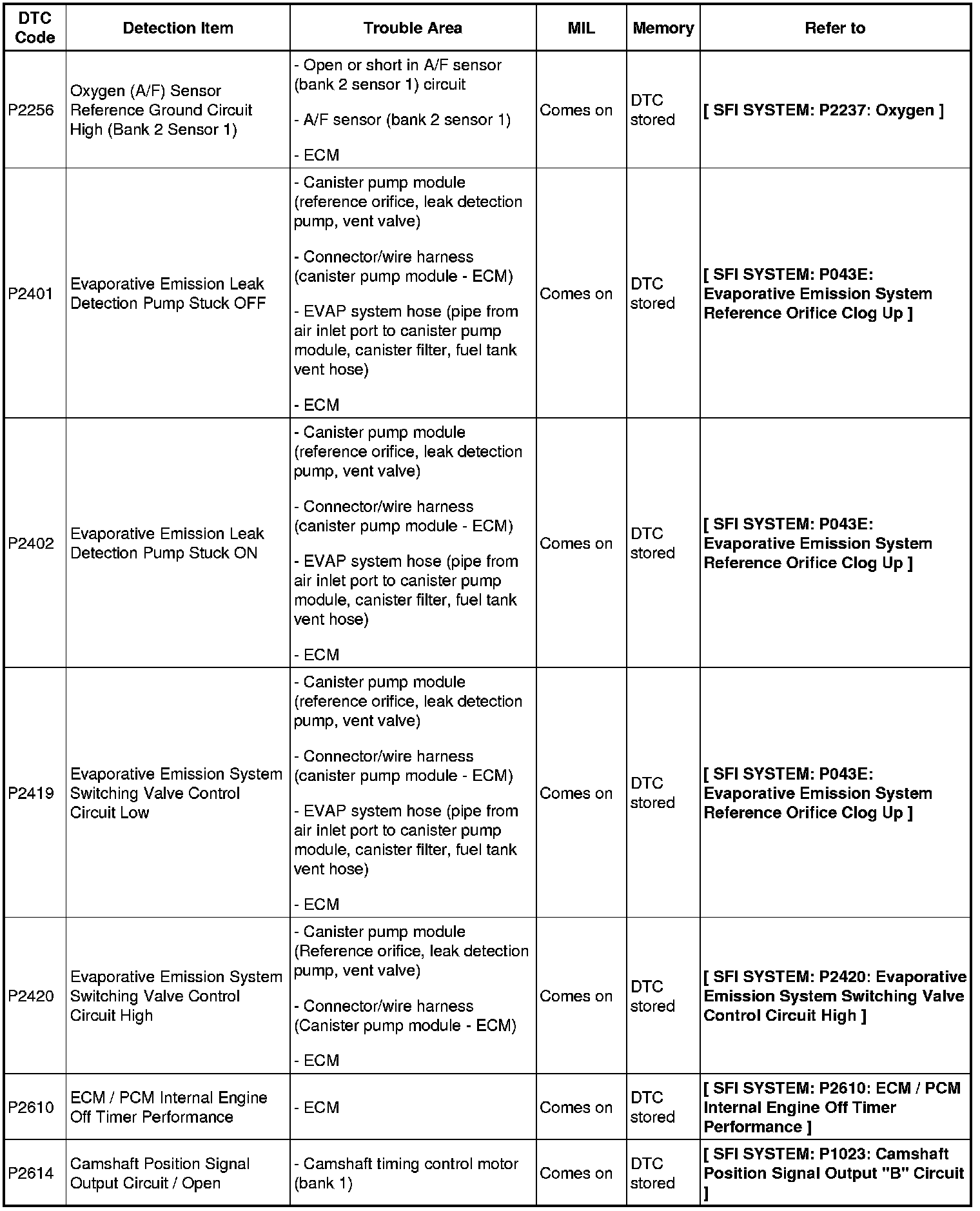

P2256-P2614:

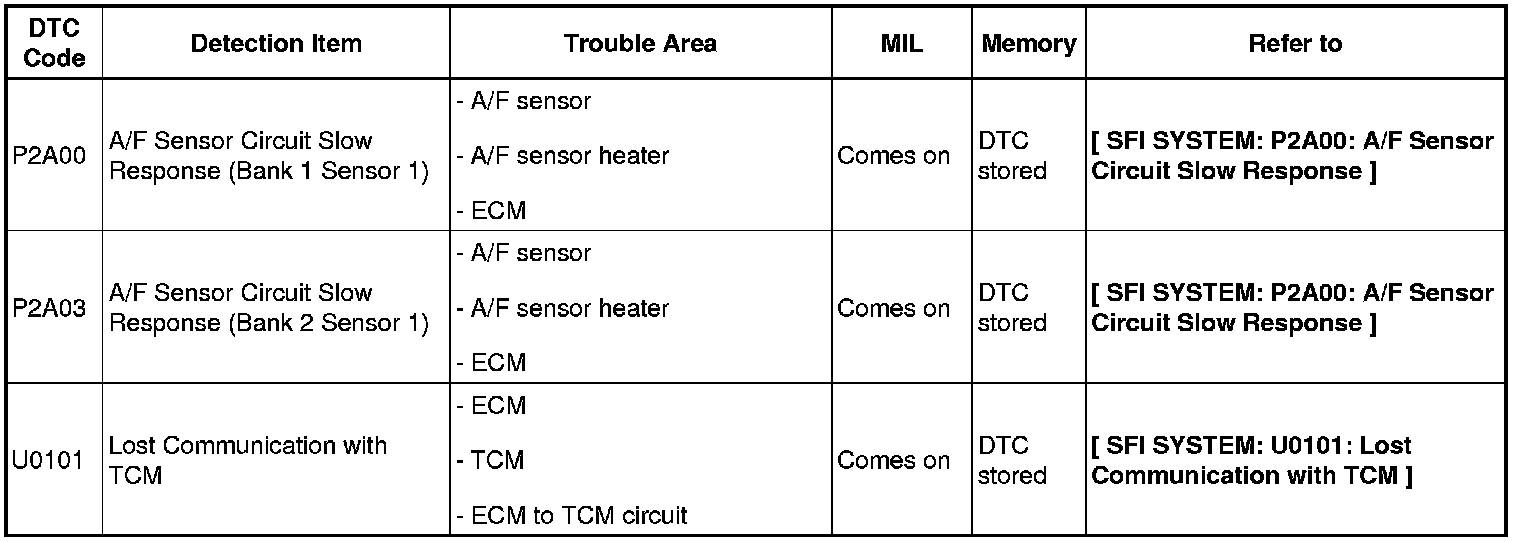

P2A00-P2A03/U0101:
