FLOOR TRIM

Removal and Installation


REMOVAL

1.Remove front seat assembly (LH and RH). Refer to Removal and Installation.
2.Remove accelerator pedal assembly.
- Models without distance control assist system: Without Distance Control Assist System.
- Models with distance control assist system: With Distance Control Assist System.
3.Remove front kicking plate inner (LH and RH). Kicking Plate Inner.
4.Remove dash side finisher (LH and RH). Dash Side Finisher.
5.Remove front body side welt (LH and RH). Body Side Welt.
6.Remove rear seat cushion. Removal and Installation.
7.Remove rear kicking plate inner (LH and RH). Kicking Plate Inner.
8.Remove center pillar lower garnish (LH and RH). Center Pillar Lower Garnish.
9.Remove rear body side welt (LH and RH). Body Side Welt.

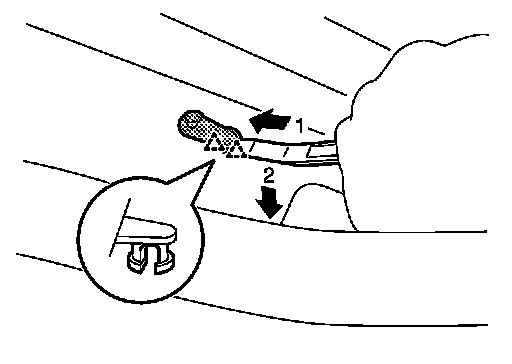

10.Disengage pawls of floor hook (1) with remover tool, and then remove floor hook.





11.Remove front seat belt floor anchor bolts (LH and RH). Removal And Installation.
12.Remove center console assembly. Removal And Installation.

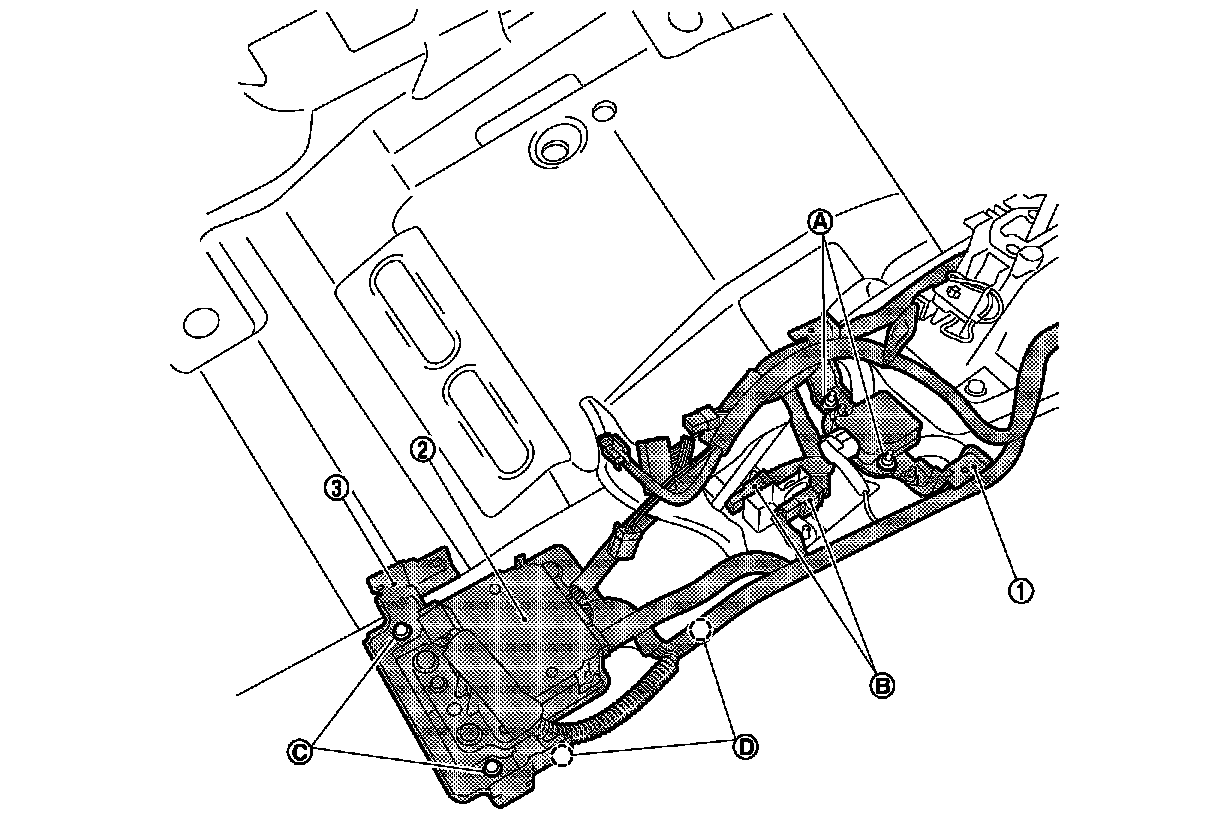

13.Remove the following parts after removing the center console assembly.





1.Remove bolts (A), and then remove console front bracket (1).
2.Pull up floor carpet and disconnect harness connectors (B).
3.Remove diagnosis sensor unit. Removal And Installation.
4.Remove bolts (C), and then remove console rear bracket (3).
5.Remove harness clips (D).





14.Remove floor trim from floor trim fixing clips (A).
15.Pass each harness through a floor carpet opening, toward vehicle floor, so that each harness is free from floor carpet. Remove floor carpet from the vehicle body.

INSTALLATION

Install in the reverse order of removal.
