Removal And Installation
FLOOR TRIM
Removal and Installation
REMOVAL
1. Remove front seat assembly (LH and RH). Removal and Installation.
2. Remove accelerator pedal assembly.
- Models without distance control assist system: Removal And Installation Without Distance Control Assist System.
- Models with distance control assist system: Exploded View With Distance Control Assist System Removal And Installation With Distance Control Assist System, "MODELS WITH DISTANCE CONTROL
ASSIST SYSTEM : Removal and Installation".
3. Remove front kicking plate inner (LH and RH). Kicking Plate Inner.
4. Remove dash side finisher (LH and RH). Dash Side Finisher.
5. Remove front body side welt (LH and RH). Body Side Welt.
6. Remove rear kicking plate inner (LH and RH). Kicking Plate Inner.
7. Remove center pillar lower garnish (LH and RH). Center Pillar Lower Garnish.
8. Remove rear body side welt (LH and RH). Body Side Welt.

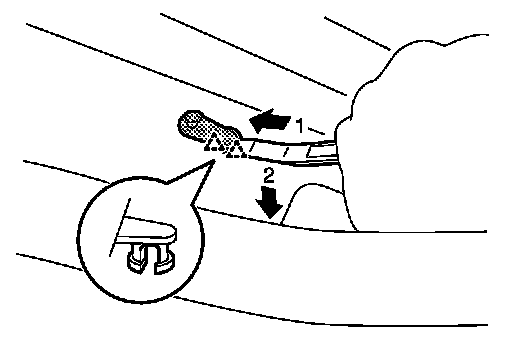

9. Disengage pawls of floor hook (1) with remover tool, and then remove floor hook.
Triangle: Pawl
10. Remove front seat belt floor anchor bolts (LH and RH). Removal And Installation.
11. Remove center console assembly. Removal And Installation.
12. Remove the following parts after removing the center console assembly.
1. Remove bolts (A), and then remove console front bracket (1).
2. Pull up floor carpet and disconnect harness connectors (B).
3. Remove diagnosis sensor unit. Removal And Installation.
4. Remove bolts (C), and then remove console rear bracket (3).
5. Remove harness clips (D).
13. Remove floor carpet fixing clips (B) with a remover tool (A).
14. Disengage rear heater duct finisher fixing pawls with a remover tool (A), and then remove rear heater duct finisher.
Triangle: Pawl
15. Remove floor carpet (1) from floor carpet fixing harness clips
(A), and then remove floor carpet from the vehicle body.
INSTALLATION
Note the following item, and then install in the reverse order of removal.
CAUTION:
Replace floor carpet fixing clip with a new part after removal. Never reuse floor carpet fixing clip.
