Drive Plate Overview

Drive Plate Overview

• For assembly work, secure the engine on the engine and transmission holder (VAS 6095). Refer to => [ Engine, Securing to Engine and Transmission Holder ] Procedures.

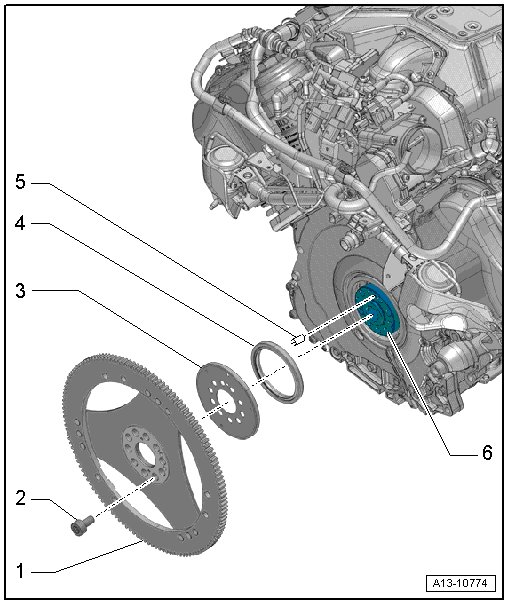

1 Drive Plate

• Check the holes in the torque converter for cracks and wear grooves.

• Removing and installing, refer to => [ Drive Plate ] Drive Plate

2 Bolt

• 60 Nm plus an additional 90° turn

• Replace

3 Sensor Wheel

• For the Engine Speed (RPM) sensor (G28)

4 Shaft Seal

• For the crankshaft, transmission side

• Removing and installing, refer to => [ Crankshaft Seal, Transmission Side ] Service and Repair

5 Fitting Pin

6 Crankshaft
