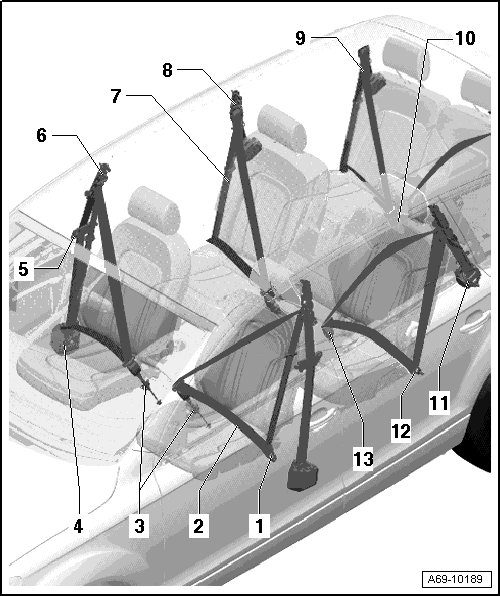

Seat Belts, 2nd Row as Individual Seat and Multibox, Securing Point Overview

Seat Belts, 2nd Row as Individual Seat and Multibox, Securing Point Overview






1 Outside belt anchor

• Belt anchor at front seat

• Removing and Installing, refer to => [ Belt Anchor ] Belt Anchor

2 Front three-point seat belt

• Assembly Overview, refer to => [ Front Three-point Seat Belt Assembly Overview ] Front Three-Point Seat Belt Assembly Overview

3 Front seat belt latch securing point

• On front seat

• Removing and Installing, refer to => [ Belt Latch Anchorage Point ] Belt Latch Anchorage Point

• Always replace the seat belt latch if the belt tensioner has deployed with the belt on

4 Belt roller/belt tensioner

• For front three-point seat belt

• Assembly Overview, refer to => [ Front Three-point Seat Belt Assembly Overview ] Front Three-Point Seat Belt Assembly Overview

5 Front belt guide

• Removing and Installing, refer to => [ Front Belt Guide ] Front Belt Guide

6 Front seat belt height adjuster

• Assembly Overview, refer to => [ Front Seat Belt Height Adjuster Assembly Overview ] Front Seat Belt Height Adjuster Assembly Overview

• Seat belt height adjuster must always be replaced if the belt tensioner has deployed with the belt on

7 Outer 2nd row three-point seat belt

• Without pyrotechnic belt tensioner

• With pyrotechnic belt tensioner

• Assembly Overview, refer to => [ Outer 2nd Row Three-Point Seat Belt Assembly Overview ] Outer 2nd Row Three-Point Seat Belt Assembly Overview

8 Rear seat belt height adjuster (2nd row)

• Removing and Installing, refer to => [ Rear Belt Height Adjuster, 2nd Row ] Rear Belt Height Adjuster, 2nd Row

• Seat belt height adjuster must always be replaced if the belt tensioner has deployed with the belt on

9 3rd row seat belt

• Assembly Overview, refer to => [ 3rd Row Seat Belt Assembly Overview ] 3rd Row Seat Belt Assembly Overview

10 3rd row rear seat belt securing point

• Removing and Installing, refer to => [ 3rd Center Row Seat Belt Latch Securing Point ] 3rd Center Row Seat Belt Latch Securing Point

• Always replace the seat belt latch if the belt tensioner has deployed with the belt on

11 Belt roller/belt tensioner

• for outer 2nd row three-point seat belt

• Assembly Overview, refer to => [ Outer 2nd Row Three-Point Seat Belt Assembly Overview ] Outer 2nd Row Three-Point Seat Belt Assembly Overview

12 2nd row outer belt anchor

• Assembly Overview, refer to => [ Outer 2nd Row Three-Point Seat Belt Assembly Overview ] Outer 2nd Row Three-Point Seat Belt Assembly Overview

13 2nd row outer seat belt latch securing point

• Removing and Installing, refer to => [ Outer 2nd Row Seat Belt Latch Securing Point ] Outer 2nd Row Seat Belt Latch Securing Point

• Always replace the seat belt latch if the belt tensioner has deployed with the belt on
