Service Kit With Front Passenger Seat Occupant Sensor G128 and Passenger Occupant Detection System Control Module J706
Service Kit with Front Passenger Seat Occupant Sensor G128 and Passenger Occupant Detection System Control Module J706
• The passenger occupant detection system is only installed in the front passenger seat.
The replacement part (Service Kit) for the passenger occupant detection system (country-specific) is already pre-installed. Never disconnect the connector between the passenger occupant detection system control module (J706) and the front passenger seat occupant sensor (G128). The Service Kit differs depending on the seat version and consists of:
Standard seat/Sport seat/Super Sport seat:
• Seat cushion with/without a seat heating element
• Front passenger seat occupant sensor (G128) glued to the seat cushion or the seat heating element
• Seat Occupied Recognition Control Module (J706)
Multi-contour seat:
• Front passenger seat occupant sensor (G128) and seat heating element sewn inside the seat cover
• Seat Occupied Recognition Control Module (J706)
Removing
• Follow all safety precautions when working with pyrotechnic components => [ Pyrotechnic, Electrical and Mechanical Restraint System Components, Safety Precautions and Testing Procedures ] Testing and Inspection and on the passenger occupant detection system => [ Passenger Occupant Detection System Deactivation Additional Safety Precautions ] Passenger Occupant Detection System Deactivation Additional Safety Precautions.
• Before handling pyrotechnical components (for example, disconnecting the connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.
- Disconnect the ground cable from the battery with the ignition on.
- Remove the front passenger seat:
• Manual standard seat/Sport seat, refer to => [ Standard Seat and Sport Seat, Manual ] Standard Seat and Sport Seat, Manual.
• Power Standard seat/power Sport seat/Super sport seat as well as multicontour seat, refer to => [ Power Standard Seat/Sport Seat/Super Sport Seat ] Power Standard Seat/Sport Seat/Super Sport Seat.
- Attach front seat to the fixture for seat repair (VAS 6136). Refer to => [ Installing Front Seat on Fixture for Seat Repair VAS 6136 ] Installing Front Seat on Fixture For Seat Repair VAS 6136.

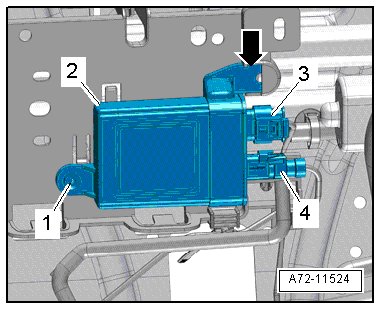

Never disconnect the connector - 4 - from the passenger occupant detection system control module (J706).
- Disconnect the connector - 3 - from the control module.
- Remove the screw - 1 -.
- Disengage the control module - 2 - from the bracket - arrow - and free up the control module and wire.
Standard seat (manual or power):
The front passenger seat occupant sensor (G128) is glued to the seat cushion or the seat heating element.
- Remove seat cover with seat cushion for seat pan. Refer to => [ Seat Cover with Seat Cushion for Standard Seat ] Seat Cover With Seat Cushion For Standard Seat.
- Separate the seat cover from the seat cushion. Refer to => [ Seat Cover and Seat Cushion for Standard Seat, Separating and Connecting ] Seat Cover and Seat Cushion For Standard Seat, Separating and Connecting.
Manual or power Sport seat/Super Sport seat:
The front passenger seat occupant sensor (G128) is glued to the seat cushion or the seat heating element.
- Remove the Sport seat/Super Sport seat with seat depth adjuster seat cover with seat cushion. Refer to => [ Seat Cover with Seat Cushion, Sport Seat/Super Sport Seat with Seat Depth Adjuster ] Seat Cover With Seat Cushion, Sport Seat/Super Sport Seat With Seat Depth Adjuster.
- Separate the seat cover from the seat cushion. Refer to => [ Seat Cover and Seat Cushion, Disassembling and Assembling, Sport Seat/Super Sport Seat with Seat Depth Adjuster ] Seat Cover and Seat Cushion, Disassembling and Assembling, Sport Seat/Super Sport Seat With Seat Depth Adjuster.
Multi-contour seat:
The front passenger seat occupant sensor (G128) and seat heating element are sewn inside the seat cover.
- Remove seat cover with seat cushion. Refer to => [ Seat Cover with Seat Cushion for Multi-contour Seat ] Seat Cover With Seat Cushion For Multi-Contour Seat.
- Separate the seat cover from the seat cushion. Refer to => [ Seat Cover and Seat Cushion for Multi-contour Seat, Separating and Connecting ] Seat Cover and Seat Cushion For Multi-Contour Seat, Separating and Connecting.
Installation
• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Pyrotechnic, Electrical and Mechanical Restraint System Components, Safety Precautions and Testing Procedures ] Testing and Inspection.
• Before handling pyrotechnical components (for example, connecting electrical connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.
Installation is performed in reverse order of removal, noting the following:
• Make sure the connectors are installed all the way in and are secure.
Connect the battery with the ignition switched on. Pyrotechnic components could deploy after connecting the battery if they were not repaired correctly. Individuals must not be inside the vehicle when connecting the battery.
- Connect the battery ground cable with the ignition turned on.
When installing a new service kit and after each repair on the front passenger seat where the seat and/or the backrest cover is disengaged, a basic setting procedure must be performed on the seat occupied recognition control module. Refer to => [ Passenger Occupant Detection System Deactivation Additional Safety Precautions ] Passenger Occupant Detection System Deactivation Additional Safety Precautions.
- Select "airbag" in "Guided Fault Finding" to complete Vehicle diagnostic tester.
• -J706 Passive occupant detection system control module basic setting
• If the airbag indicator lamp (K75) indicates a fault after installation, check the DTC memory, erase it and check it again Vehicle diagnostic tester.
Information for installation: for example tightening specifications, replacing body parts, refer to => [ Seat Occupied Recognition for Passenger Airbag Deactivation Assembly Overview ] Seat Occupied Recognition For Passenger Airbag Deactivation Assembly Overview, => [ Service Kit Assembly Overview, with Front Passenger Seat Occupant Sensor G128 and Passenger Occupant Detection System Control Module J706 ] Service Kit Assembly, With Front Passenger Seat Occupant Sensor G128 & Passenger Occupant Detection System Control Module J706.
