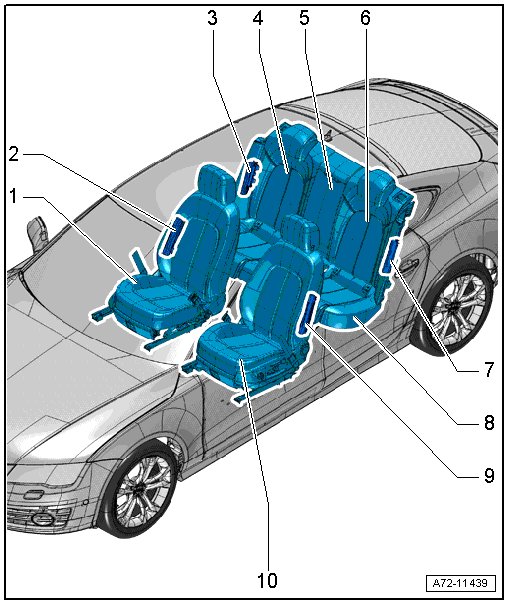

Seats Overview
Seats Overview
1 Front passenger seat
Optional equipment:
• Seat/backrest heating
• Lumbar support
• Storage compartment
• Footwell light
• LATCH child seat anchor
• Rear seat entertainment
• Seat angle adjustment only for Sport seat
• Seat depth adjustment only for Sport seat
• Assembly Overview, refer to => [ Standard Seat/Sport Seat Assembly Overview ] Standard Seat/Sport Seat Assembly Overview
• Removing and Installing, refer to => [ Standard Seat and Sport Seat, Manual ] Standard Seat and Sport Seat, Manual
Power Standard seat/Sport seat/Super Sport seat
Optional equipment:
• Memory function
• Seat/backrest heating
• Seat Ventilation
• Storage compartment
• Footwell light
• LATCH child seat anchor
• Rear seat entertainment
• Seat depth adjuster only for Sport seat/Super Sport seat
• Assembly Overview, refer to => [ Standard Seat/Sport Seat/Super Sport Seat Assembly Overview ] Standard Seat/Sport Seat/Super Sport Seat Assembly Overview
• Removing and Installing, refer to => [ Power Standard Seat/Sport Seat/Super Sport Seat ] Power Standard Seat/Sport Seat/Super Sport Seat
Multicontour seat
Optional equipment:
• Seat/backrest heating
• Seat Ventilation
• Footwell light
• LATCH child seat anchor
• Rear seat entertainment
• Assembly Overview, refer to => [ Multicontour Seat Assembly Overview ] Multicontour Seat Assembly Overview
• Removing and Installing, refer to => [ Power Standard Seat/Sport Seat/Super Sport Seat ] Power Standard Seat/Sport Seat/Super Sport Seat
2 Front side airbag with a front passenger thorax airbag igniter (N200)
• Assembly Overview, refer to => [ Front Side Airbag Assembly Overview, Standard Seat/Sport Seat/Super Sport Seat ] Front Side Airbag Assembly Overview, Standard Seat/Sport Seat/Super Sport Seat
• Removing and Installing, refer to => [ Driver Thorax Airbag Igniter N199 and Front Passenger Thorax Airbag Igniter N200, Standard Seat/Sport Seat/Super Sport Seat ] Driver Thorax Airbag Igniter N199 and Front Passenger Thorax Airbag Igniter N200, Standard Seat/Sport Seat/Super Sport Seat
3 Rear side airbag with a right rear thorax airbag igniter (N202)
• Assembly Overview, refer to => [ Rear Side Airbag Assembly Overview ] Rear Side Airbag Assembly Overview
• Removing and Installing, refer to => [ Driver Side Rear Thorax Airbag Igniter N201 and Front Passenger Rear Thorax Airbag Igniter N202 ] Driver Side Rear Thorax Airbag Igniter N201 and Front Passenger Rear Thorax Airbag Igniter N202
4 Rear seat backrest, 2/3 right
Optional equipment:
• Backrest heater
• Pass-through
• Assembly Overview, refer to => [ Rear Seat Backrest Assembly Overview ] Rear Seat Backrest Assembly Overview
• Removing and Installing, refer to => [ Rear Seat Backrest ] Rear Seat Backrest
5 Rear center armrest
Optional equipment:
• with pass-through flap
• With storage compartment
• Assembly Overview, refer to => [ Rear Center Armrest Assembly Overview ] Rear Center Armrest Assembly Overview
• Removing and Installing, refer to => [ Rear Center Armrest ] Rear Center Armrest
6 Rear seat backrest, 1/3, left
Optional equipment:
• Backrest heater
• Assembly Overview, refer to => [ Rear Seat Backrest Assembly Overview ] Rear Seat Backrest Assembly Overview
• Removing and Installing, refer to => [ Rear Seat Backrest ] Rear Seat Backrest
7 Side airbag in the rear with left rear thorax airbag igniter (N201)
• Assembly Overview, refer to => [ Rear Side Airbag Assembly Overview ] Rear Side Airbag Assembly Overview
• Removing and Installing, refer to => [ Driver Side Rear Thorax Airbag Igniter N201 and Front Passenger Rear Thorax Airbag Igniter N202 ] Driver Side Rear Thorax Airbag Igniter N201 and Front Passenger Rear Thorax Airbag Igniter N202
8 Rear bench seat
Optional equipment:
• Seat Heating
• Storage compartment
• Assembly Overview, refer to => [ Rear Seat Bench Assembly Overview ] Rear Seat Bench Assembly Overview
• Removing and Installing, refer to => [ Rear Bench Seat ] Rear Bench Seat
9 Front side airbag with driver thorax airbag igniter (N199)
• Assembly Overview, refer to => [ Front Side Airbag Assembly Overview, Standard Seat/Sport Seat/Super Sport Seat ] Front Side Airbag Assembly Overview, Standard Seat/Sport Seat/Super Sport Seat
• Removing and Installing, refer to => [ Driver Thorax Airbag Igniter N199 and Front Passenger Thorax Airbag Igniter N200, Standard Seat/Sport Seat/Super Sport Seat ] Driver Thorax Airbag Igniter N199 and Front Passenger Thorax Airbag Igniter N200, Standard Seat/Sport Seat/Super Sport Seat
10 Driver seat
Optional equipment:
• Seat/backrest heating
• Lumbar support
• Storage compartment
• Footwell light
• Rear seat entertainment
• Seat angle adjustment only for Sport seat
• Seat depth adjustment only for Sport seat
• Assembly Overview, refer to => [ Standard Seat/Sport Seat Assembly Overview ] Standard Seat/Sport Seat Assembly Overview
• Removing and Installing, refer to => [ Standard Seat and Sport Seat, Manual ] Standard Seat and Sport Seat, Manual
Power Standard seat/Sport seat/Super Sport seat
Optional equipment:
• Memory function
• Seat/backrest heating
• Seat Ventilation
• Footwell light
• Rear seat entertainment
• Seat depth adjuster only for Sport seat/Super Sport seat
• Assembly Overview, refer to => [ Standard Seat/Sport Seat/Super Sport Seat Assembly Overview ] Standard Seat/Sport Seat/Super Sport Seat Assembly Overview
• Removing and Installing, refer to => [ Power Standard Seat/Sport Seat/Super Sport Seat ] Power Standard Seat/Sport Seat/Super Sport Seat
Multicontour seat
Optional equipment:
• Seat/backrest heating
• Seat Ventilation
• Footwell light
• Rear seat entertainment
• Assembly Overview, refer to => [ Multicontour Seat Assembly Overview ] Multicontour Seat Assembly Overview
• Removing and Installing, refer to => [ Power Standard Seat/Sport Seat/Super Sport Seat ] Power Standard Seat/Sport Seat/Super Sport Seat
