Exhaust Manifold and Intermediate Pipe Overview

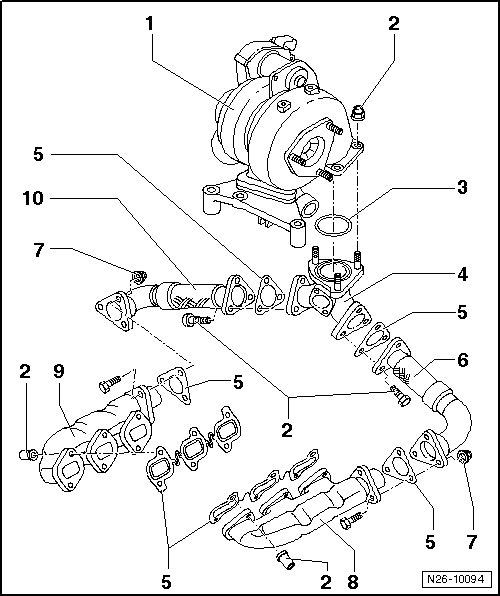

Exhaust Manifold and Intermediate Pipe Overview






1 Turbocharger

2 Bolt/Nut

• 25 Nm

• Always replace.

• Coat with hot bolt paste (G 052 112 A3).

3 Seal

• Always replace.

4 Intermediate Flange

5 Gasket

• Always replace.

6 Left Intermediate Pipe

• Removing and installing, refer to => [ Left Intermediate Pipe ] Left Intermediate Pipe.

7 Nut

• 25 Nm

• Always replace.

• Coat with hot bolt paste (G 052 112 A3).

8 Left Exhaust Manifold

• Removing and installing, refer to => [ Left Exhaust Manifold ] Left Exhaust Manifold.

9 Right Exhaust Manifold

• Removing and installing, refer to => [ Right Exhaust Manifold ] Right Exhaust Manifold.

10 Right Intermediate Pipe

• Removing and installing, refer to => [ Right Intermediate Pipe ] Right Intermediate Pipe.
