Side Luggage Compartment Trims

Side Luggage Compartment Trims

• Removal and installation are described for the left side of the vehicle. Removal and installation for the right side are performed in the same manner.

Removal

- Switch off the ignition.

- Remove the bench seats. Refer to => [ Bench Seats ] Bench Seats.

- Remove the rear seats. Refer to => [ Rear Seats ] Rear Seats.

- Remove the belt anchors of the outer rear seats. Refer to => [ Outer Rear Seat Belt Anchors ] Outer Rear Seat Belt Anchors.

- Remove the C-pillar trims. Refer to => [ C-Pillar Trim ] C-Pillar Trim.

- Remove and install the wheel housing trims. Refer to => [ Wheel Housing Trim ] Wheel Housing Trim.

- Remove D-pillar trim. Refer to => [ D-Pillar Trim ] D-Pillar Trim.

- Remove the supports. Refer to => [ Supports ] Supports.

- Remove the lock carrier cover. Refer to => [ Lock Carrier Cover ] Lock Carrier Cover.

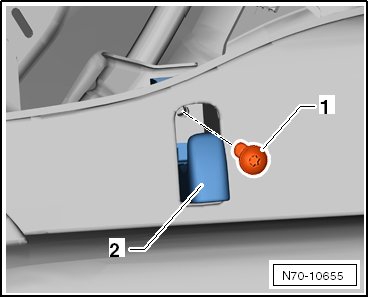

- Tilt the coat hook - 2 - down and unscrew the bolt - 1 - (4.5 Nm).






- Use a "Torx T 15 screwdriver" to remove the expanding clips - 1 - and - 2 -.

- Unclip the front and rear luggage compartment trim in the direction of the vehicle interior.

- Pull the luggage compartment trim - 3 - upward out of the side mount - 4 -.

- Disconnect connectors.






Installation

- To install, perform the steps used for removal in reverse order.
