Seals Assembly Overview

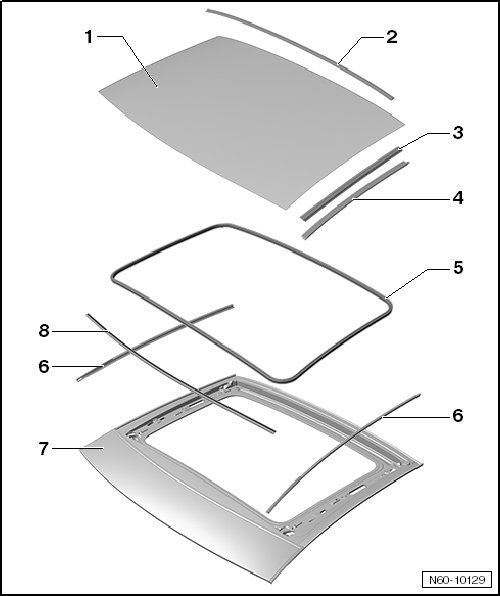

Seals Assembly Overview






1 Glass Panel

• Removing, refer to => [ Sunroof Glass Panel ] Sunroof Glass Panel

2 Rear seal

3 Retaining strip for outer bellows

4 Outer bellows

5 Circumferential seal

• Removing and Installing, refer to => [ Frame Seals ] Frame Seals

6 Side and outer rear seal

• The seal is comprised of 3 parts for the sides and for the rear.

• The joints are joined by the adhesive (AMV 195 KD1 01)

• Removing and Installing, refer to => [ Frame Seals ] Frame Seals

7 Assembly frame

8 Front seal

• Removing and Installing, refer to => [ Frame Seals ] Frame Seals
