Selector Mechanism

Selector Mechanism

Move the selector lever into the "P" position and set the parking brake before working with the engine running.

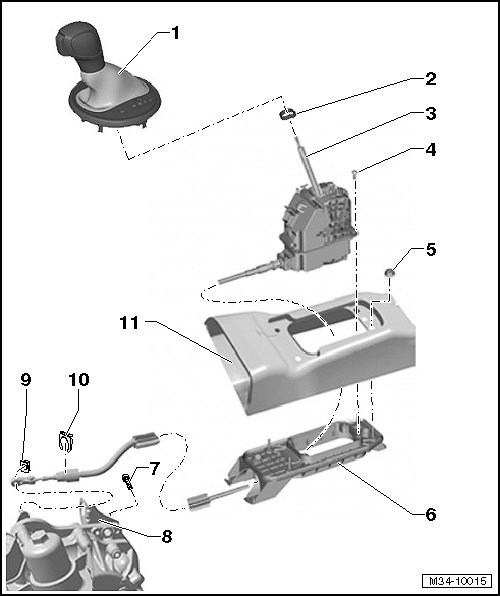

1 Selector Handle with Cover

• Do not remove the handle unnecessarily. For emergency release, only the cover must be removed. Refer to => [ Selector Lever, Manual Release ] Selector Lever, Manual Release.

• Removing and installing, refer to => [ Selector Lever Handle ] Selector Lever Handle.

2 Clamp

• Always replace.

• For attaching the handle to the selector lever.

• Attach to the selector handle using the hose clamp pliers (V.A.G 1275).

3 Selector Mechanism with Selector Lever Cable

• With the shift lock solenoid (N110).

• Do not grease the selector lever cable.

• Removing and installing, refer to => [ Selector Mechanism with Cable ] Selector Mechanism with Cable.

• Checking, refer to => [ Selector Lever Cable, Checking ] Testing and Inspection.

• Adjusting, refer to => [ Selector Lever Cable, Adjusting ] Adjustments.

4 Bolt

• 8 Nm

5 Nut

• 8 Nm

• Quantity: 4

6 Selector Housing

• Available only together with the selector mechanism, refer to the Parts Catalog.

7 Bolt

• 20 Nm + 90° (1/4) additional turn.

• Always replace.

• Quantity: 2

• For attaching the cable bracket to the transmission.

8 Cable Bracket

• For the selector lever cable.

9 Lock Washer

• Always replace after removing.

10 Lock Washer

• Always replace after removing.

• Installed position: The offset side faces forward, toward the front of the vehicle.

• The lock washer fits very tightly on the cable bracket. If necessary, remove the cable bracket and selector lever cable from the transmission. Refer to => [ remove the cable bracket and selector lever cable from the transmission. Remove the bolts and the lock washer. ] Selector Mechanism with Cable.

11 Tunnel/Body
