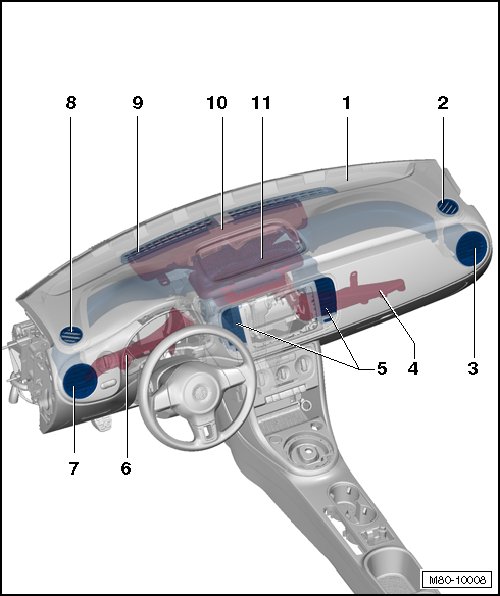

Air Vent Overview

Air Vent Overview






1 Instrument Panel

• Removing and installing.

2 Right Side Vent

• The air distribution is activated using the defrost intermediate piece, refer to item 10 => [ (Item 10) Intermediate Piece For The Defrost Air Vent ].

• Removing and installing, refer to => [ Side Window Air Vents ] Side Window Air Vents.

3 Right Side Vent

• The air distribution is activated using the intermediate piece for the air vent, refer to item 11 => [ (Item 11) Intermediate Piece For The Instrument Panel Air Vent ].

• The right vent temperature sensor (G151) is installed in the side vent for vehicles with electronically controlled A/C system.

• Side vent, removing and installing, refer to => [ Side Air Vents ] Side Air Vents.

• Right vent temperature sensor (G151) , for removing and installing refer to => [ Left Vent Temperature Sensor (G150) ] Left Vent Temperature Sensor (G150).

4 Front Passenger Side Footwell Vent

• Removing and installing, refer to => [ Footwell Vent, Front Passenger Side ] Footwell Vent, Front Passenger Side.

5 Center Air Vent

• Removing and installing, refer to => [ Center Air Vent ] Center Air Vent.

6 Driver Side Footwell Vent

• Removing and installing, refer to => [ Footwell Vent, Driver Side ] Footwell Vent, Driver Side.

7 Left Side Vent

• The air distribution is activated using the intermediate piece for the air vent, refer to item 11 => [ (Item 11) Intermediate Piece For The Instrument Panel Air Vent ].

• The left vent temperature sensor (G150) is installed in the side vent for vehicles with electronically controlled A/C system.

• Left side vent, removing and installing, refer to => [ Side Air Vents ] Side Air Vents.

• Left Vent Temperature Sensor (G150) , for removing and installing refer to => [ Left Vent Temperature Sensor (G150) ] Left Vent Temperature Sensor (G150).

8 Left Side Vent

• The air distribution is activated using the defrost intermediate piece, refer to item 10 => [ (Item 10) Intermediate Piece For The Defrost Air Vent ].

• Removing and installing, refer to => [ Side Window Air Vents ] Side Window Air Vents.

9 Defrost Air Vent

• The defrost air vent can not be removed and installed because it is a structural component for the instrument panel.

10 Intermediate Piece For The Defrost Air Vent

• Intermediate piece for the defrost air vent, refer to item 9 => [ (Item 9) Defrost Air Vent ].

• Intermediate piece for the left side vent, refer to item 8 => [ (Item 8) Left Side Vent ].

• Intermediate piece for the right side vent, refer to item 2 => [ (Item 2) Right Side Vent ].

• Removing and installing, refer to => [ Defrost Air Vent Intermediate Piece ] Defrost Air Vent Intermediate Piece.

11 Intermediate Piece For The Instrument Panel Air Vent

• Intermediate piece for the center air vent, refer to item 5 => [ (Item 5) Center Air Vent ].

• Intermediate piece for the left air vent, refer to item 7 => [ (Item 7) Left Side Vent ].

• Intermediate piece for the right air vent, refer to item 3 => [ (Item 3) Right Side Vent ].

• Removing and installing, refer to => [ Instrument Panel Air Vent Intermediate Piece ] Instrument Panel Air Vent Intermediate Piece.
