Passenger Side Lower A-Pillar Trim

Passenger Side Lower A-Pillar Trim

Removing

- Remove right side instrument panel cover. Refer to => [ Instrument Panel Side Covers ] Instrument Panel Side Covers

- Remove the right B-pillar upper trim. Refer to => [ B-Pillar Upper Trim, Loosening from Mounts and Securing ] B-Pillar Upper Trim, Loosening from Mounts and Securing

- Remove the lower trim on the right B-pillar. Refer to => [ Lower B-Pillar Trim ] Lower B-Pillar Trim

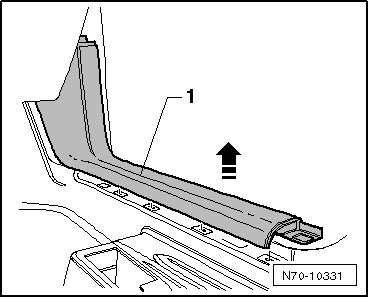

- Remove the trim - 1 - from the body - arrow -.






Installation

• Before installing, check the mounting clamps and replace if necessary.

- Install in reverse order of removal.

- Make sure, that the trim is placed in the in the door seal piping.
