B-Pillar Upper Trim

B-Pillar Upper Trim

• The following describes removing and installing on the right side of the vehicle. Removing and installing on the left side is identical.

- Remove the B-pillar upper trim mounts. Refer to => [ B-Pillar Upper Trim, Loosening from Mounts and Securing ] B-Pillar Upper Trim, Loosening from Mounts and Securing

- Remove the B-pillar lower trim. Refer to => [ Lower B-Pillar Trim ] Lower B-Pillar Trim

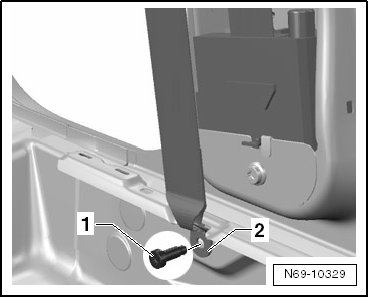

- Remove the bolt - 1 - (40 Nm) and remove belt anchor - 2 - from body.






- Guide the belt anchor through the opening in the trim.

Installation

• Before installing, check the mounting clamps and replace if necessary.

- Install in reverse order of removal.

- Make sure, that the trim is placed in the in the door seal piping.
