Selector Mechanism Overview, through 02.2009

Selector Mechanism Overview, through 02.2009


Shift the selector lever into the "P" position and engage the parking brake before working with the engine running.

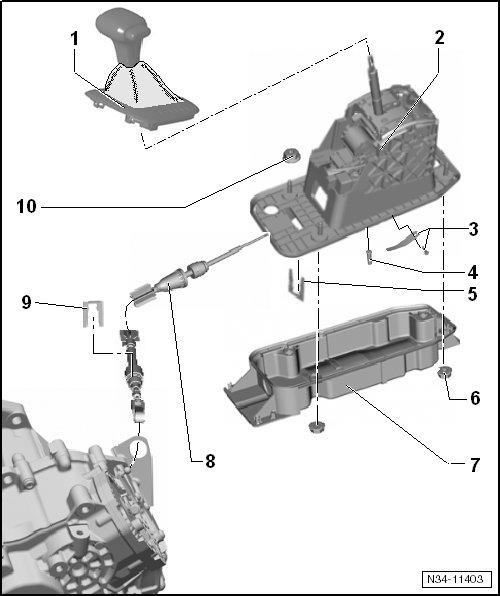

1 Shift Handle with Cover

• Do not remove the handle if not necessary. For emergency release, only the cover must be removed. Refer to => [ Shift Handle with Cover ] Shift Handle with Cover.

• Pull the button past its pressure point before removing the handle. Secure the button with a tie wrap or tape. This prevents the button from being pressed into the handle unintentionally.

• If the button is pushed in when the handle is removed:

- Just before installing, pull out the button beyond the press point (sense this by touch).

2 Shift Mechanism with Selector Lever

• Removal and installation, refer to => [ Shift Mechanism with Selector Lever, through 02.2009 ] Shift Mechanism with Selector Lever, through 02.2009.

3 Bolt with Spring, 3 Nm

4 Pin

• Removing, refer to => [ Selector Lever Cable, through 02.2009 ] Service and Repair.

• Do not grease.

5 Securing Plate

• Always replace after removing.

6 Nut, 9 Nm

• Quantity: 4.

7 Selector Housing

• With seal

8 Selector Lever Cable

• Do not grease the cable.

• Removal and installation, refer to => [ Selector Lever Cable, through 02.2009 ] Service and Repair.

• Checking, refer to => [ Selector Lever Cable Checking, through 02.2009 ] Testing and Inspection.

• Adjusting, refer to => [ Selector Lever Cable Adjusting, through 02.2009 ] Adjustments.

9 Retainer

10 Nut, 8 Nm

• Quantity: 4
