U760E AUTOMATIC TRANSAXLE: TRANSMISSION CONTROL CABLE ASSEMBLY: INSTALLATION

1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

(a) Pass the control cable from the cabin to the engine compartment.





(b) Install the 2 bolts.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

(c) Move the shift lever to N.

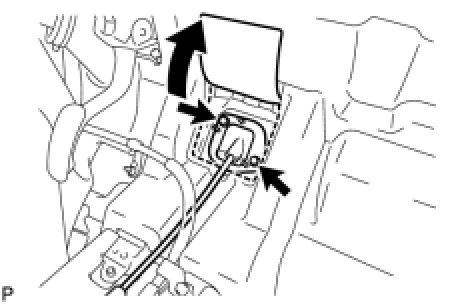

(d) Install the transmission control cable assembly as shown in the illustration.





HINT
* Install the floor shift cable with the uneven surface facing up.
* Securely engage the claws of the floor shift cable.

(e) Pull back the boot of the transmission control cable assembly.

(f) Move the slider in the direction indicated by arrow A and pull up the lock piece in the direction indicated by arrow B.





NOTICE:
Do not damage the boot.

(g) Connect the control cable to the bracket with a new clip.





(h) Install the control cable to the control shaft lever with the nut.





Torque : 13 Nm (130 kgf-cm, 9 ft-lbf)

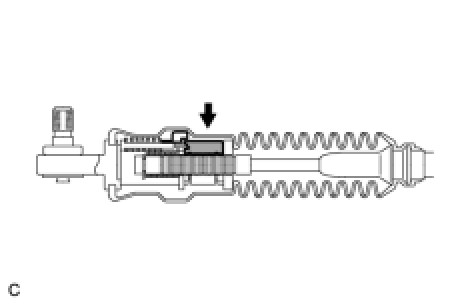

(i) Push in the lock piece of the transmission control cable.





NOTICE:
Firmly push in the lock piece until the slider lock is engaged.

(j) Refit the boot to the transmission control cable assembly.

2. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation

3. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

4. INSTALL AIR CLEANER CAP SUB-ASSEMBLY (for PZEV) Installation

5. INSTALL AIR CLEANER CAP SUB-ASSEMBLY (except PZEV) Installation

6. INSTALL INLET AIR CLEANER ASSEMBLY Installation

7. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation

8. INSTALL CENTER AIRBAG SENSOR ASSEMBLY Installation

9. INSTALL INSTRUMENT PANEL REINFORCEMENT WITH AIR CONDITIONING UNIT

HINT
Installation

10. INSPECT SHIFT LEVER POSITION Adjustments

11. ADJUST SHIFT LEVER POSITION Adjustments
