Slip Indicator Light Remains ON

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM (for BOSCH Made): Slip Indicator Light Remains ON
- Slip Indicator Light Remains ON

DESCRIPTION

The skid control ECU is connected to the combination meter assembly via CAN communication.

If the skid control ECU stores a DTC, the SLIP indicator light will come on in the combination meter.

The SLIP indicator light blinks during VSC and/or TRAC operation.

When the system fails, the SLIP indicator light comes on to warn the driver Vehicle Stability Control System (for BOSCH Made).

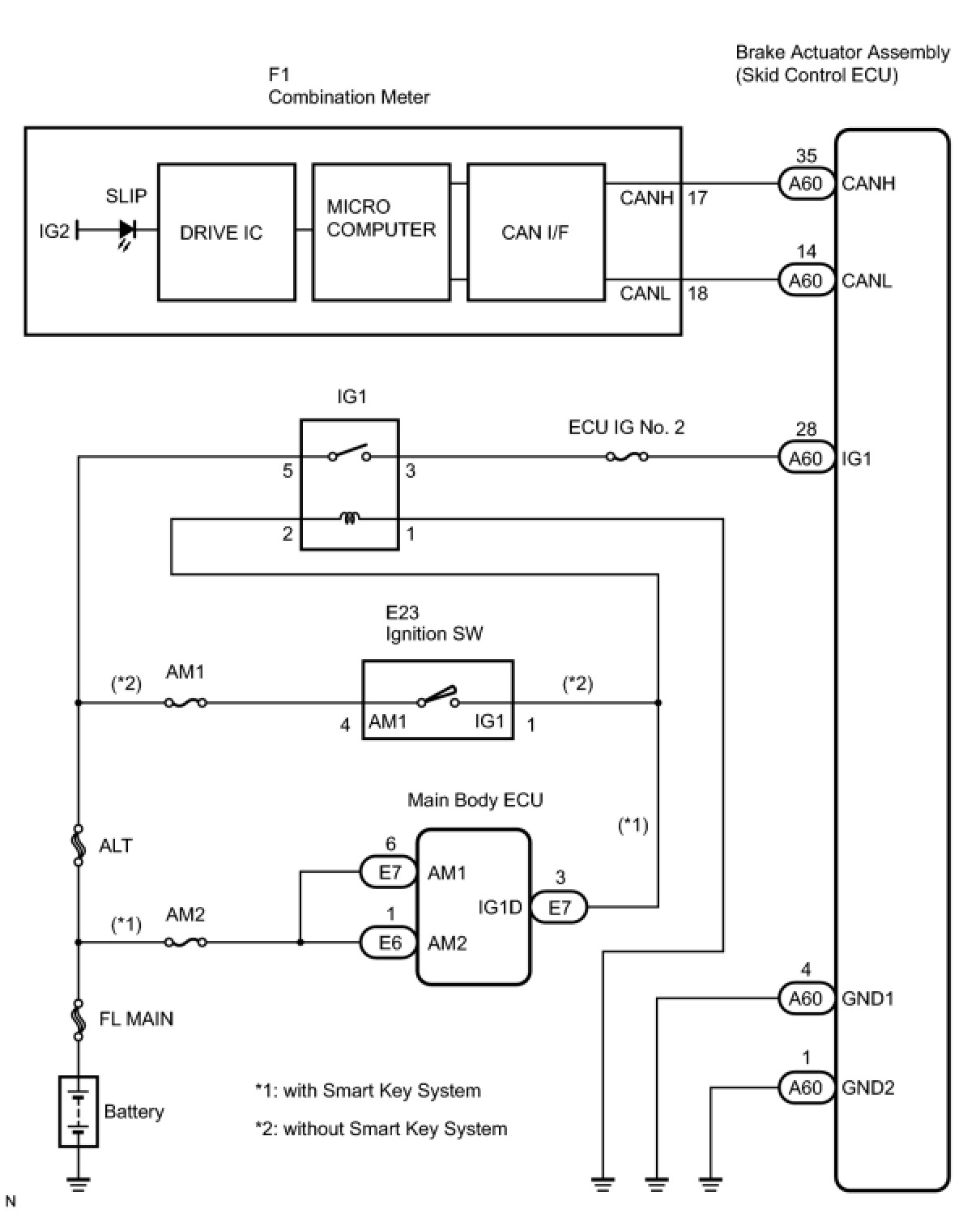

WIRING DIAGRAM





INSPECTION PROCEDURE

HINT
Check the condition of each related circuit connector before troubleshooting Electronic Circuit Inspection Procedure.

PROCEDURE

1. CHECK CAN COMMUNICATION SYSTEM

(a) Check if a CAN communication system DTC is output Diagnosis System.

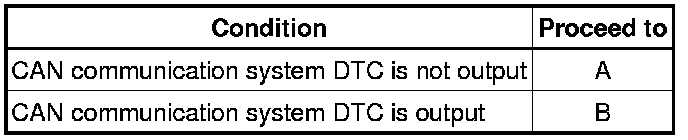

Result:





B -- INSPECT CAN COMMUNICATION SYSTEM How to Proceed With Troubleshooting
A -- Continue to next step.

2. CHECK IF SKID CONTROL ECU CONNECTOR IS SECURELY CONNECTED

(a) Check if the skid control ECU connector is securely connected.

OK:

The connector is securely connected.

NG -- CONNECT CONNECTOR TO ECU CORRECTLY
OK -- Continue to next step.

3. CHECK BATTERY

(a) Check the battery voltage.

Standard voltage:

11 to 14 V

NG -- CHECK AND REPLACE CHARGING SYSTEM OR BATTERY
OK -- Continue to next step.

4. INSPECT COMBINATION METER ASSEMBLY

(a) Connect the Techstream to the DLC3.

(b) Perform "Active Test" of the combination meter assembly using the Techstream Meter / Gauge System.

(c) Check SLIP indicator light operation.

OK:

The SLIP indicator light turns on or off in accordance with the Techstream.

NG -- REPLACE COMBINATION METER ASSEMBLY Removal

OK -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal
