Problem Symptoms Table

NAVIGATION: NAVIGATION SYSTEM: PROBLEM SYMPTOMS TABLE

HINT
* Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
* Inspect the fuses and relays related to this system before inspecting the suspected areas below.

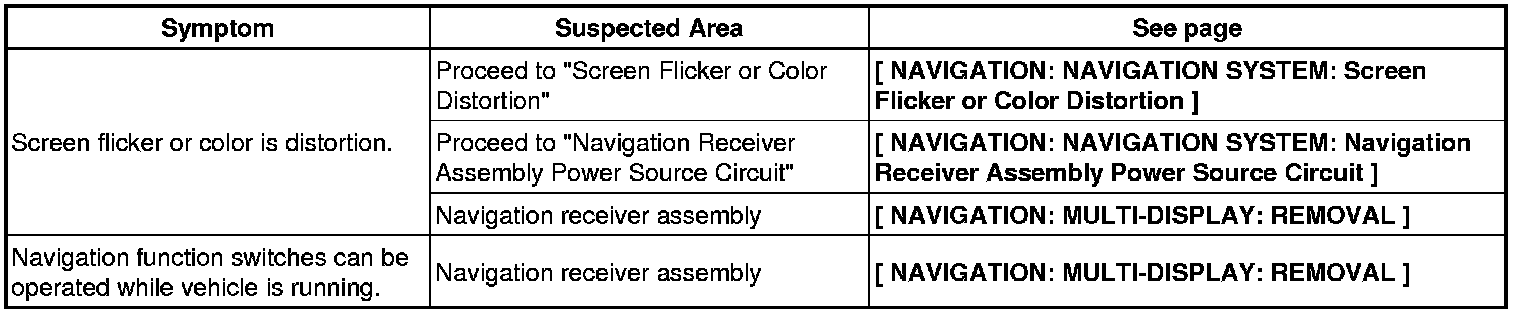

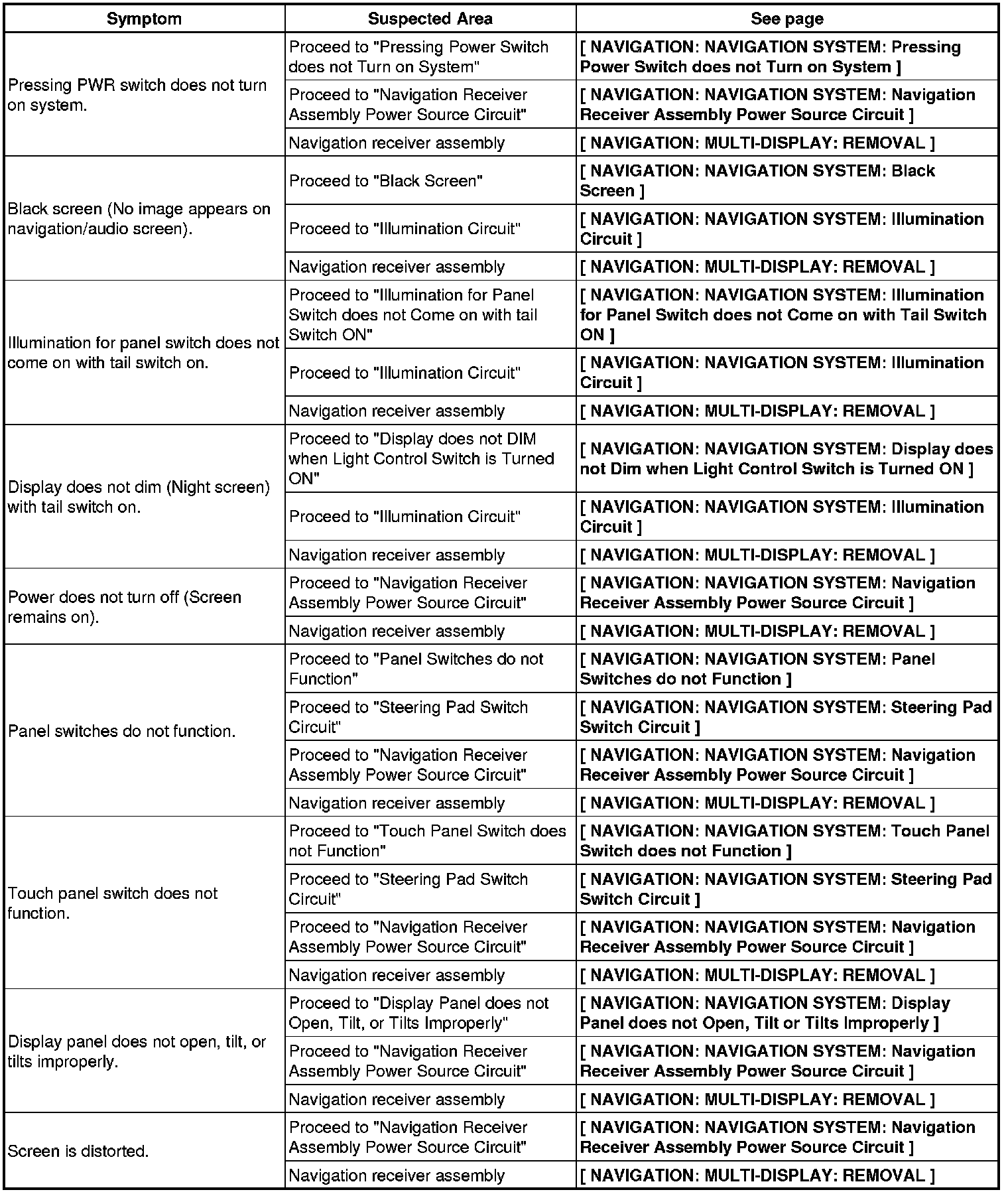

Display Function

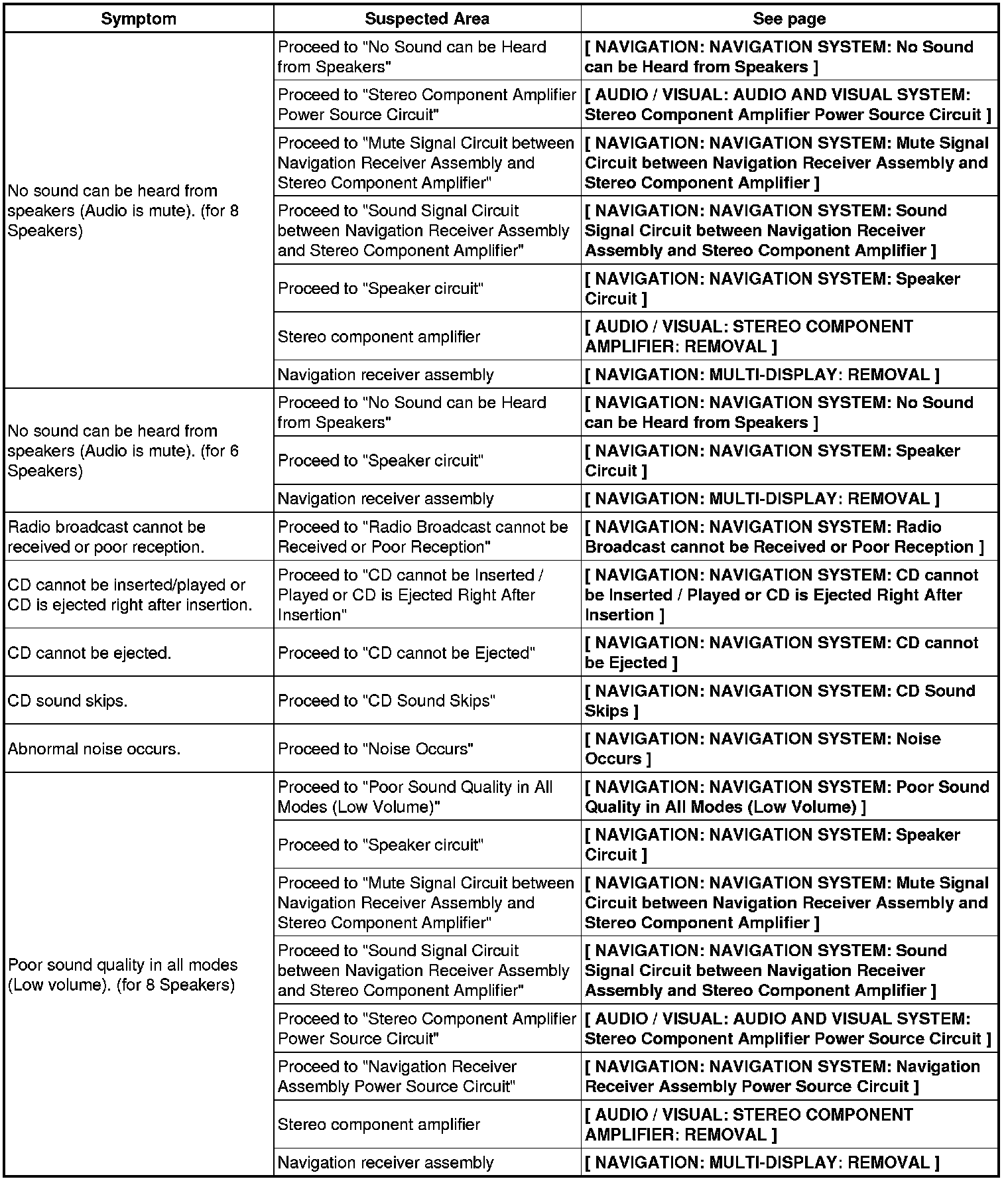

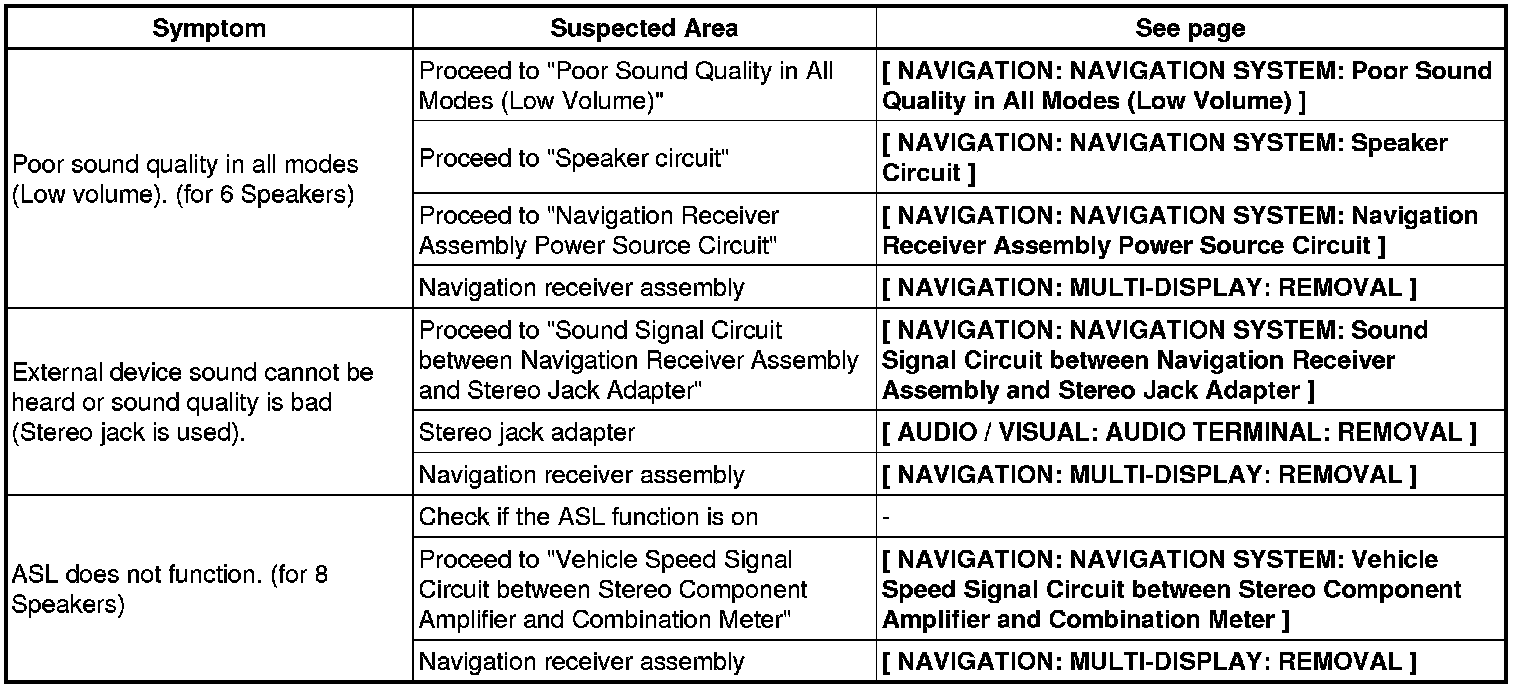

Audio Function

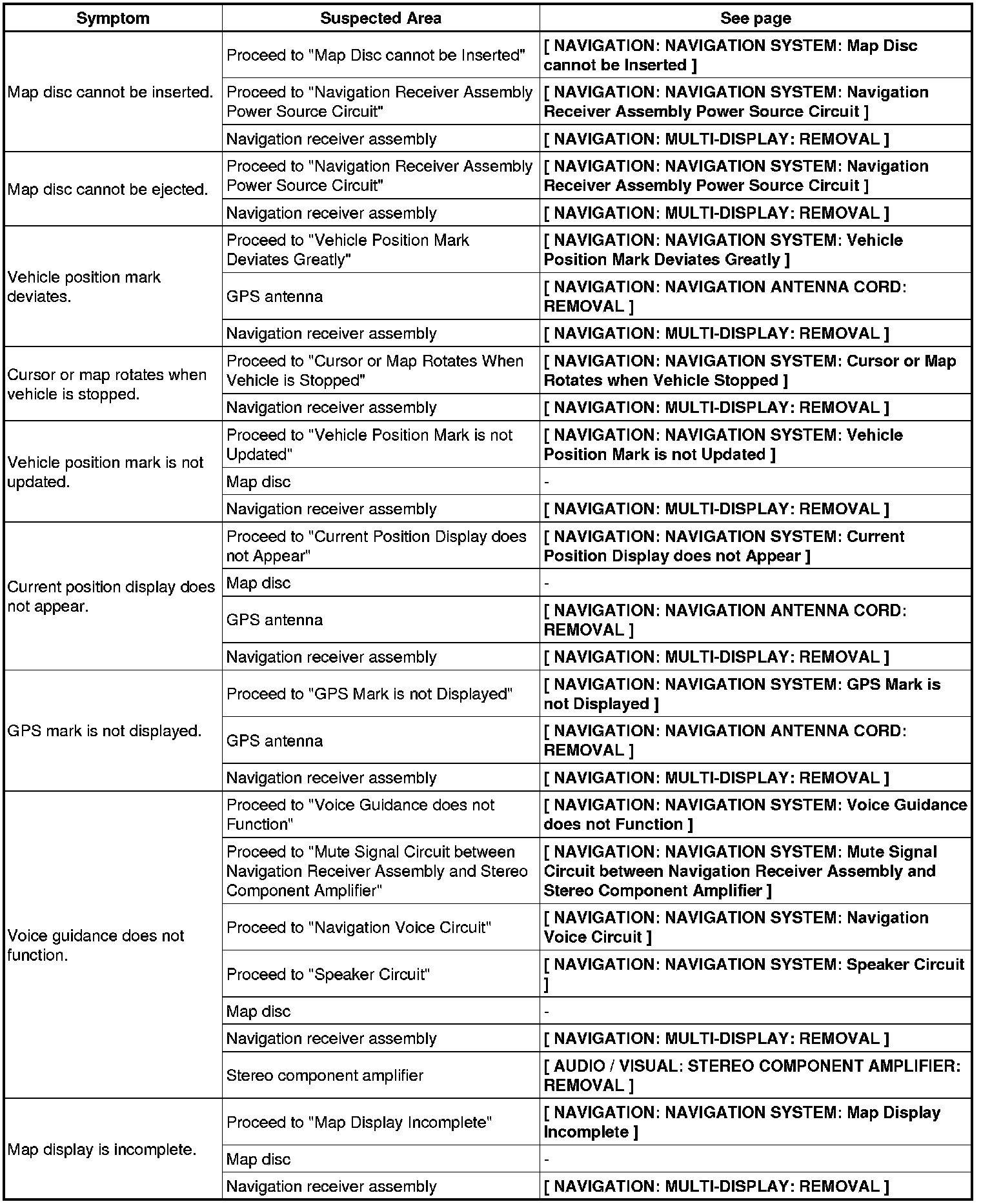

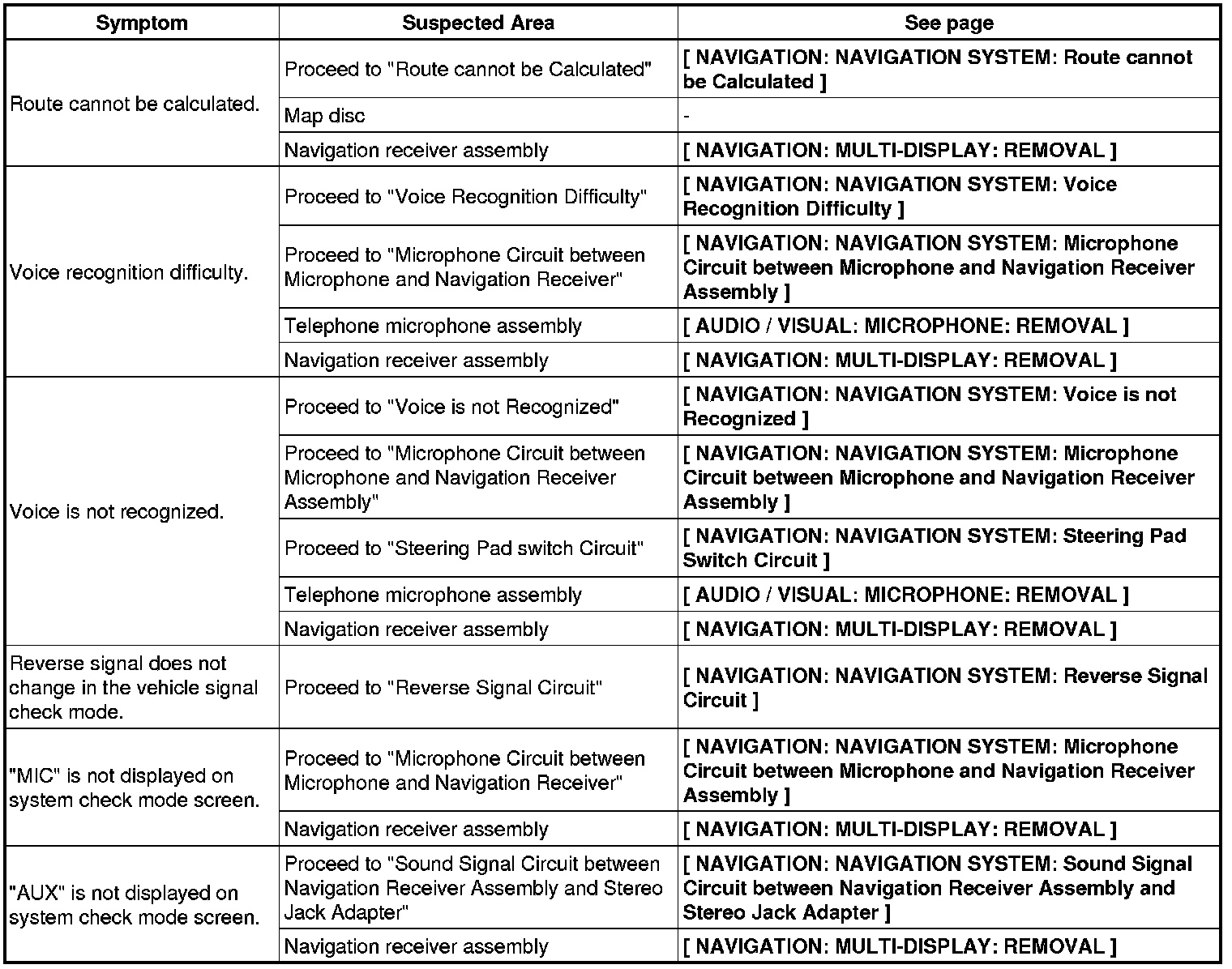

Navigation Function

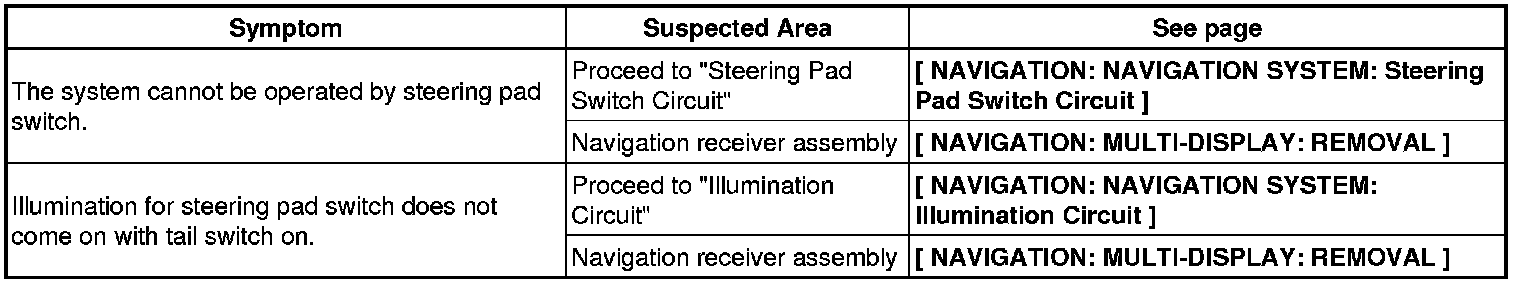

Steering Pad Switch Function





"Bluetooth" Hands-free Function

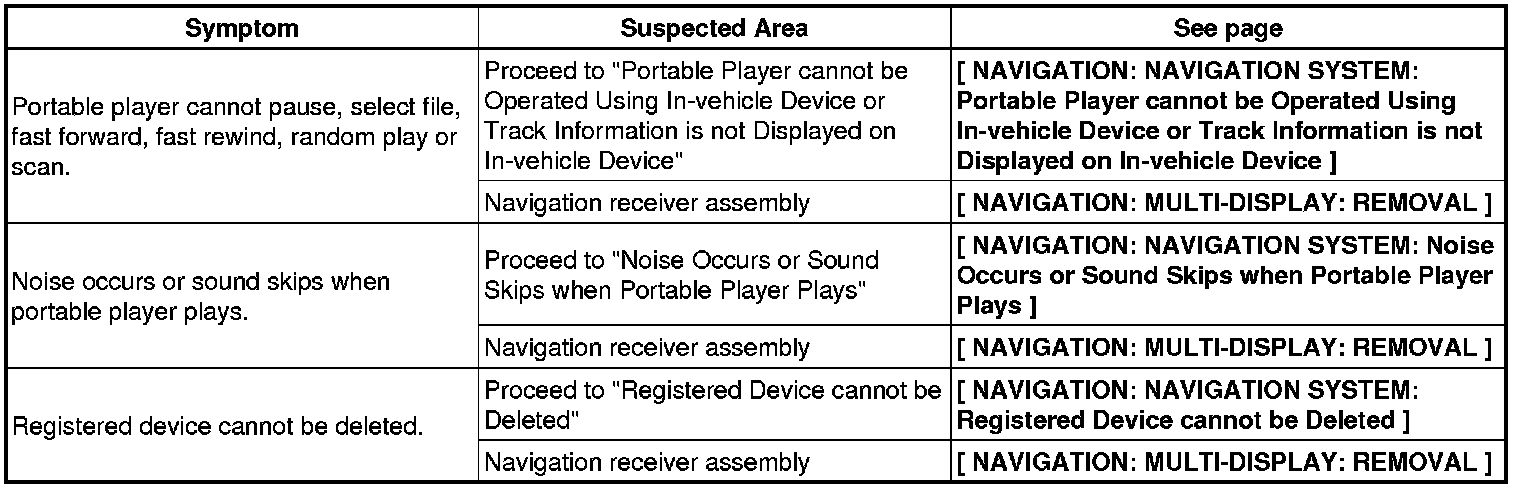

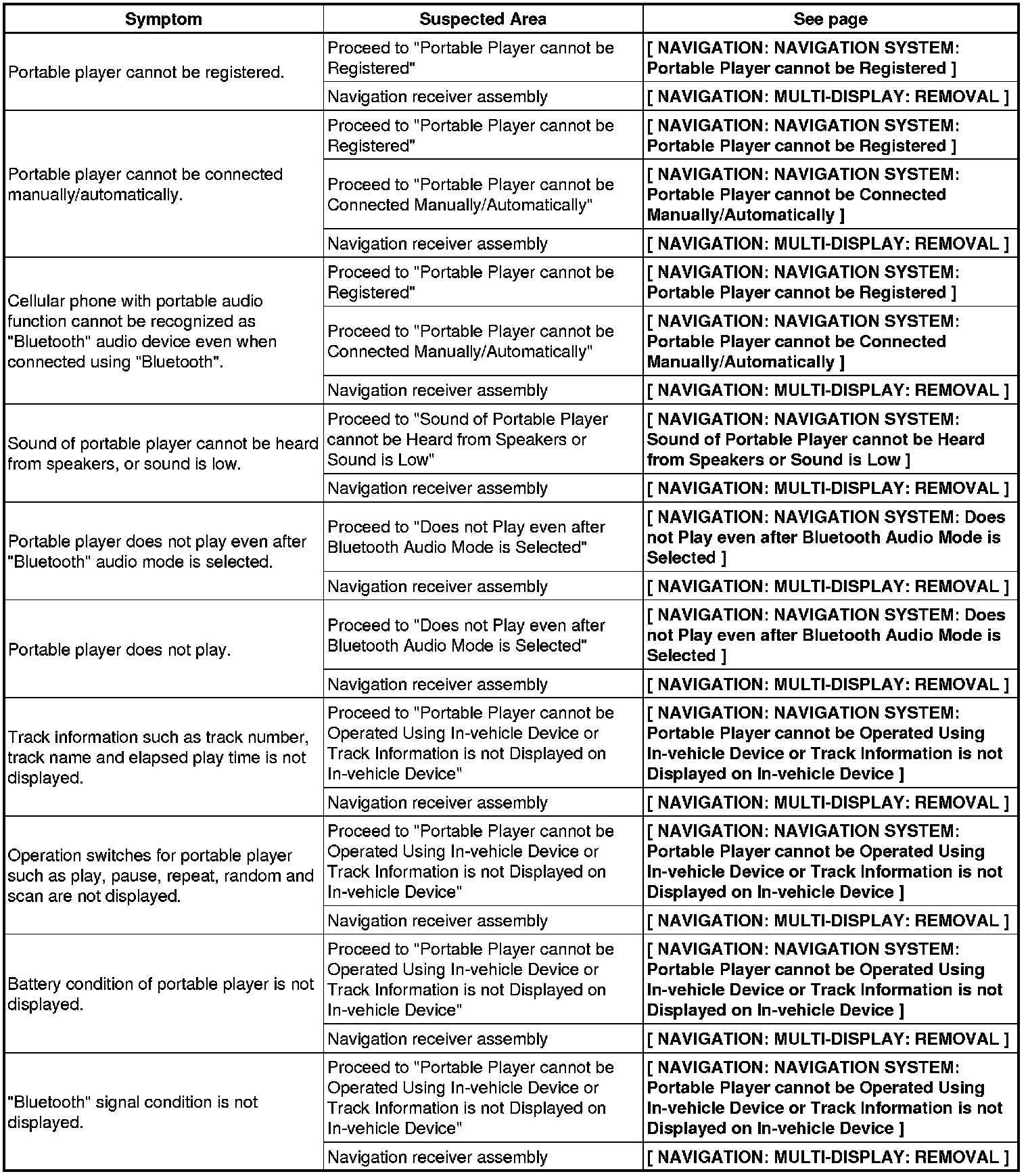

"Bluetooth" Audio Function*1









SDARS System Function*2

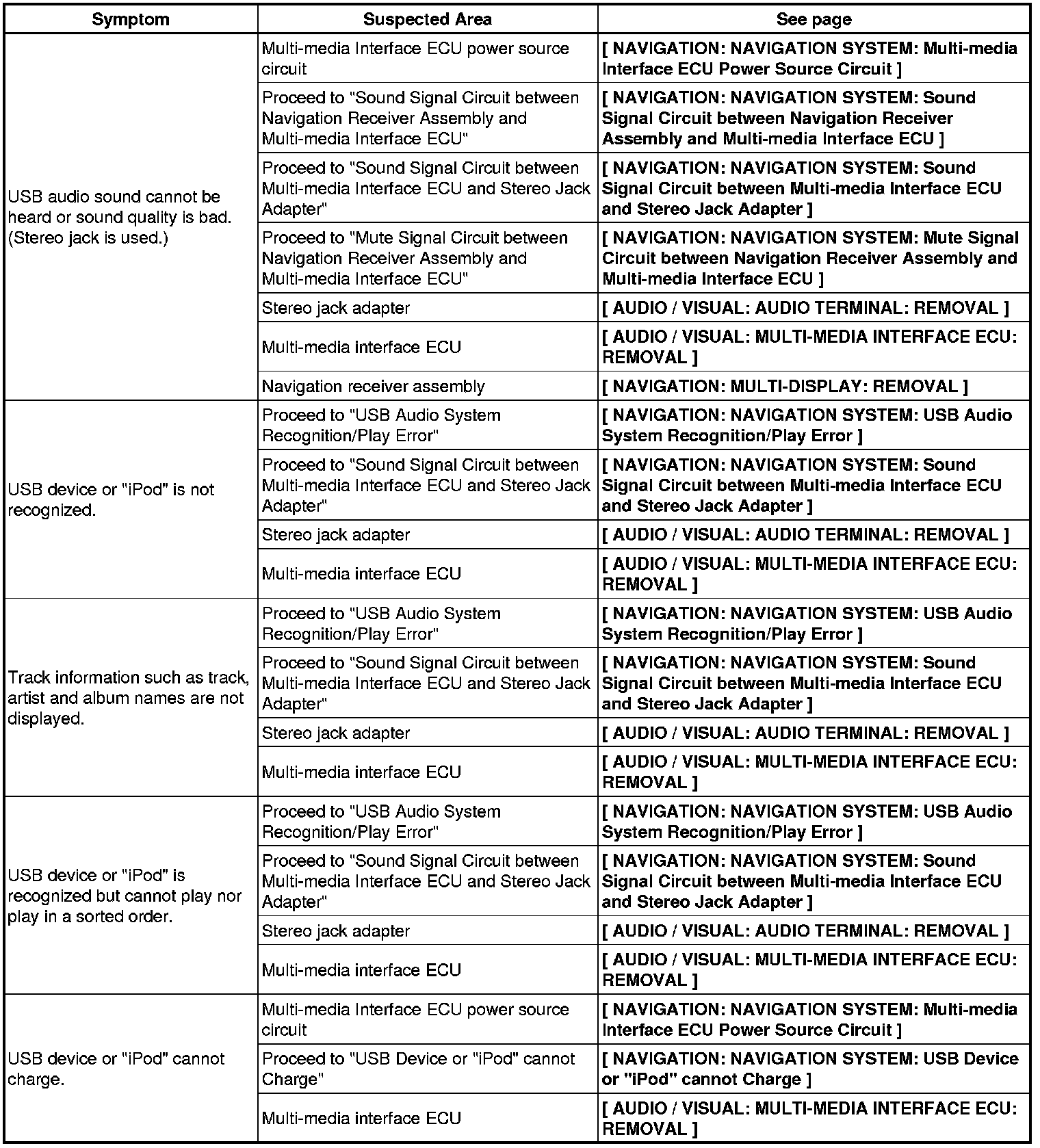

USB Audio System Function*3





* *1: w/ "Bluetooth" Audio System

* *2: w/ Satellite Radio

* *3: w/ USB Audio System
