Installation

SEAT BELT: CHILD RESTRAINT SEAT TETHER ANCHOR: INSTALLATION

CAUTION:
Wear protective gloves. Sharp areas on the parts may injure your hands.

1. INSTALL REAR NO. 3 SEAT RECLINING CONTROL CABLE

(a) Insert the 2 cable ends to the 2 reclining remote control levers.

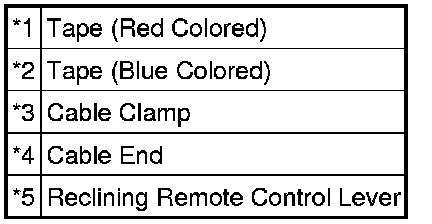

Text in Illustration









(b) Twist the 2 cable ends in the direction indicated by the arrow to connect them.

(c) Attach the 2 cable clamps to install the 2 cables.

2. INSTALL REAR SEATBACK COVER WITH PAD RH Reassembly

3. INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY RH Reassembly

4. INSTALL REAR SEATBACK LOCK STRIKER COVER RH Reassembly

5. INSTALL REAR NO. 1 SEAT RECLINING COVER RH Reassembly

6. INSTALL REAR NO. 2 SEAT RECLINING COVER RH Reassembly

7. INSTALL REAR SEAT HEADREST ASSEMBLY RH

(a) Install the rear seat headrest.

8. INSTALL REAR NO. 2 SEAT RECLINING CONTROL CABLE

(a) Insert the 2 cable ends to the 2 reclining remote control levers.

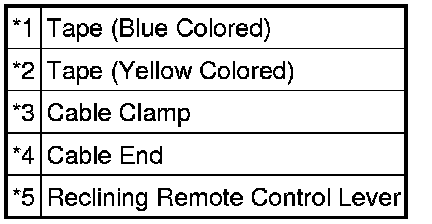

Text in Illustration









(b) Twist the 2 cable ends in the direction indicated by the arrow to connect them.

(c) Attach the 2 cable clamps to install the 2 cables.

9. INSTALL REAR SEAT SHOULDER BELT COVER Reassembly

10. INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY Installation

11. INSTALL REAR SEAT SIDE HINGE MALE COVER RH Reassembly

12. INSTALL REAR SEAT SIDE HINGE MALE COVER RH Reassembly

13. INSTALL REAR SEAT SIDE HINGE MALE COVER LH Reassembly

14. INSTALL REAR SEATBACK COVER WITH PAD LH Reassembly

15. INSTALL SEAT BELT ANCHOR COVER CAP Reassembly

16. INSTALL REAR SEAT SHOULDER BELT HOLE COVER Reassembly

17. INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY LH Reassembly

18. INSTALL REAR SEATBACK LOCK STRIKER COVER LH Reassembly

19. INSTALL REAR NO. 2 SEAT RECLINING COVER LH Reassembly

20. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY

(a) Install the rear center seat headrest.

21. INSTALL REAR SEAT HEADREST ASSEMBLY LH

(a) Install the rear seat headrest.

22. INSTALL SEPARATE TYPE REAR SEATBACK ASSEMBLY RH Installation

23. INSTALL REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH Installation

24. INSTALL SEPARATE TYPE REAR SEATBACK ASSEMBLY LH Installation

25. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY Installation

26. INSTALL FRONT DECK FLOOR BOX Installation

27. INSTALL DECK FLOOR BOX RH Installation

28. INSTALL JACK ASSEMBLY Installation

29. INSTALL DECK FLOOR BOX LH Installation

30. INSTALL DECK BOARD ASSEMBLY Installation

31. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover) Installation
