Front Passenger Airbag Assembly

SUPPLEMENTAL RESTRAINT SYSTEMS: FRONT PASSENGER AIRBAG ASSEMBLY: DISPOSAL

CAUTION:
Before performing pre-disposal deployment of any SRS part, review and closely follow all applicable environmental and hazardous material regulations. Predisposal deployment may be considered hazardous material treatment.

1. PRECAUTION

HINT
When scrapping a vehicle equipped with the SRS or disposing of the instrument panel passenger airbag, be sure to deploy the airbag first in accordance with the procedure described below. If any abnormality occurs with airbag deployment, contact the SERVICE DEPT. of the TOYOTA MOTOR SALES, U.S.A., INC.

CAUTION:
* An airbag or pretensioner may be activated by static electricity. To prevent this, be sure to touch a metal surface with bare hands to discharge static electricity before performing this procedure.
* Never dispose of an instrument panel passenger airbag that has an undeployed airbag.
* The airbag produces an exploding sound when it is deployed, so perform the operation outdoors and where it will not create a nuisance to nearby residents.
* When deploying the airbag, always use the specified SST (SRS Airbag Deployment Tool). Perform the operation in a place away from electrical noise.
* When deploying the airbag, perform the operation at least 10 m (32.8 ft) away from the instrument panel passenger airbag.
* The instrument panel passenger airbag becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
* Use gloves and safety glasses when handling an instrument panel passenger airbag a deployed airbag.
* Do not apply water, etc. to an instrument panel passenger airbag with a deployed airbag.
* Always wash your hands with water after completing the operation.
2. DISPOSE OF INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY (WHEN INSTALLED IN VEHICLE)

NOTICE:
Be sure to follow the procedure detailed below when deploying the airbag.

HINT
Prepare a battery as the power source to deploy the airbag.

(a) Check the function of SST Steering Pad.

(b) Read the Precaution Service Precautions.

(c) Operate the power window regulator master switch, open the front side window and pass SST wire harness into the vehicle.

SST : 09082-00700

(d) While maintaining enough clearance for SST wire harness in the front side window, close all windows of the vehicle.

NOTICE:
Take care not to damage SST wire harness.

(e) Disconnect the cable from the negative (-) battery terminal.

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(f) Remove the glove compartment door assembly Removal.

(g) Remove the instrument lower cover Removal.

(h) Install SST to the No. 2 instrument panel wire inflator side.

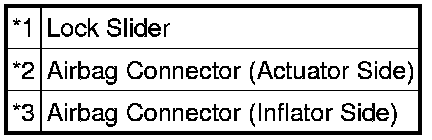

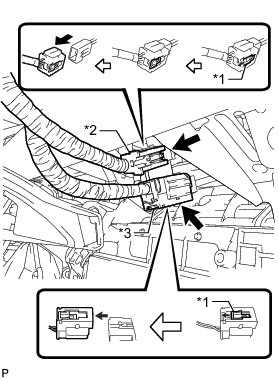

(1) Pull the lock slider in the direction indicated by the arrow to release the lock and disconnect the 2 airbag connectors from the No. 2 instrument panel wire.

Text in Illustration

NOTICE:
When handling the airbag connector, take care not to damage the airbag wire harness.

(2) Connect SST connector to the No. 2 instrument panel wire inflator side.

SST : 09082-00780

(4) Connect SST connector.

NOTICE:
Take care not to damage SST wire harness.

(5) Close all doors.

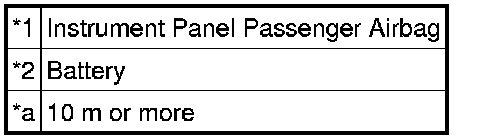

(6) Move SST at least 10 m (32.8 ft.) away from the vehicle front side window.

Text in Illustration

(i) Deploy the instrument panel passenger airbag inflator.

(1) Check that no one is inside the vehicle or within a 10 m (32.8 ft.) radius of the vehicle.

(2) Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) battery terminal.

(3) Press SST activation switch and deploy the airbag.

CAUTION:
* When deploying the airbag, make sure that no one is near the vehicle.
* The instrument panel passenger airbag becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
* Use gloves and safety glasses when handling an instrument panel passenger airbag with a deployed airbag.
* Do not apply water, etc. to an instrument panel passenger airbag with a deployed airbag.
* Always wash your hands with water after completing the operation.
HINT
The airbag is deployed as the LED of SST activation switch comes on.

(4) Disconnect the red clip of SST from the positive (+) battery terminal and the black clip of SST from the negative (-) terminal.

(j) Install SST to the No. 2 instrument panel wire actuator side.

CAUTION:
Before performing this procedure, be sure to wait 30 minutes or more after performing the procedure to deploy the instrument panel passenger airbag inflator with the instrument panel passenger airbag installed to the vehicle.

(1) Pull the lock slider in the direction indicated by the arrow to release the lock and disconnect SST connector from the No. 2 instrument panel wire inflator side.

Text in Illustration

NOTICE:
Take care not to damage SST wire harness.

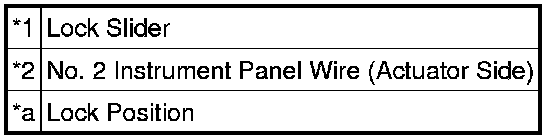

(2) Connect SST connector to the No. 2 instrument panel wire actuator side.

SST : 09082-00760

Text in Illustration

NOTICE:
To avoid damaging SST connector and the wire harness, do not lock the secondary lock of the twin lock.

(3) Check that the lock slider is in the lock position.

(4) Connect SST connector.

NOTICE:
Take care not to damage SST wire harness.

(k) Deploy the front passenger airbag actuator.

(1) Check that no one is inside the vehicle or within a 10 m (32.8 ft.) radius of the vehicle.

(2) Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) terminal.

(3) Press SST activation switch and deploy the actuator.

CAUTION:
* When deploying the airbag, make sure that no one is near the vehicle.
* The instrument panel passenger airbag becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
* Use gloves and safety glasses when handling an instrument panel passenger airbag with a deployed airbag.
* Do not apply water, etc. to an instrument panel passenger airbag with a deployed airbag.
* Always wash your hands with water after completing the operation.
HINT
The airbag is deployed as the LED of SST activation switch comes on.

3. DISPOSE OF INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY INFLATOR (WHEN NOT INSTALLED IN VEHICLE)

NOTICE:
Be sure to follow the procedure detailed below when deploying the airbag.

HINT
Prepare a battery as the power source to deploy the airbag.

(a) Check the function of SST Steering Pad.

(b) Read the Precaution Service Precautions.

(c) Disconnect the cable from the negative (-) battery terminal.

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(d) Remove the instrument panel passenger airbag Removal.

CAUTION:
When storing the instrument panel passenger airbag, keep the airbag deployment side facing upward.

(e) Using a service-purpose wire harness for the vehicle, tie the instrument panel passenger airbag to a tire.

Text in Illustration

Cross-sectional area of stripped wire harness section:

1.25 mm2 (0.0019 in.2) or more

CAUTION:
If the wire harness is too thin or an alternative object is used to tie the instrument panel passenger airbag, it may be snapped by the shock when the airbag is deployed. Always use a wire harness for vehicle use with a cross-sectional area of at least 1.25 mm2 (0.0019 in.2).

HINT
To calculate the cross-sectional area of the stripped wire harness section:

Cross-sectional area = 3.14 x (Diameter)2 / 4

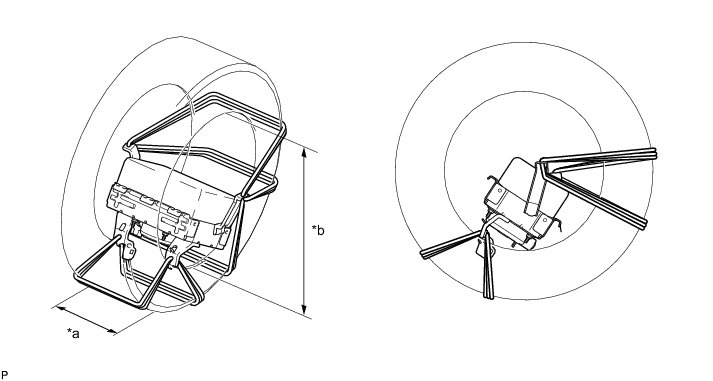

(1) Position the instrument panel passenger airbag inside a tire with the airbag deployment side facing inside.

Text in Illustration

Tire size:

Must exceed the following dimensions

Width:

185 mm (7.28 in.)

Inner diameter:

360 mm (14.17 in.)

(2) Tie the instrument panel passenger airbag to the tire with several wire harnesses.

CAUTION:
* Make sure that the wire harnesses are tight. If there is slack in the wire harnesses, the instrument panel passenger airbag may become loose due to the shock when the airbag is deployed.
* Always tie down the instrument panel passenger airbag with the airbag deployment side facing inside the tire.
NOTICE:
As the tire may be damaged by the airbag deployment, use a tire that you are planning to throw away.

(f) Install SST to the No. 2 instrument panel wire inflator side.

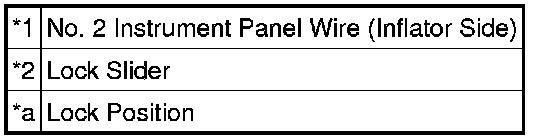

(1) Connect SST connector to the No. 2 instrument panel wire inflator side.

SST : 09082-00780

Text in Illustration

NOTICE:
* To avoid damaging SST connector and the wire harness, do not lock the secondary lock of the twin lock.
* At this time, do not connect SST to the No. 2 instrument panel wire actuator side.

(2) Check that the lock slider is in the lock position.

(g) If the No. 2 instrument panel wire is damaged:

(1) Remove the No. 2 instrument panel wire Removal.

(2) Connect the 2 SST connectors to the instrument panel passenger airbag inflator.

SST : 09082-00802

09082-10801

09082-30801

Text in Illustration

NOTICE:
To avoid damaging SST connector and the wire harness, do not lock the secondary lock of the twin lock.

(3) Push in the 2 lock plates to lock the 2 SST connectors.

(h) Place tires.

Text in Illustration

(1) Place at least 2 tires under the tire which the instrument panel passenger airbag is tied to.

(2) Place at least 2 tires over the tire which the instrument panel passenger airbag is tied to. The top tire should have a disc wheel installed.

NOTICE:
* Do not place SST connector under the tires because it could be damaged.
* As the disc wheel may be damaged by the airbag deployment, use a disc wheel that you are planning to throw away.
* As the tires may be damaged by the airbag deployment, use tires that you are planning to throw away.

(3) Tie the tires together with 2 wire harnesses.

CAUTION:
Make sure that the wire harnesses are tight. Looseness in the wire harnesses results in the tires coming free due to the shock when the airbag is deployed.

(i) Install SST.

(1) Connect SST connector.

SST : 09082-00700

Text in Illustration

NOTICE:
To avoid damaging SST connector and the wire harness, do not lock the secondary lock of the twin lock. Also, secure some slack for SST wire harness inside the tires.

(2) Move SST at least 10 m (32.8 ft.) away from the airbag tied to the tires.

(j) Deploy the instrument panel passenger airbag inflator.

(1) Check that no one is within a 10 m (32.8 ft.) radius of the tire which the instrument panel passenger airbag is tied to.

(2) Connect the red clip of SST to the positive (+) battery terminal and the black clip of SST to the negative (-) terminal.

(3) Press SST activation switch and deploy the airbag.

CAUTION:
When deploying the airbag, make sure that no one is near the tire.

HINT
The airbag is deployed as the LED of SST activation switch comes on.

(4) Disconnect the red clip of SST from the positive (+) battery terminal and the black clip of SST from the negative (-) battery terminal.

4. DISPOSE OF INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY ACTUATOR (WHEN NOT INSTALLED IN VEHICLE)

CAUTION:
Before performing this procedure, be sure to wait 30 minutes or more after performing the procedure to deploy the instrument panel passenger airbag inflator with the instrument panel passenger airbag removed from the vehicle.

NOTICE:
Be sure to follow the procedure detailed below when deploying the airbag.

(a) Install SST to the No. 2 instrument panel wire actuator side.

(1) Cut off the 2 wire harnesses and take out the tire which the instrument panel passenger airbag is tied to.

(2) Check that the tires used when deploying the instrument panel passenger airbag inflator are not damaged.

CAUTION:
If the tires are damaged, replace the tires.

(3) Check that the wire harnesses used to tie the instrument panel passenger airbag are not severed.

CAUTION:
If any of the wire harnesses are severed, retie the airbag with new wire harnesses.

(4) Pull the lock slider in the direction indicated by the arrow to release the lock and disconnect SST connector from the No. 2 instrument panel wire inflator side.

Text in Illustration

NOTICE:
Take care not to damage SST wire harness.

(5) Connect SST connector to the No. 2 instrument panel wire actuator side.

SST : 09082-00760

Text in Illustration

NOTICE:
To avoid damaging SST connector and the wire harness, do not lock the secondary lock of the twin lock.

(6) Check that the lock slider is in the lock position.

(b) If the No. 2 instrument panel wire is damaged:

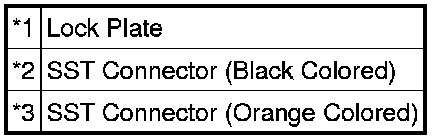

(1) Pull the 2 lock plates to release the 2 connector locks.

Text in Illustration

NOTICE:
Take care not to damage SST wire harness.

(2) Disconnect the 2 SST connectors from the instrument panel passenger airbag inflator.

(3) Connect SST connector to the instrument panel passenger airbag actuator.

SST : 09082-50800

NOTICE:
* To avoid damaging SST connector and the wire harness, do not lock the secondary lock of the twin lock.
* At this time, do not connect SST to the instrument panel passenger airbag actuator side.

(4) Push in the lock plate to lock SST connector.

Text in Illustration

CAUTION:
Make sure that the wire harnesses are tight. Looseness in the wire harnesses results in the tires coming free due to the shock when the airbag is deployed.

(d) Install SST.

SST : 09082-00700

Text in Illustration

CAUTION:
* The instrument panel passenger airbag becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
* Use gloves and safety glasses when handling an instrument panel passenger airbag with a deployed airbag.
* Do not apply water, etc. to an instrument panel passenger airbag with a deployed airbag.
* Always wash your hands with water after completing the operation.
(1) Remove the instrument panel passenger airbag from the tire.

(2) Place the instrument panel passenger airbag in a plastic bag, tie it tightly and dispose of it in the same way as other general parts.
