Interior Lighting System

LIGHTING (INT): LIGHTING SYSTEM: PROBLEM SYMPTOMS TABLE

HINT
Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.

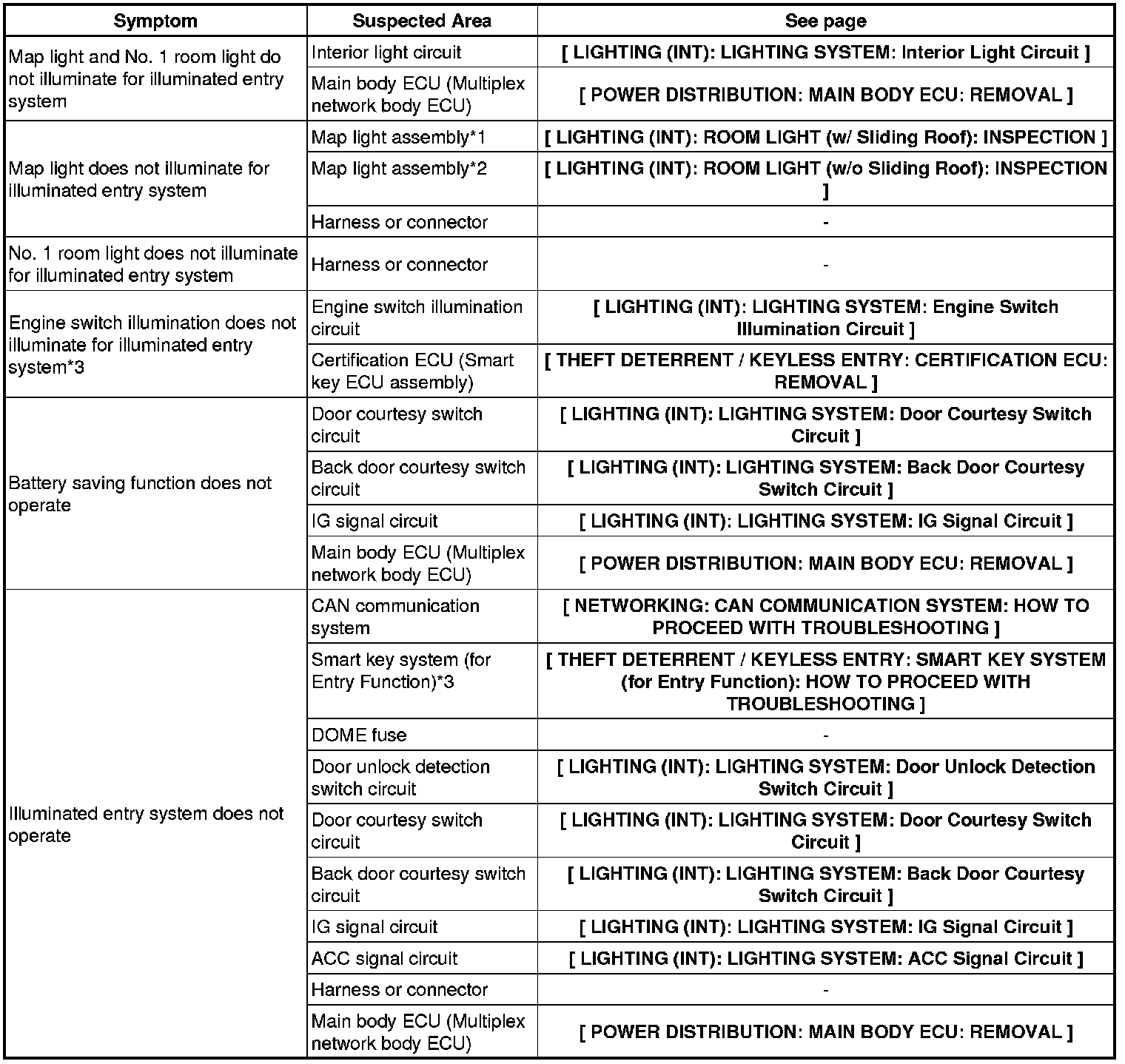

Illuminated Entry System





* *1: w/ Sliding Roof

* *2: w/o Sliding Roof

* *3: w/ Smart Key System

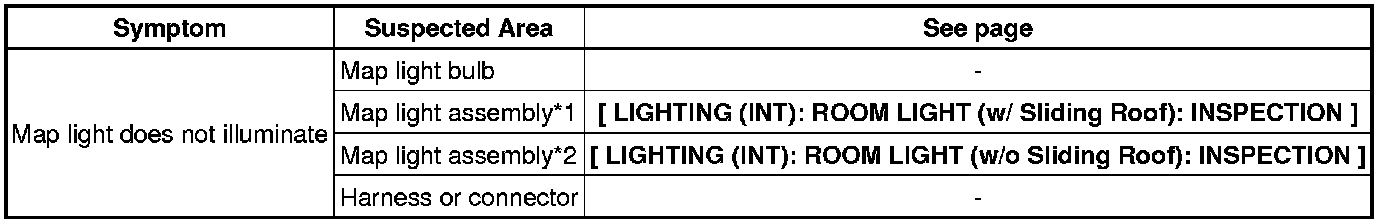

Map Light





* *1: w/ Sliding Roof

* *2: w/o Sliding Roof

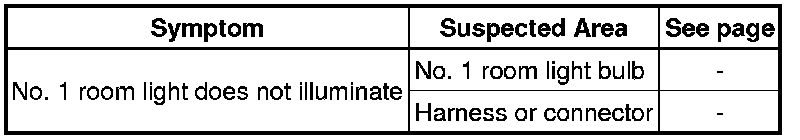

No. 1 Room Light

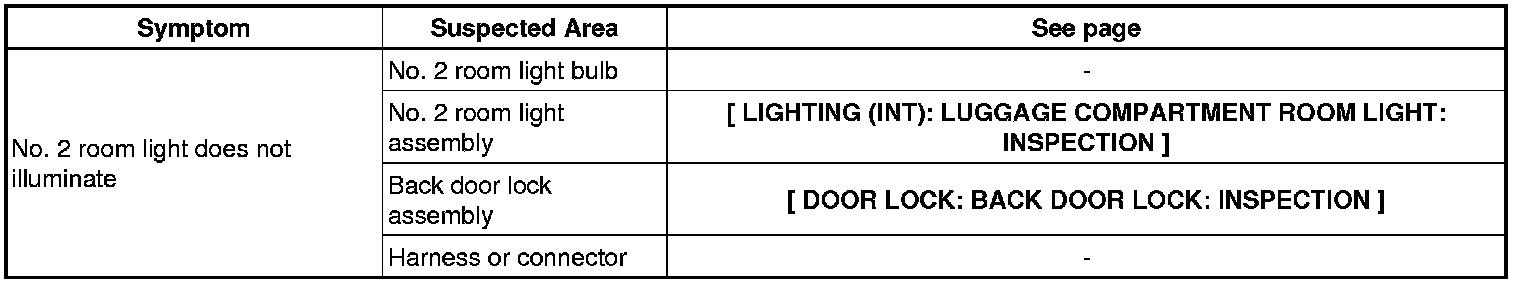

No. 2 Room Light

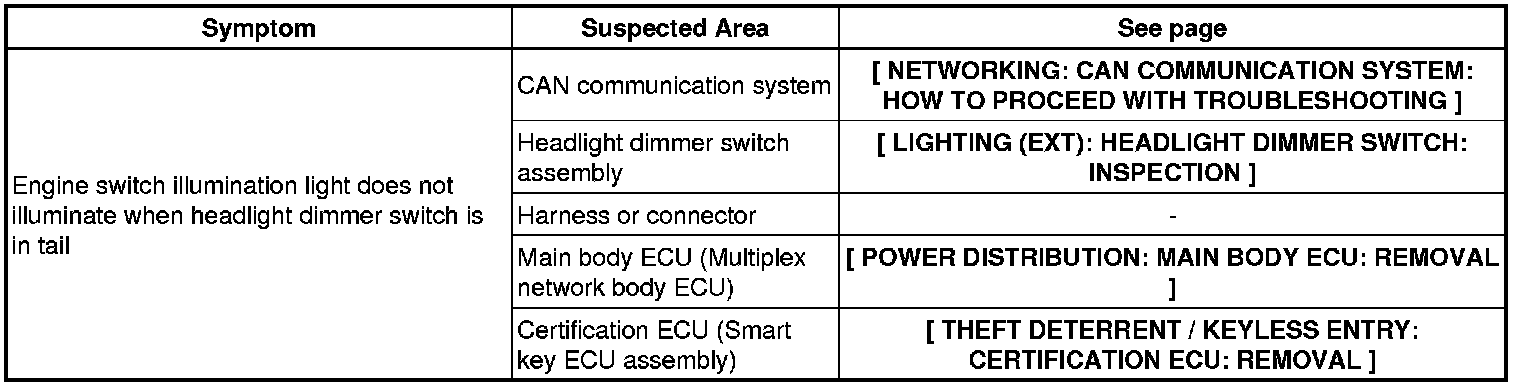

Engine Switch Illumination (w/ Daytime Running Light)

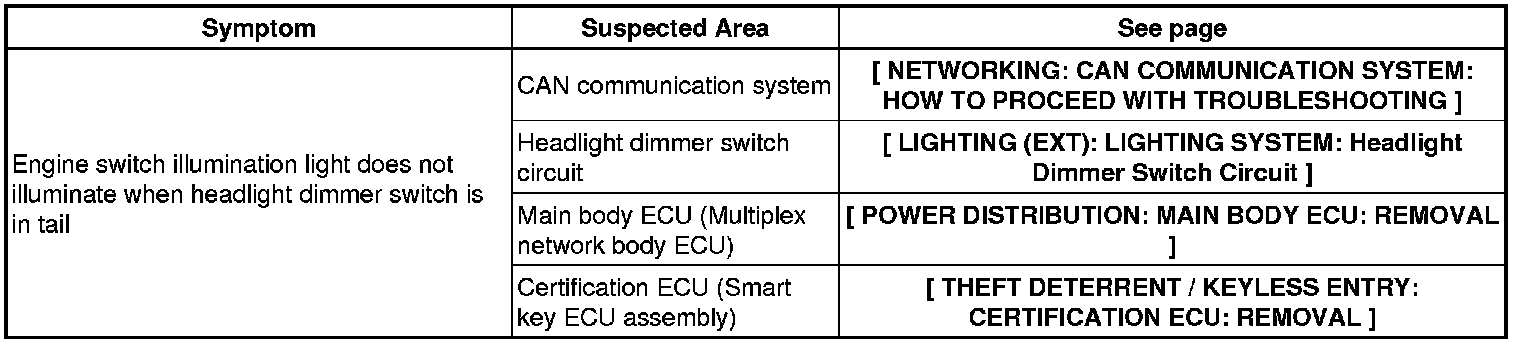

Engine Switch Illumination (w/o Daytime Running Light)

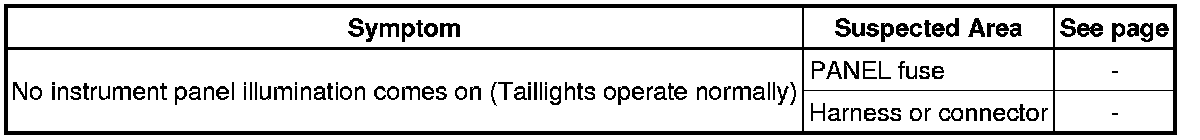

Instrument Panel Illumination
