Brakes and Traction Control: Testing and Inspection

BRAKE: BRAKE SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

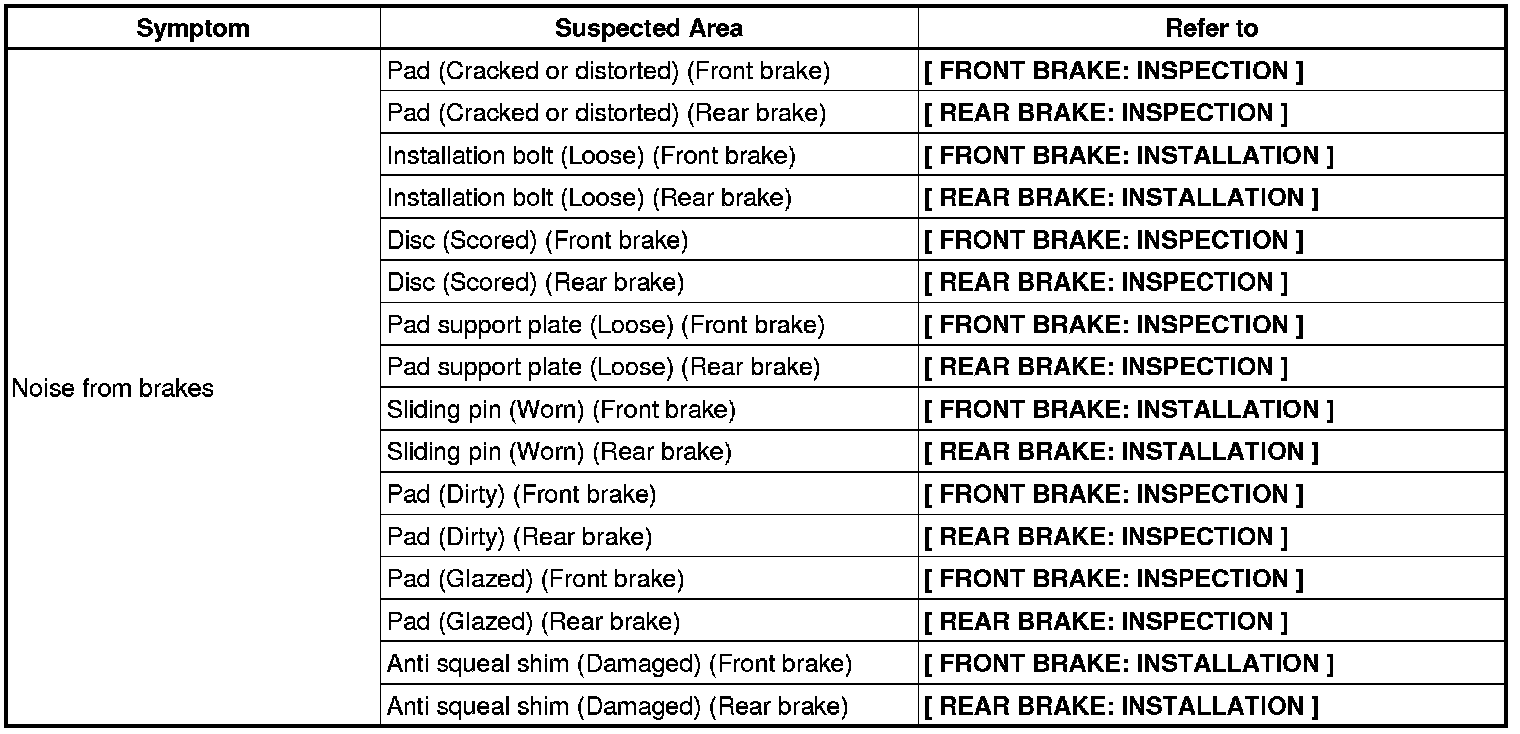

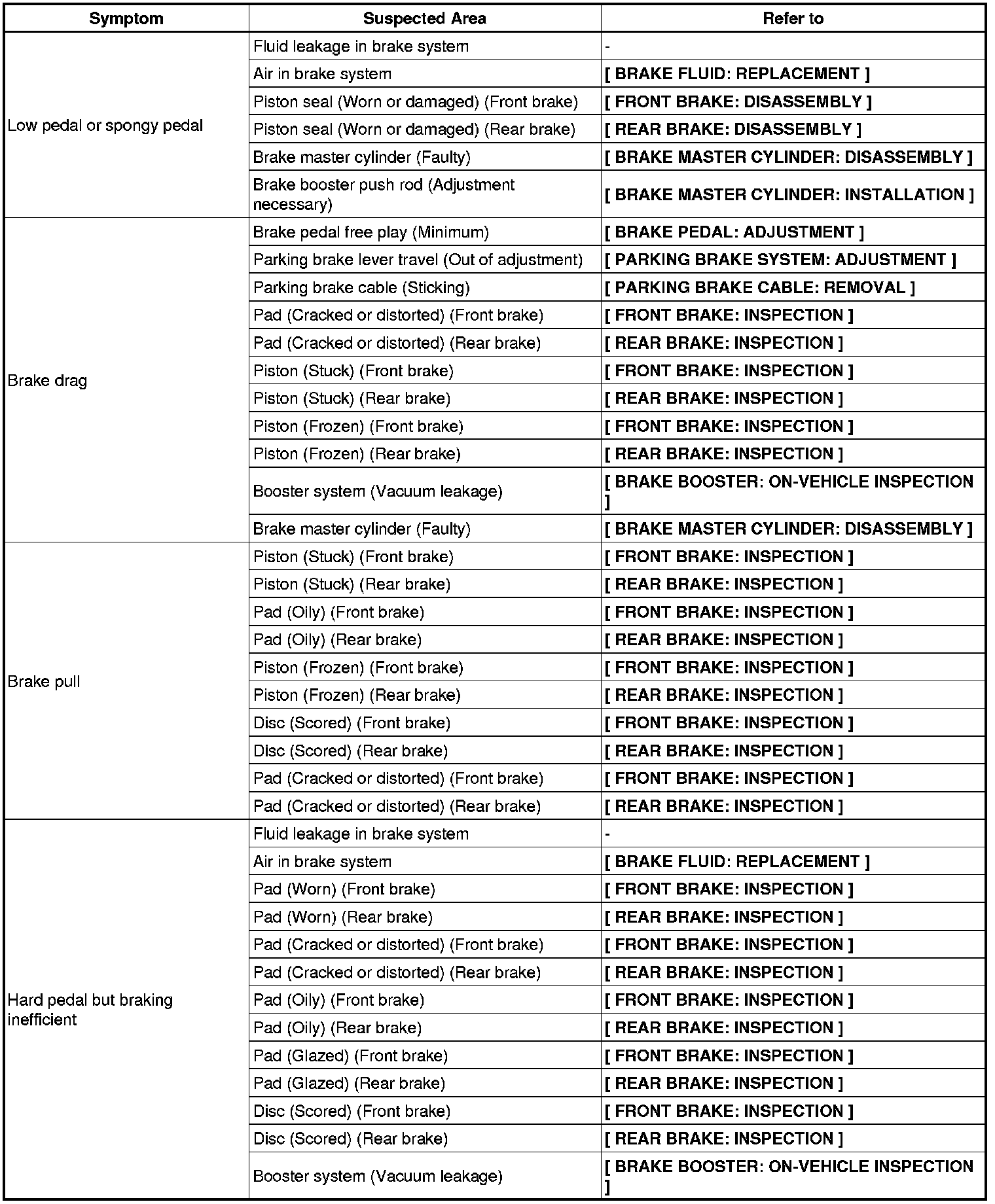

HINT: Use the table below to help you find the cause of the problem. Check each part.
If necessary, replace the applicable parts.
