METER: METER / GAUGE SYSTEM: PROBLEM SYMPTOMS TABLE
PROBLEM SYMPTOMS TABLE

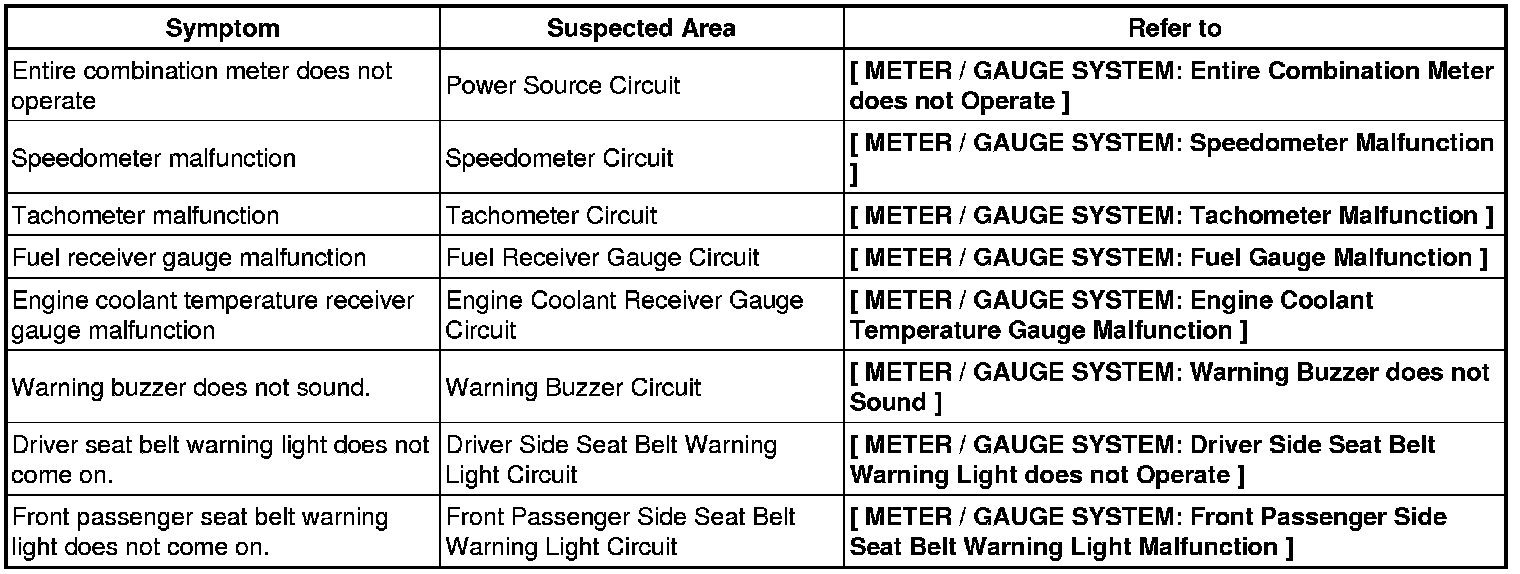

COMBINATION METER:

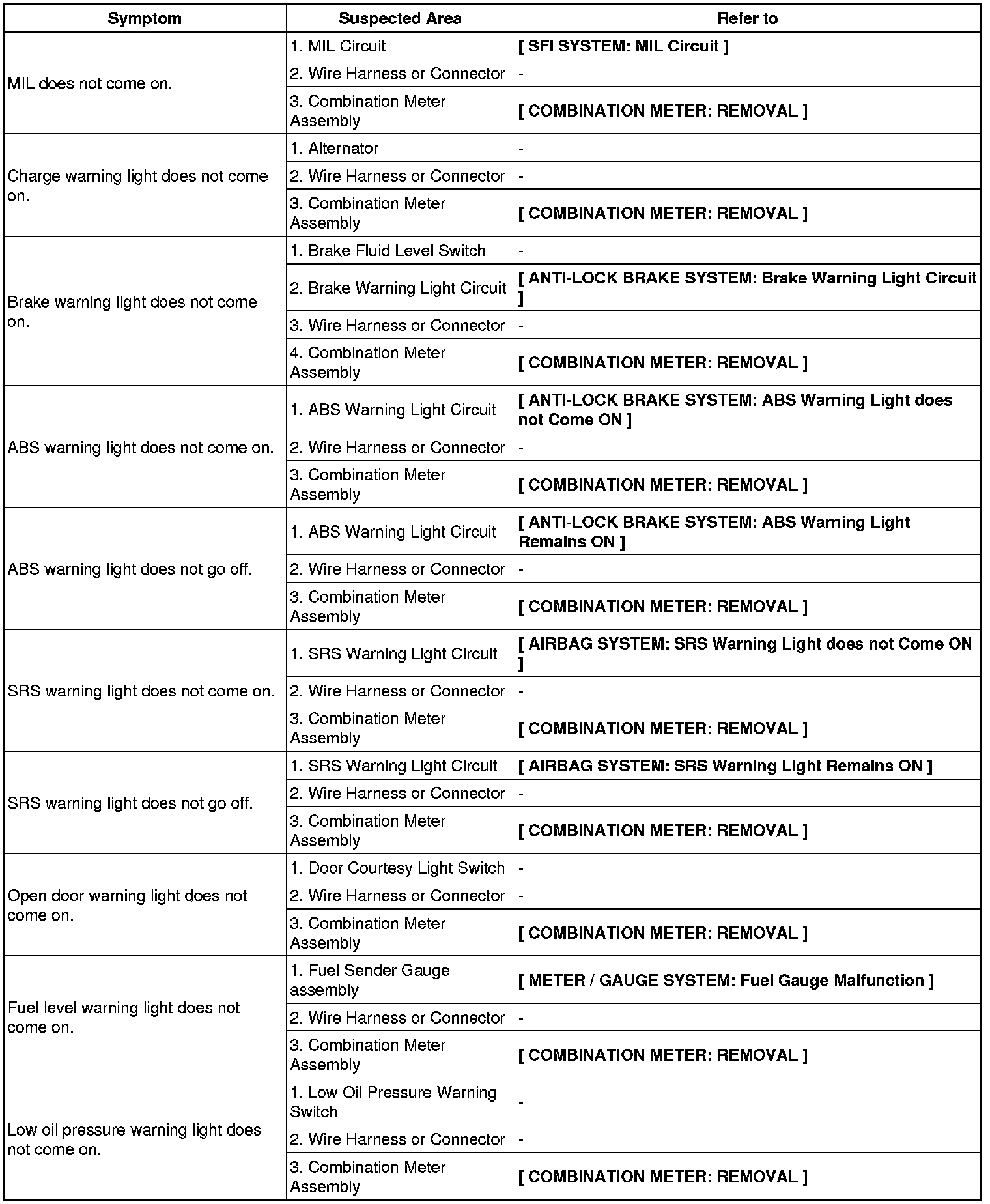

WARNING LIGHTS:

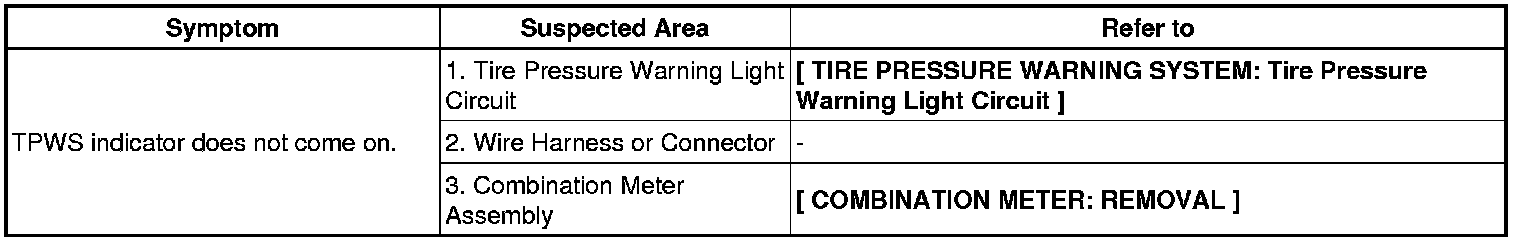

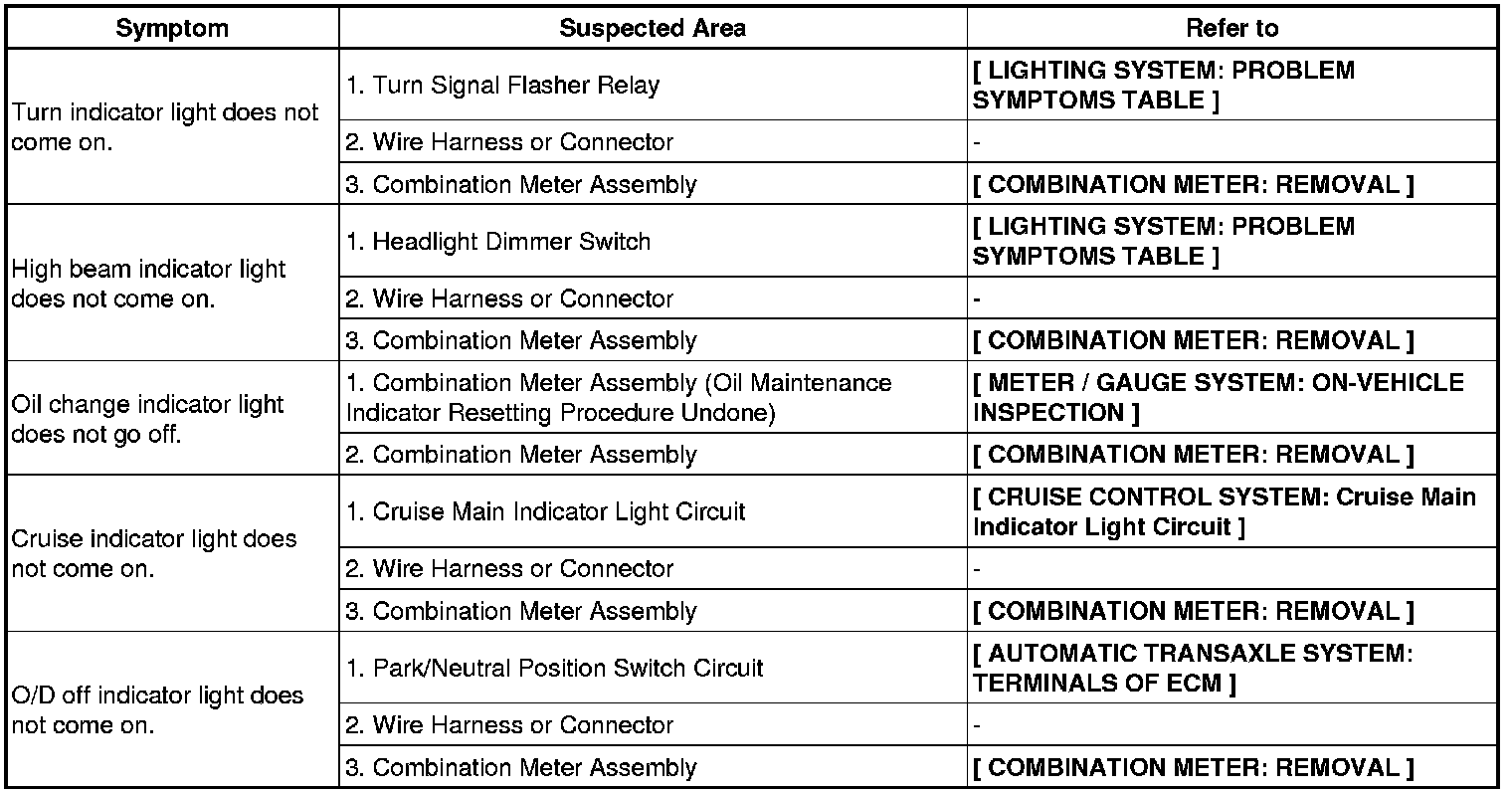

INDICATOR LIGHTS:

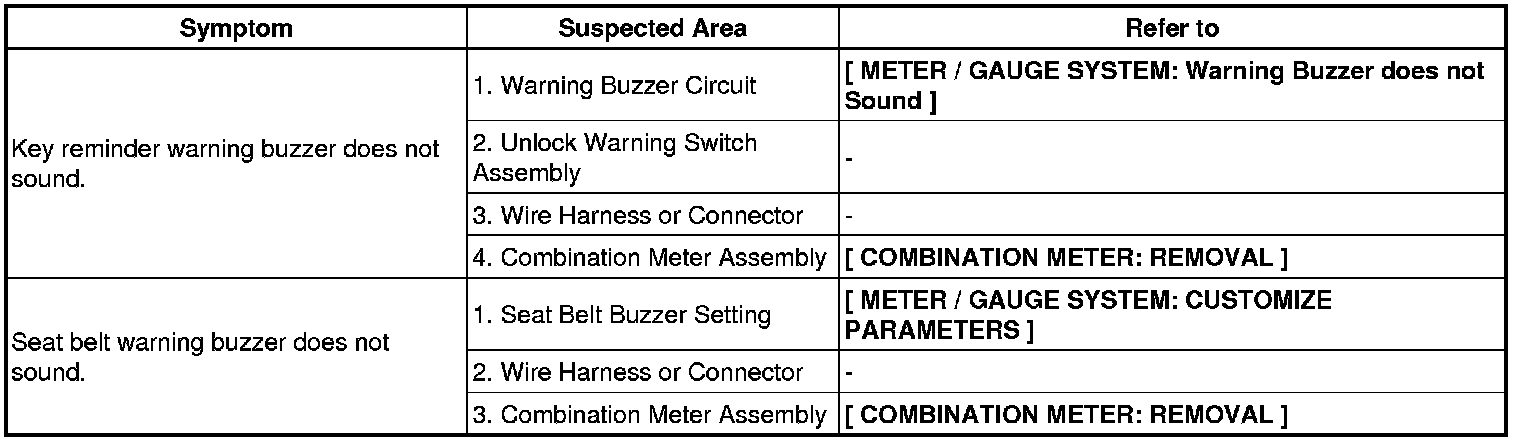

BUZZER:
