WINDSHIELD / WINDOWGLASS: QUARTER WINDOW GLASS: INSTALLATION

INSTALLATION

1. INSTALL QUARTER WINDOW ASSEMBLY LH

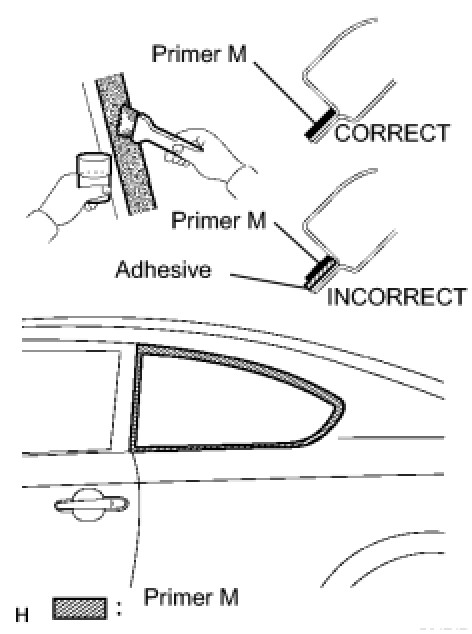

(a) Using a brush, apply Primer M to the exposed part of the vehicle body.
NOTICE:
- Allow the primer to dry for 3 minutes or more.
- Do not apply primer to the adhesive.
- Throw away any leftover primer.
- Do not apply too much primer.

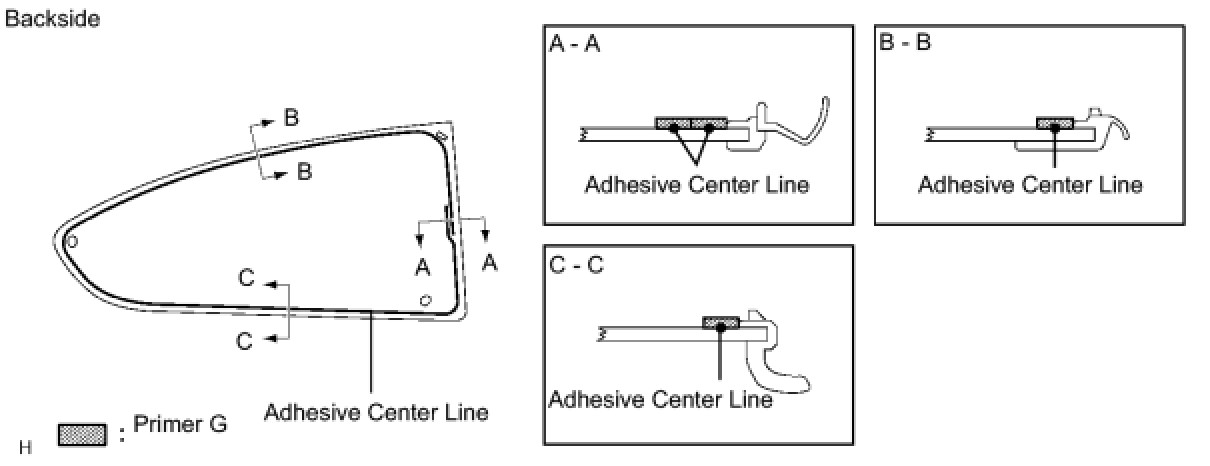

(b) Using a brush or sponge, apply Primer G to the contact surface of the quarter window glass.





HINT: If Primer G is applied to an area other than that which is specified, wipe off the primer with white gasoline before it dries.
NOTICE:
- Allow the primer to dry for 3 minutes or more.
- Throw away any leftover primer.
- Do not apply too much primer.

(c) Apply adhesive to the quarter window glass.
Adhesive:
Part No. 08850-00801 or equivalent
(1) Cut off the tip of the cartridge nozzle as shown in the illustration.





HINT: After cutting off the tip, use all adhesive within the time written in the table below.

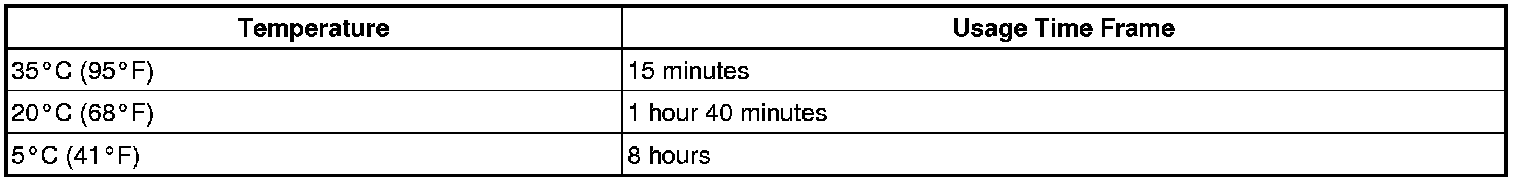

Usage time frame:





(2) Load the sealer gun with the cartridge.

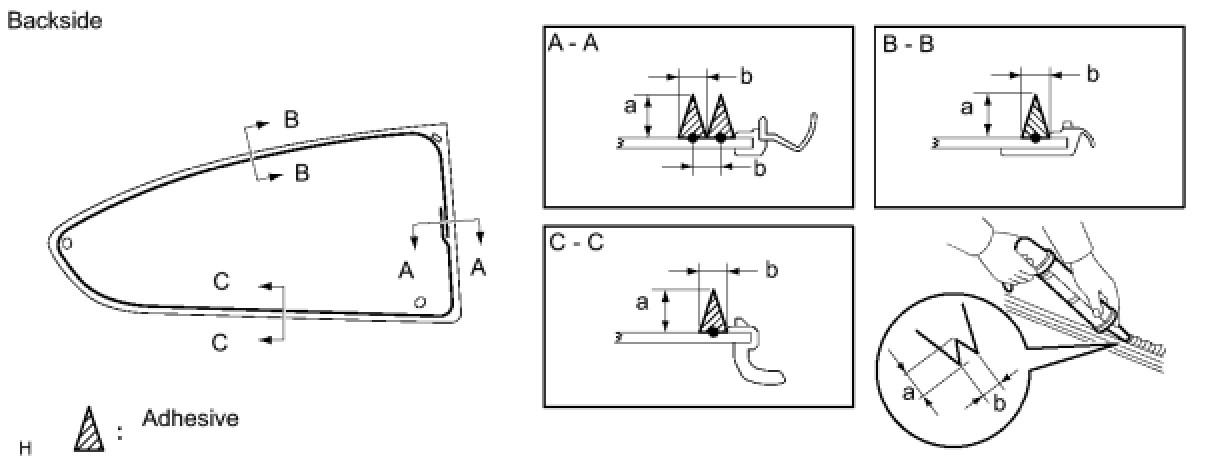

(3) Apply adhesive to the quarter window glass as shown in the illustration.
(d) Install the quarter window glass to the vehicle body.
(1) Lightly press the front surface of the quarter window glass to ensure that the quarter window glass is securely fit to the vehicle body.
NOTICE:
- Check that the clips are attached to the vehicle body correctly.
- Check that the vehicle body and quarter window glass have a small gap between them.
(2) Hold the quarter window glass in place securely with protective tape or equivalent until the adhesive hardens.
NOTE: Do not drive the vehicle for the amount of time written in the table below.

2. INSTALL ROOF HEADLINING ASSEMBLY Installation

3. INSTALL COAT HOOK Installation

4. INSTALL NO. 1 ROOM LIGHT ASSEMBLY Installation

5. INSTALL ROOF SIDE GARNISH INNER LH Installation

6. INSTALL ROOF SIDE GARNISH INNER LOWER LH Installation

7. INSTALL CENTER PILLAR GARNISH LH Installation

8. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH Installation

9. INSTALL ROPE HOOK
10. INSTALL NO. 1 SIDE TRIM ASSEMBLY LH Installation

11. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
12. INSTALL REAR SEAT OUTER BELT ASSEMBLY LH Installation

13. INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH
(a) Install the anchor part of the outer belt with the bolt.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
14. INSTALL FRONT SEAT BELT ANCHOR COVER CAP
15. INSTALL BACK DOOR SCUFF PLATE Installation

16. INSTALL REAR NO. 1 FLOOR BOARD Installation

17. INSTALL NO. 1 DECK BOARD Installation

18. INSTALL DECK BOARD ASSEMBLY
19. INSTALL FRONT DOOR SCUFF PLATE LH Installation

20. INSTALL REAR SEATBACK ASSEMBLY LH Installation

21. INSTALL REAR SEAT CUSHION ASSEMBLY Installation

22. INSTALL TONNEAU COVER ASSEMBLY
23. CHECK FOR LEAKS AND REPAIR
(a) Conduct a leak test after the adhesive has completely hardened.
(b) Seal any leaks with auto glass sealer.
24. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
25. PERFORM INITIALIZATION
(a) Perform initialization Testing and Inspection.
HINT: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
