Engine Control System - SFI System

DIAGNOSTIC TROUBLE CODE CHART

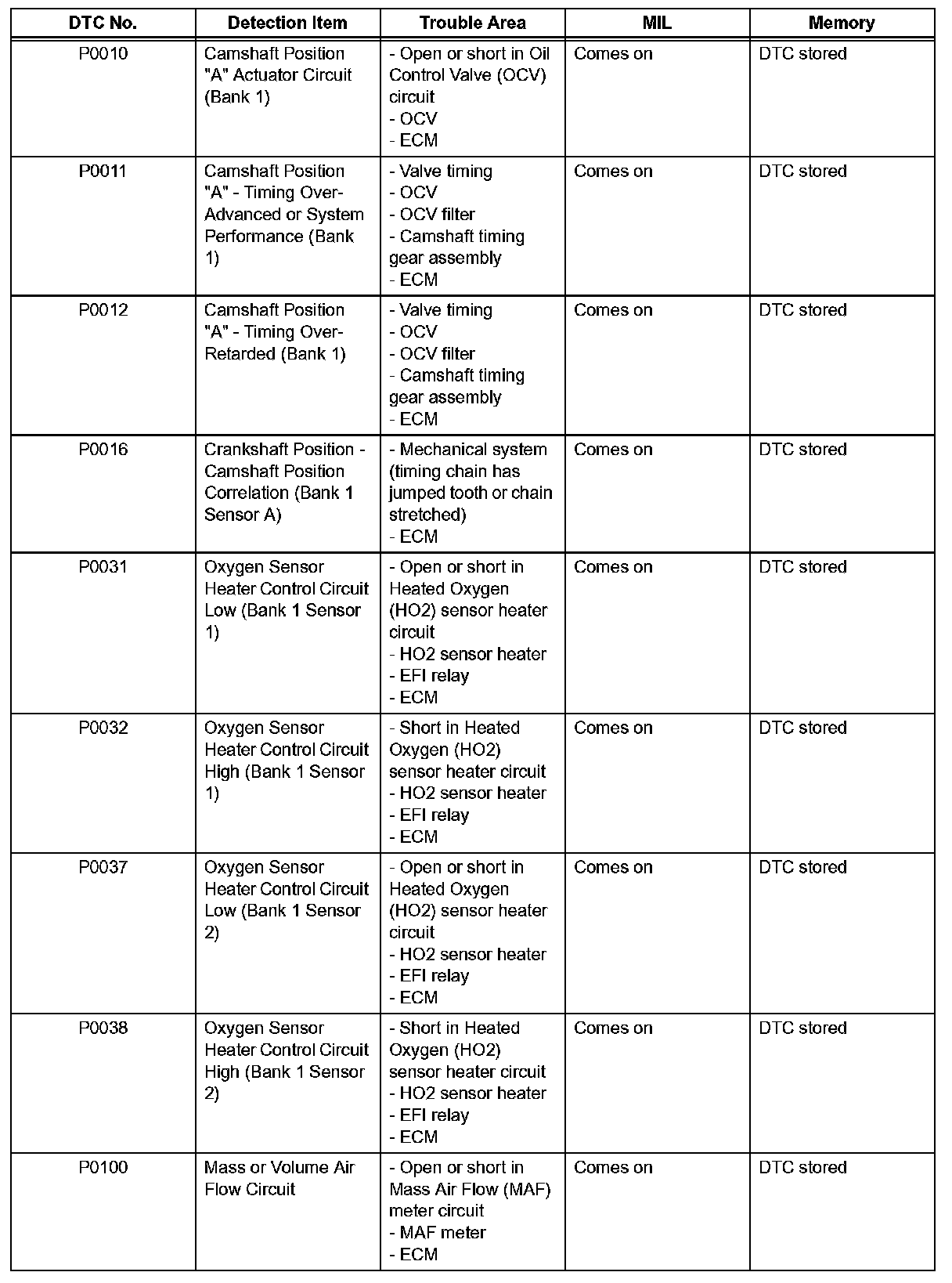

P0010-P0100:

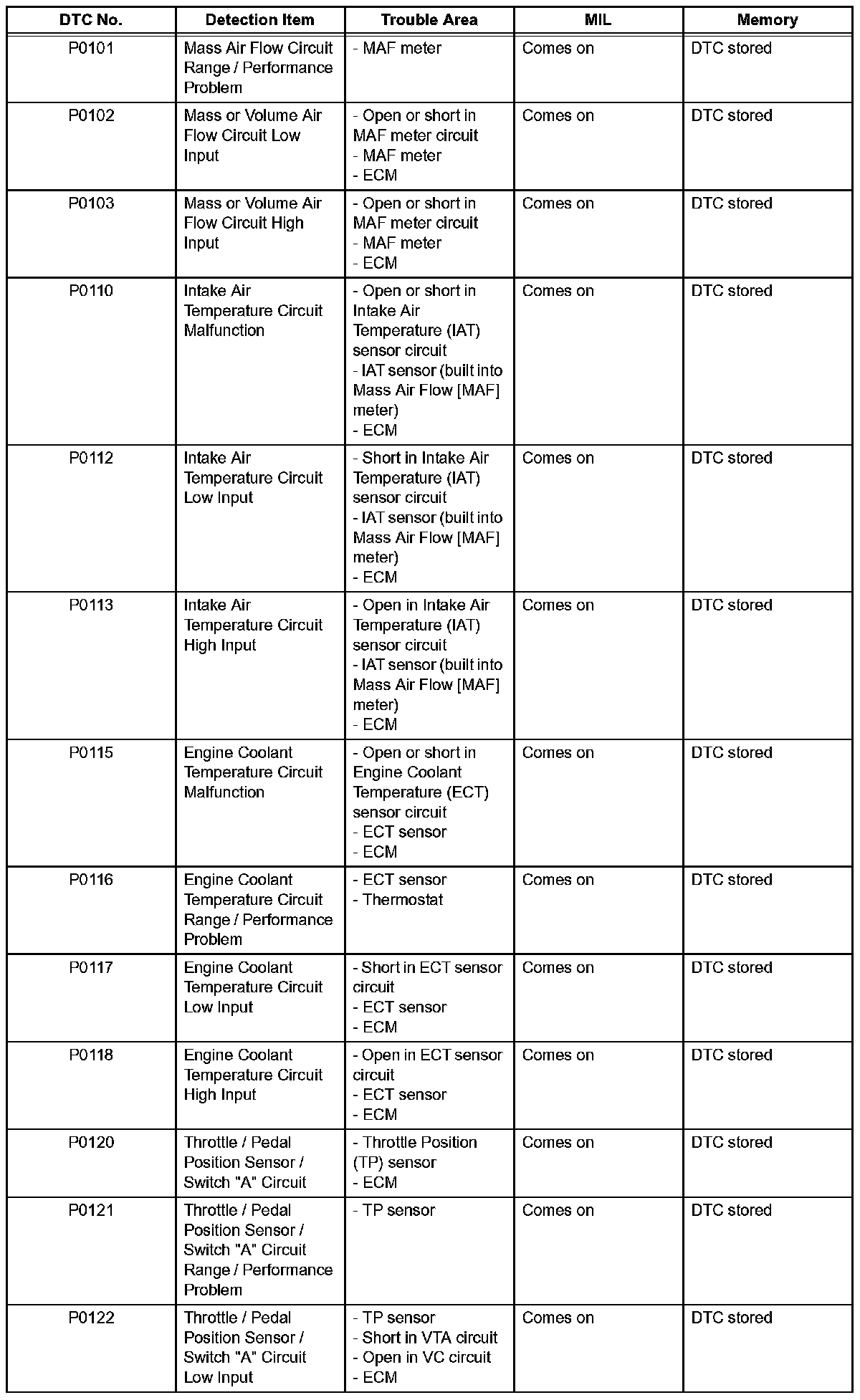

P0101-P0122:

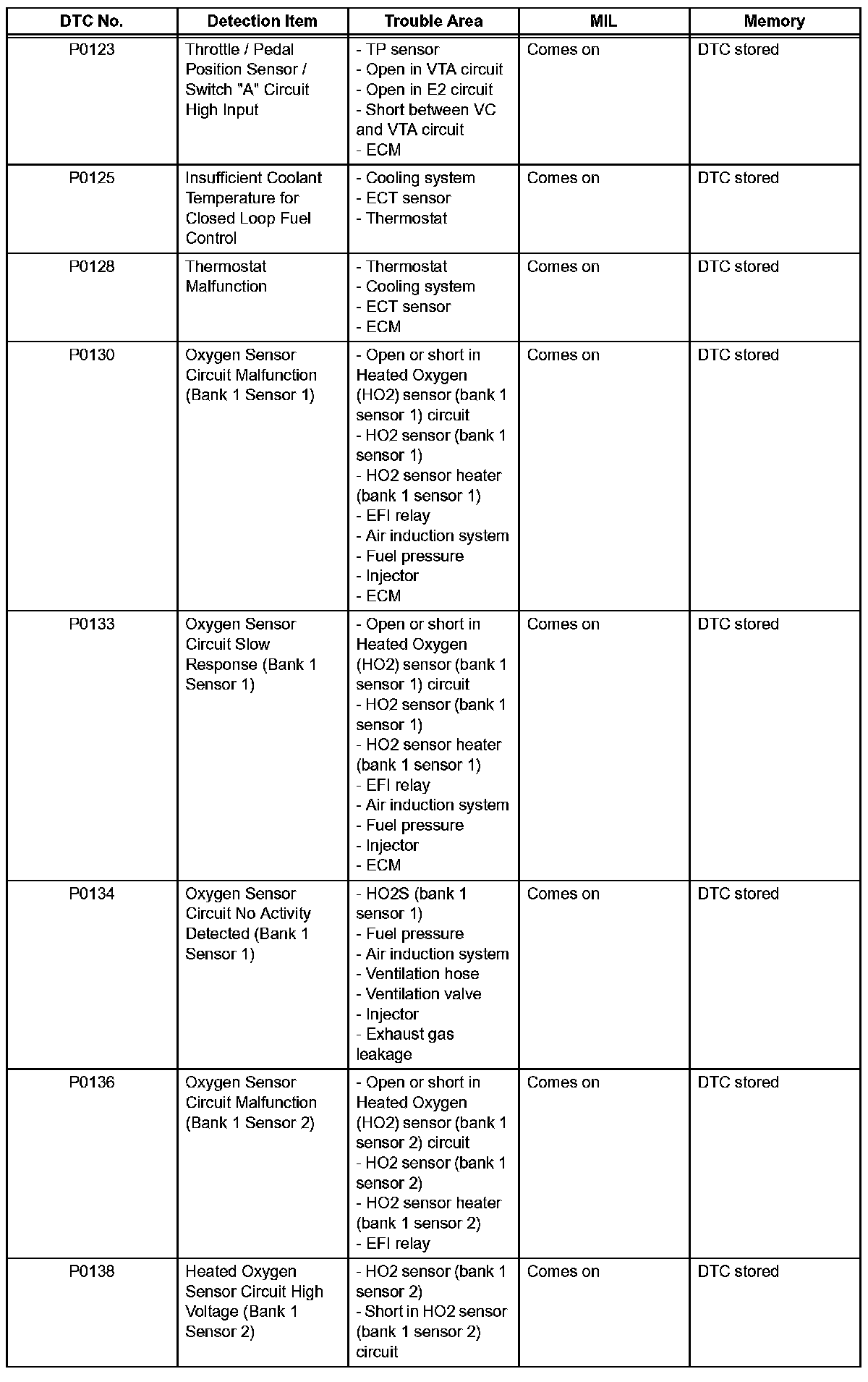

P0123-P0138:

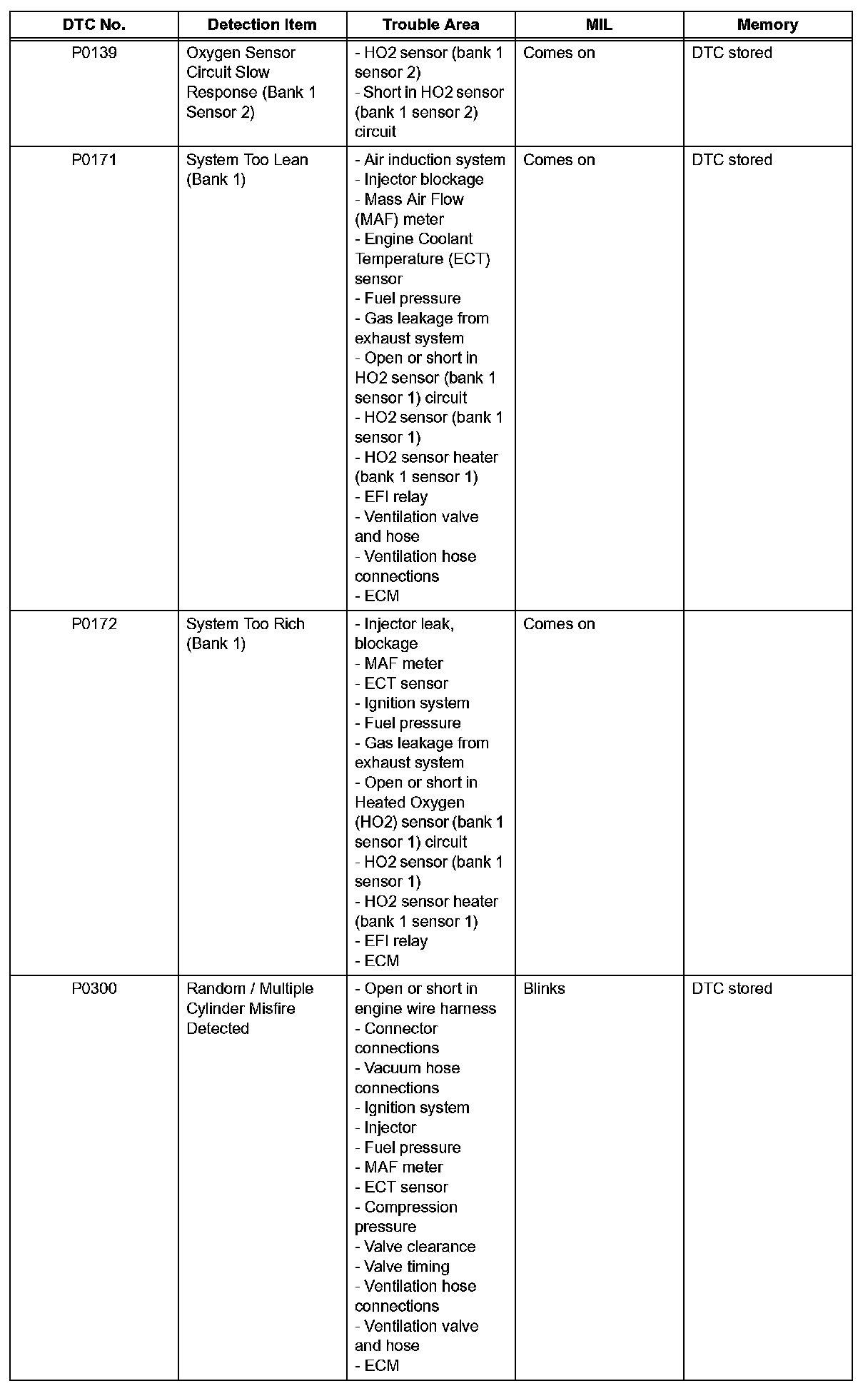

P0139-P0300:

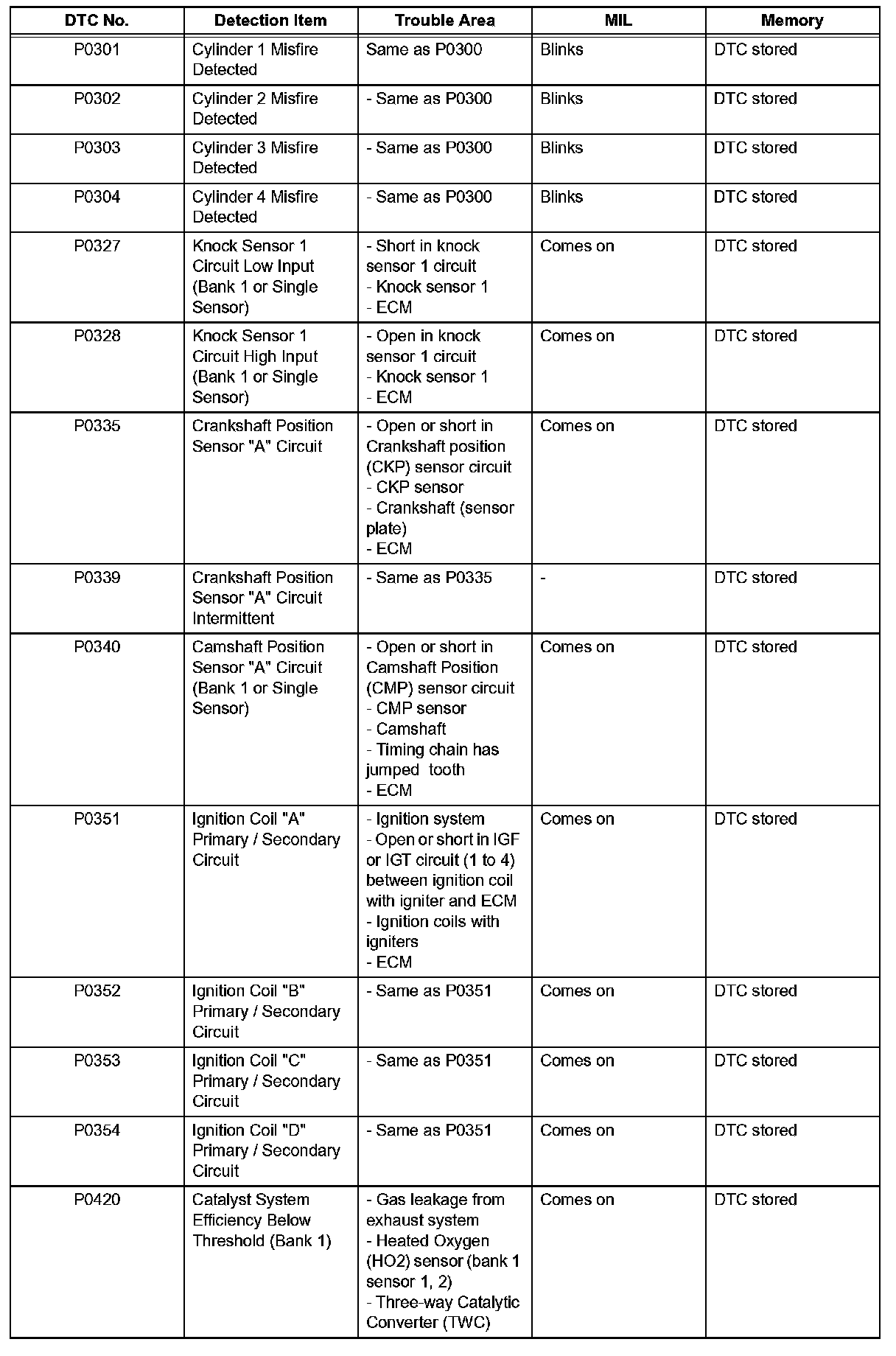

P0301-P0420:

P043E-P0451:

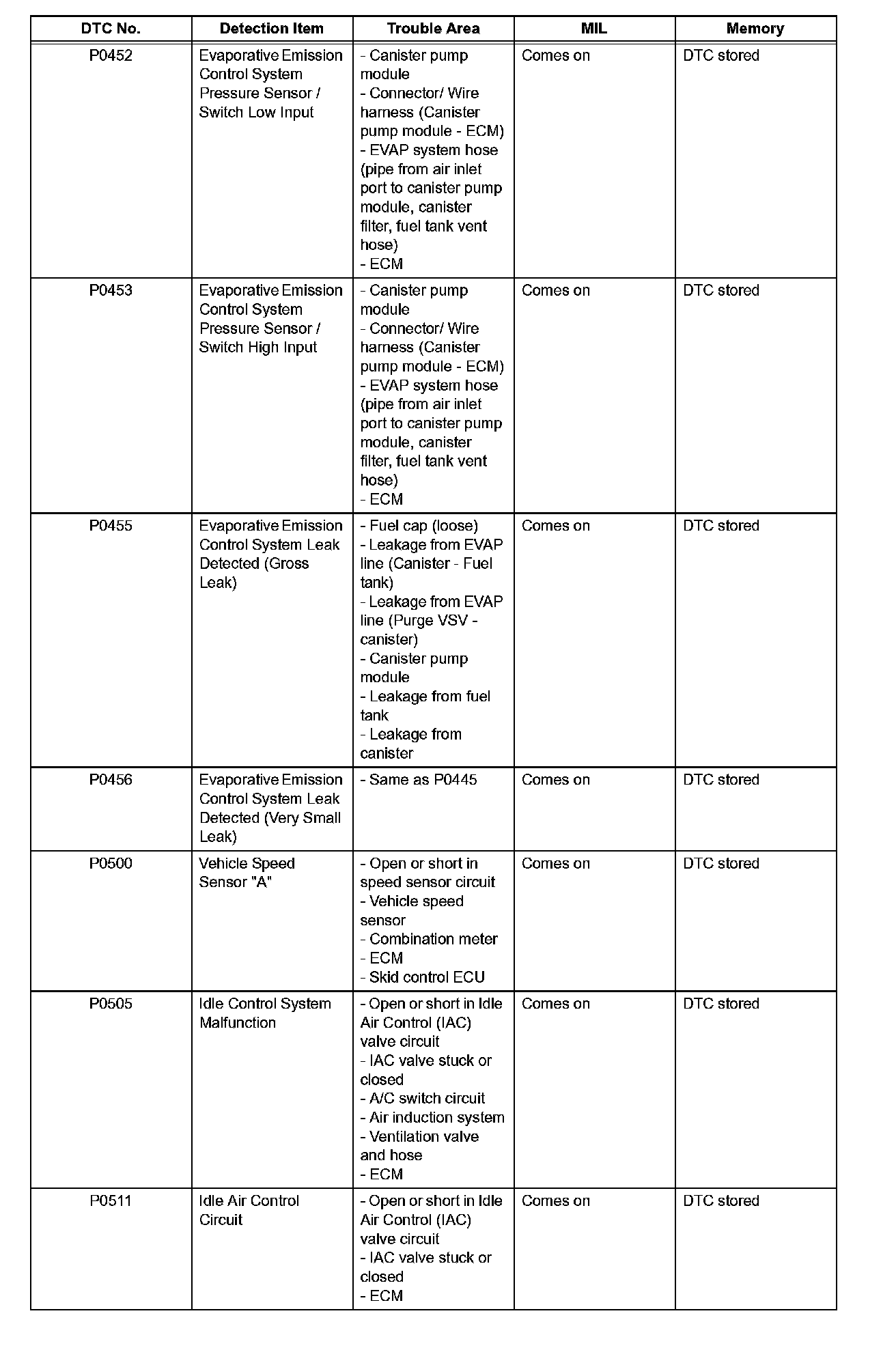

P0452-P0511:

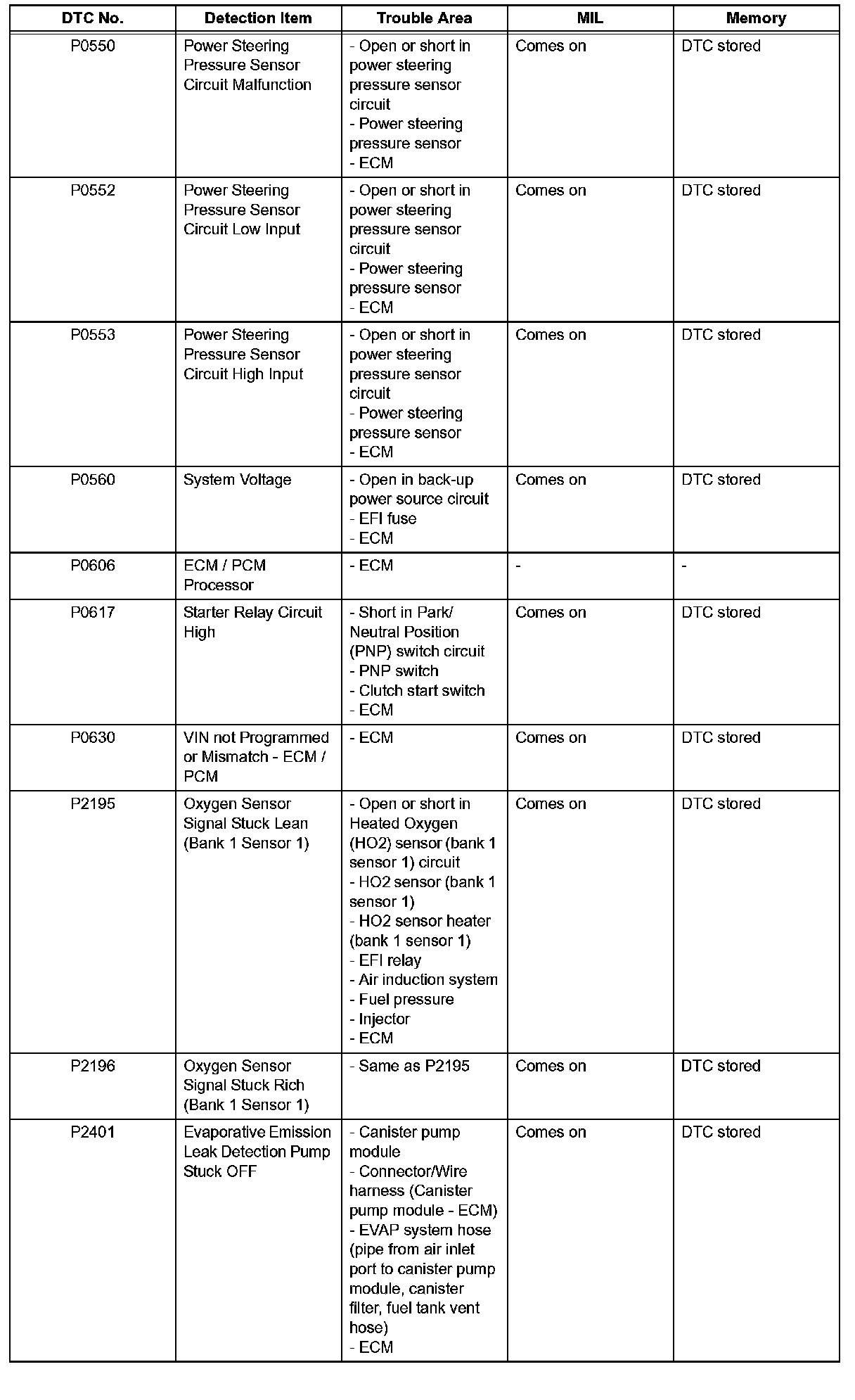

P0550-P2401:

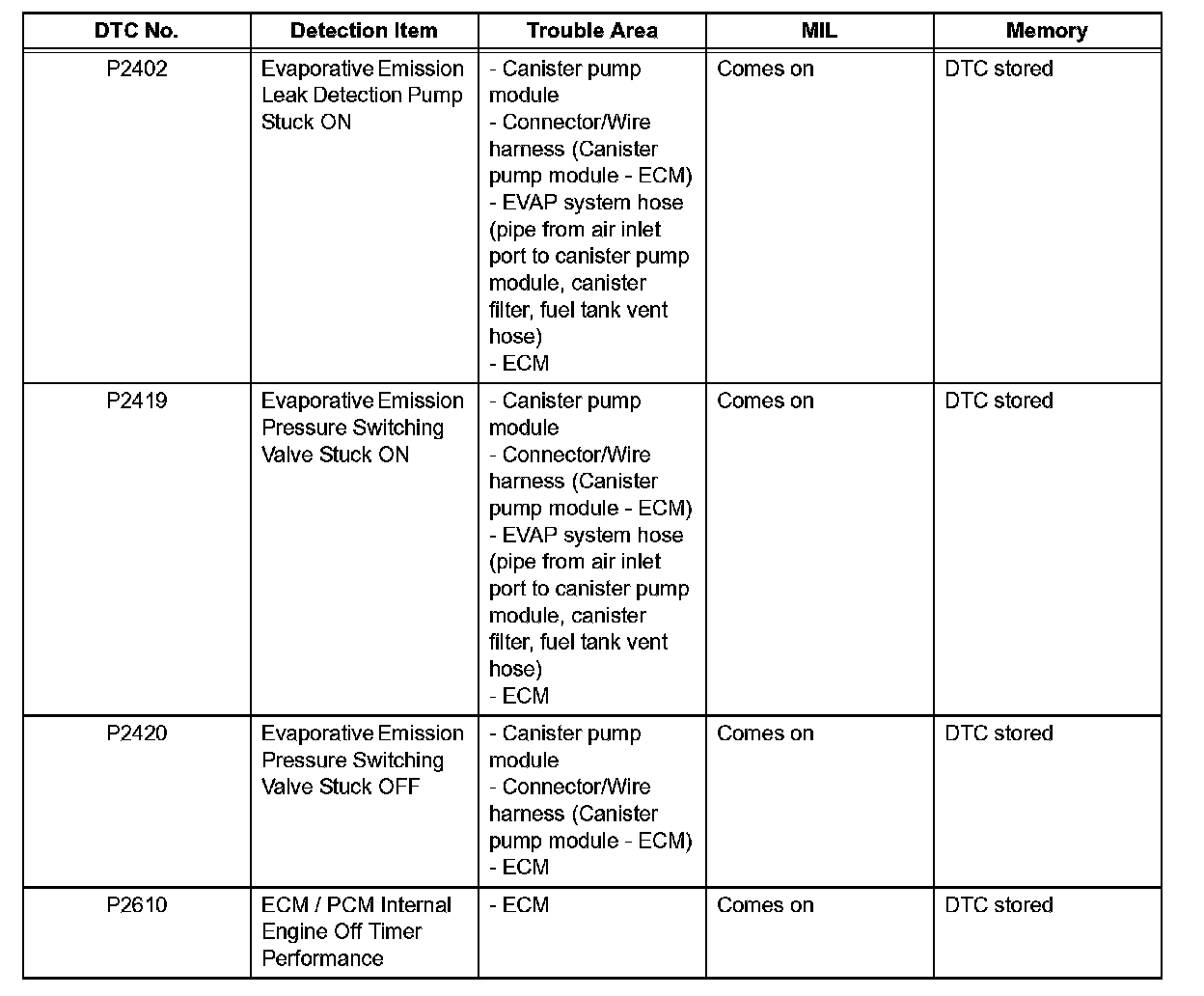

P2402-P2610:

HINT: The parameters listed in the chart are for reference only. Factors such as instrument type may cause readings to differ slightly from stated values. If any DTCs are displayed during a check mode DTC check, check the circuit for the DTCs listed in the table given. For details of each DTC.
