Seat Adjuster Replacement - Front

Seat Adjuster Replacement - Front

Removal Procedure

Caution: Refer to SIR Caution in Cautions and Notices.
1. Remove the front seat. Refer to Seat Replacement - Bucket (Seat Replacement - Bucket) .
2. Remove the front seat cushion. Refer to Seat Cushion Replacement - Front (Seat Cushion Replacement - Front) .
3. Remove the seat adjuster track covers. Refer to Seat Adjuster Track Cover Replacement - Front (Seat Adjuster Track Cover Replacement - Front) .
4. Remove the seat back frame. Refer to Seat Back Frame Replacement - Front (Seat Back Frame Replacement - Front) .
5. Remove the seat back recliners. Refer to Seat Back Recliner Replacement - Front (Power) (Seat Back Recliner Replacement - Front (Power))Seat Back Recliner Replacement - Front (Manual) (Seat Back Recliner Replacement - Front (Manual)) .



Installation Procedure





1. Transfer all remaining seat components to the new adjuster assembly.

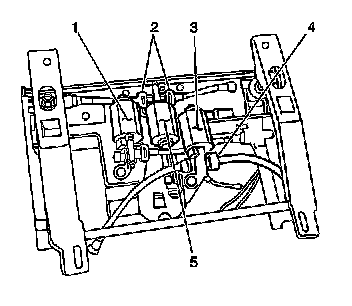

* The seat adjuster motors (1, 3, 5). Refer to Seat Adjuster Motor Replacement (Power Seat Motor) .
* The adjuster cables / sensors (2, 4). Refer to Drive Cable Replacement - Power Seat (Service and Repair) .
* The wiring
* The clips

2. Install the seat back recliners. Refer to Seat Back Recliner Replacement - Front (Power) (Seat Back Recliner Replacement - Front (Power))Seat Back Recliner Replacement - Front (Manual) (Seat Back Recliner Replacement - Front (Manual)) .
3. Install the seat back frame. Refer to Seat Back Frame Replacement - Front (Seat Back Frame Replacement - Front) .
4. Install the front seat cushion. Refer to Seat Cushion Replacement - Front (Seat Cushion Replacement - Front) .
5. Install the front seat. Refer to Seat Replacement - Bucket (Seat Replacement - Bucket) .
