Removal And Installation

FLOOR TRIM

Removal and Installation


REMOVAL


CAUTION:
- When removing, always use a remover tool that is made of plastic.
- Never damage the body.
1.Remove front seat assembly (LH and RH). Removal and Installation.
2.Remove rear seat cushion. Seat Cushion.
3.Remove center console assembly. Removal And Installation.

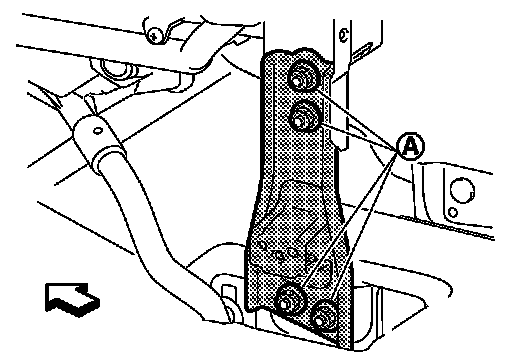

4.Remove instrument stay.





Remove instrument stay mounting nuts (A), and then remove instrument stay.

White arrow indicates : Vehicle front

5.Disconnect drain hose. Removal And Installation.
6.Remove foot ducts (LH and RH). Rear Heater Duct 2
(Models with foot ducts).
7.Remove sift selector assembly
- 6MT models: Removal And Installation.
- CVT models: Removal And Installation.
8.Remove diagnosis sensor unit. Removal And Installation.
9.Remove parking brake lever. Removal and Installation.
10.Remove the inside key antenna (console lower).Console (Models with Intelligent Key system).
11.Remove center pillar lower garnish (LH and RH). Center Pillar Lower Garnish.

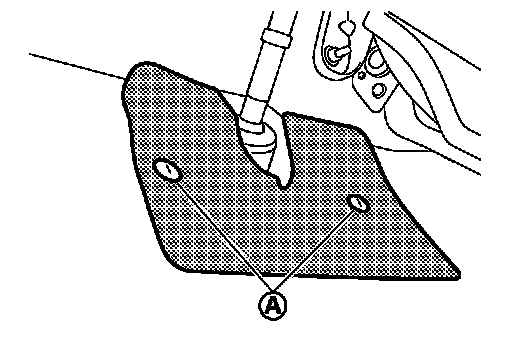

12.Remove column hole cover.





Disengage trim clip (A), and then remove column hole cover.
13.Remove dash side finisher (LH and RH). Dash Side Finisher.

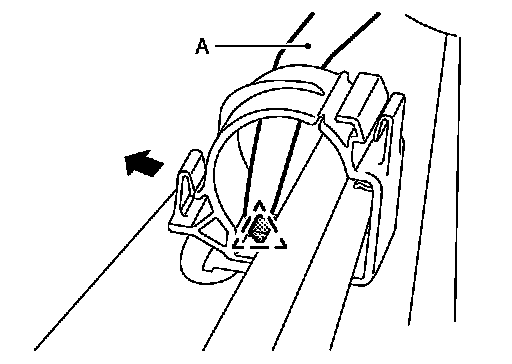

14.Disengage pawl using a remover tool (A) and open the harness clip.

Broken triangle indicates : Pawl

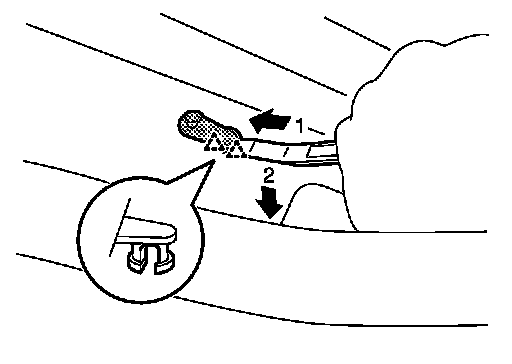

15.Remove floor carpet.
NOTE:





Disengage pawls using a remover tool (A) and remove carpet hook.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:
Replace diagnosis sensor unit fixing bolts with a new part after removal. Never reuse diagnosis sensor unit fixing bolts.
